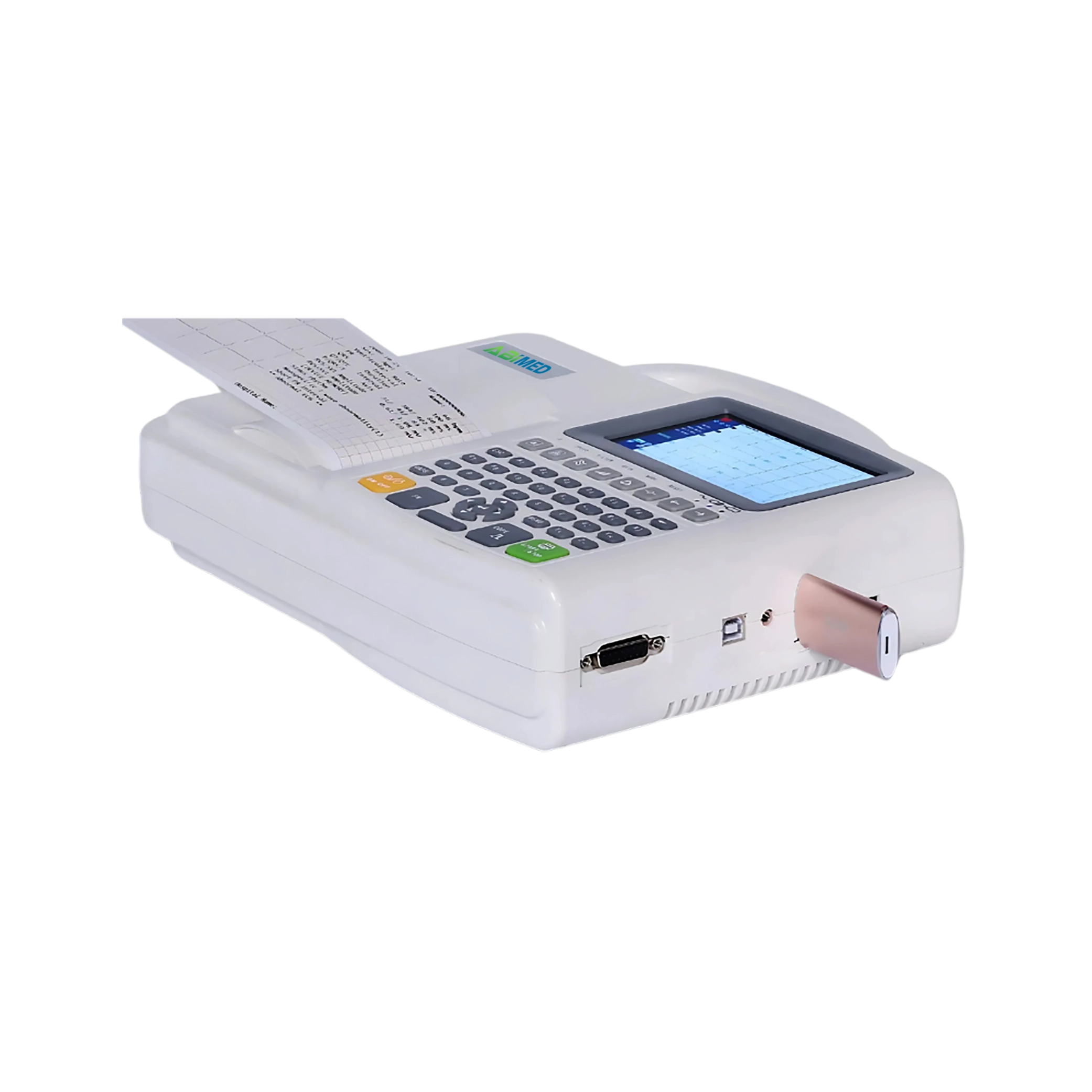

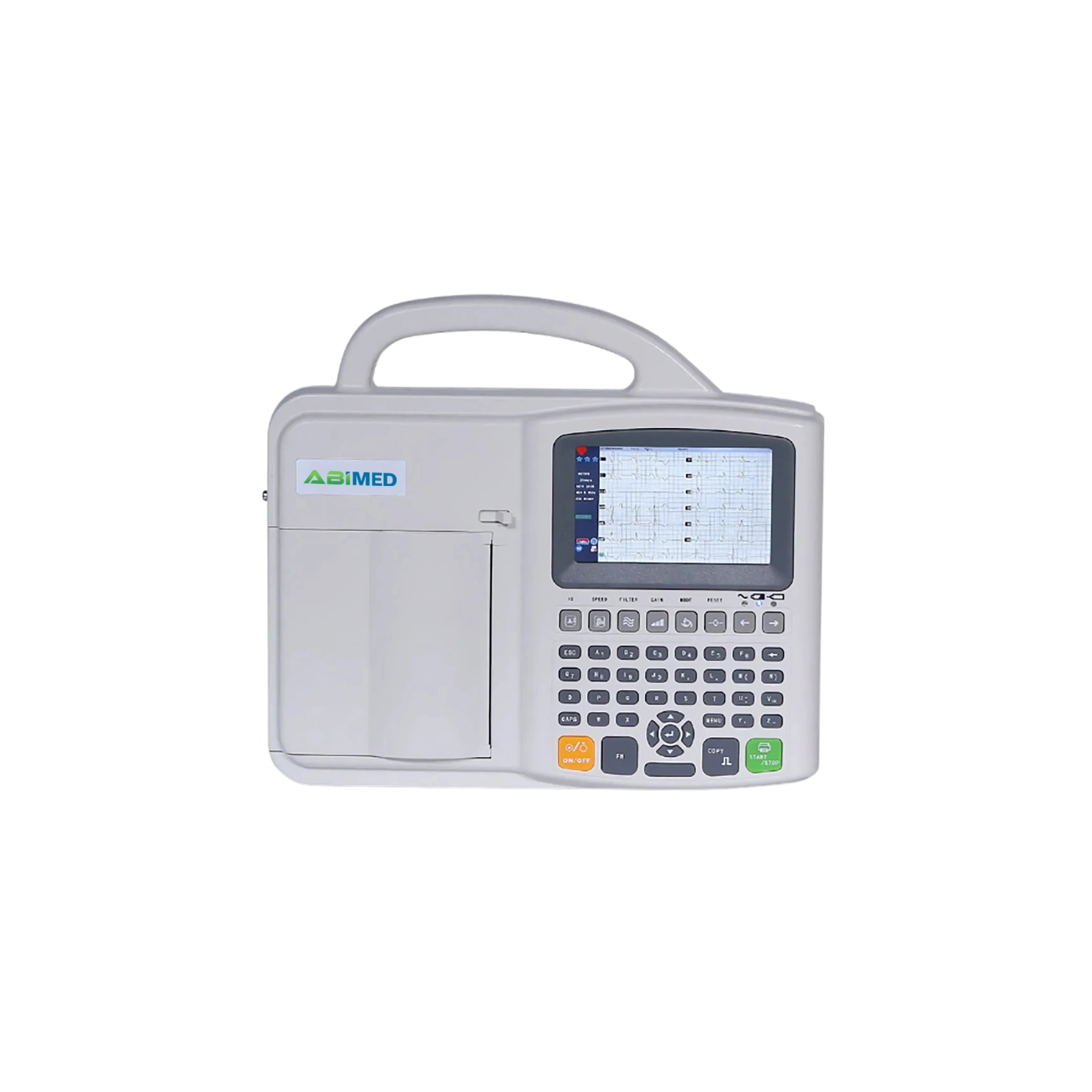

6-Channel Electrocardiograph AM-EGA14 offers clear and accurate results with its high-resolution colour LCD. It performs 12 lead ECG with three different modes i.e. Manual, Auto and Arrhythmia Analysis. The USB disk and SD memory make it convenient for the transmission and accessibility of patient's data.
Catalog
| Acquisition Mode | Simultaneous 12 leads acquisition |
|---|---|
| Measurement Range | 1 ~ 5 mVp-p |
| Time Constant | ≥ 3.2s |
| Frequency Response | 0.05Hz ~ 150Hz |
| Sensitivity | 10 mm/mV(Auto), 2.5, 5, 10, 20 mm/mV |
| Input Impedance | ≥ 50 MΩ |
| Input Circuit Current | ≤ 0.1 µA |
| Noise Level | < 15 µVp-p |
| Anti-baseline Drift | Automatic |
| Patient Current Leakage | < 10 µA |
| CMRR | ≥ 100dB |
| Filter | AC Filter EMG Filter Anti-drift filter |
| Recording Method | Thermal Printing |
| Recording Paper Dimension | 112 mm x 20 m |
| Paper Speed | 6.25, 12.5, 25, 50 mm/s; ± 3% |
| Safety Standard | Class I, type CF and defibrillation-proof applied part |
| Input Circuit | Floating and defibrillation protection |
| Sample Rate | 1000 Hz |
| Power Supply | AC 220V; ±10%, 50Hz; ± 1Hz, Power ≤60VA AC 85 ~ 265V, 50/60Hz DC 14.8V (2000mAh), Rechargeable Li-ion battery |
| Unit Dimension | 310 x 270 x 73 mm |
| Unit Weight | 1.75 kg (with battery) |
Lead cable Limb electrodes Chest electrodes Thermal recording paper A power cord
It is mainly used by health professionals in hospitals and Research centers to detect the Atrial fibrillation, bradycardia, tachycardia, normal heart rhythm and certain arrhythmias that are the leading indicators of cardiovascular diseases.
