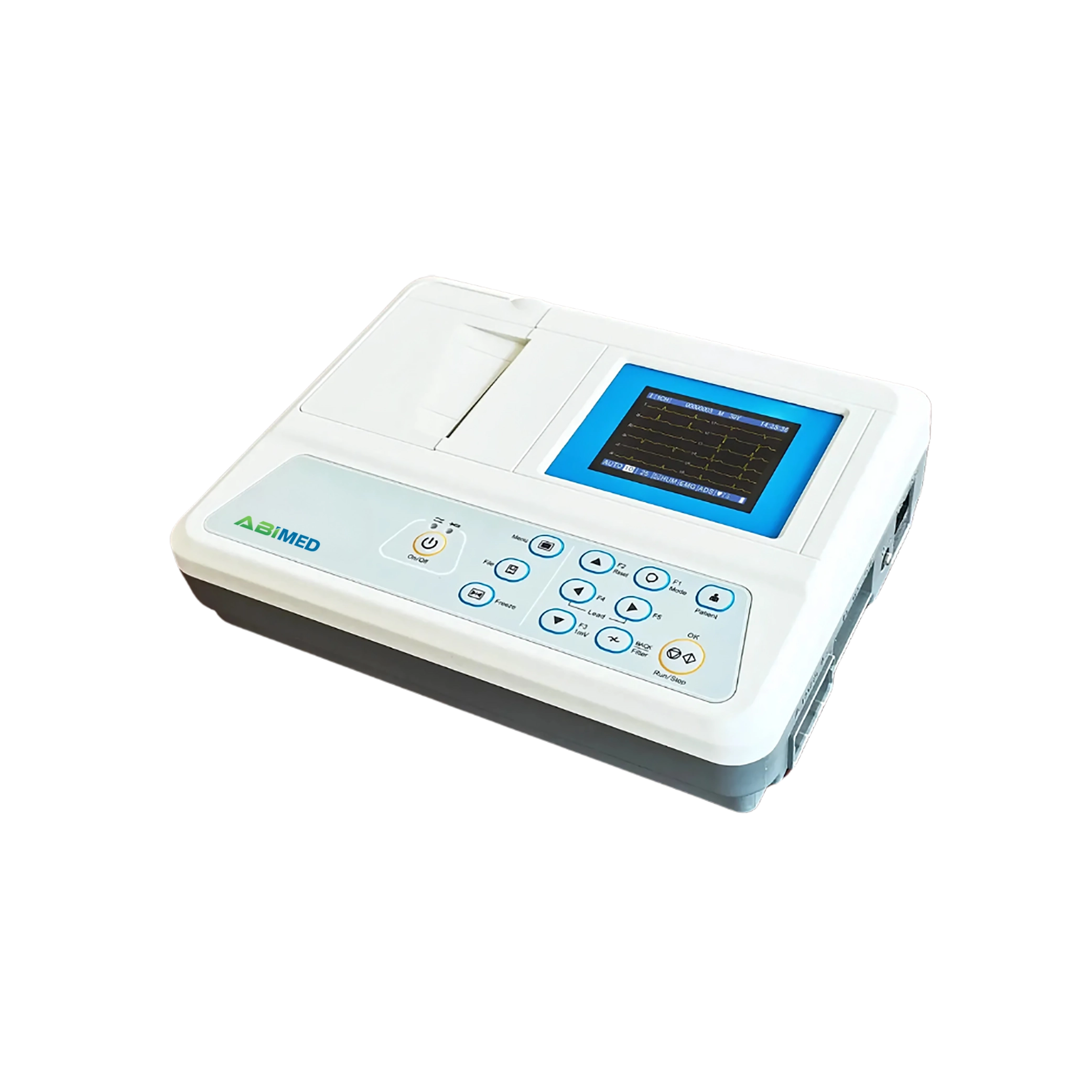

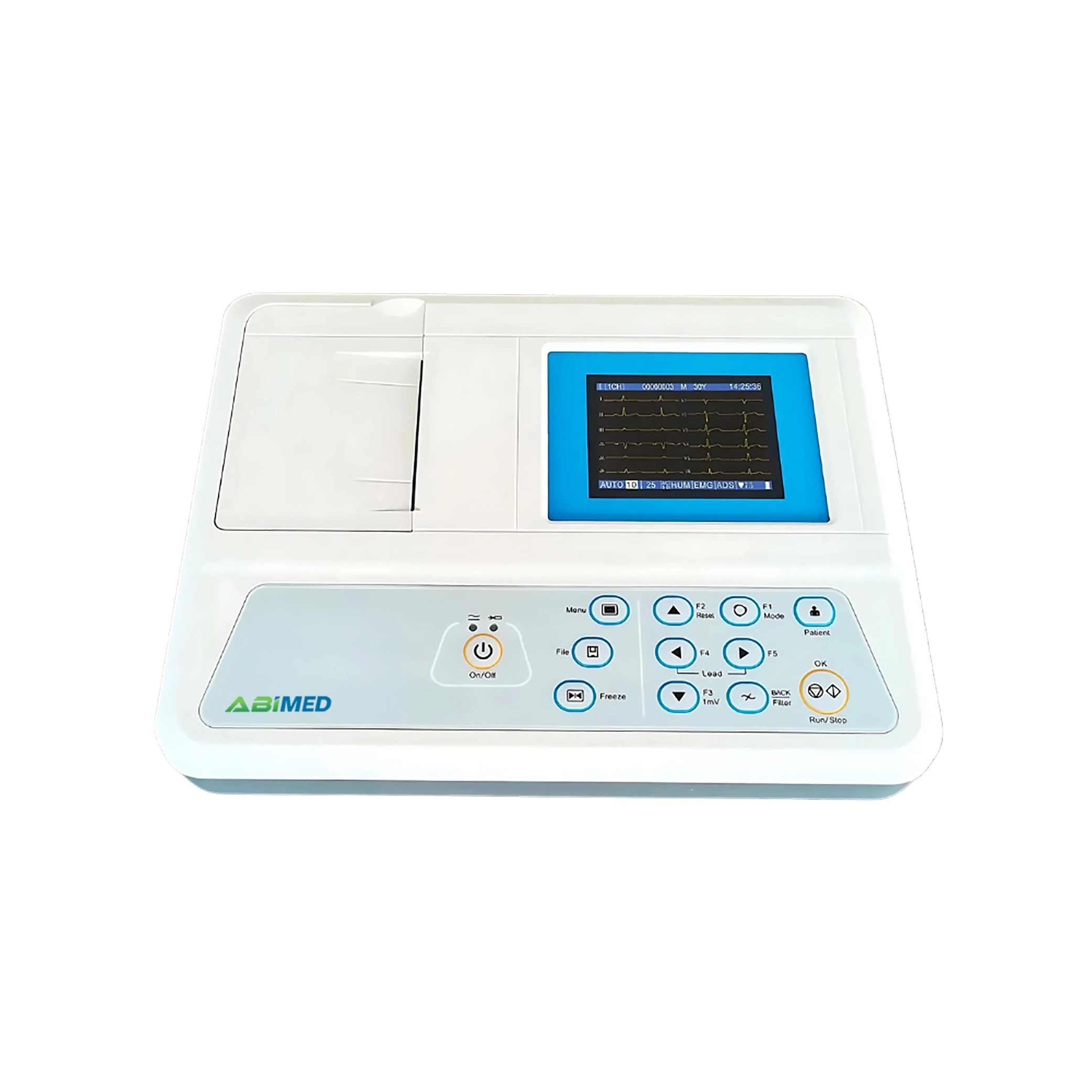

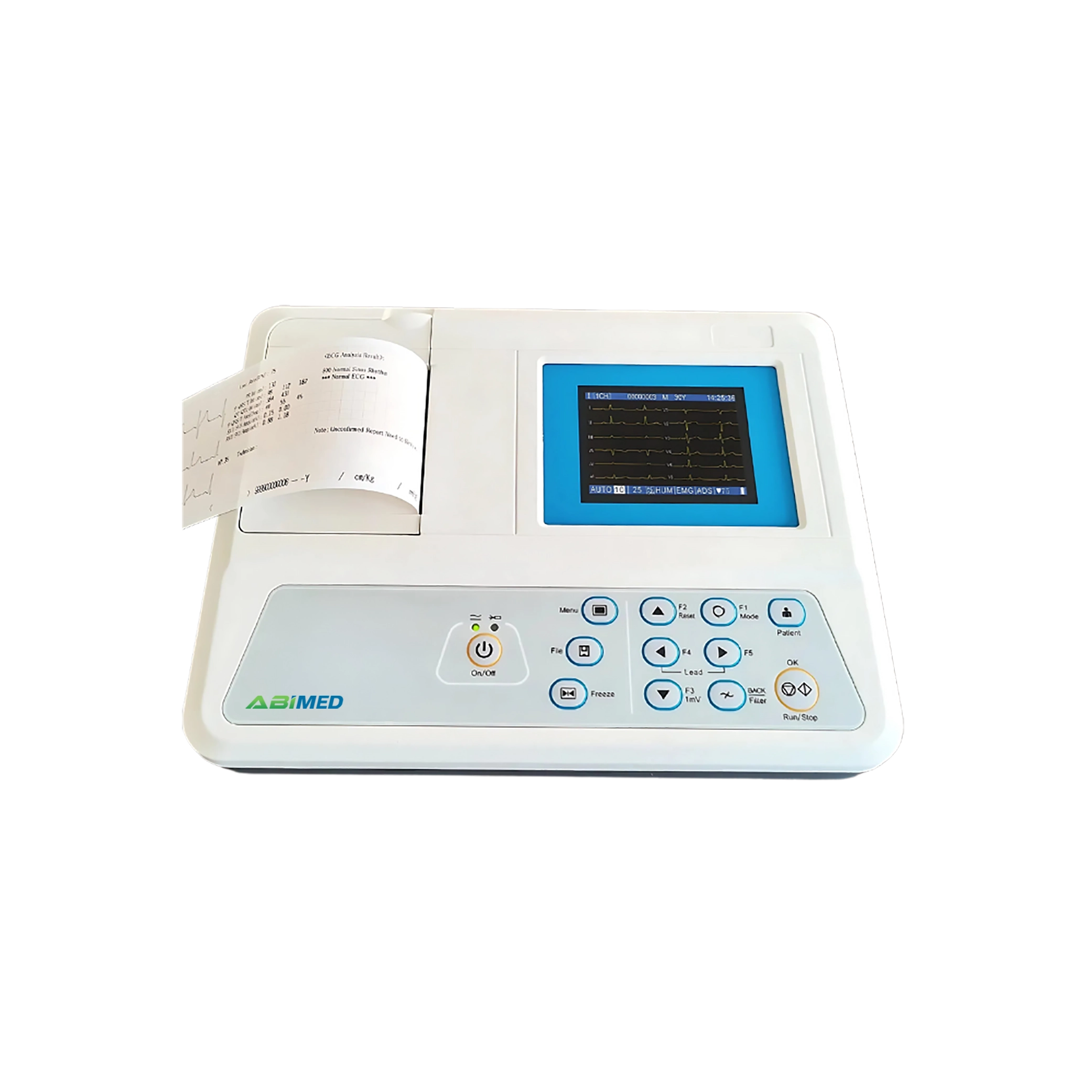

3-Channel Electrocardiograph AM-EGA15

3-Channel Electrocardiograph AM-EGA15 offers clear and accurate results with its high-resolution colour LCD. It performs 12 lead ECG with three different modes i.e. Manual, Auto and Arrhythmia Analysis. The USB disk and SD memory make it convenient for the transmission and accessibility of patient's data.

Catalog
Specifications
Acquisition Mode Simultaneous 12 leads acquisition
Measurement Range 1 ~ 5 mVp-p
Time Constant ≥ 3.2s
Frequency Response 0.05Hz ~ 150Hz
Sensitivity 2.5, 5, 10, 20 mm/mV
Input Impedance ≥50 MΩ
Input Circuit Current ≤ 0.05 µA
Noise Level < 15 µVp-p
Anti-baseline Drift Automatic
Patient Current Leakage < 10 µA
CMRR ≥ 120dB, with AC filter
Filter AC Filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
Recording Method Thermal Printing
Recording Paper Dimension 80 mm x 20 m
Paper Speed 6.25, 12.5, 25, 50 mm/s; ± 3%
Safety Standard Class II CF applied part, there is defibrillation and pacing protection circuit in it.
Input Circuit Floating and defibrillation protection
Sample Rate 100 Hz
Power Supply Built in Rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Unit Dimension 338 x 280 x 85 mm
Unit Weight 3.5 kg
Features
Standard Accessories

Patient cable 1 set
Limb electrode 1 set
Chest electrodes 1 set
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
2 Fuse
3-cord power cord 1 set
AC Adaptor 1 set

Applications

It is mainly used by health professionals in hospitals and Research centers to detect the Atrial fibrillation, bradycardia, tachycardia, normal heart rhythm and certain arrhythmias that are the leading indicators of cardiovascular diseases.
