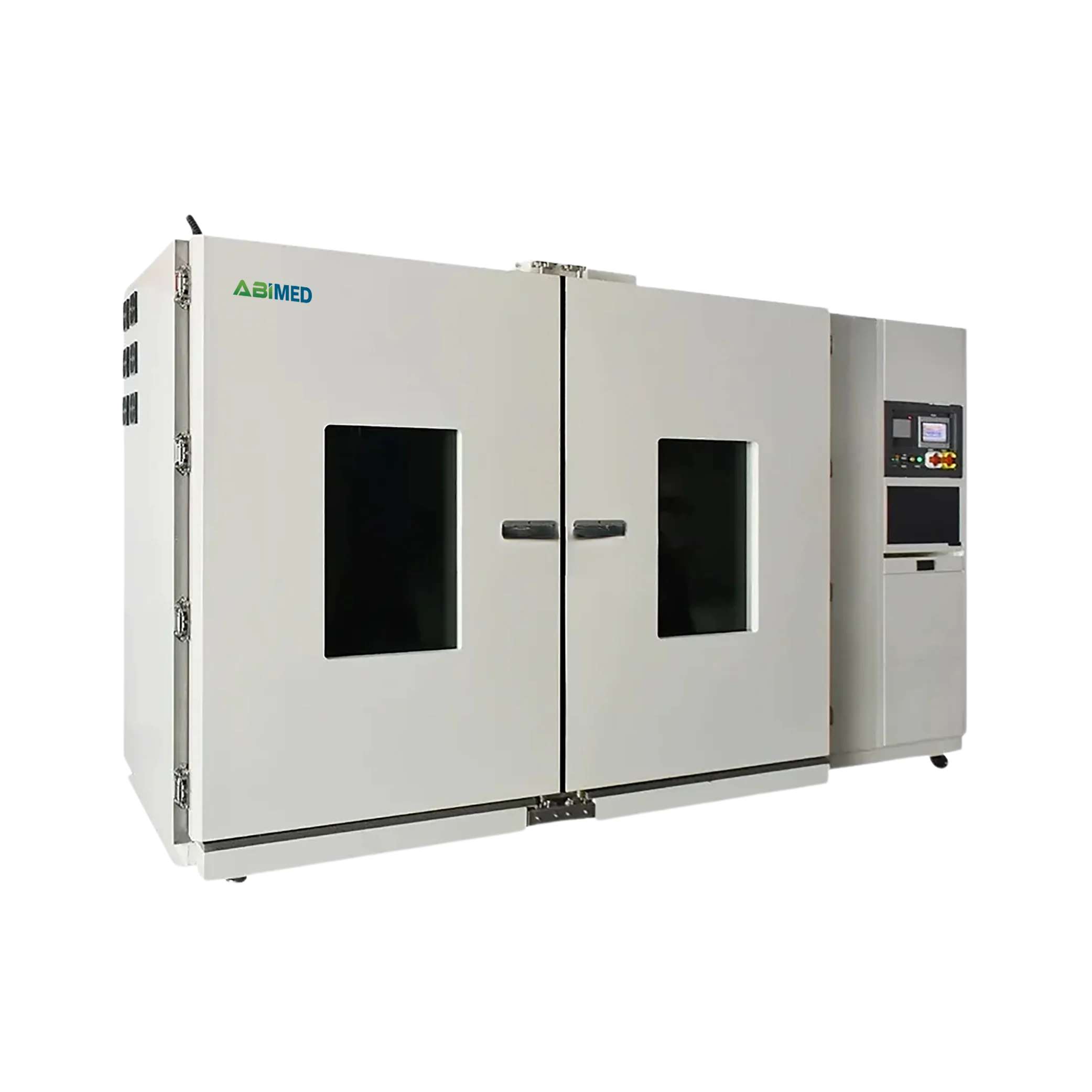

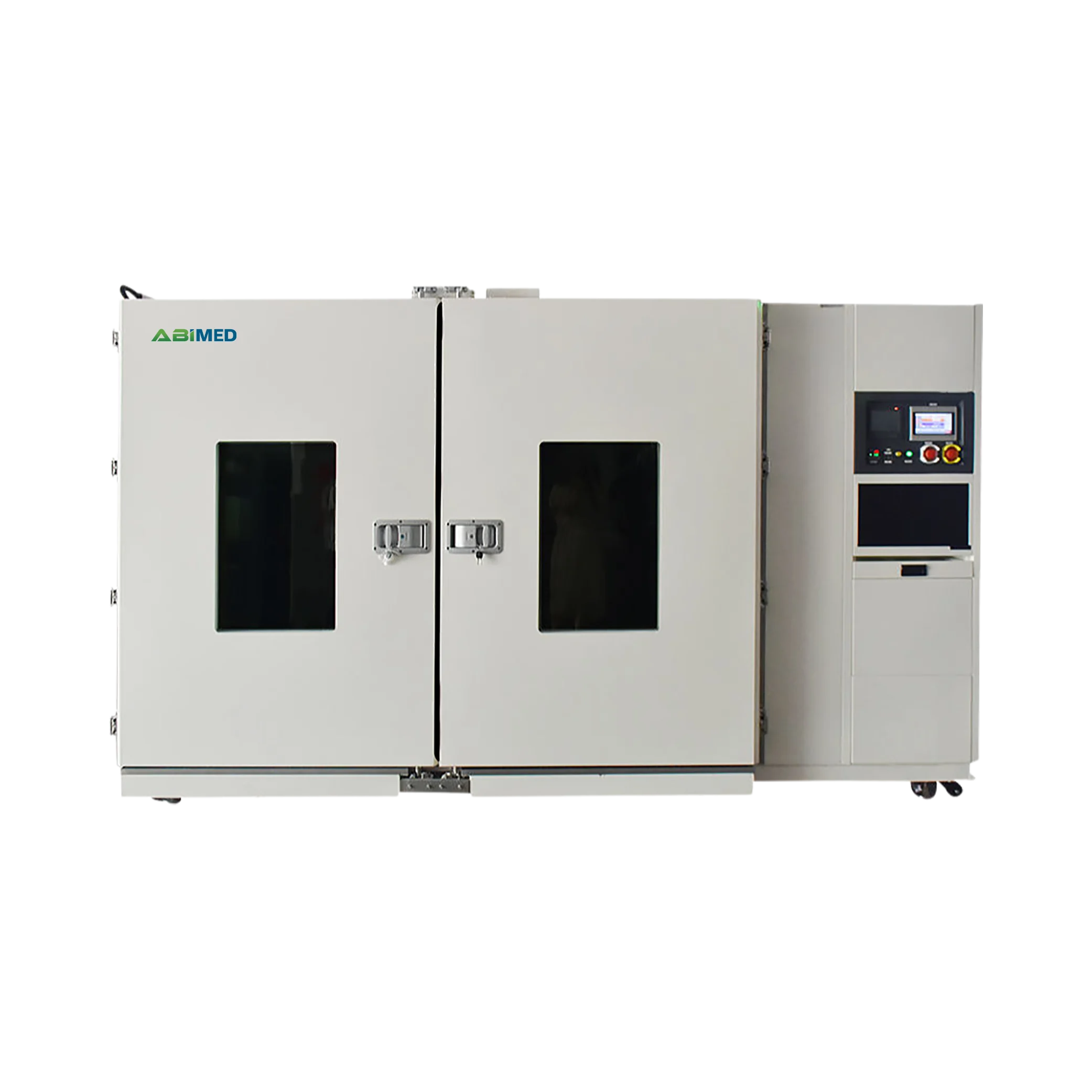

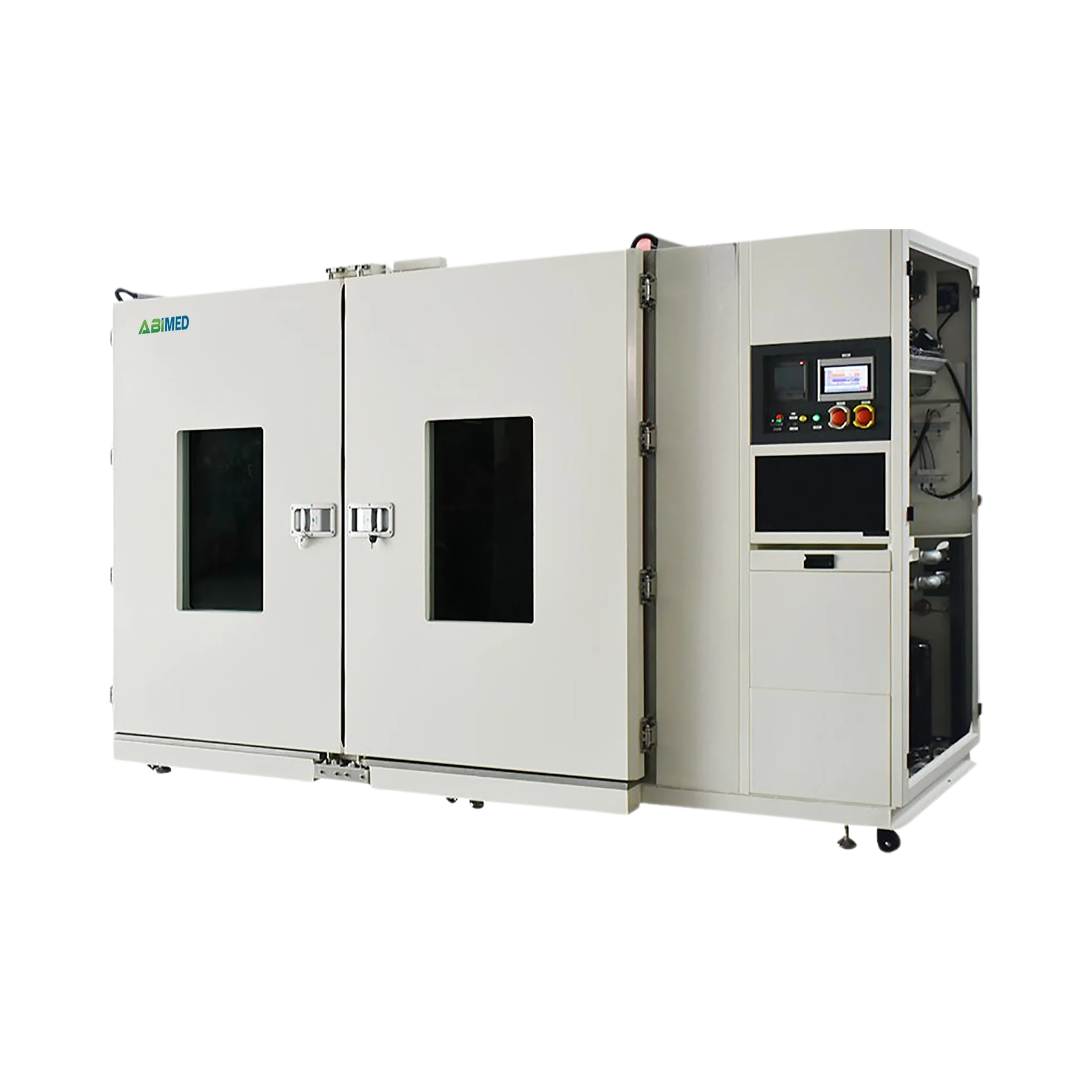

Temperature and Humidity Tester AM-THA10

Temperature and Humidity Tester AM-THA10 offers a wide control range from 0°C to 100°C for precise environmental reliability testing. It delivers a humidity range of 20 % RH to 98 % RH for consistent and precise testing. Built with a stainless-steel inner chamber and insulated design to ensure stable operation. Integrated with a TFT LCD controller for simple use, live monitoring, and efficient data storage. Our Temperature and Humidity Tester ensure reliable testing in hospitals, labs, pharmaceutical facilities, and material industries.

$19550
Temperature Range 0° C to 100° C
Temperature Uniformity ≤ ± 2.0° C
Temperature Fluctuation ≤ ± 0.5° C
Temperature Deviation ≤ ± 2.0° C
Temperature Accuracy 0.01° C Analytical Resolution
Heat-Up Time from 0°C To 100°C within 35 Min (No Load)
Cool-Down Time from + 20° C To 0° C within 30 min (No Load)
Humidity Range 20 % RH To 98 % RH
Humidity Deviation ± 5.0 % RH ( ≤ 75%Rh ), ± 3.0 % RH ( >75 % Rh)
Humidity Uniformity ± 3.0 % RH
Humidity Fluctuation ± 2.0 % RH
Controller 7-Inch TFT LCD, PID Control, Programmable
Data Storage USB Support, up to 90 Days Curve Memory, 10 Years Data
Safety Features Over-Current, Over-Temperature, Low-Water, Compressor Protection
Inner Material Sus # 304 Stainless Steel, 1.0 mm Thickness
Insulation Material Polyurethane Foam + Glass Fiber, 100 m Thickness
Outer Material Powder-Coated Carbon Steel, 1.2 mm Thickness
Power Supply Ac 380v, 3-Phase, 50 / 60 Hz, 15 kW Installed Power
Workspace Dimensions 1500 × 1400 × 800 mm
External Dimensions 1700 × 1700 × 1900 mm
Packaging Dimensions 1900 × 1900 × 2200 mm
Net Weight 16 Kg
Gross Weight 20 Kg
  • Stable precision control system
  • Advanced multi-layer safety protection
  • Efficient energy-saving design
  • Automatic intelligent water management
  • Reliable temperature and humidity range
  • Our Temperature and Humidity Tester AM-THA10 is applied in hospitals, labs, pharmaceutical facilities, electrical, electronic, automotive, aerospace, and materials industries for high / low temperature tests, dry heat tests, and damp heat reliability testing.

Accessory

Quantity

Stainless Steel Shelves (30 kg Each)

3 sets

Cable Access Port Ø100 mm (One on Each Side)

Viewing Window with LED Light

1

Water Receiving Tray (Door)

1

Internal Water Storage Bucket (21 L)

Water Supply Device (Pump, Auto Refill)

1 set

Condensate Water Outlets (Workspace & Refrigeration)

Mobility Casters with Levelling Feet

4

Electronic Humidity Sensor (Vaisala)

1

Heater (Nichrome Wire, SSR Control)

1

Humidifier With Heater & Protection

1

Safety Protection Switches (Heater, Humidifier, Compressor, Circuit Breakers)

1 set

Accessory

Quantity

180°C Temperature Upgrade

1

Pure Water Machine (for Water Supply)

1

Rs-232 / Rs-485 / Ethernet

1

U-Disk Storage Card (1g to 8g)

1

Network Connection System

1

Additional Software (Windows Xp / 7 / 8 Support)

1
