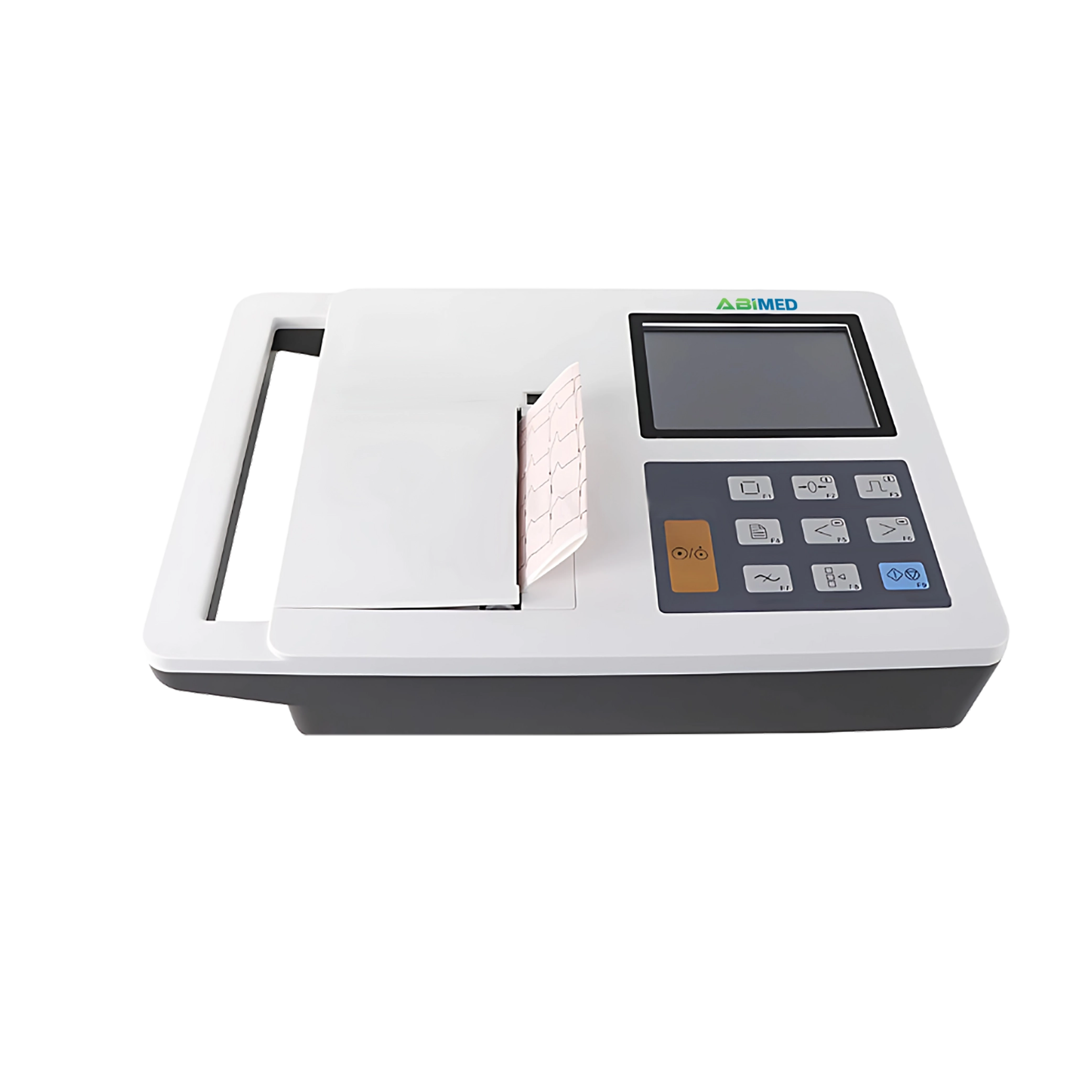

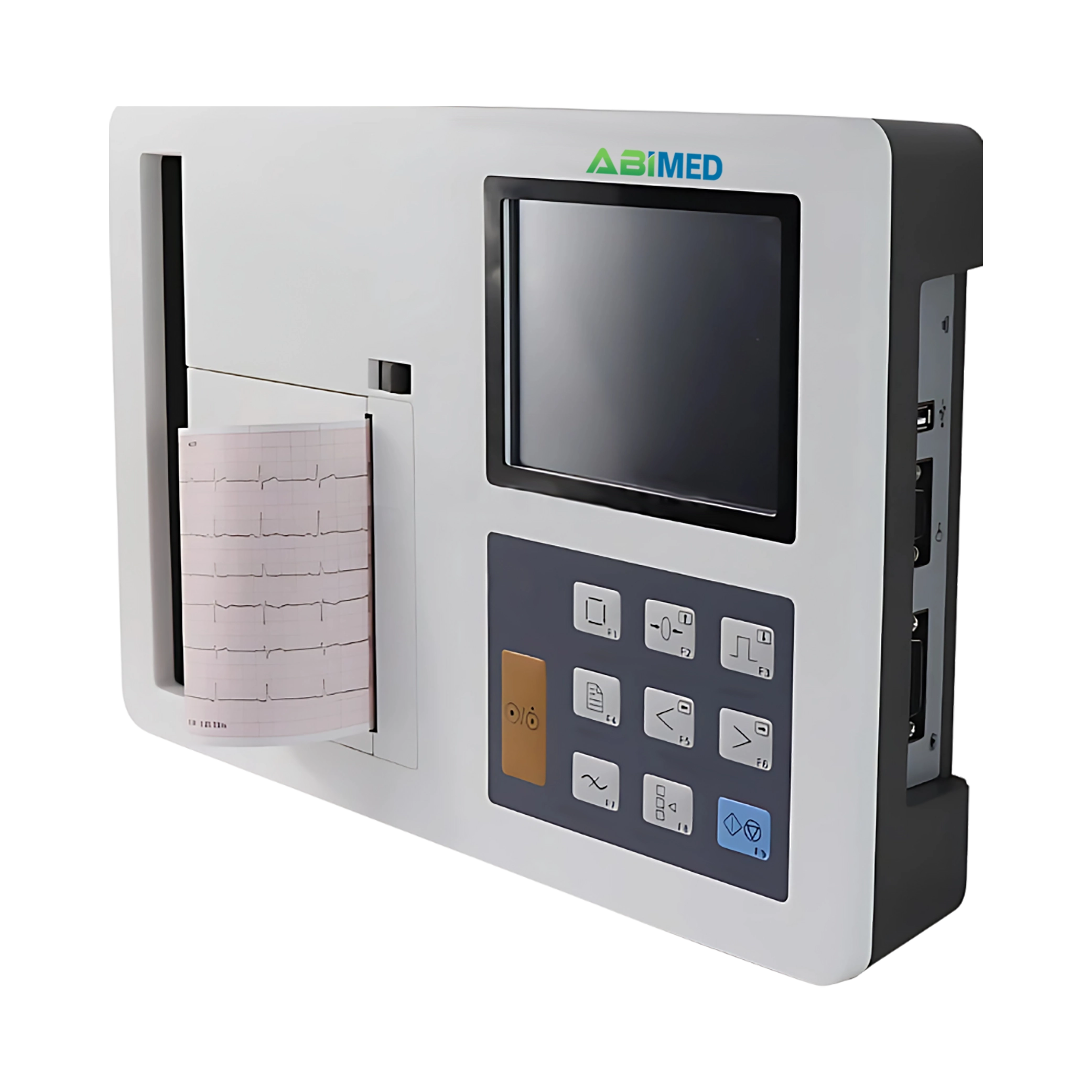

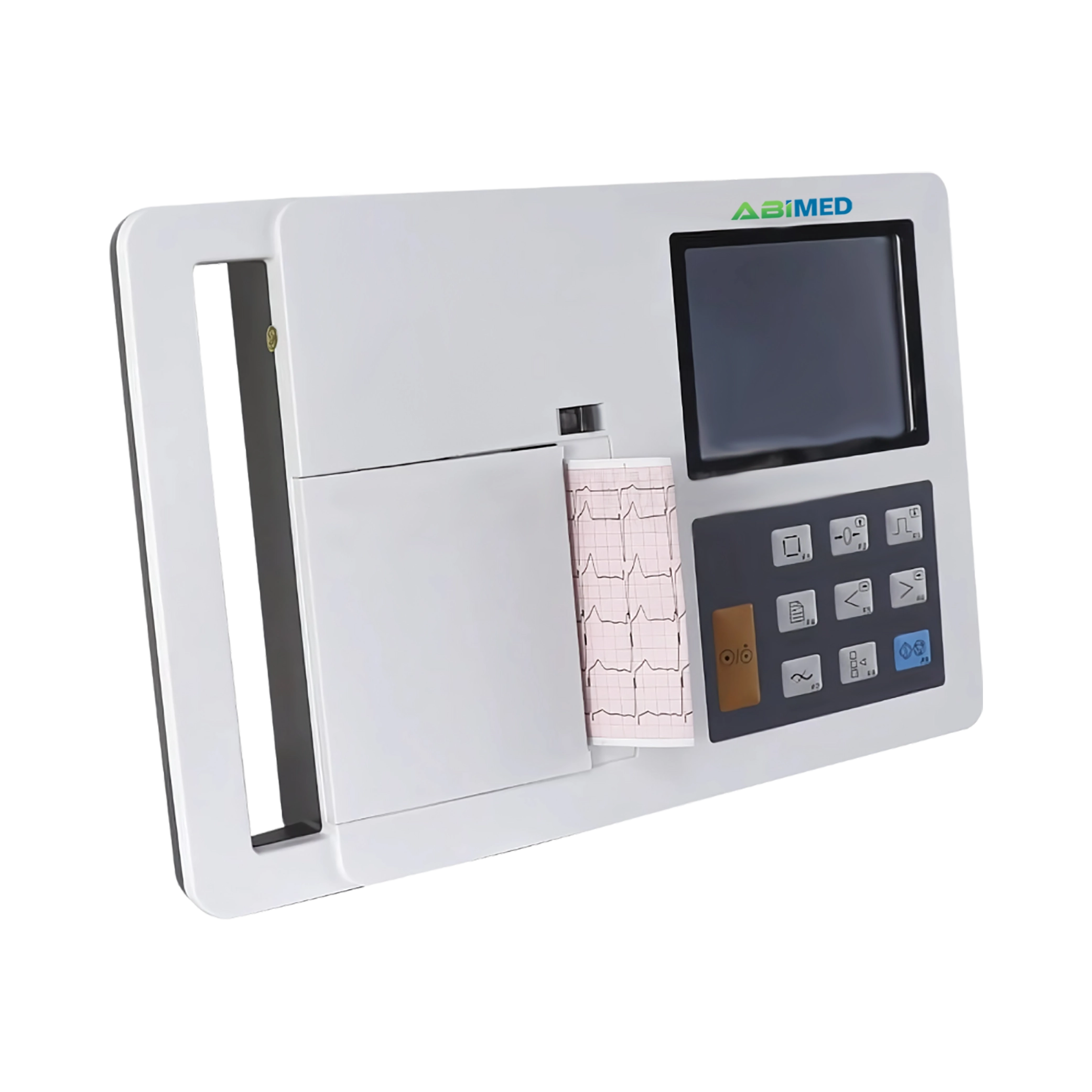

3-Channel Electrocardiograph AM-EGA16 offers clear and accurate results with its high-resolution colour LCD. It performs 12 lead ECG with three different modes i.e. Manual, Auto and Arrhythmia Analysis. The USB disk and SD memory make it convenient for the transmission and accessibility of patient's data.
Catalog
| Acquisition Mode | Simultaneous 12 leads acquisition |
|---|---|
| Measurement Range | 1 ~ 5 mVp-p |
| Time Constant | ≥ 3.2s |
| Frequency Response | 0.05Hz ~ 150Hz |
| Sensitivity | 5, 10, 20 mm/mV |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | ≤ 0.1 μA |
| Noise Level | < 15 µVp-p |
| Anti-baseline Drift | Automatic |
| Patient Current Leakage | < 10 µA |
| CMRR | ≥ 100dB, with AC filter |
| Filter | AC Filter EMG Filter Anti-Drift Filter |
| Recording Method | Thermal Printing |
| Recording Paper Dimension | 80 mm x 20 m |
| Paper Speed | 12.5, 25, 50 mm/s; ± 3% |
| Safety Standard | Class II CF applied part, there is defibrillation and pacing protection circuit in it. |
| Input Circuit | Floating and defibrillation protection |
| Sample Rate | 1000 Hz |
| Power Supply | Adaptor 100-240V, 50/60Hz AC power supply Built-in Rechargeable Li-ion battery 11.1V (4000mAh) |
| Unit Dimension | 360 x 250 x 68 mm |
| Unit Weight | 3 kg |
1 Roll Thermal Printer 1 set Chest Leads 1 set Limb leads 1 Power cord
It is mainly used by health professionals in hospitals and Research centers to detect the Atrial fibrillation, bradycardia, tachycardia, normal heart rhythm and certain arrhythmias that are the leading indicators of cardiovascular diseases.
Electrocardiographs are diagnostic devices designed to monitor and record the electrical activity of the heart. Perfect for use in medical clinics, hospitals, and outpatient settings, this compact and easy-to-use ECG provides accurate, real-time heart rhythm data. They are Perfect for both routine heart checkups and emergencies, the ECG offers fast, reliable, and precise results, helping doctors provide the best care for their patients. Whether used in a busy hospital or a private practice, this ECG is an essential tool for heart health diagnostics.
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
