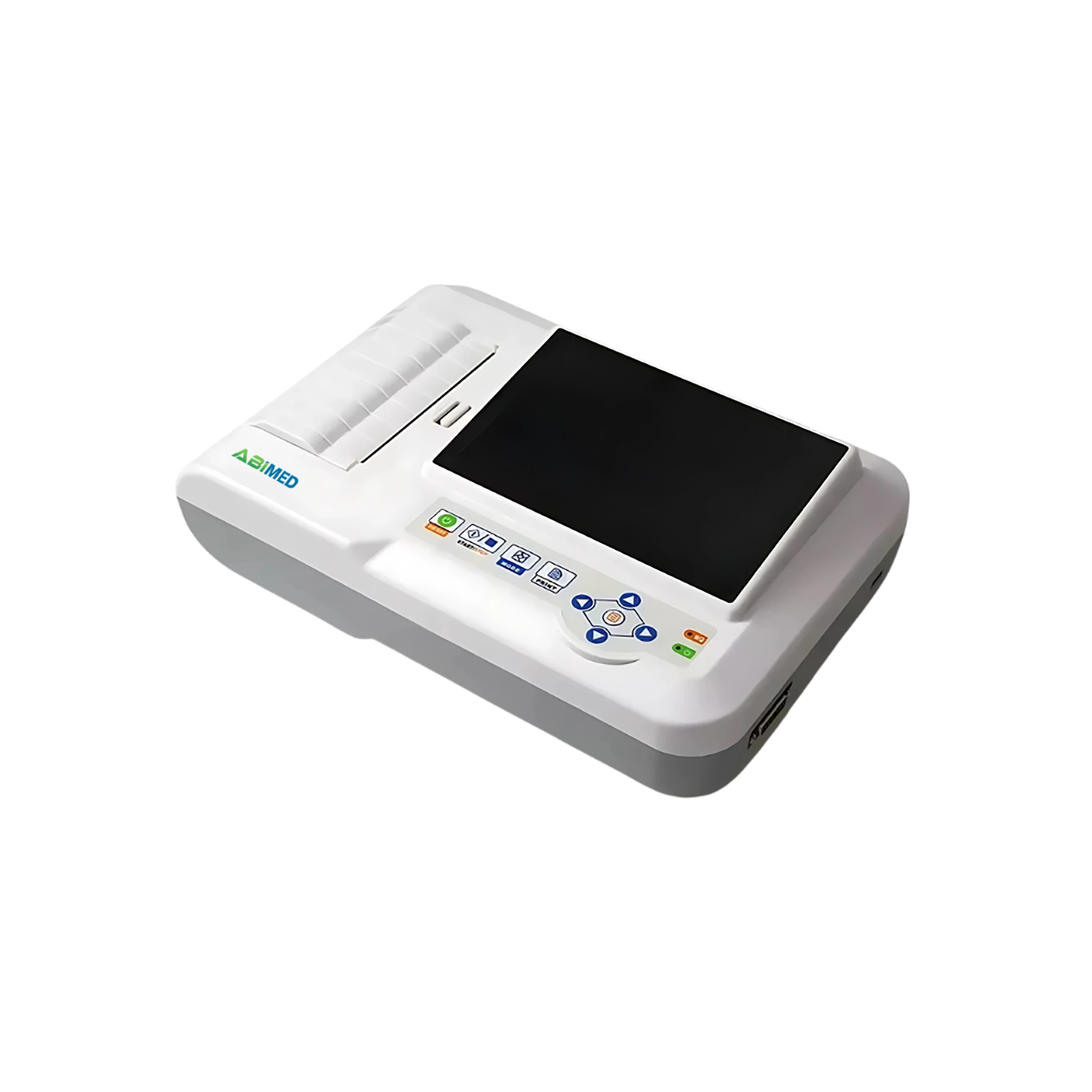

12-Channel Electrocardiograph AM-EGA11

12-Channel Electrocardiograph AM-EGA11 enables the medical professionals to collect 12-lead ECG signals simultaneously and print the ECG waveform using thermal printing technology. The high resolution touch-screen allows easy and smooth operation. Large memory storage makes it convenient to store the data of the patient and access it in the future.

Catalog

Specifications

Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	1 ~ 5 mV_p-p
Time Constant	≥ 3.2s
Frequency Response	0.05Hz ~ 150 Hz (-3dB ~ +4dB)
Sensitivity	2.5, 5, 10, 20, 40 mm/mV; ±5%
Input Impedance	≥ 50 MΩ
Noise Level	< 15 µV_p-p
Anti-baseline Drift	Automatic
Patient Current Leakage	< 10 µA
CMRR	>100dB
Filter	EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB))
Recording Method	Thermal Printing
Recording Paper Dimension	80 mm x 20 m
Paper Speed	Auto: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s; ± 5 % Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s; ± 5%
Safety Standard	Class I, type CF and defibrillation-proof applied part
Input Circuit	Floating and defibrillation protection
Sample Rate	1000 Hz
Power Supply	AC: 100V ~ 240V, 50 / 60Hz, 30VA ~ 100VA DC: 14.8V / 2200mAh, built-in lithium battery
Unit Dimension	410 x 300 x 200 mm
Unit Weight	4 kg

Features

High-resolution thermal printing system
Real-time and continuous recording of accurate ECG waveform
“Lead off” and “Lack of paper” indication
Time print can be set to every 1/2/3/5/10/20/30/60 minutes
Can store more than 1000 cases
Multi-language interface and report

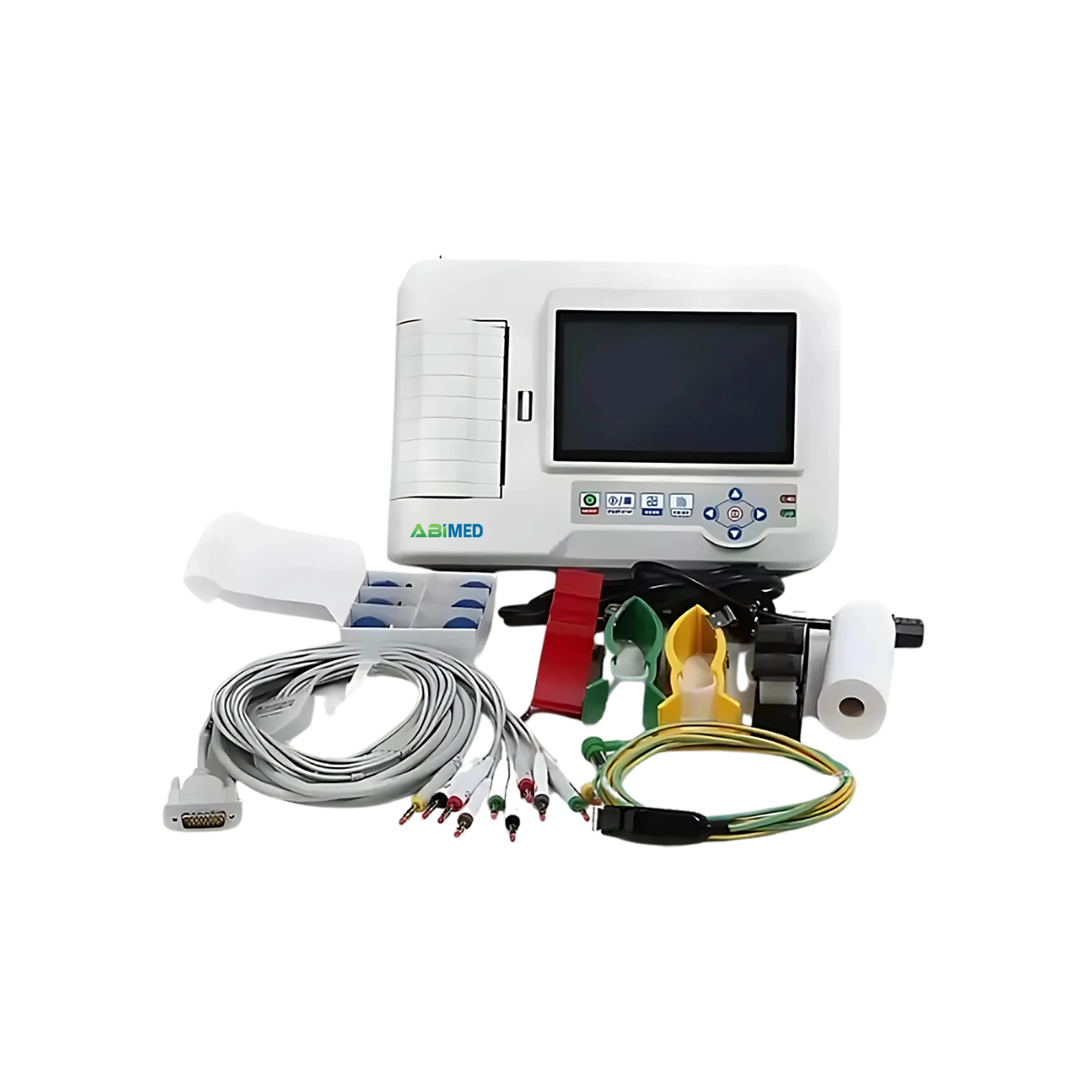

Standard Accessories

Lead cable
Limb electrodes
Chest electrodes
Thermal recording paper
A power cord

Applications

It is mainly used by health professionals in hospitals and Research centers to detect the Atrial fibrillation, bradycardia, tachycardia, normal heart rhythm and certain arrhythmias that are the leading indicators of cardiovascular diseases.
