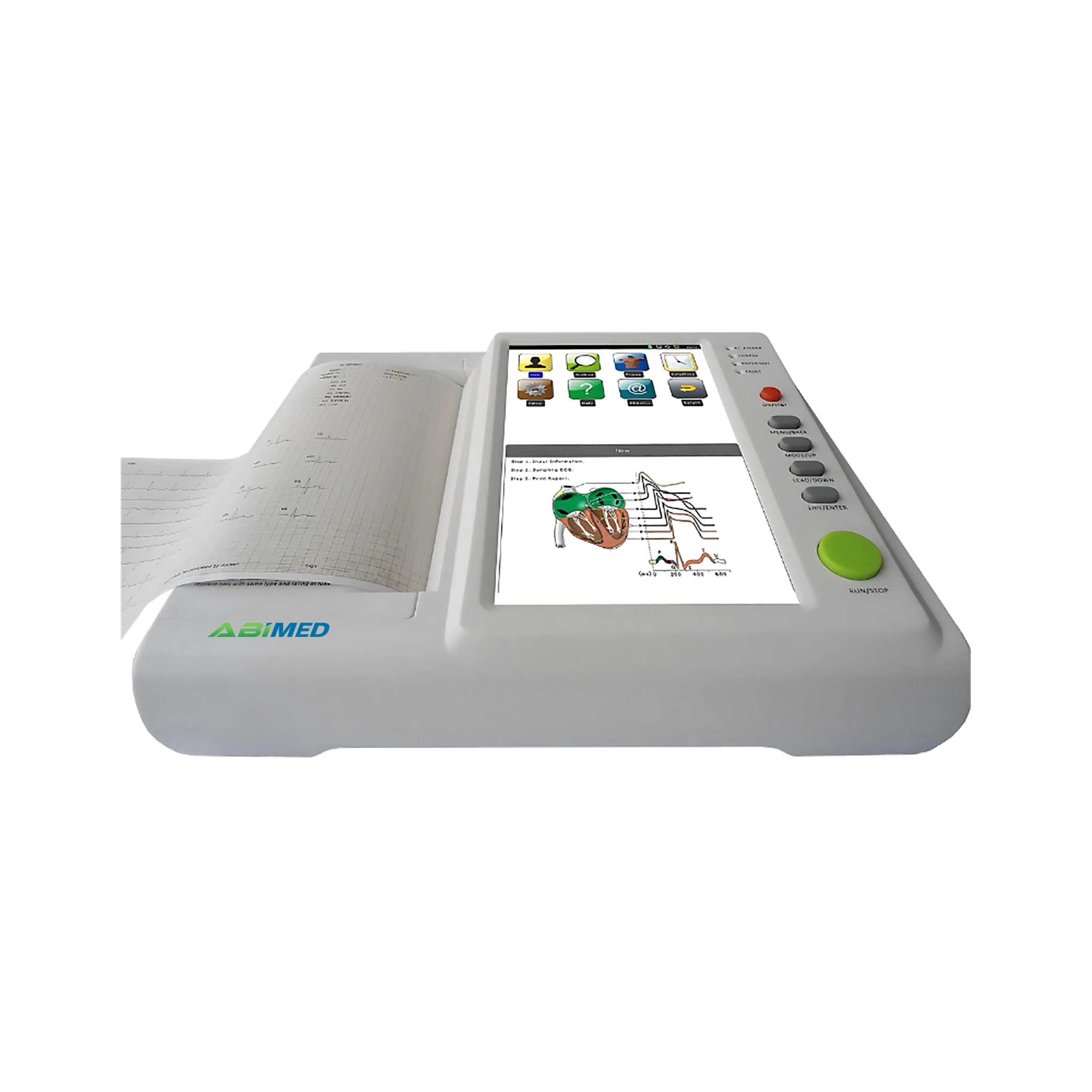

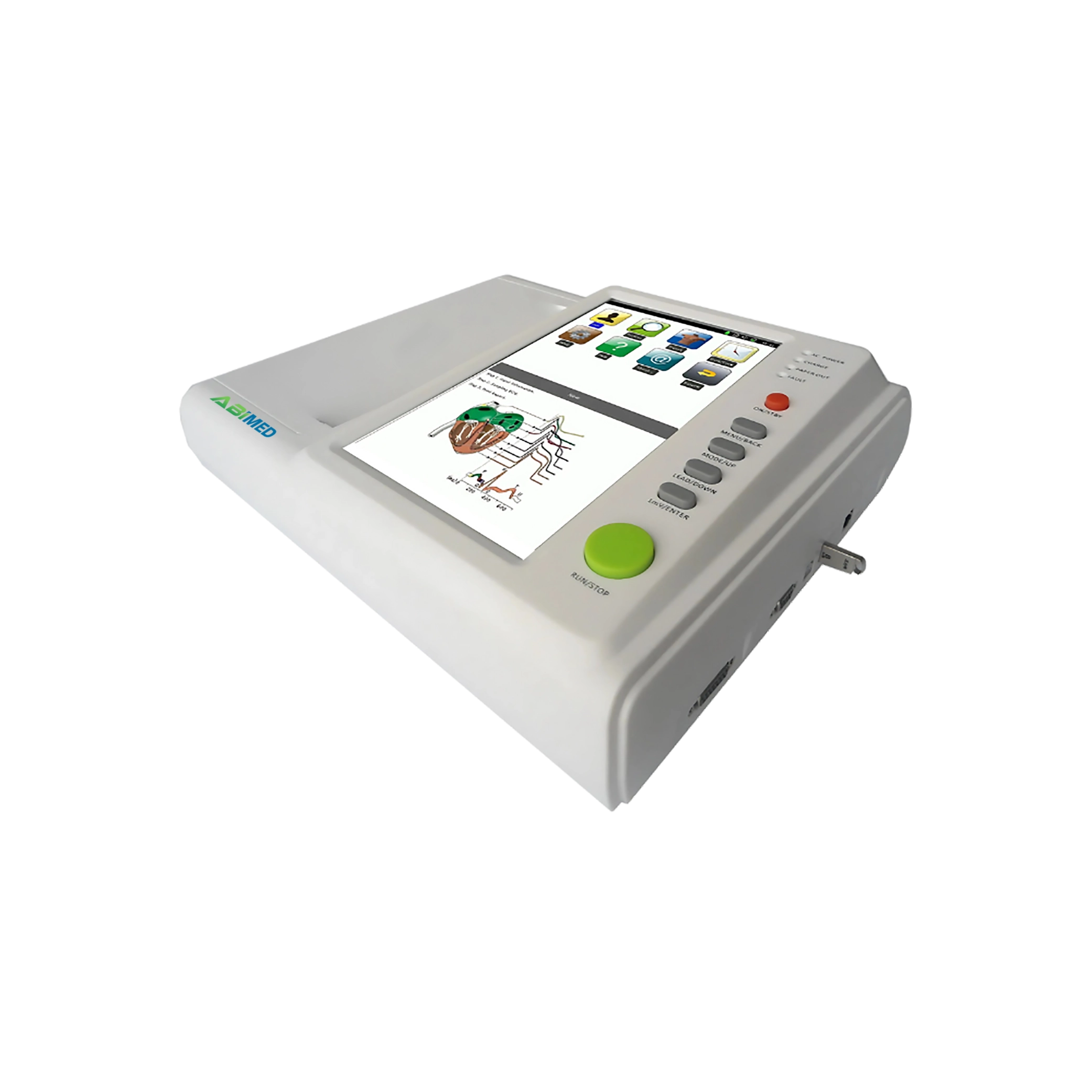

12-Channel Electrocardiograph AM-EGA12 enables the medical professionals to collect 12-lead ECG signals simultaneously and print the ECG waveform using thermal printing technology. The high resolution touch-screen allows easy and smooth operation. Large memory storage makes it convenient to store the data of the patient and access it in the future.
Catalog
| Acquisition Mode | Simultaneous 12 leads acquisition |
|---|---|
| Measurement Range | 1 ~ 5 mVp-p |
| Time Constant | ≥ 3.2s |
| Frequency Response | 0.05Hz ~ 150Hz |
| Sensitivity | 5, 10, 20 mm/mV |
| Input Impedance | >50 MΩ |
| Input Circuit Current | < 0.1 µA |
| Noise Level | < 15 µVp-p |
| Anti-baseline Drift | Automatic |
| Patient Current Leakage | < 10 µA |
| CMRR | > 100dB |
| Filter | AC Filter EMG Filter Anti-Drift filter |
| Recording Method | Thermal Printing |
| Recording Paper Dimension | 216 mm x 20 m |
| Paper Speed | 12.5, 25, 50 mm/s; ± 3% |
| Safety Standard | Class II CF applied part, there is defibrillation and pacing protection circuit in it. |
| Input Circuit | Floating and defibrillation protection |
| Sample Rate | 100 Hz |
| Power Supply | Adapt to 110/220V, 50/60Hz Power supply Built-in lithium battery 14.8V; 4000mAh |
| Unit Dimension | 360 x 250 x 68 mm |
| Unit Weight | 4kg |
Lead cable Limb electrodes Chest electrodes Thermal recording paper A power cord
It is mainly used by health professionals in hospitals and Research centers to detect the Atrial fibrillation, bradycardia, tachycardia, normal heart rhythm and certain arrhythmias that are the leading indicators of cardiovascular diseases.
Electrocardiographs are diagnostic devices designed to monitor and record the electrical activity of the heart. Perfect for use in medical clinics, hospitals, and outpatient settings, this compact and easy-to-use ECG provides accurate, real-time heart rhythm data. They are Perfect for both routine heart checkups and emergencies, the ECG offers fast, reliable, and precise results, helping doctors provide the best care for their patients. Whether used in a busy hospital or a private practice, this ECG is an essential tool for heart health diagnostics.
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | 1 ~ 5 mV<sub>p-p</sub> |
| Time Constant | ≥ 3.2s |
