Feeding Pump AM-FP31 adopts external feeding set with silicone tube. Purge when pump stops and bolus when pump starts with an adjustable rate at 600 to 2000 ml/h. It is portable and palm sized with detachable charging base. Maintains up-to 8 hours battery backup and battery status indication. Compatible with vehicle power for ambulance. Curvilinear peristaltic mechanism is used as pumping mechanism. Ai-in-line can be detected through Ultrasonic detector. Real time display is used for indication of VTBI, Flow rate and infused volume.
Catalog
| Pumping Mechanism | Curvilinear peristaltic |
|---|---|
| Enteral Feeding Set | Compatible with IV sets of any standard |
| Flow Rate | 1 to 2000 ml/h (in 1,5,10 ml/h increments) |
| Purge, Bolus | Purge when pump stops, bolus when pump starts, rate at 600 to 2000 ml/h( in 1,5,10 ml/h in increments) |
| Accuracy | ±5% |
| VTBI | 1 to 9999 ml |
| Infusion Mode | ml/h |
| Withdraw | 600 to 2000ml/h in (1,5,10 ml/h in increments) |
| Cleaning | 600 to 2000ml/h in (1,5,10 ml/h in increments) |
| Alarms | Real-time infused volume, automatic power switching, mute button, purge, bolus, system memo |
| Occlusion Sensitivity | High, medium, low |
| Air-in-line Detection | Ultrasonic Detector |
| Wireless Management | Optional |
| Fluid Warmer | Optional( 30 to 40℃, in 1℃ increments, over temperature alarm) |
| Power Supply | 110/230V, 50 to 60 Hz, 25 VA, Battery: 9 to 12.6 V, rechargeable Vehicle Power: 12 V |
| Battery Life | 8 hours at 100 ml/h |
| Working Temperature | 10 to 30℃ |
| Relative Humidity | 30 to 75% |
| Atmospheric Pressure | 860 to 1060 hpa |
| Size | 150×120×60 mm |
| Weight | 1.5 Kg |
| Safety Classification | Class II, type CF |
| Fluid Ingress Protection | IPX5 |
These are mainly used when a tube feeding needs to be administered slowly over an extended period of time
Infusion Pumps are engineered for precision and reliability in the administration of fluids, medications, and nutrients. Designed for both hospital and home care use, they deliver controlled, consistent infusion at the required rate, reducing the risk of over- or under-dosing. Whether managing chemotherapy, pain management, or hydration therapy, our Infusion Pumps offer unmatched accuracy and peace of mind, empowering healthcare professionals and caregivers to deliver life-saving treatments with confidence.
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight mode |
| Accuracy | ±5% |
| Flow Rate Range | 0.01to 2000 ml/h (increment 0.01ml/h) |
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight mode |
| Accuracy | ±5% |
| Flow Rate Range | 0.01to 2000 ml/h (increment 0.01ml/h) |
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight |
| Accuracy | ±5% |
| Flow Rate Range | 0.01to 2000 ml/h (increment 0.01ml/h) |
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight mode |
| Accuracy | ±5% |
| Flow Rate Range | 0.01to 2000 ml/h (increment 0.01ml/h) |

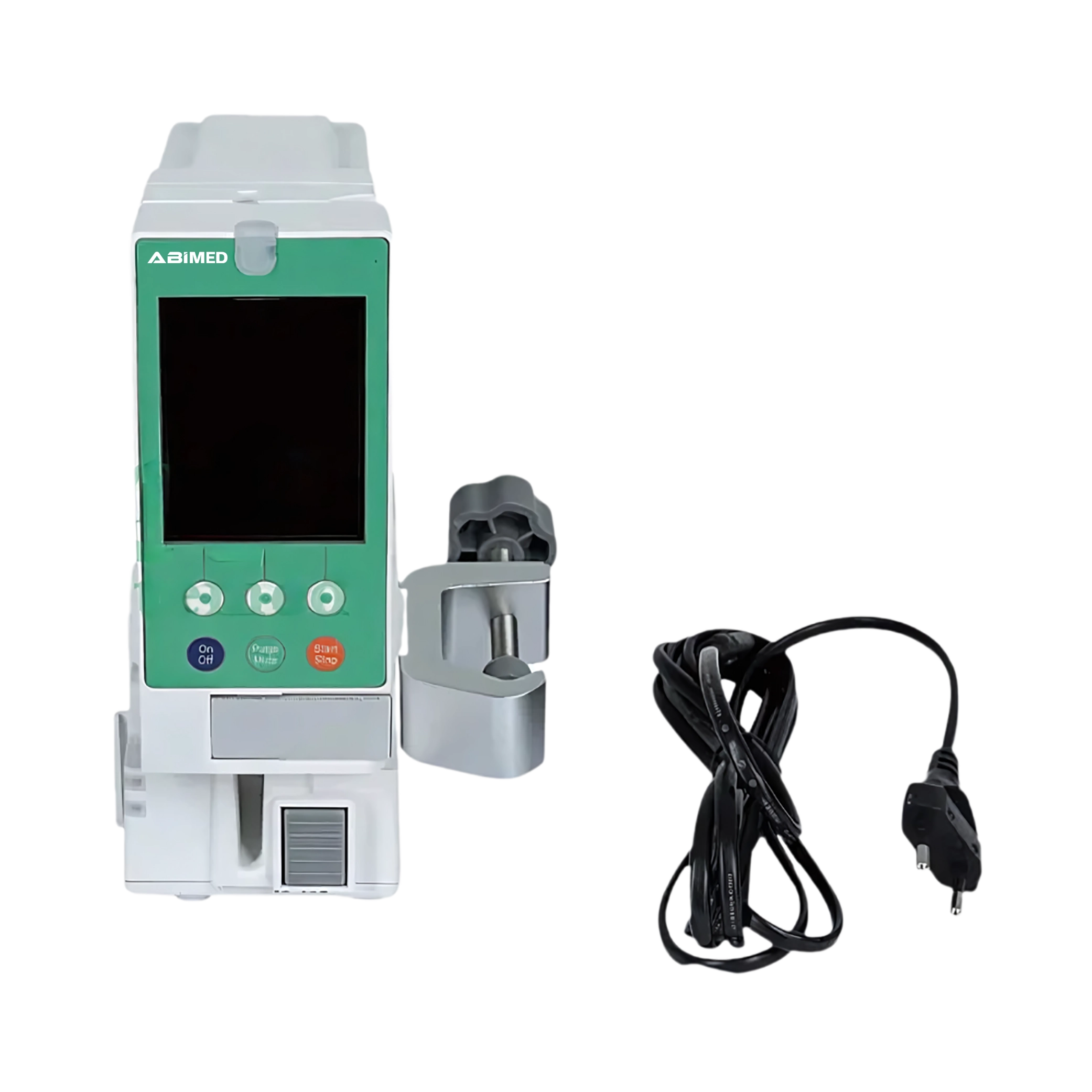

Syringe Pumps are designed to provide accurate, controlled delivery of fluids and medications in even the most critical care settings. Perfect for applications requiring precise infusion rates, our Syringe Pumps offer seamless, hassle-free operation with customizable settings for a wide range of medical treatments. With their compact design, intuitive interface, and advanced safety features, our Syringe Pumps deliver optimal performance and peace of mind, making them the trusted choice for healthcare professionals worldwide.
| Syringe Types | 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml Open System, Automatic Recognition Of Syringe Brands And Sizes After Calibration |
| Accuracy | ± 2 % |
| Flow Rate Range | 0.01 to 2000 ml/h (increment 0.01 ml/h) |
| Syringe Types | 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml Open System, Automatic Recognition Of Syringe Brands And Sizes After Calibration |
| Infusion Mode | ml/h Mode (includes rate mode, time mode) body weight mode |
| Accuracy | ± 2 % |
