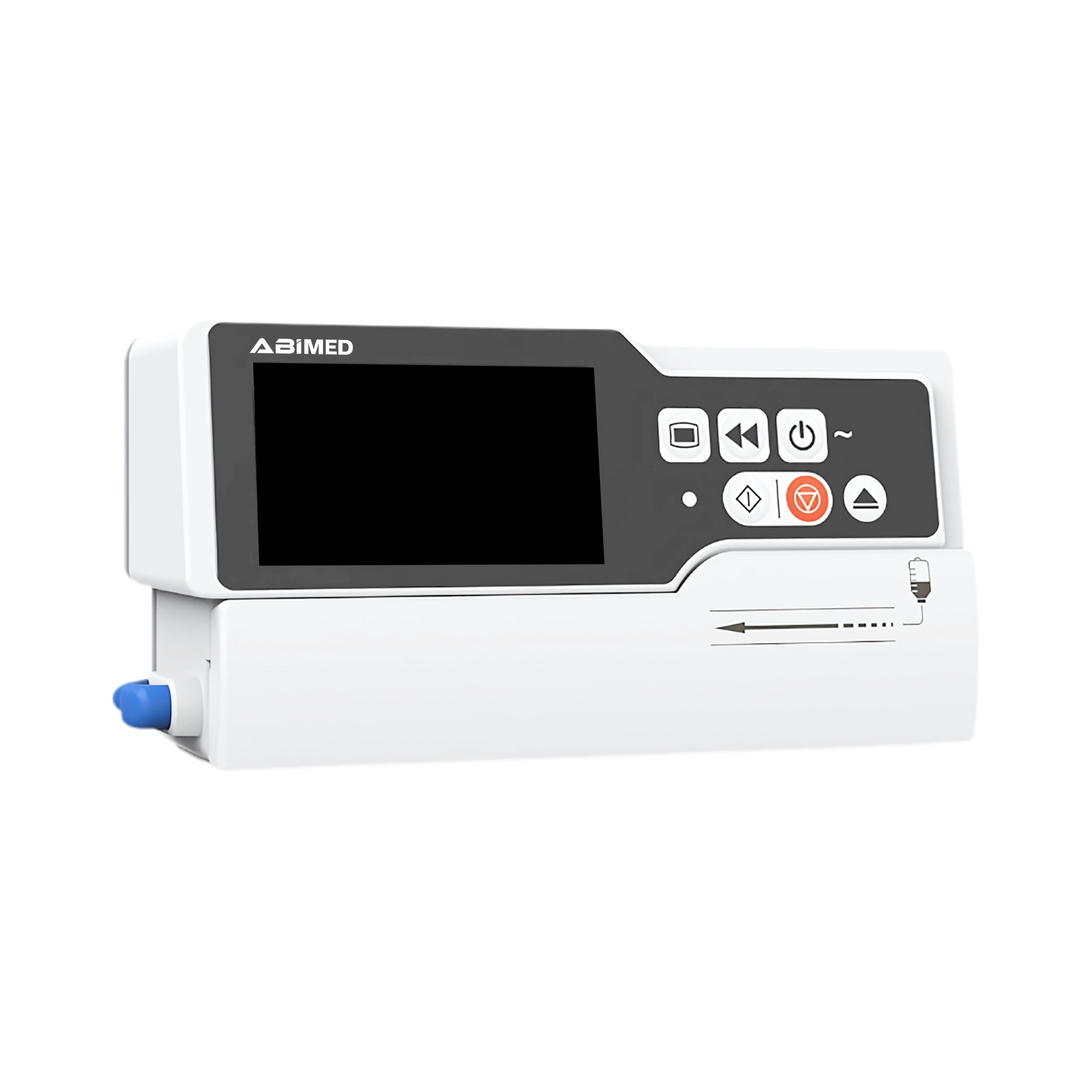

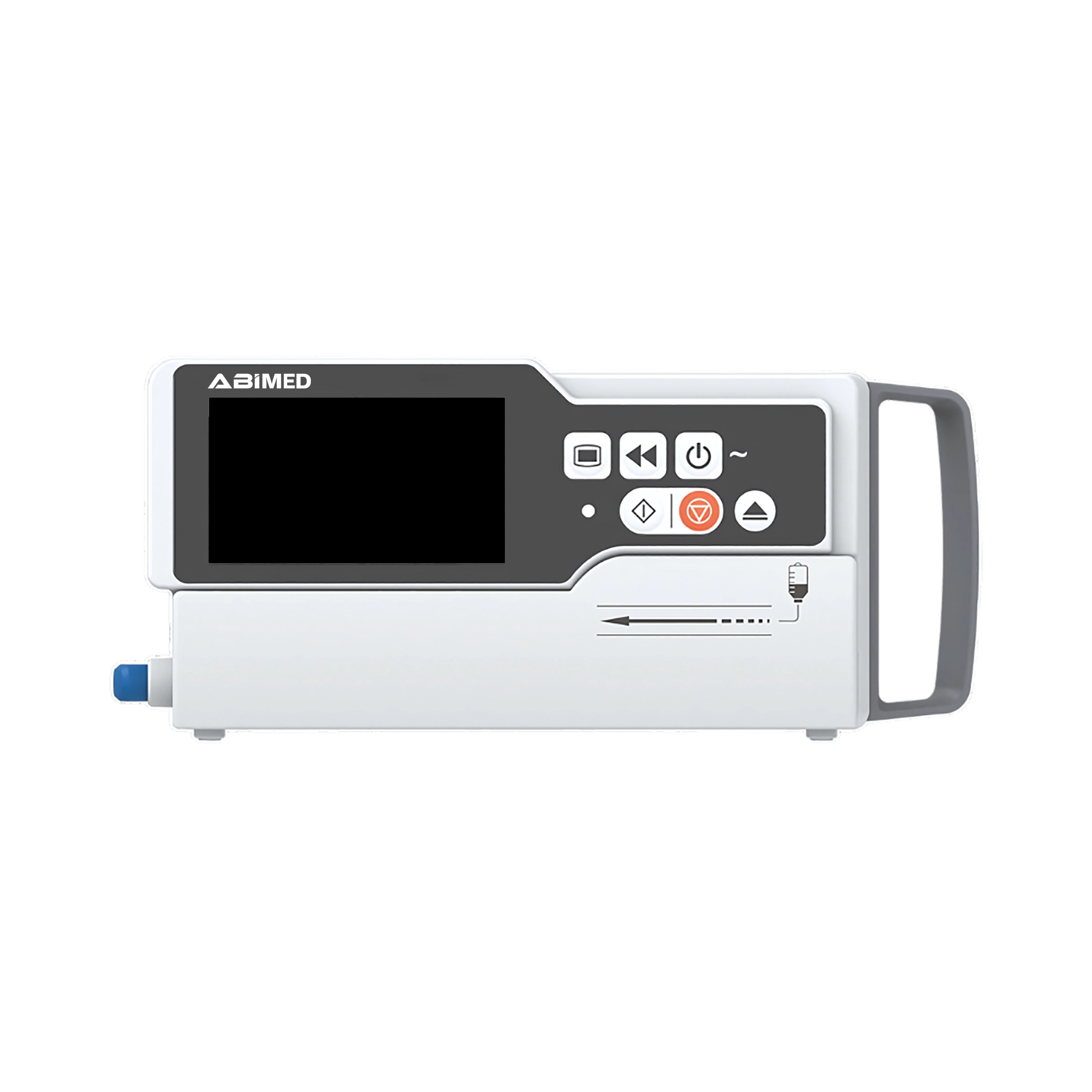

Smart Infusion Pump AM-IP33

Smart Infusion Pump AM-IP33 is designed to work on both battery and power supply. It has a 4.3-inch colored touch screen display, is used to edit and set the parameters directly on touch screen. It uses standard IV sets of any brand and capable to store 20 edible brands and has the multi-function operations with 3 modes such as time and rate mode, body-weight mode and micro mode. Likewise, it can record up to 5000 logs of history and has the ability of 9 hours battery back-up time.

Catalog
Smart Infusion Pump AM-IP33

Specifications

Infusion Mode ml/h (include Rate mode, Time mode), Body weight mode
Accuracy ±5%
Flow Rate Range 0.01to 2000 ml/h (increment 0.01ml/h)
VTBI 0to 9999 ml KVO 0.01to 5 ml/h adjustable
KVO 0.01 to 5 ml/h Adjustable
Bolus Rate 0.1to 2000 m l/h(automatic & manual bolus available)
Occlusion Level 4 levels selectable
Interface MINI USB
Wireless Wi-Fi (optional)
Alarm Type VTBI Infused, Pressure high, Check upstream, Battery empty, KVO finished, Door Open, Air bubble, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc.
Titration Change flow rate without stopping infusion
Last Therapy Last therapies can be stored and used for rapid infusion
Drug-Library No less than 30 drugs
Anti-Bolus Automatic drop line pressure to reduce bolus impact after occlusion
Purge Remove the air bubble
Screen Lock Avoid miss operation
Standby Mode Standby time: 0 to 99 h 59 min adjustable
Micro Mode Limit the maximum infusion rate to double ensure patient safety
DPS Real-time pressure display in graphically and numerically
Bubble Detector Adjustable
Alarm Volume Adjustable
Brightness Adjustable
History More than 5000 entries
AC Power 110 V to 240 V, 50/60 Hz
Battery Lithium Ion Battery 11.1V 2600 mAh More Than 9 Hours Operating Time is 25ml/h Less Than 5 Hours For Fully Charged
Waterproof IP24
Display 4.3-inch LCD color touch screen
Dimension (L×W×H) 235x95x120 mm
Weight Approx. 1.6 Kg

Features

Applications

It is used in general surgeries and in ICU
