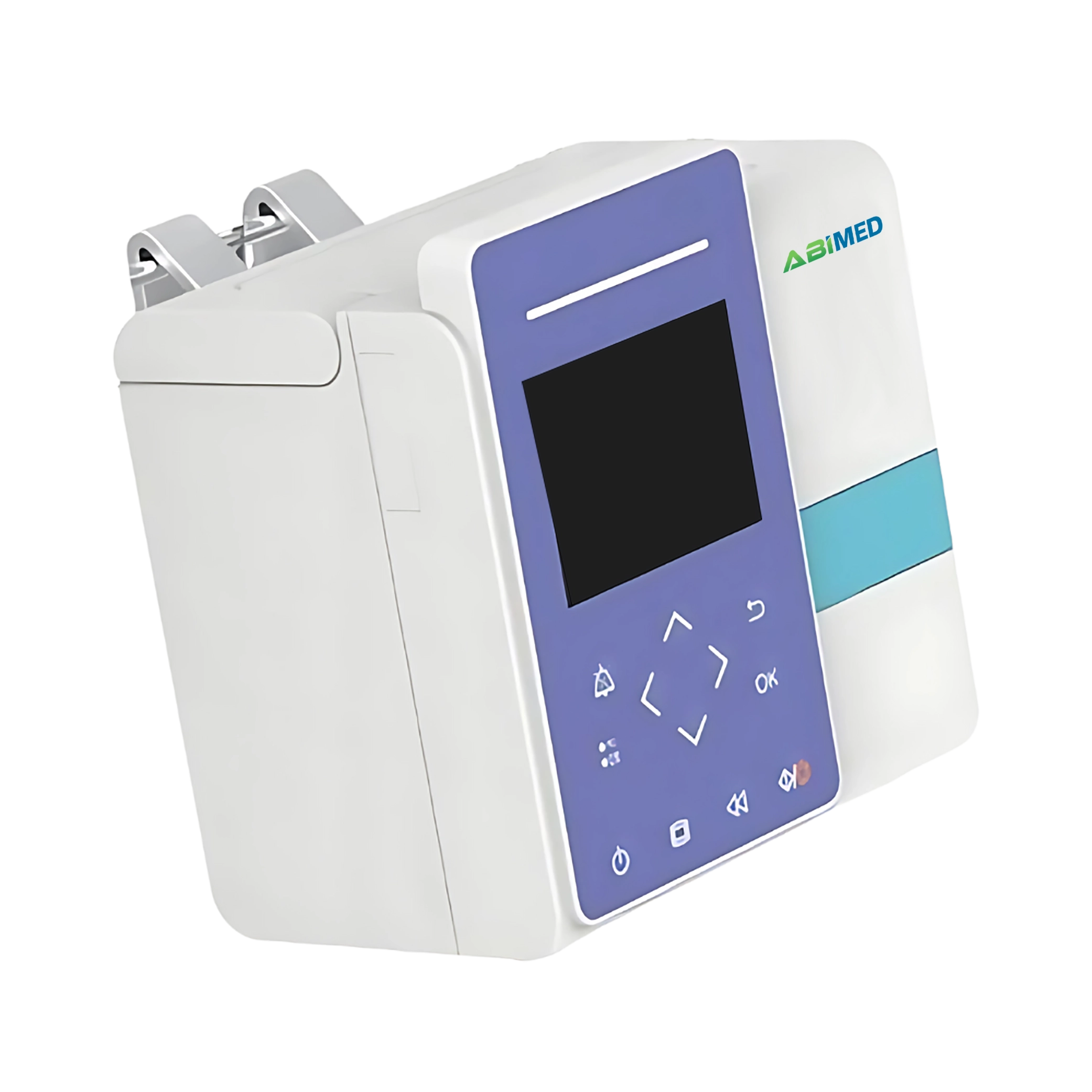

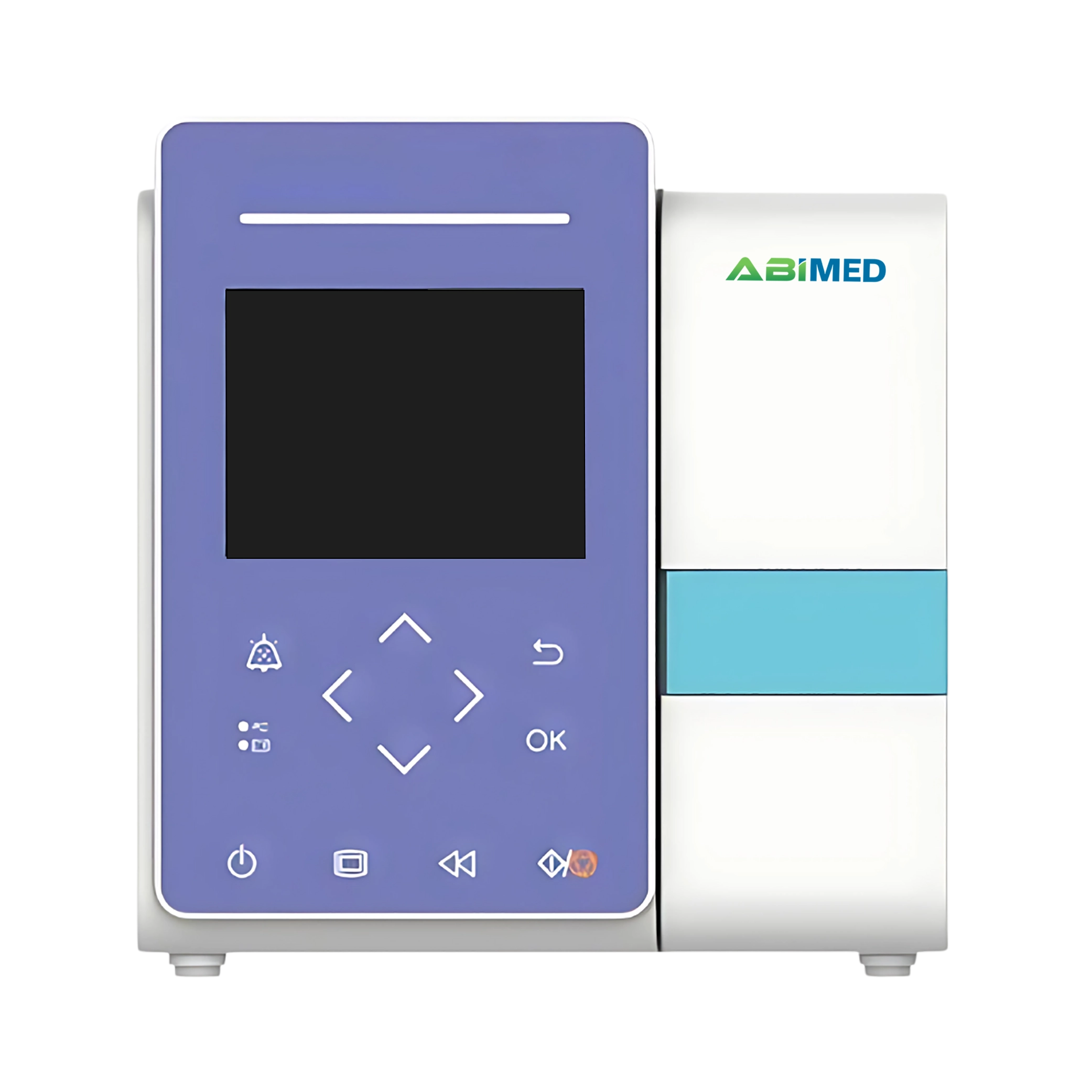

Infusion Pump AM-IP35 is a 2.8-inch colored touch screen display that is easy to operate and can use any standard IV set and is capable to store 200 editable brands. It is equipped with an intuitive keypad used to make use of breeze and a Last Therapy option used to start up the equipment. Likewise, it is made of dustproof and waterproof and compatible with C7 central station and can connect up to 1000 pumps. It also has a real-time digital display, pressure valve, alarm limits and occlusion etc., to detect the blockages quickly in time.
Catalog
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight |
|---|---|
| Accuracy | ±5% |
| Flow Rate Range | 0.01to 2000 ml/h (increment 0.01ml/h) |
| VTBI | 0to 9999 ml KVO 0.01to 5 ml/h adjustable |
| KVO | 0.01 to 5 ml/h Adjustable |
| Bolus Rate | 0.1to 2000 m l/h(automatic & manual bolus available) |
| Occlusion Level | 4 levels selectable (150 mmHg to 900 mmHg) |
| Interface | DB15 multi-functional interface |
| Wireless | Wi-Fi (optional) |
| Alarm Type | VTBI Infused, Pressure high, Check upstream, Battery empty, KVO finished, Door Open, Air bubble, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc. |
| Titration | Change flow rate without stopping infusion |
| Last Therapy | Last therapies can be stored and used for rapid infusion |
| Drug-Library | No less than 30 drugs |
| Anti-Bolus | Automatic drop line pressure to reduce bolus impact after occlusion |
| Purge | Remove the air bubble |
| Screen Lock | Avoid miss operation |
| Standby Mode | Standby time: 0 to 99 h 59 min adjustable |
| Micro Mode | Limit the maximum infusion rate to double ensure patient safety |
| DPS | Real-time pressure display in graphically and numerically |
| Bubble Detector | Adjustable, single bubble and accumulated bubble in 15 minutes |
| Alarm Volume | Adjustable |
| Brightness | Adjustable |
| History | More than 2000 entries |
| AC Power | 110 V to 240 V, 50/60 Hz |
| Battery | Lithium Ion Battery 11.1V 2600 mAh More Than 9 Hours Operating Time is 25ml/h Less Than 5 Hours For Fully Charged |
| Waterproof | IP44 |
| Display | 2.8-inch color touch screen |
| Dimension (L×W×H) | 138x131.5x90 mm |
| Weight | Approx. 1.5 Kg (pole clamp included) |
It is used in general surgeries and in ICU
