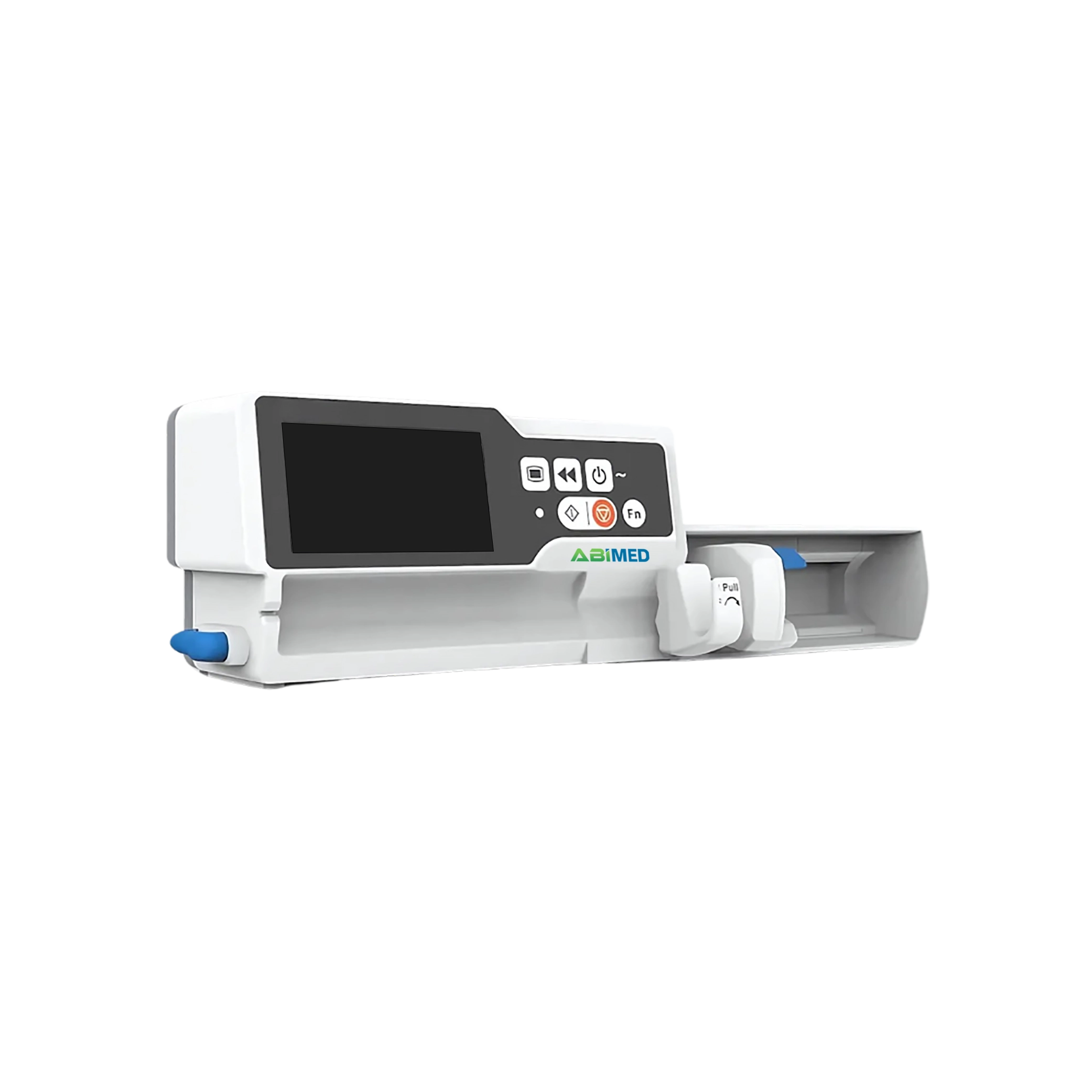

Smart Syringe Pump AM-SP43 is a 4.3-inch colored touch screen display used to edit and set the parameters directly on touch screen. It has the capacity of holding the syringe sizes such as 5, 10, 20, 30, 50, and 60 ml which can be recognized automatically, and it is an open system that is capable to store 20 edible brands and has the multi-function operations with 3 modes such as time and rate mode, body-weight mode and micro mode. Not only that but also, it can record up to 5000 logs of history.
Catalog
| Syringe Types | 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml Open System, Automatic Recognition Of Syringe Brands And Sizes After Calibration |
|---|---|
| Accuracy | ± 2 % |
| Flow Rate Range | 0.01 to 2000 ml/h (increment 0.01 ml/h) |
| VTBI | 0 to 9999 ml |
| KVO | 0.01 to 5 ml/h Adjustable |
| Bolus Rate | 0.01 to 2000 ml/h (Automatic & Manual Bolus Available) |
| Occlusion Level | 4 Levels Selectable |
| Interface | Mini USB |
| Wireless | Wi-Fi (Optional) |
| Alarm Type | VTBI Infused, Syringe Empty, Pressure High, Battery Empty, Check Syringe, KVO Finished, VTBI Near End, Syringe Near Empty, Battery Near Empty, Reminder Alarm, No Power Supply, System Error, etc. |
| Titration | Change flow rate without stopping infusion |
| Last Therapy | Last therapies can be stored and used for rapid infusion |
| Drug-Library | No less than 30 drugs |
| Anti-Bolus | Automatic drop line pressure to reduce bolus impact after occlusion |
| Purge | Remove the air bubble |
| Screen Lock | Avoid miss operation |
| Standby Mode | Standby time: 0 to 99 h 59 min adjustable |
| Micro Mode | Limit the maximum infusion rate to double ensure patient safety |
| DPS | Real-time pressure display in graphically and numerically |
| Brightness | Adjustable |
| Alarm Volume | Adjustable |
| History | More Than 5000 Entries |
| AC Power | 110 V to 240 V, 50/60 Hz |
| Battery | Lithium Ion Battery 11.1 V 2600 mAh More Than 9 Hours Operating Time at 25 ml/h Less Than 5 Hours For Fully Charged |
| Waterproof | IP24 |
| Dimension (L×W×H) | 400x90x120 mm (With Cover) 235x90x120 mm (Without Cover) |
| Weight | Approx. 1.7 Kg |
It is used for general surgeries and ICU.
