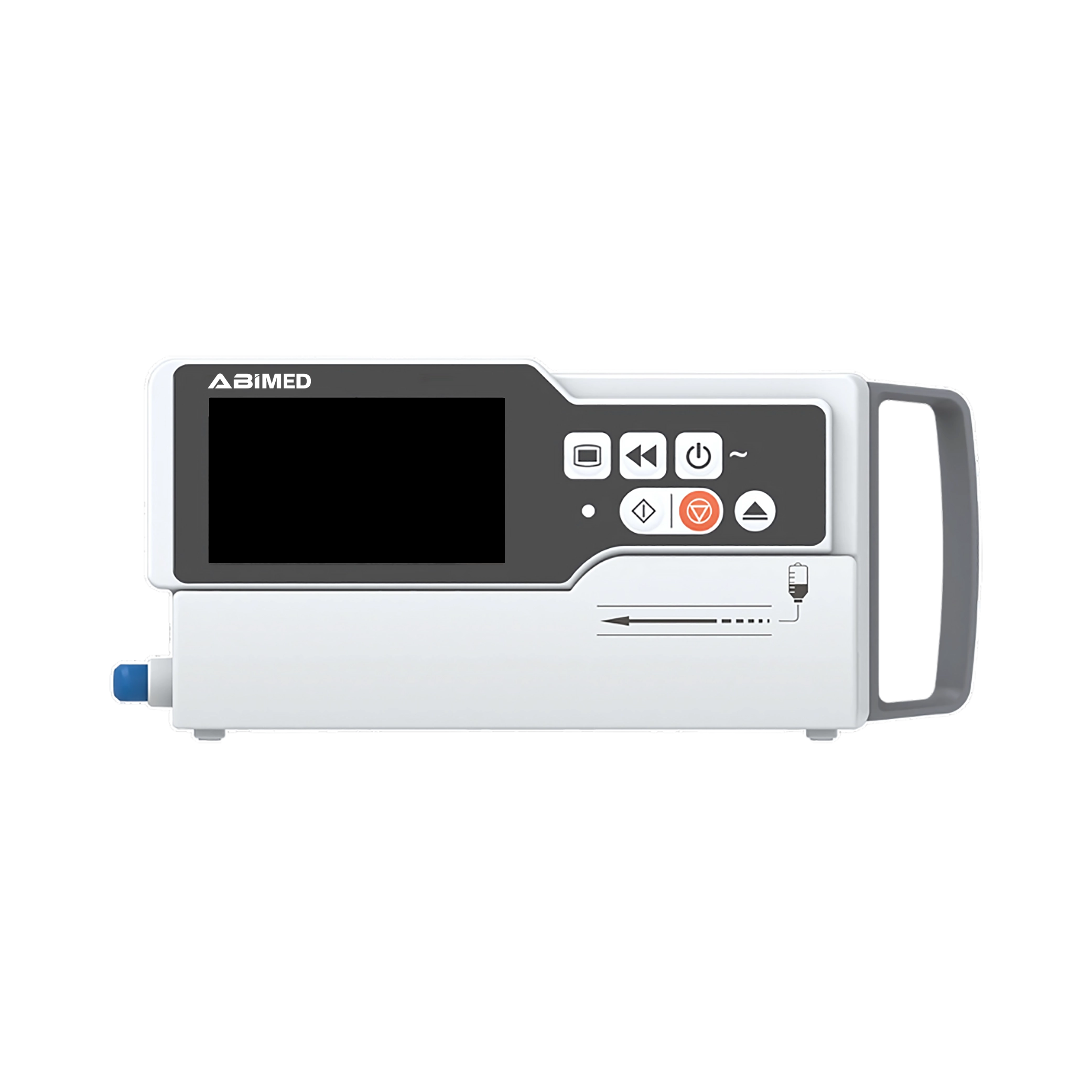

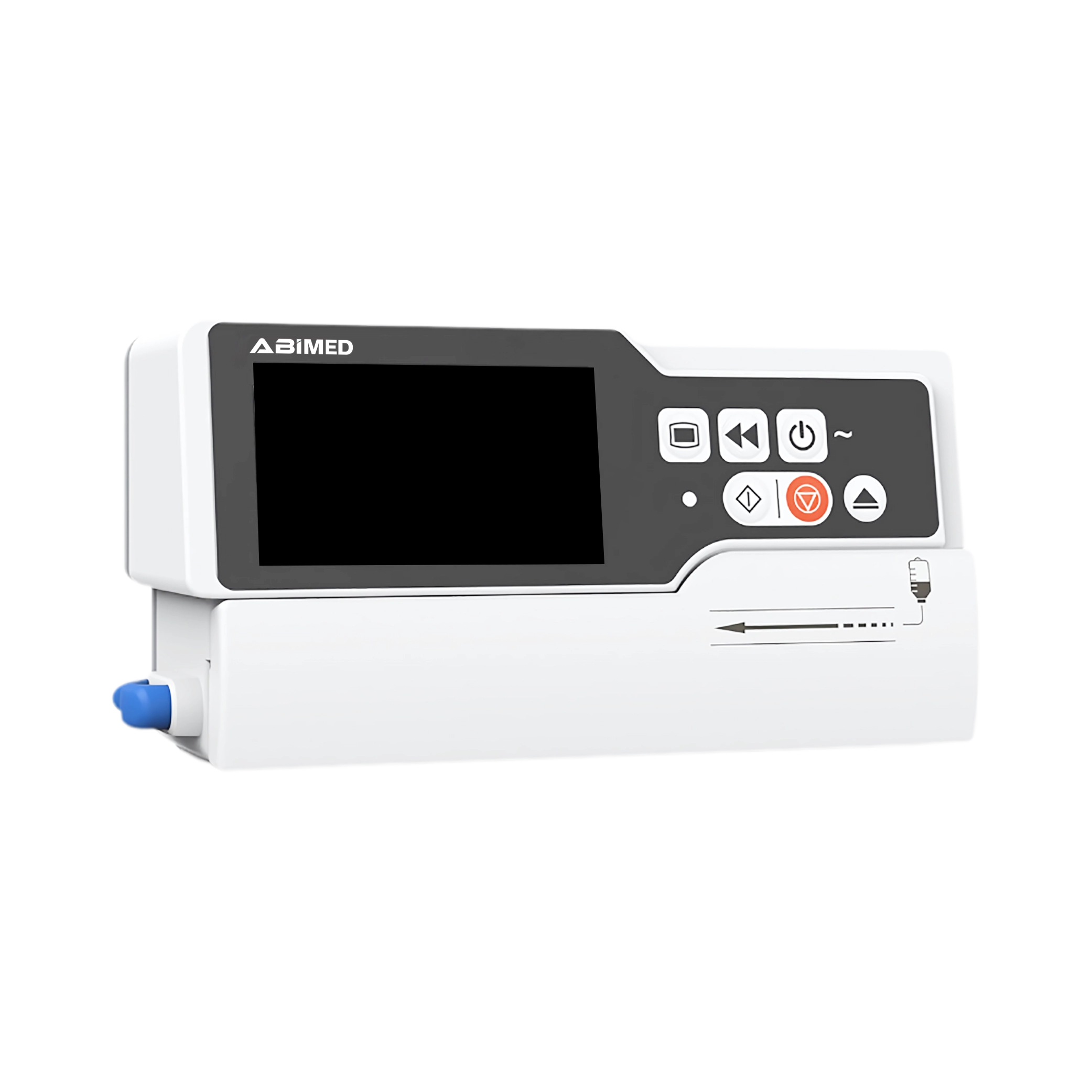

Infusion Pump AM-IP32

Infusion Pump AM-IP32 is a 4.3-inch colored touch screen having the ability to edit and set the parameters directly on the touch screen. Meanwhile, it is equipped with pressure sensor that can move up & down and is adjusted with an electric door & electric anti-free flowing clip to reduce the wastage during the operation. Not only that but also it is equipped with an alarm system in which the brightness and volume can be adjusted conveniently. It is a stackable and waterproof equipment and has the ability to record the history up to more than 5000 logs.

Catalog
Infusion Pump AM-IP32

Specifications

Infusion Mode ml/h (include Rate mode, Time mode), Body weight mode
Accuracy ±5%
Flow Rate Range 0.01to 2000 ml/h (increment 0.01ml/h)
VTBI 0 to 9999 ml KVO 0.01to 5 ml/h adjustable
KVO 0.01 to 5 ml/h Adjustable
Bolus Rate 0.1to 2000 m l/h(automatic & manual bolus available)
Occlusion Level 4 levels selectable
Interface MINI USB
Wireless Wi-Fi (optional)
Alarm Type VTBI Infused, Pressure high, Check upstream, Battery empty, KVO finished, Door Open, Air bubble, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc.
Titration Change flow rate without stopping infusion
Last Therapy Last therapies can be stored and used for rapid infusion
Drug-Library No less than 30 drugs
Anti-Bolus Automatic drop line pressure to reduce bolus impact after occlusion
Purge Remove the air bubble
Screen Lock Avoid miss operation
Standby Mode Standby time: 0 to 99 h 59 min adjustable
Micro Mode Limit the maximum infusion rate to double ensure patient safety
DPS Real-time pressure display in graphically and numerically
Bubble Detector Adjustable
Alarm Volume Adjustable
Brightness Adjustable
History More than 5000 entries
AC Power 110 V to 240 V, 50/60 Hz
Battery Lithium Ion Battery 11.1V 2600 mAh More Than 9 Hours Operating Time is 25ml/h Less Than 5 Hours For Fully Charged
Waterproof IP24
Display 4.3-inch LCD color touch screen
Dimension (L×W×H) 235x95x120 mm
Weight Approx. 1.6 Kg

Features

Applications

It is used in general surgeries and in ICU
