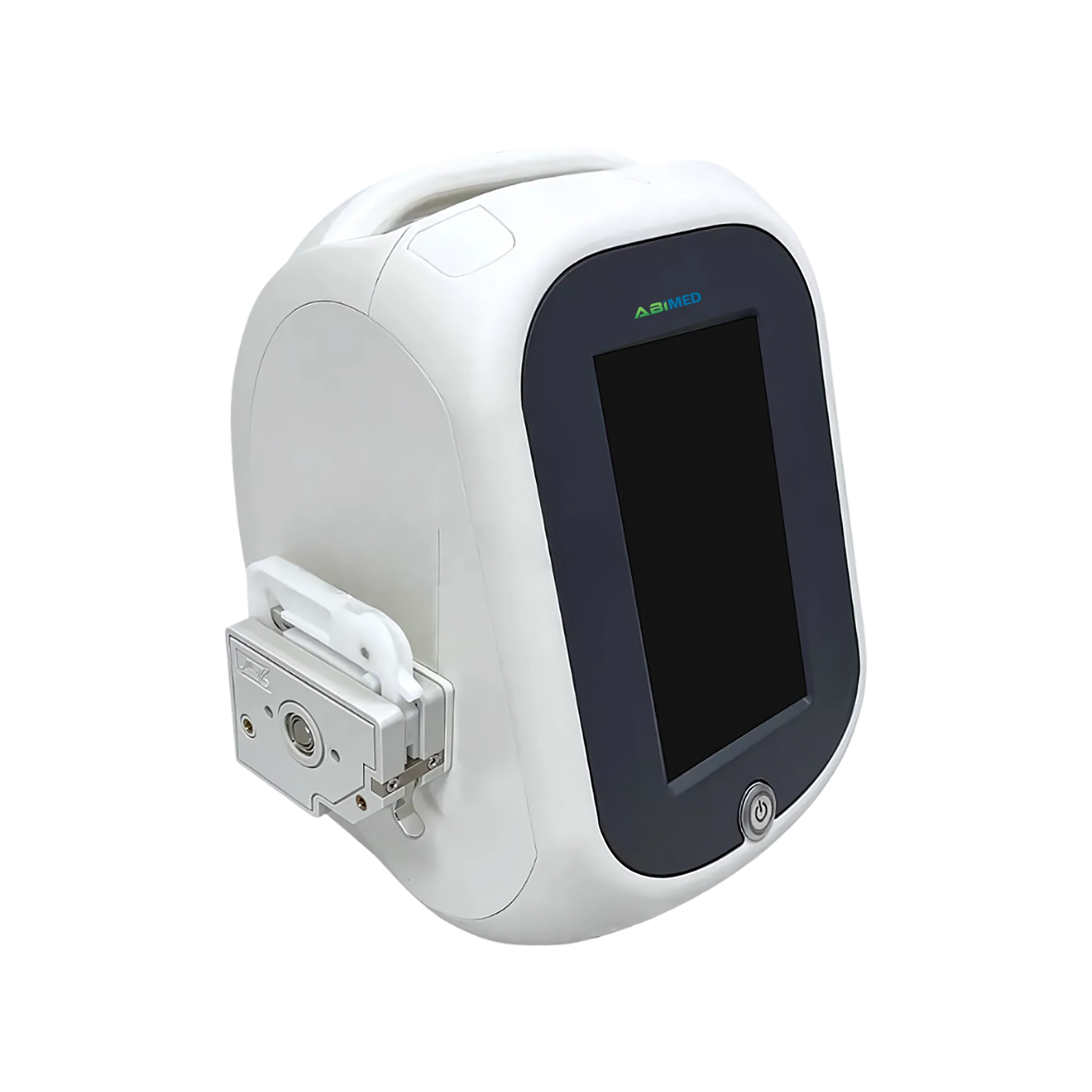

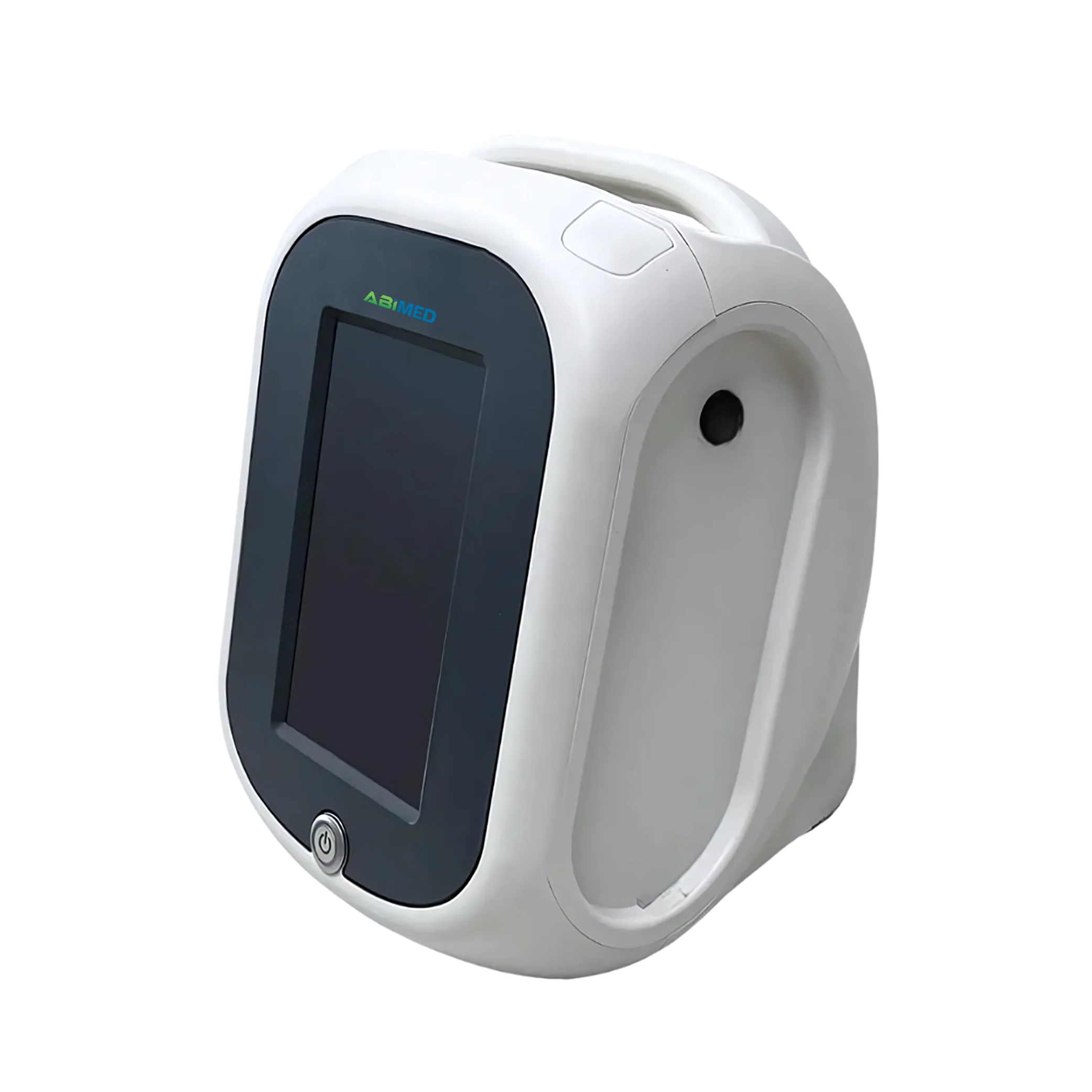

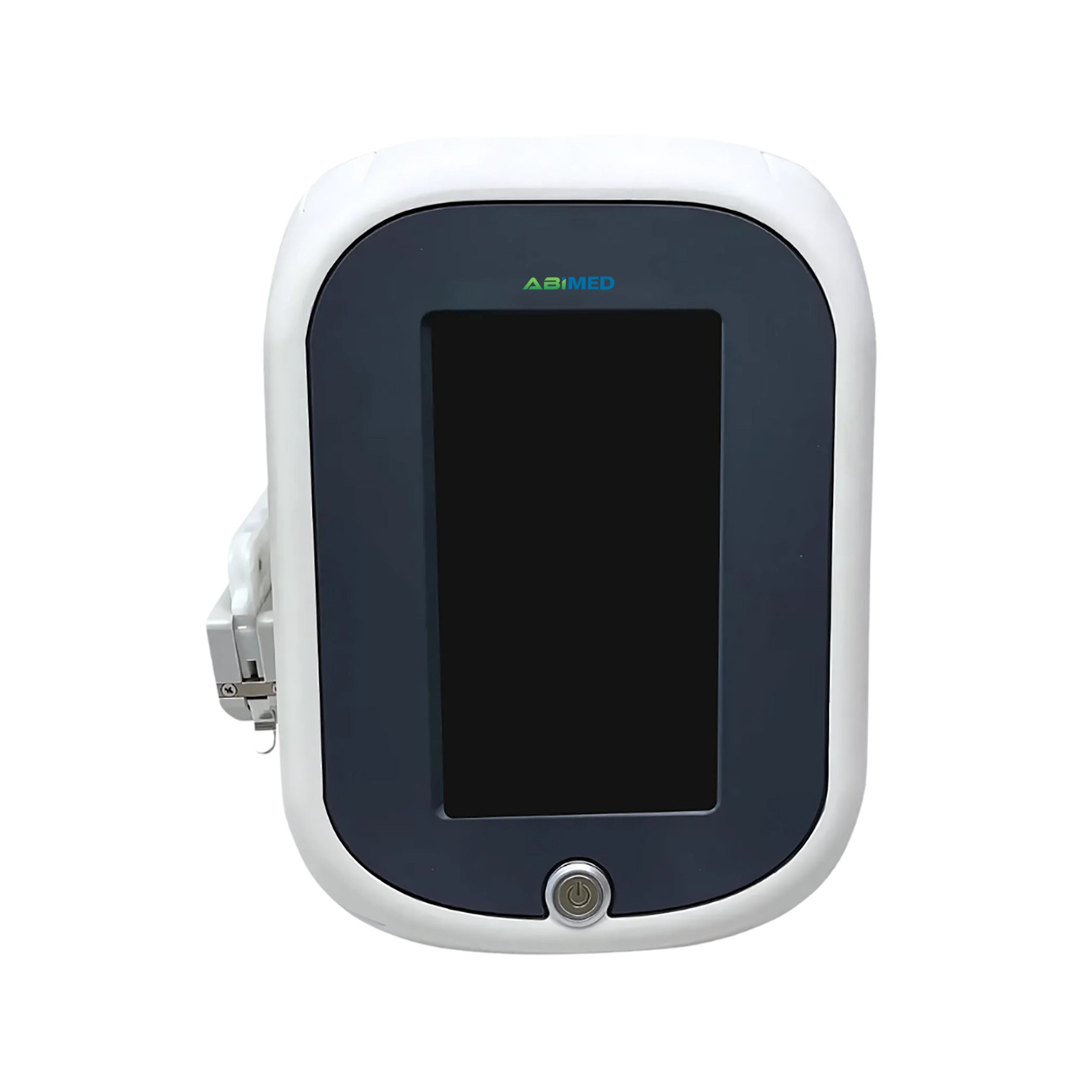

Negative Pressure Wound Therapy AM-NWTA10 is a portable unit that offers multiple operational modes for accurate therapy. Our meter provides a vacuum range from -25 to -500 mmHg, with incremental values for precise adjustment. It features a rechargeable lithium-ion battery with a capacity to sustain operation for up to 6 hours. Equipped with a user-friendly interface for easy control and parameter adjustments.
| Vacuum Range | -25 to -500 mmHg, -25, -50, -75, -100, -125, -150 ...... -500 |
| Available Modes |
NP-600: Continuous, Intermittent, and DPC NP-800: Continuous, Intermittent and DPC; Manual cleaning; Auto cleaning, Cleaning first; Auto cleaning, Drainage first |
| Free Airflow Rate | ≥ 8 L/min |
| Recharge Times | 6 Hours |
| Auto Lockout | Yes, display lockout after 10 minutes or Manually Lock |
| Canister | 500 ml, marking with 50 ml increments |
| Solidifier With Canister | Yes |
| Antibacterial FilterPatients Lockout | Yes |
| Patients Lockout | Yes |
| IV Pole Attachment | Via Strap |
| Bed Attachment | Via Strap |
| Carry Bag | Yes |
| Alarm Mute | Yes |
| Tubing Clamps | Yes |
| Alarms |
High/ Low Vacuum Canister full Low Battery Negative Pressure Pump life cycle ends |
| Display | Digital touch screen |
| Battery | 6 Hours, 5200 m Ah/7.4V |
| Power Input | Internal Lion Battery or 110 to 240 V AC |
| Dimensions (H×W×D) | 220×260×200 mm |
| Weight | 4.33 kg |
Small standard foam Medium standard foam Large standard foam
