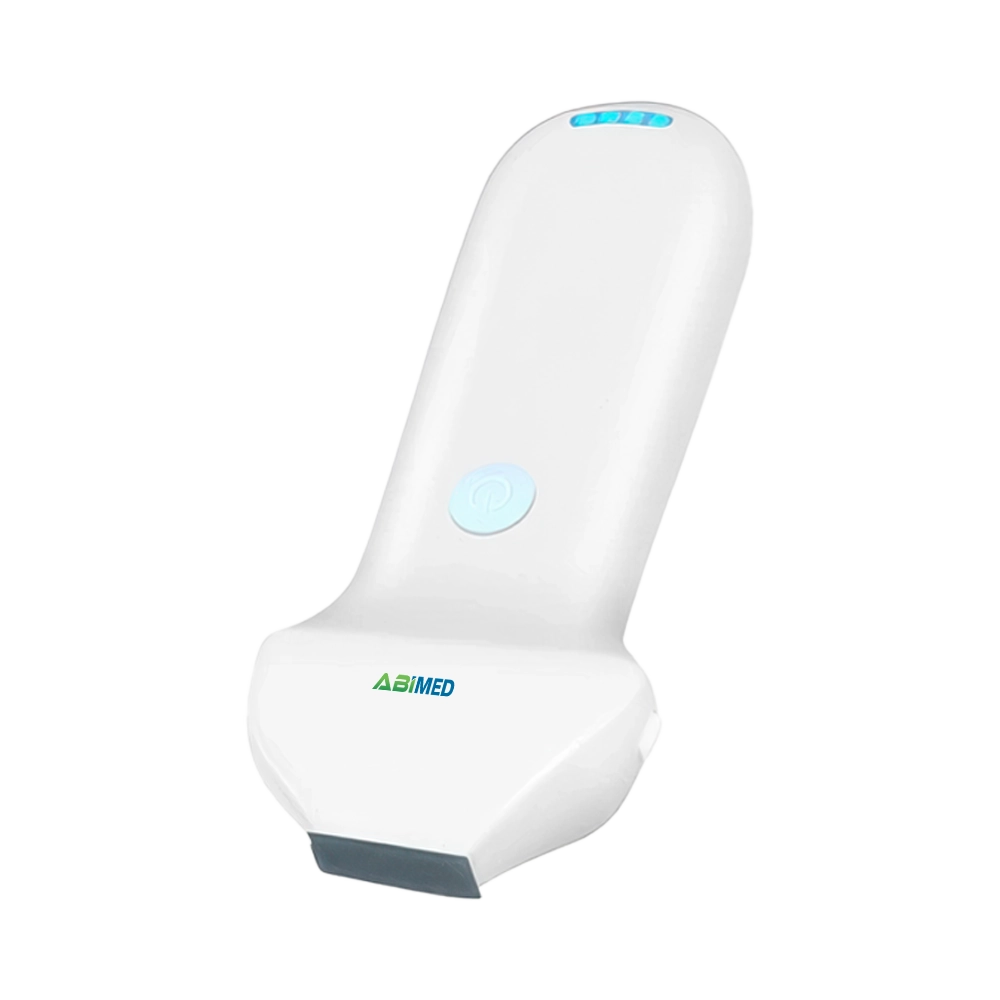

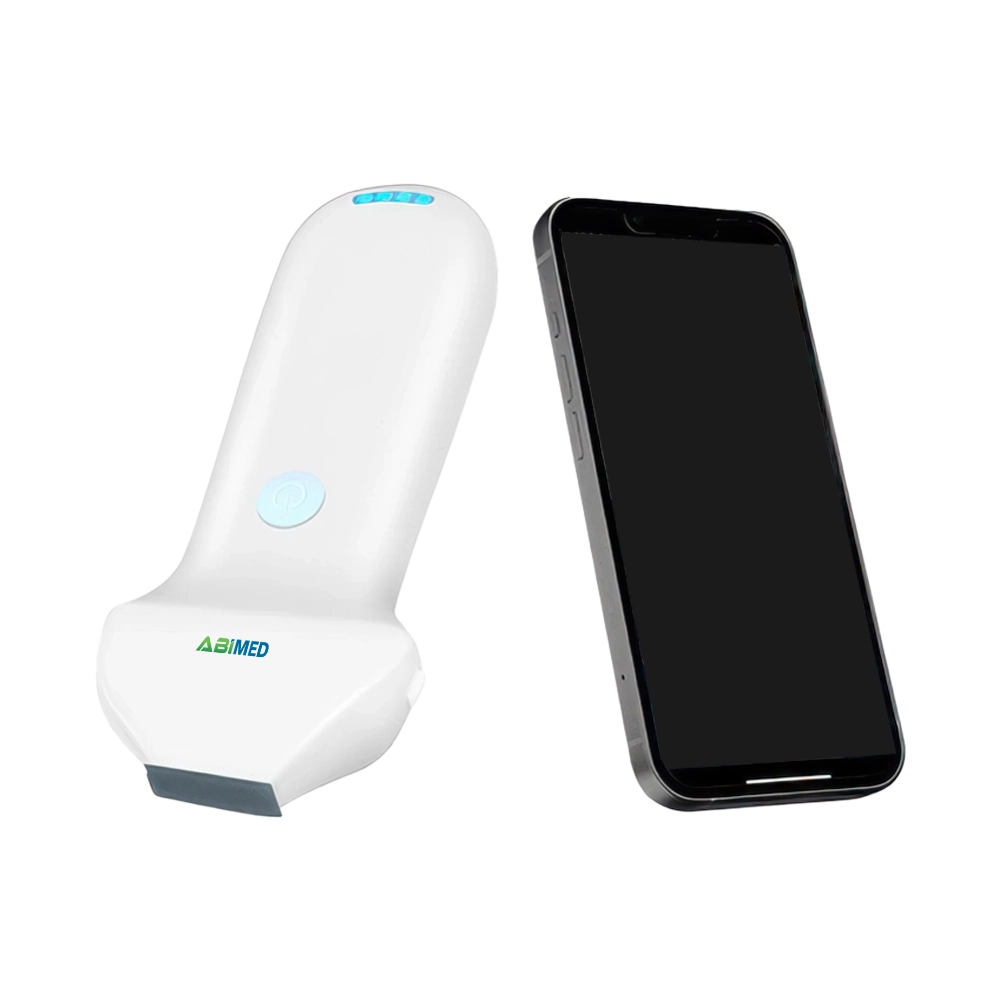

Ultrasound Scanner AM-USB14 is equipped with a high-frequency linear probe featuring 192 dual elements, providing exceptional imaging capabilities. It operates at frequencies of 16/20 MHz, ensuring high-resolution scans for detailed diagnostic results. This probe's compact dimensions and an impressive frame rate delivers real-time, and clear visuals. It is compatible with Android, IOS, and Windows software, making it versatile for different user needs. Its IP68 waterproof grade ensures durability in various environments, making it ideal for on-the-go use.
| Probe Type | High Frequency Linear Probe |
| Elements | 192 Dual Elements |
| Frequency | 16/20 MHz |
| Depth | 10 to 40mm |
| Length | L24 × W6mm |
| Frame Rate | 18 to 24 Frames Per Second |
| Channel | 64 |
| Battery | Built-in Lithium Batteries 2200 mAh, |
| Battery Life |
2 Hours (Working) 48 Hours (Standby) |
| Connections | WiFi, USB |
| WiFi Type | 802.11n/20MHz/2.4G/5G |
| Software Compatibility | Android, IOS, Windows |
| Waterproof Grade | IP68 |
| Dimensions | 155 × 65 × 25mm |
| Weight | 155g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
