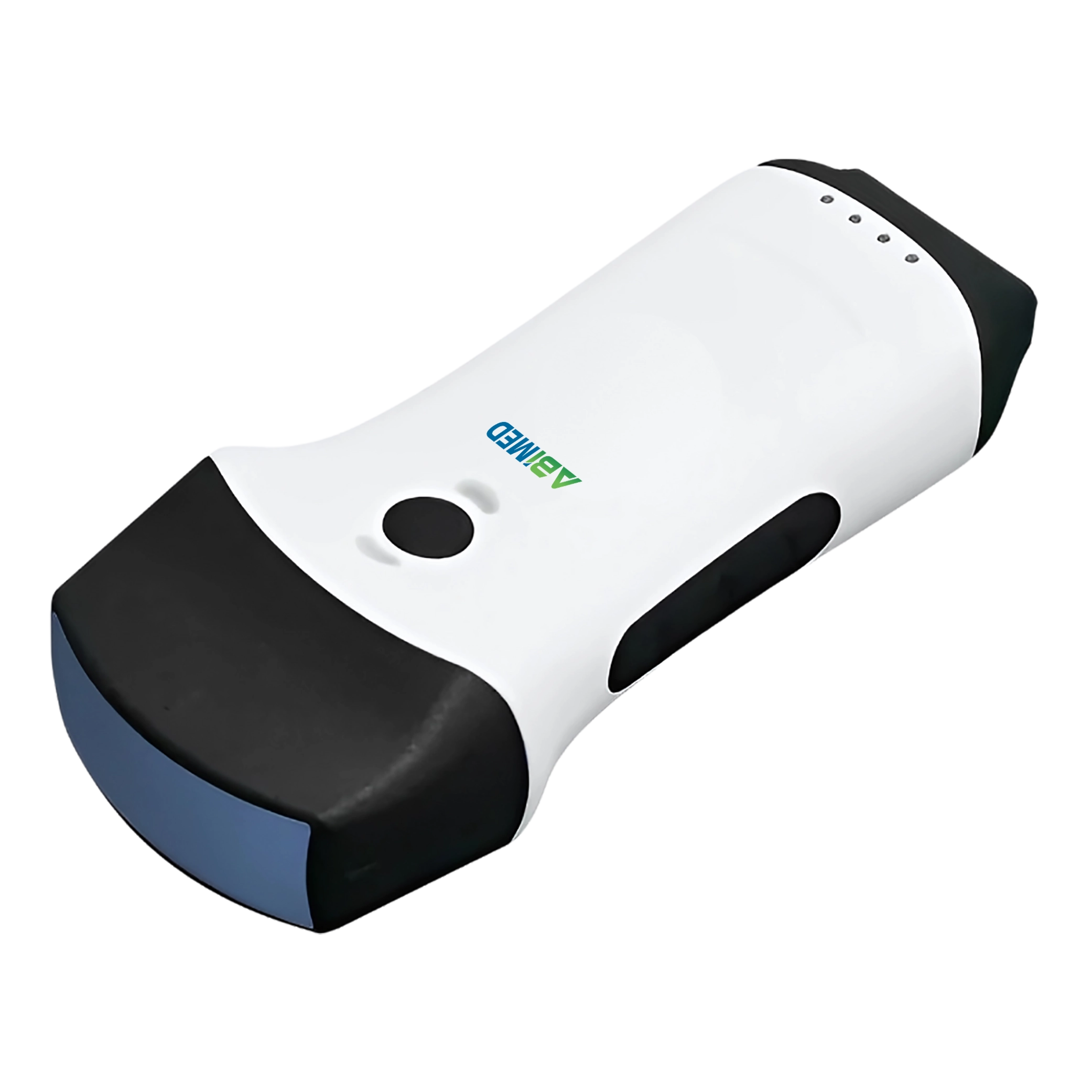

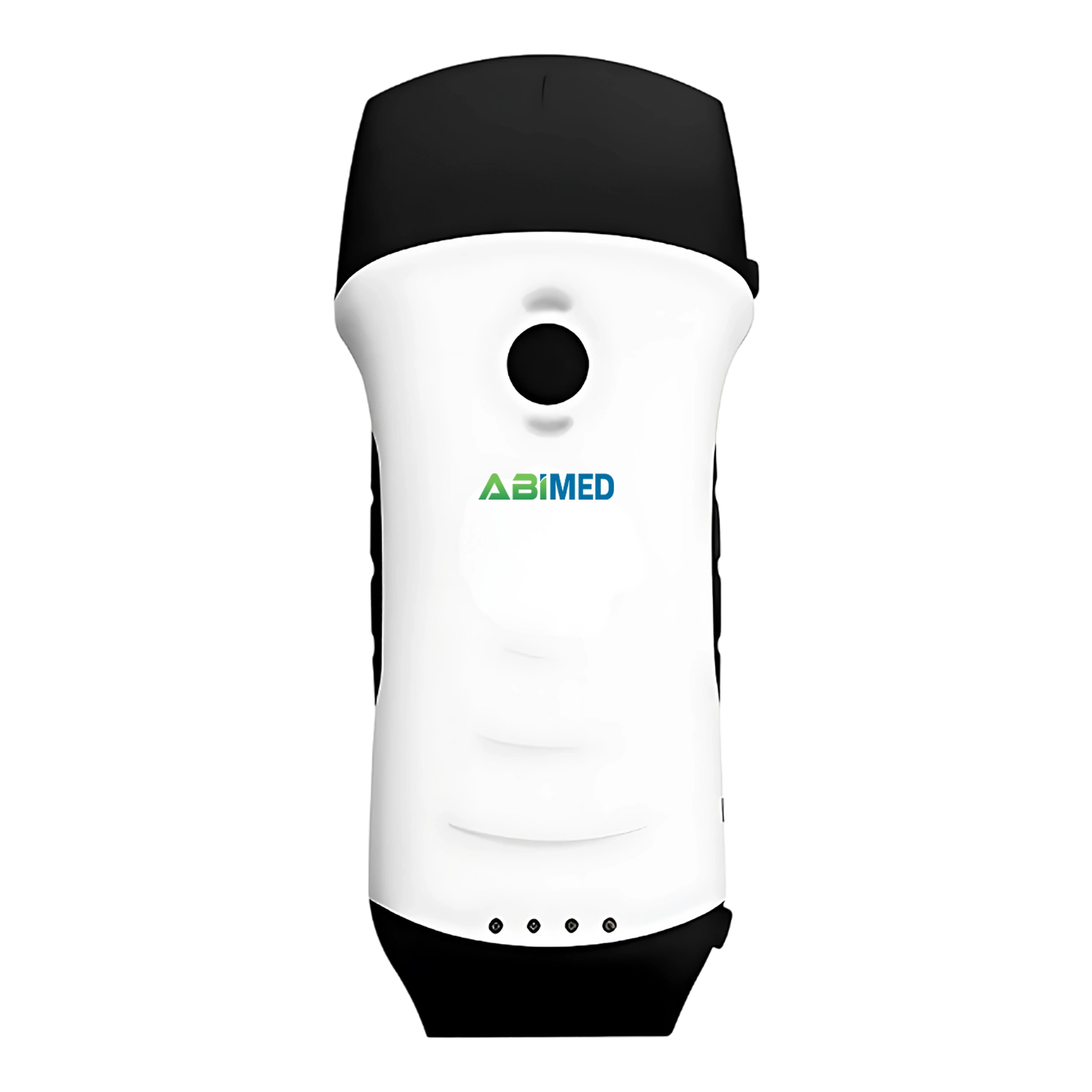

Ultrasound Scanner AM-USA10 is equipped with 128 dual elements, featuring both convex and linear probe in one unit, enabling a wide range of diagnostic applications. With a frame rate of 18 to 24 FPS and 256 gray-scale levels, it delivers clear imaging. It is ergonomically designed with anti-skid grips on all four sides, ensuring user comfort during prolonged use. Its compact dimensions make it highly portable, and an ideal solution for modern, mobile healthcare needs.
Probe Type | Wireless Dual Head (Convex + Linear) |
Elements | 128 Dual Elements |
Frequency (Convex) | 3.5/5.0 MHz, 2.5/5.0 MHz |
Frequency (Linear) | 7.5/10 MHz |
Scan Depth (Convex) | 90 to 305 mm |
Scan Depth (Linear) | 20 to 100 mm |
Scan Angle | Convex: 50° |
Linear Length | 28 mm |
Convex Radius | R45 mm |
Power Consumption |
3 W (Live Mode) 1 W (Freeze Mode) |
Frame Rate | 18 to 24 Frames Per Second |
Gray Scale | 256 Levels |
Battery | 3.8 V, 2600 mAh, 9.88 Wh |
Continuous Hours of Scanning | 4h (72h Ultra-Long Standby) |
Recharge Time | 3 to 4 Hours |
Anti-Skid Design | 4 Sides of Probe |
Dimensions (L × W × H) | 121 × 54 × 30 mm |
Weight | 186 g |
