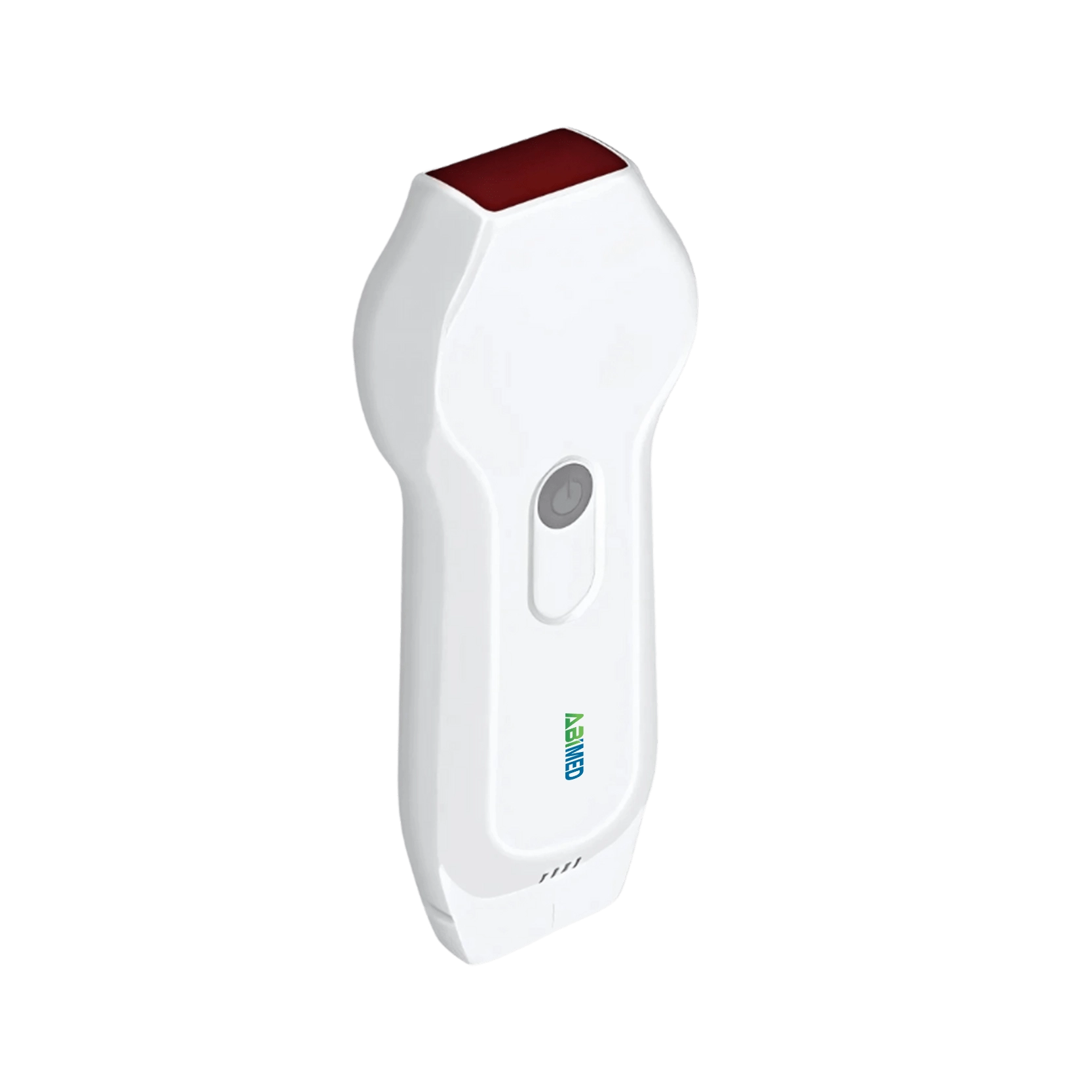

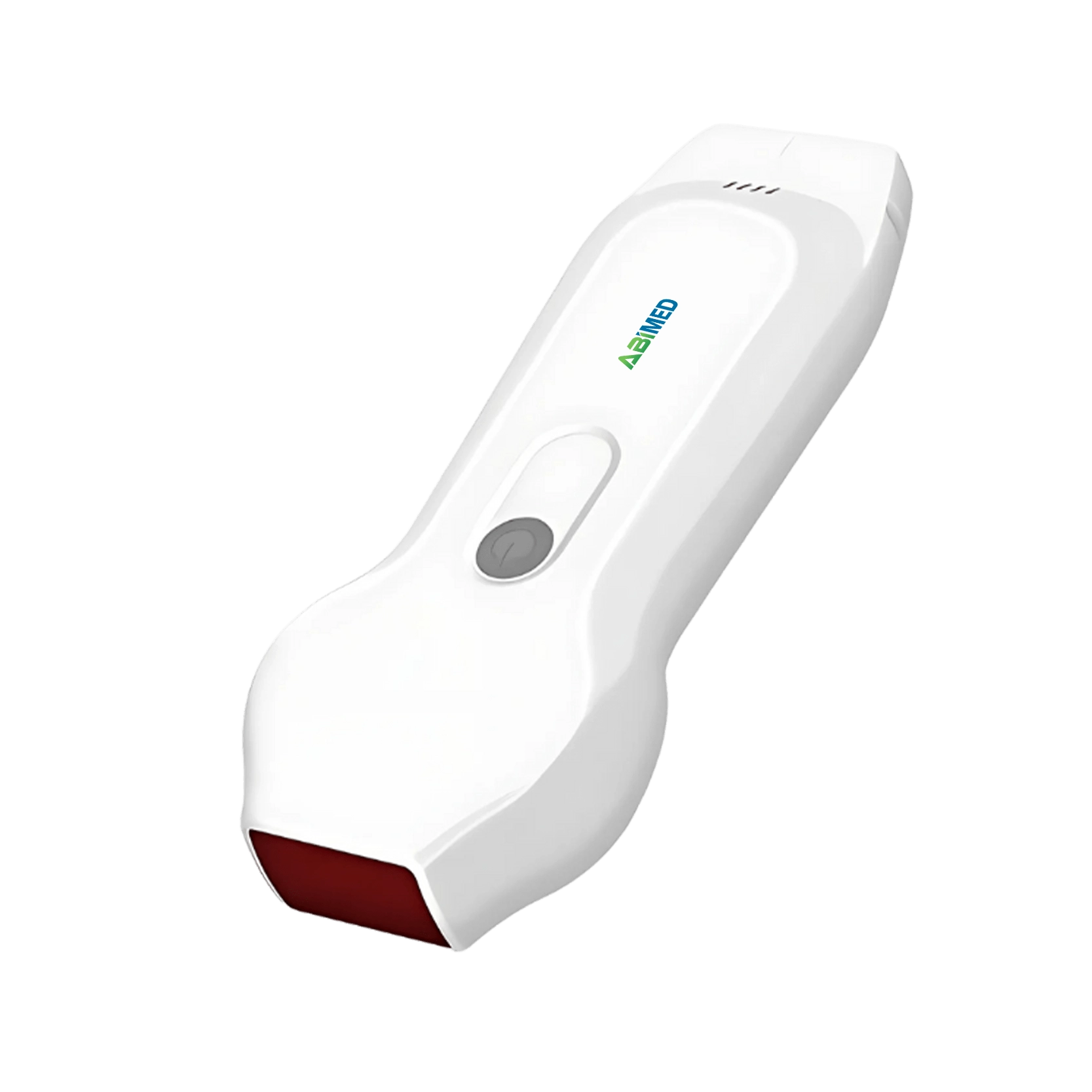

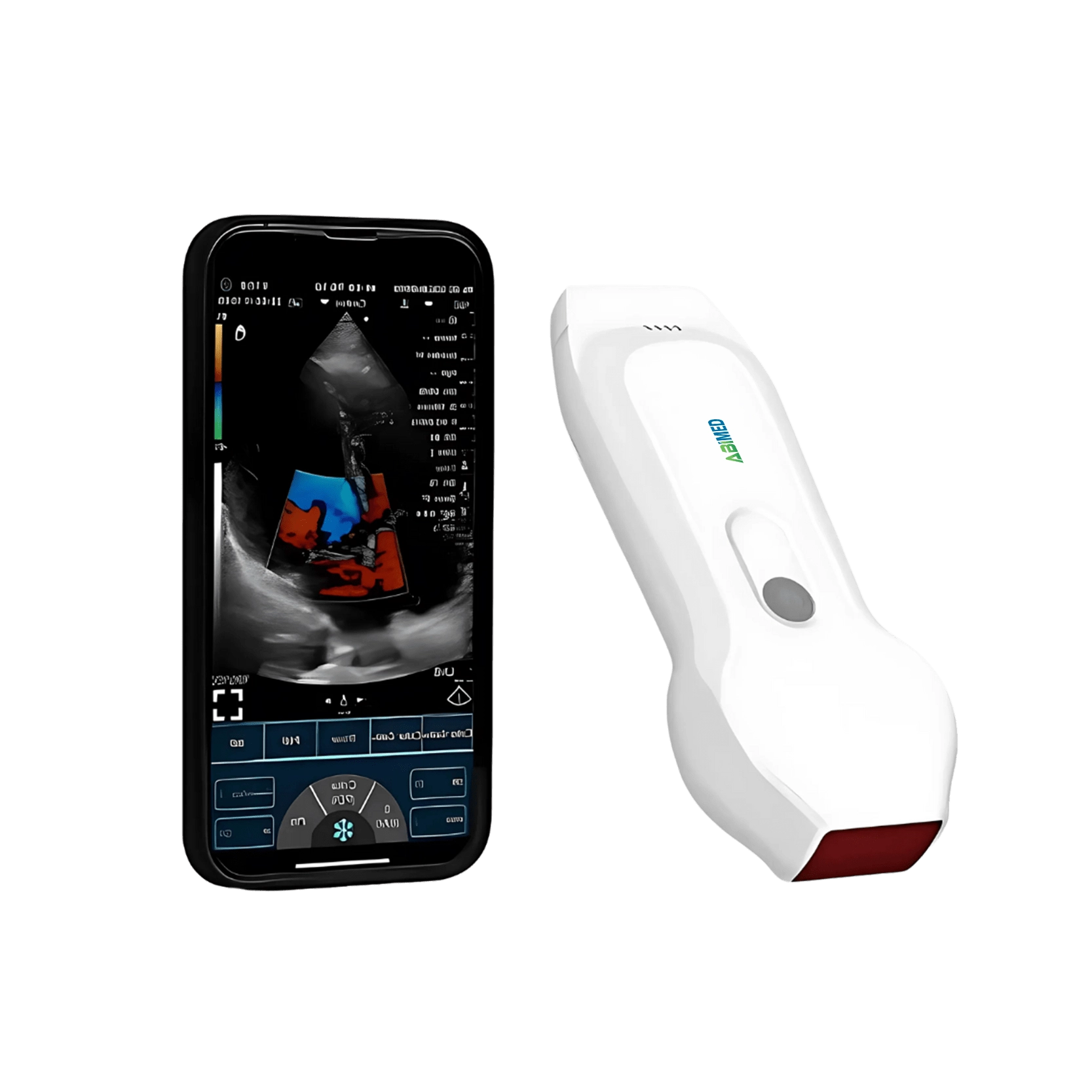

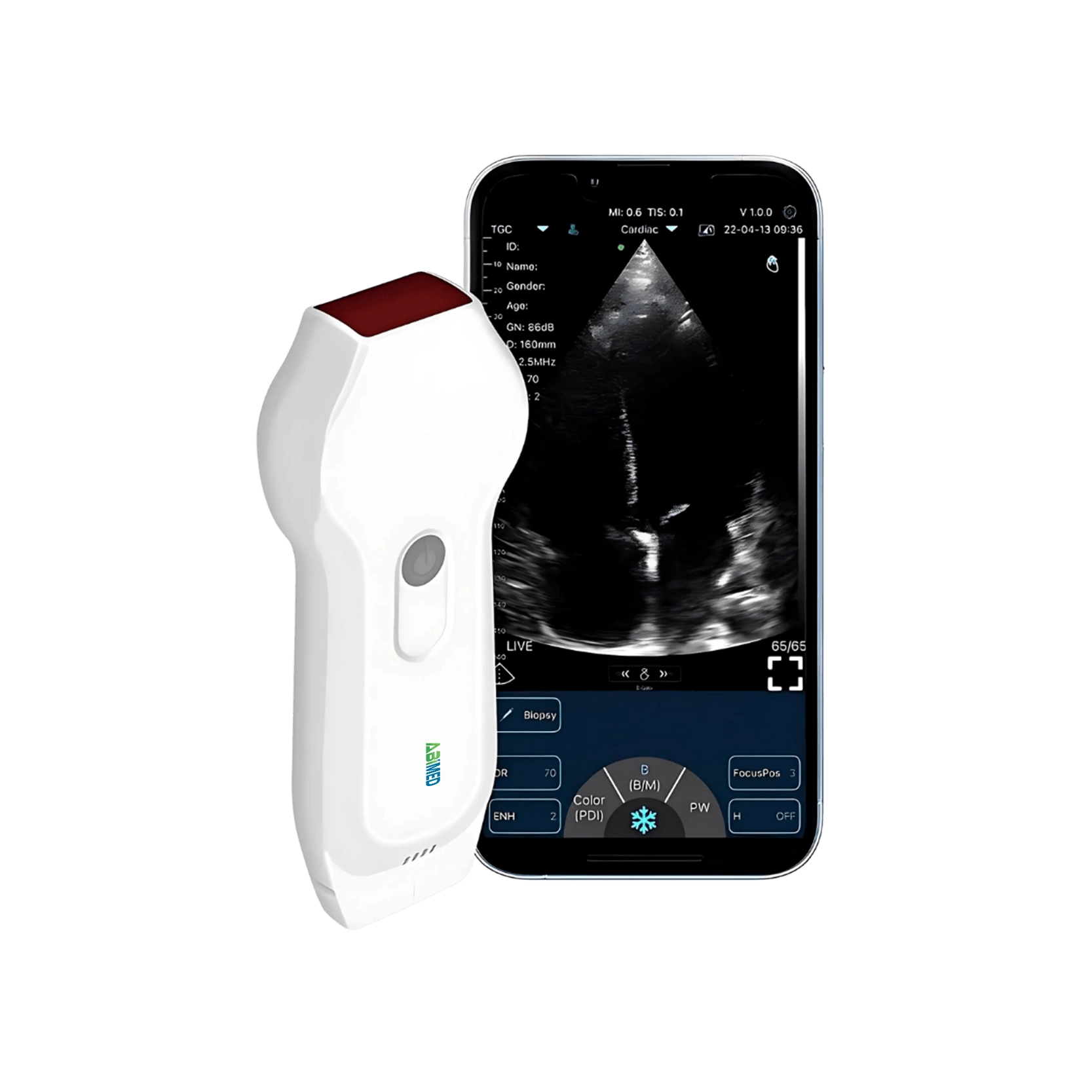

Ultrasound Scanner AM-USA12 features a linear probe with 128 dual elements and a wireless dual-head phased probe for enhanced image clarity. It operates at frequencies of 2.5/5.0 MHz for linear and 7.5/10 MHz for phased scanning, making it ideal for a range of applications. This scanner is designed to be compatible with tablets, smartphones, and PCs, offering easy connectivity via built-in WiFi for seamless data transfer. This combination of features makes it a powerful, portable, and user-friendly tool for medical professionals.
| Probe Type | Wireless Dual Head Phased + Linear Probe |
| Elements | 128 Dual Elements |
| Frequency | 2.5/5.0 MHz, 7.5/10 MHz |
| Depth |
20 to 100 mm 90 to 190mm |
| Frame Rate | 24 Frames Per Second |
| Gray Scale | 256 Levels |
| Channel | 64 |
| Gain | 40 to 110 dB |
| Power Consumption | 4W (Probe Run) /1.5W (Probe Stop) |
| Battery | Built-in 2800mAh Lithium Battery |
| Battery Life |
3 to 4 Hours (Working Time) 5+ Hours (Standby Time) |
| Compatible Devices | Tablet, Smartphone, PC |
| Connection | WiFi |
| WiFi Specifications | Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
