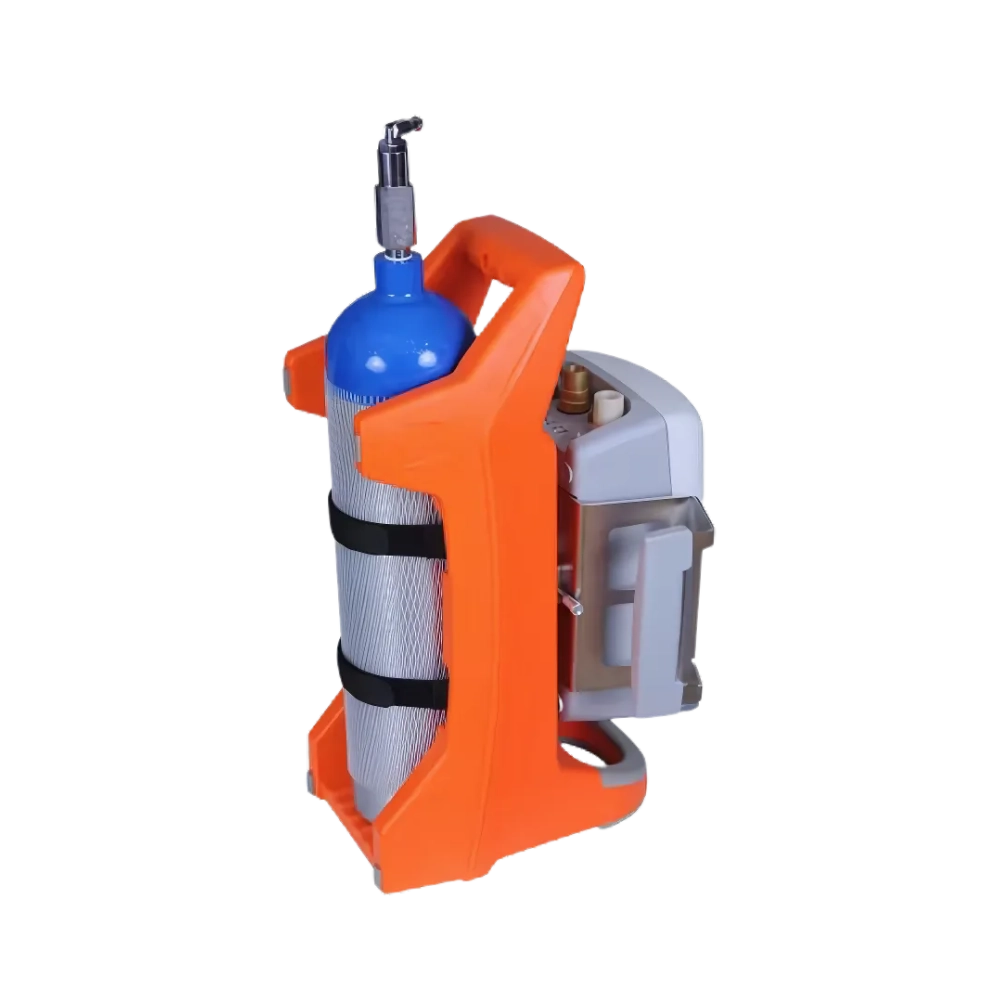

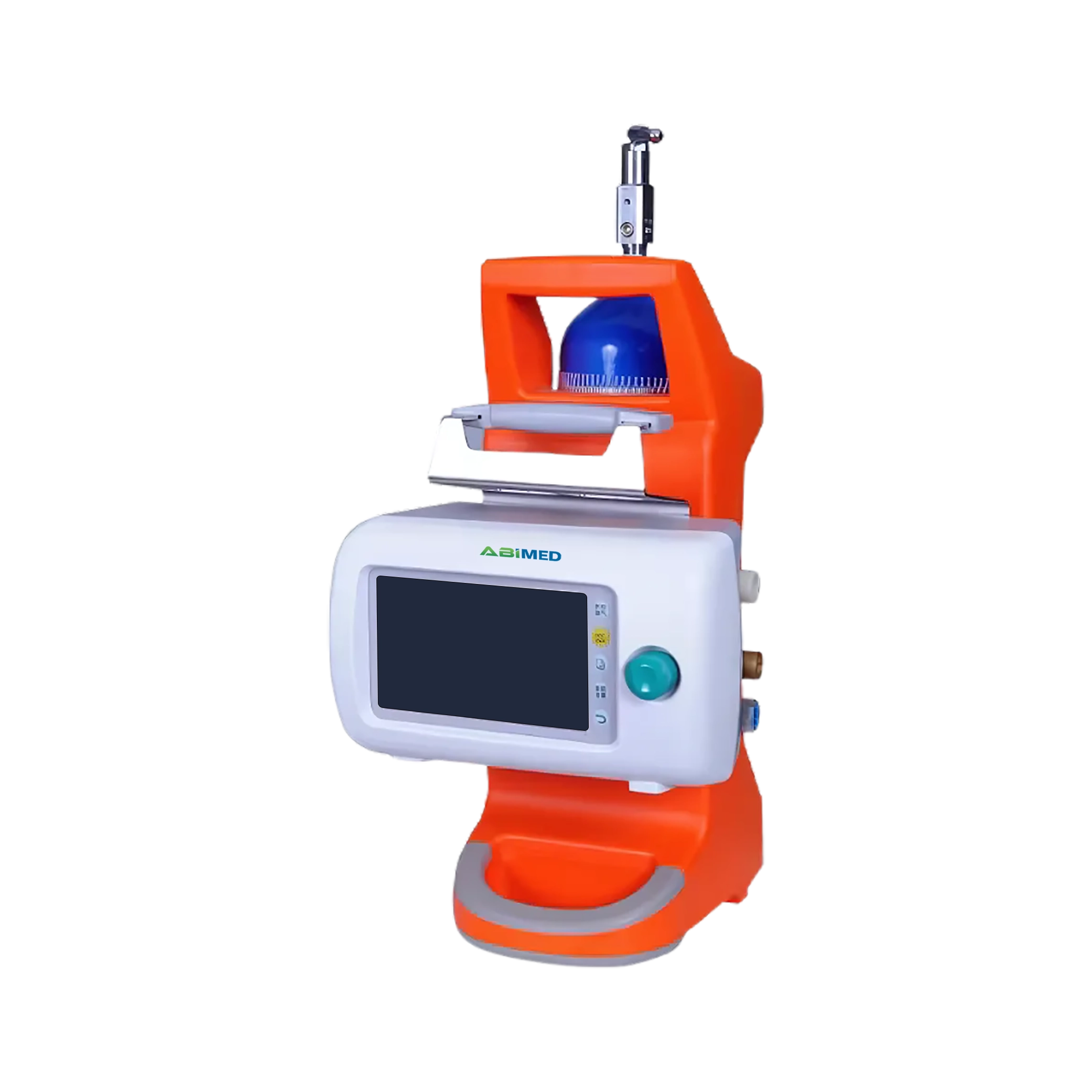

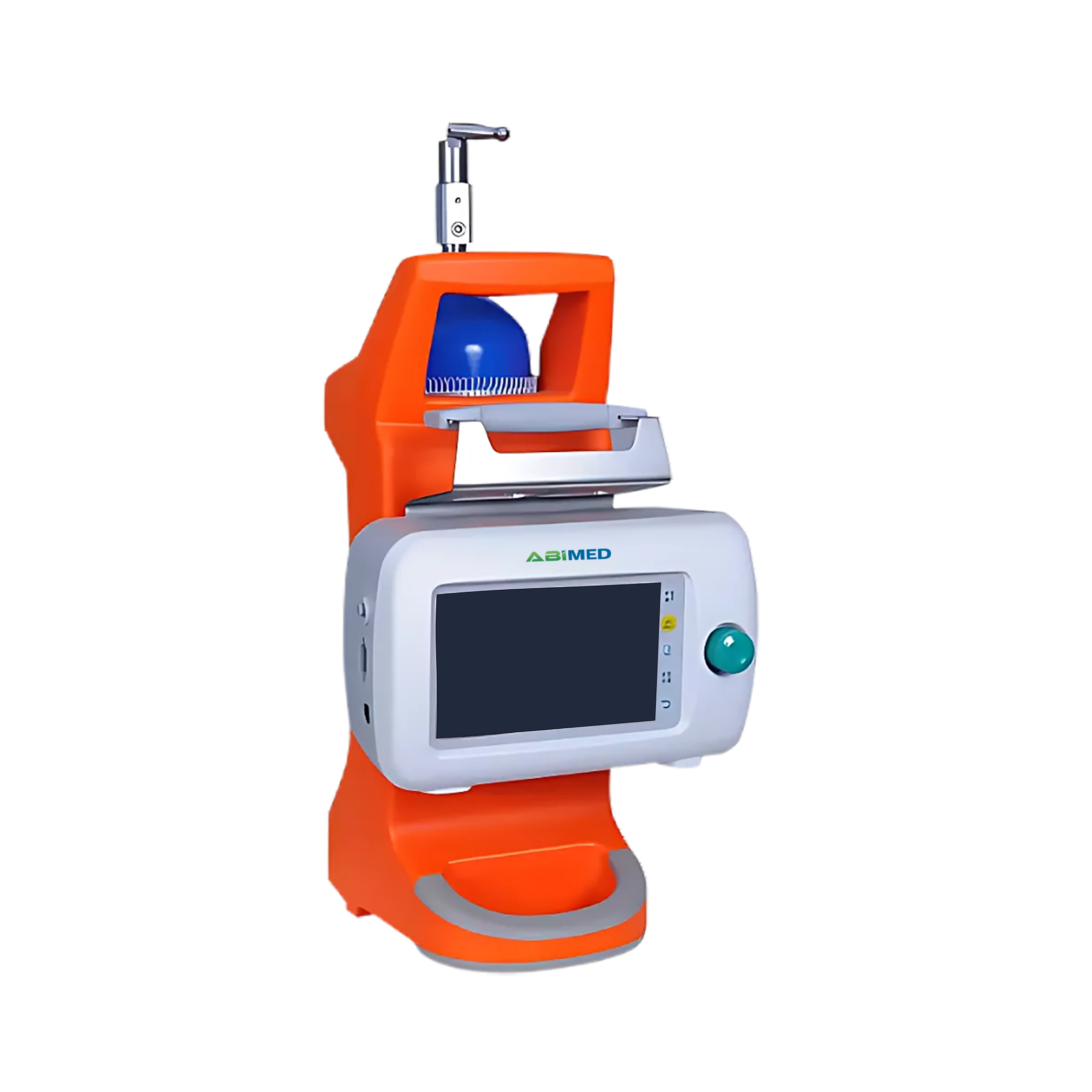

Portable Ventilator AM-PVA21 is a lightweight, pneumatically driven equipment to provide reliable ventilation in all clinical situations. The high resolution screen displays all parameters efficiently. The user friendly interface makes it convenient to operate in different modes during emergency.
Catalog
| Tidal Volume | 0 ~ 1500 ml |
|---|---|
| I:E Ratio | 4:1 ~ 1:8 |
| Breathing Rate | 4 bpm ~ 99 bpm |
| SIMV Rate | 4 bpm ~ 65 bpm |
| FiO2 | 48 % ~ 100 % |
| Pressure Trigger | -2 kPa ~ 0 kPa |
| PEEP | 0 -20 cmH2O |
| Monitoring Parameters | Tidal volume Minute volume Breathing rate Airway pressure |
| Power Supply | DC 12V charge AC 100V-240V |
| Unit Dimension | 660 x 410 x 520 mm |
| Accessory Name | Quantity |
|---|---|
| Main unit | 1 set |
| O2 cylinder (3L) | 1 pc |
| High pressure hose | 1 pc |
| O2 regulator | 1 pc |
| Bridge oxygen | 1 pc |
| Silicon pipe line | 1 pc |
| Connector | 1 pc |
| Breathing valve | 1 pc |
| Control hose of the breathing valve | 1 pc |
| Face mask | 1 pc |
| Breathing bag | 1 pc |
| Teeth opener | 1 pc |
| Power supply connector | 1 pc |
| Oxygen sensor connecting line | 1 pc |
| Oxygen sensor | 1 pc |
| Oxygen sensor connector | 1 pc |
| Cylinder stretch | 1 pc |
| Carry bag | 1 pc |
| Cylinder fix bend | 1 pc |
It is used in emergency wards and ambulances during the time of accidents or to transfer patients.
Abimed Portable Ventilator are the ultimate solution for mobile, life-saving respiratory support. They are Compact, lightweight, and powerful, they ensure reliable ventilation anywhere, anytime. Whether in emergency settings, home care, or transport situations, these devices are designed for easy operation and consistent performance. Featuring adjustable settings, intuitive controls, and a user-friendly interface, our device provides precise, tailored support to patients of all ages.
| Tidal Volume | 0 to 2000 ml |
| I: E Ratio | 4:1 to 1:8 |
| Rate | 4 to 100/min<br/> 1 to 40/min under SIVM |
| Tidal Volume | 20 ml ~ 2000 ml |
| I:E Ratio | 2:1 ~ 1:4 (totally 5 shifts) |
| Breathing Rate | 3 bpm ~ 70 bpm |
Abimed Intensive Care Ventilator are the solution for critical respiratory support. They are engineered for precision and reliability, these advanced ventilators ensure seamless, life-saving care for patients in the most critical conditions. The device offers Intuitive controls, adaptable settings, and real-time monitoring. Designed with the highest standards of safety and efficiency, our product ensures easy integration into any intensive care unit, making it an indispensable tool for healthcare professionals.
| Tidal Volume | 0 ~ 2000 mL |
| Respiratory Rate | 1 bpm ~ 100 bpm |
| Oxygen Concentration Output | 21 % ~ 100 % |
| Tidal Volume | 50 mL ~ 1500 mL (20 ml ~ 1500 mL) |
| Respiratory Rate | 1 bpm ~ 99 bpm |
| Oxygen Concentration Output | 21 % ~ 100 % adjustable |
| Tidal Volume | 20 mL ~ 2000 mL |
| Respiratory Rate | 1 bpm ~ 100 bpm |
| Oxygen Concentration Output | 21 % ~ 100 % |
| Tidal Volume | Setting Range: 50 mL ~ 1500 mL <hr> Display Range: 0 ~ 2000 mL; ± 10ml |
| Respiratory Rate | 1 bpm ~ 99 bpm |
| Oxygen Concentration Output | 21 % ~ 100 % adjustable |
