ICU Ventilator AM-IVA13

ICU Ventilator AM-IVA13 is a pneumatically driven equipment for critical patients. The built-in modes of ventilation enable health professionals for easy mode selection as per patient’s condition. It is equipped with high resolution screen makes it convenient to operate and displays the required waveforms.

Catalog

Specifications

Tidal Volume	0 ~ 2000 mL
Respiratory Rate	1 bpm ~ 100 bpm
Oxygen Concentration Output	21 % ~ 100 %
SIMV Rate	Regulation range 1 - 40 bpm Monitoring range 0 - 100 bpm
I:E Ratio	4 : 1 ~ 1 : 8
PEEP	0 ~ 4.0 kPa
Pressure triggering sensitivity	-20 cmH₂O ~ 0 cmH₂O
Flow triggering sensitivity	0.5 cmH₂O ~ 30 cmH₂O
Pressure range	20 cmH₂O ~ 100 cmH₂O
SIGH	0 (off) 1/100 ~ 5/100
Apnea Ventilation	OFF, 5 s ~ 60 s
Parameters of Ventilation Monitoring	Frequency (Frequency) Tidal volume (V _t) MV (Minute Ventilation) Airway pressure Dynamic lung compliance monitoring Oxygen concentration
Oscillographs	P - T (Pressure - Time) F - T (Flow - Time) P - V loop (Pressure - Volume loop)
Oxygen Monitoring Concentration	15 % ~ 100 %
Power Supply	220V; ± 22 V, 50Hz; ± 1Hz 900VA (With air compressor) 250VA (Without air compressor)
Unit Weight	22 kg
Unit Dimension	506 x 566 x 615 mm

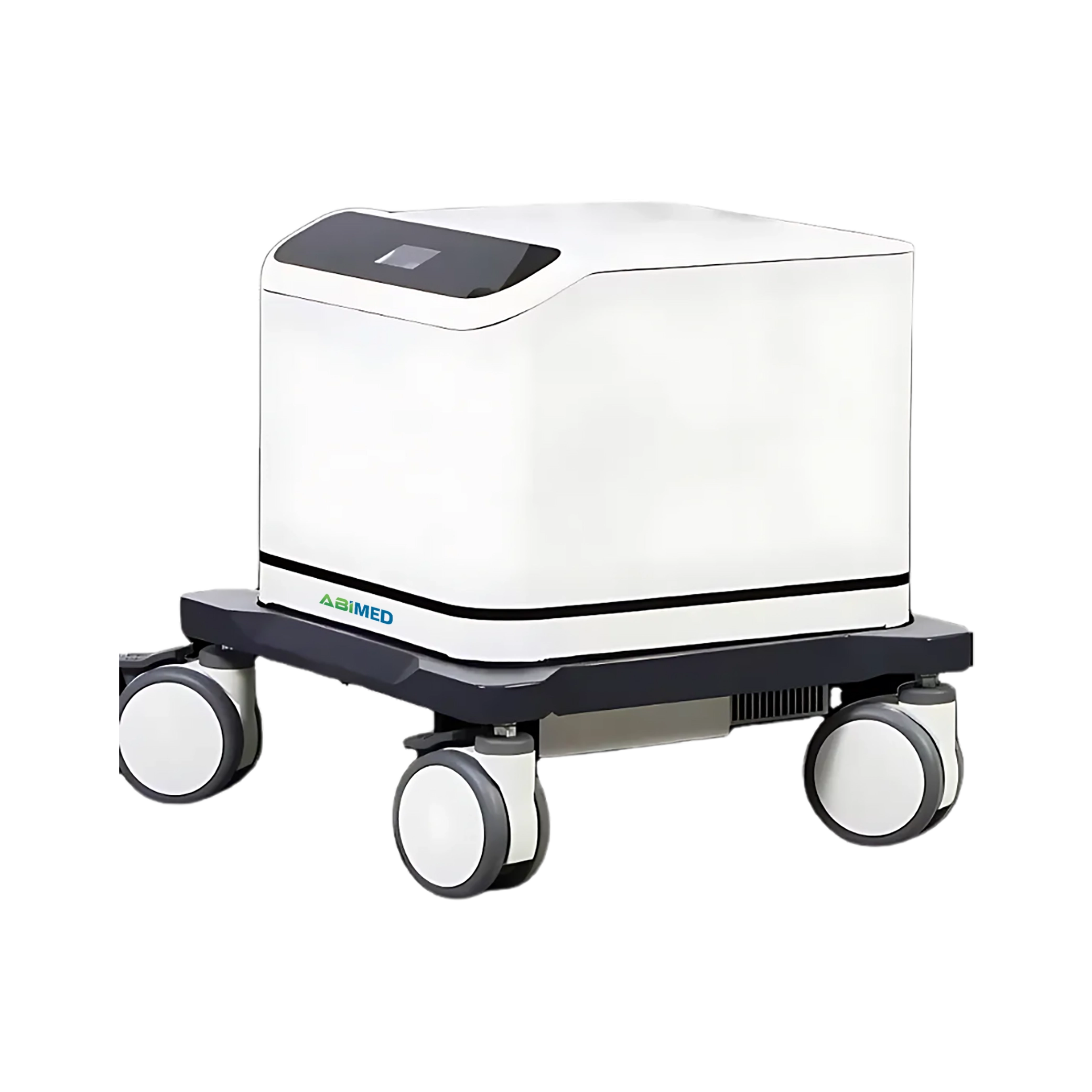

Compressor Weight	70 kg
Compressor Dimension	683 x 687 x 1140 mm

Features

High definition 12.1” TFT color display
Ventilation modes: IPPV, A/C, PCV, SIMV, PSV, SPONT/CPAP, SIGH, MANUAL
Fourteen types of sound and visual alarm information
Easy to move with four casters, easy to stop with two brakes
Humidifier heats and moisturizes the breathing gas

Standard Accessories

Accessory Name	Quantity
Main unit	1 set
Power Cord	1 pc
High Pressure hose for air compressor	1 pc
High pressure O₂ hose	1 pc
CO₂ sensor	1 pc
Serrated Saddle	6 pcs
Hanger	1 pc
Humidifier (Adult)	1 pc
Breathing Tube - C-I-1 (ɸ22 - ɸ22) x 800mm	2 pcs
Breathing Tube - C-I-1 (ɸ22 - ɸ22) x 400mm	3 pcs
Breathing Tube - C-I-2 (ɸ22 - ɸ22) x 400mm	3 pcs
Breathing Tube - C-I-2 (ɸ22 - ɸ15) x 800mm	2 pcs
Water Trap(Adult)	2 pcs
Y connector (Adult)	1 pc
Y connector (Child)	1 pc
L connector	2 pc
Test lung	1 pc

Applications

It is used in ICU, NICU and emergency wards for the patients in critical conditions, post heart surgery, spinal injuries, brain injuries and neurological disorders.
