Tidal Volume : 0 to 2000 ml
I: E Ratio : 4:1 to 1:8

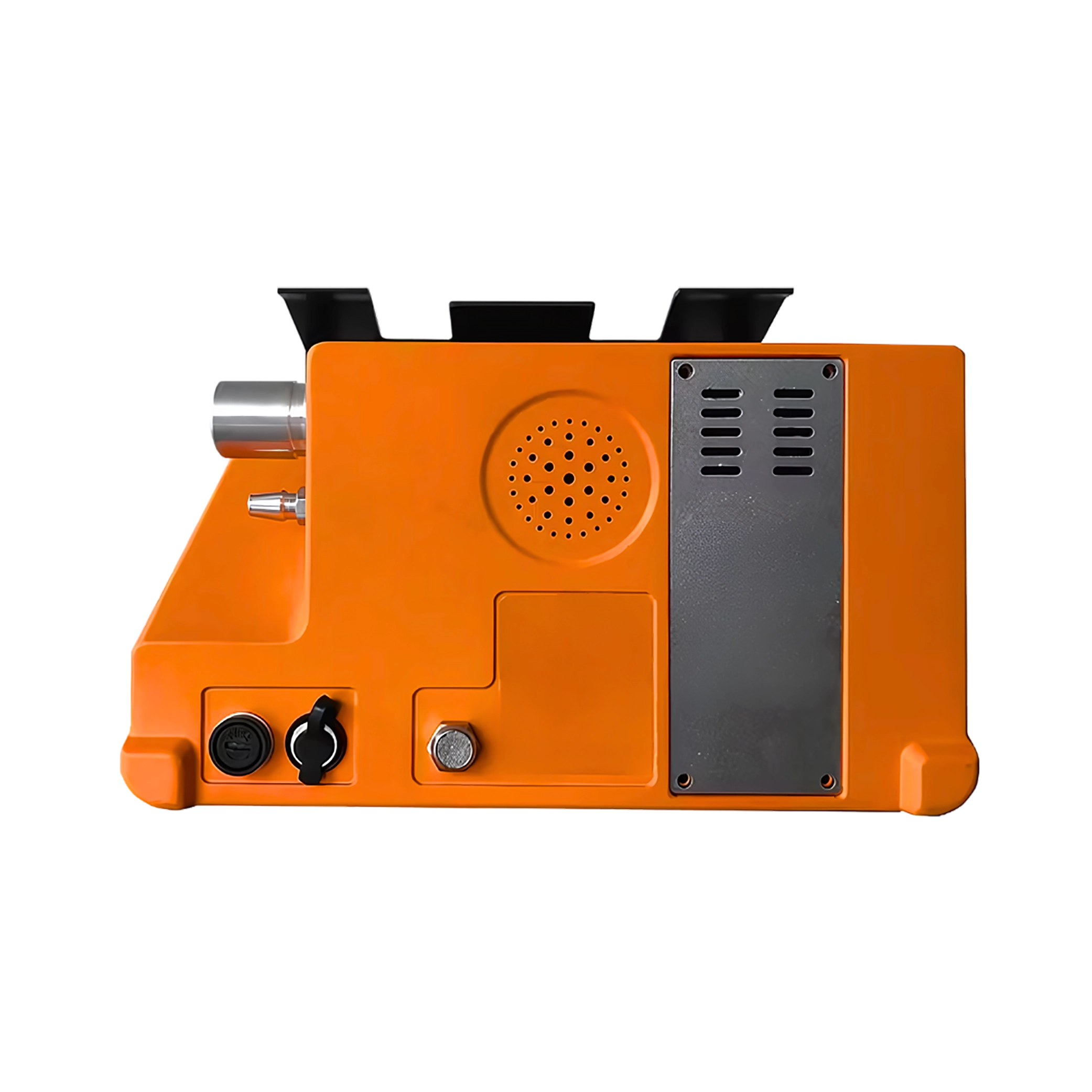

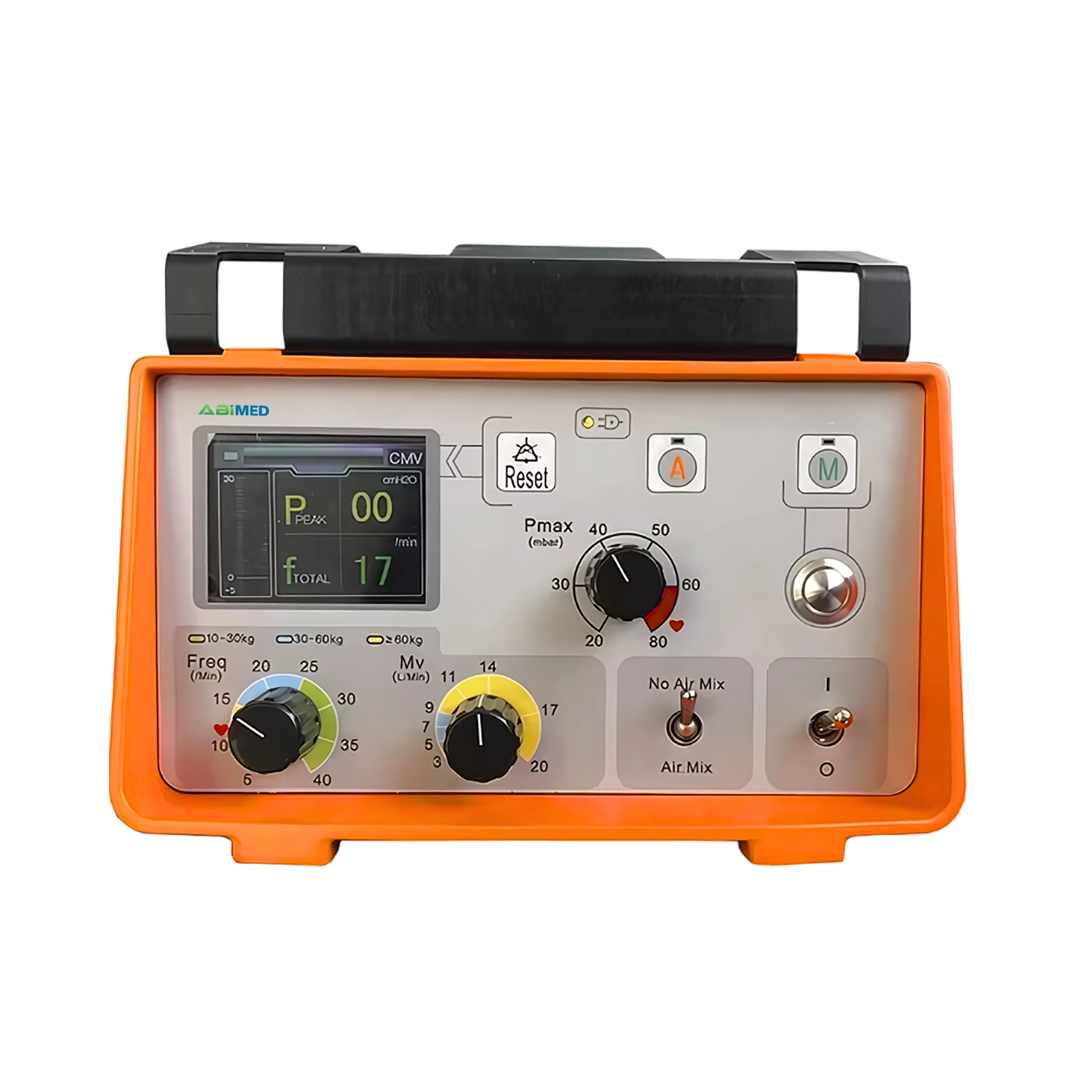

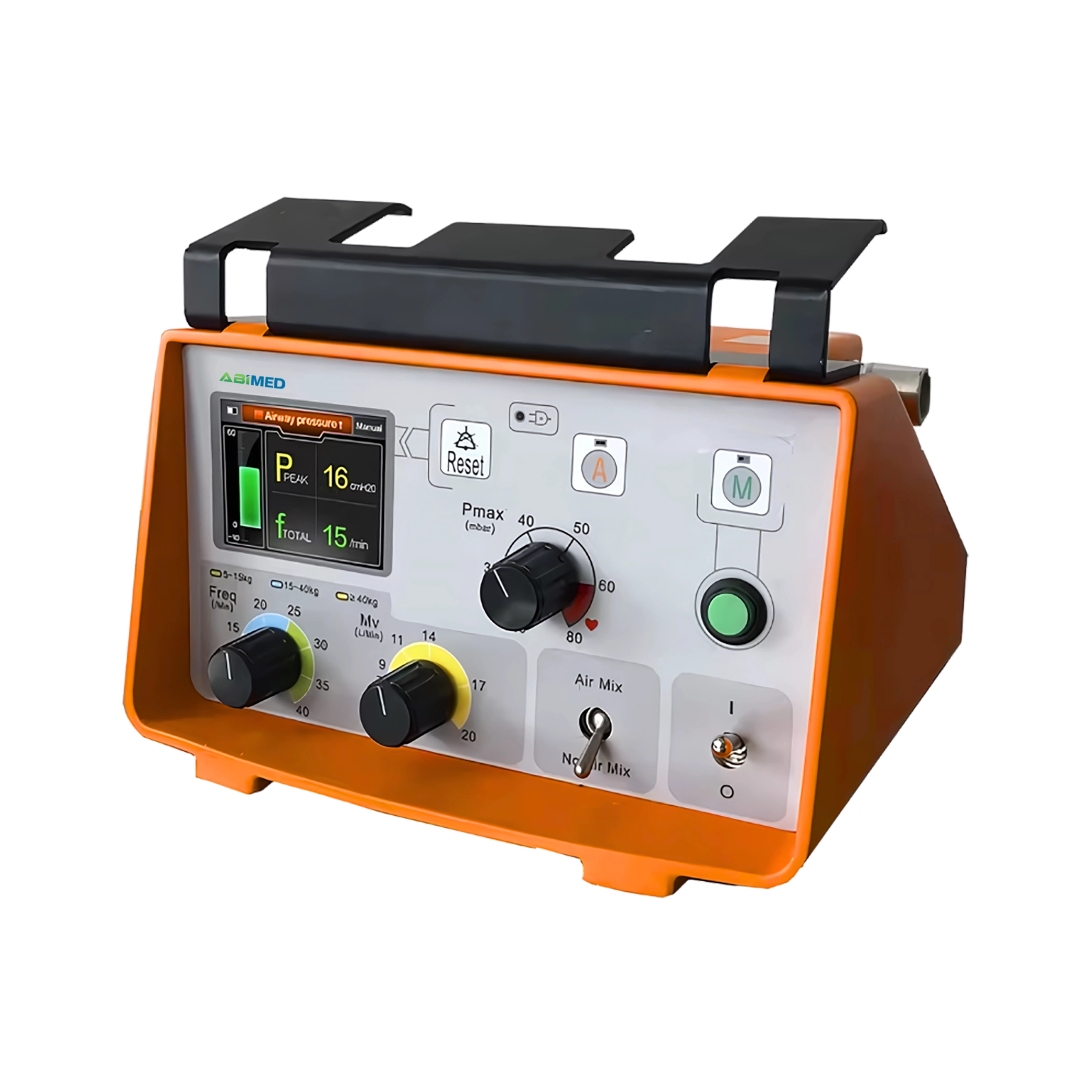

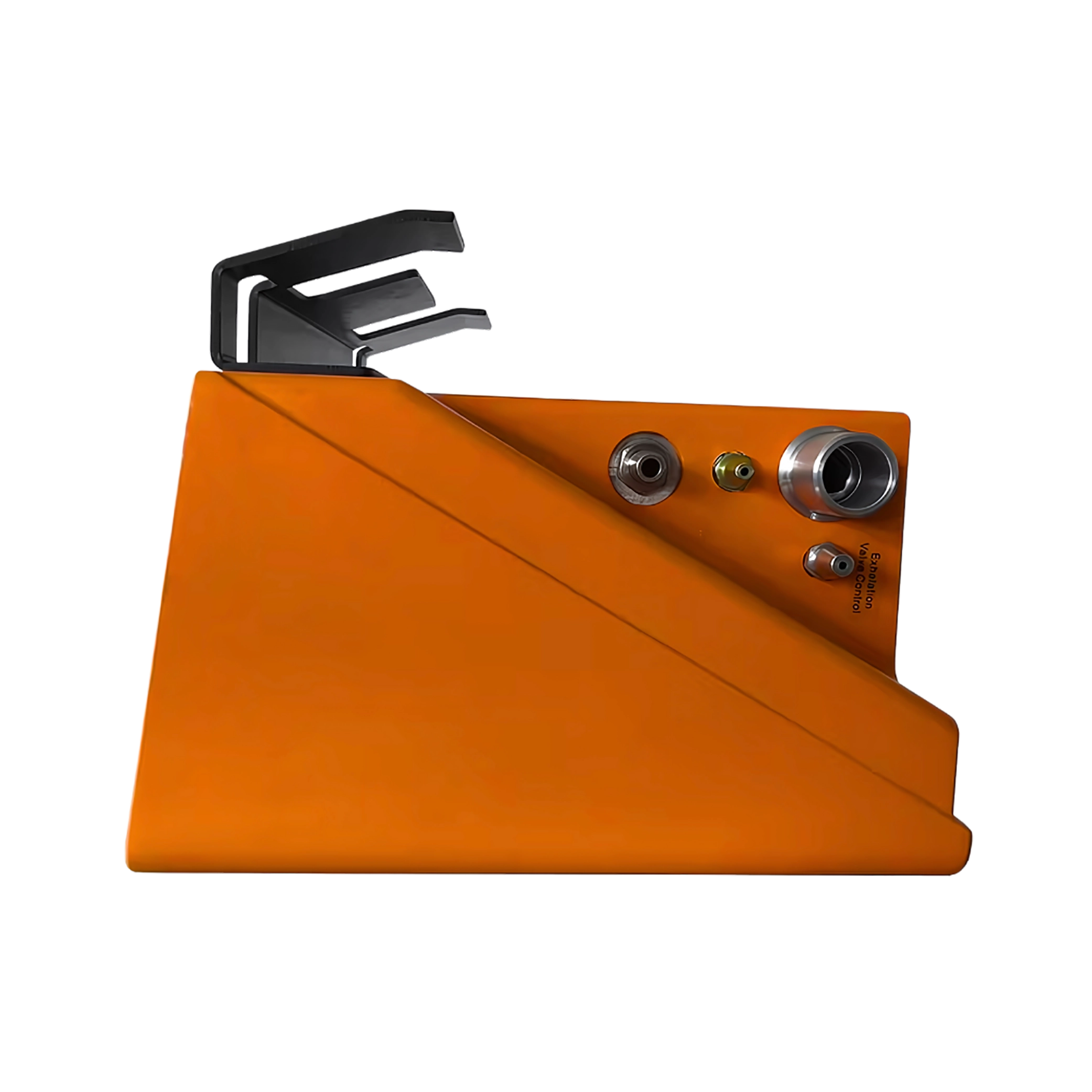

Portable Ventilator AM-PVA22 is equipped with a high-resolution 5” TFT LCD screen, that displays all essential parameters, ensuring ease of monitoring.It offers a wide range of tidal volume settings of 20 ml to 2000 ml and adjustable breathing rate, making it suitable for both adult and pediatric patients. Its SIMV mode, FiO2 control, and adjustable PEEP further enhance its versatility. This device is pneumatically driven and electrically controlled, ensuring consistent performance. Additionally, its compact and lightweight design, making it easy to transport and ideal for use in various healthcare settings.
| Tidal Volume | 20 ml to 2000 ml |
| I:E Ratio | 2:1 to 1:4 (totally 5 shifts) |
| Breathing Rate | 3 bpm to 70 bpm |
| SIMV Rate | 4 bpm to 65 bpm |
| FiO<sub>2</sub> | 48 % to 100 % (Optional 21% to 100%) |
| Pressure Trigger | -2 kPa to 0 kPa |
| PEEP | 0 to 20cmH2O |
| Monitoring Parameters |
Tidal volume Minute ventilation(MV) Total respiratory frequency Peak pressure Airway pressure wave Trigger indication AC power indication DC power indication Battery Level indication |
| Power Supply |
AC 220V ± 10 % 50Hz ± 1 % |
| Unit Dimension | 220 × 220 × 170 mm |
| Unit weight | 2.5 kg |
| Accessory Name | Quantity |
|---|---|
| Main unit | 1 set |
| Breathing Circuit | 1 set |
| Pressure Regulating Valve | 1 pc |
| Silicon Mask | 1 set |
| High Pressure Tubes | 1 set |
