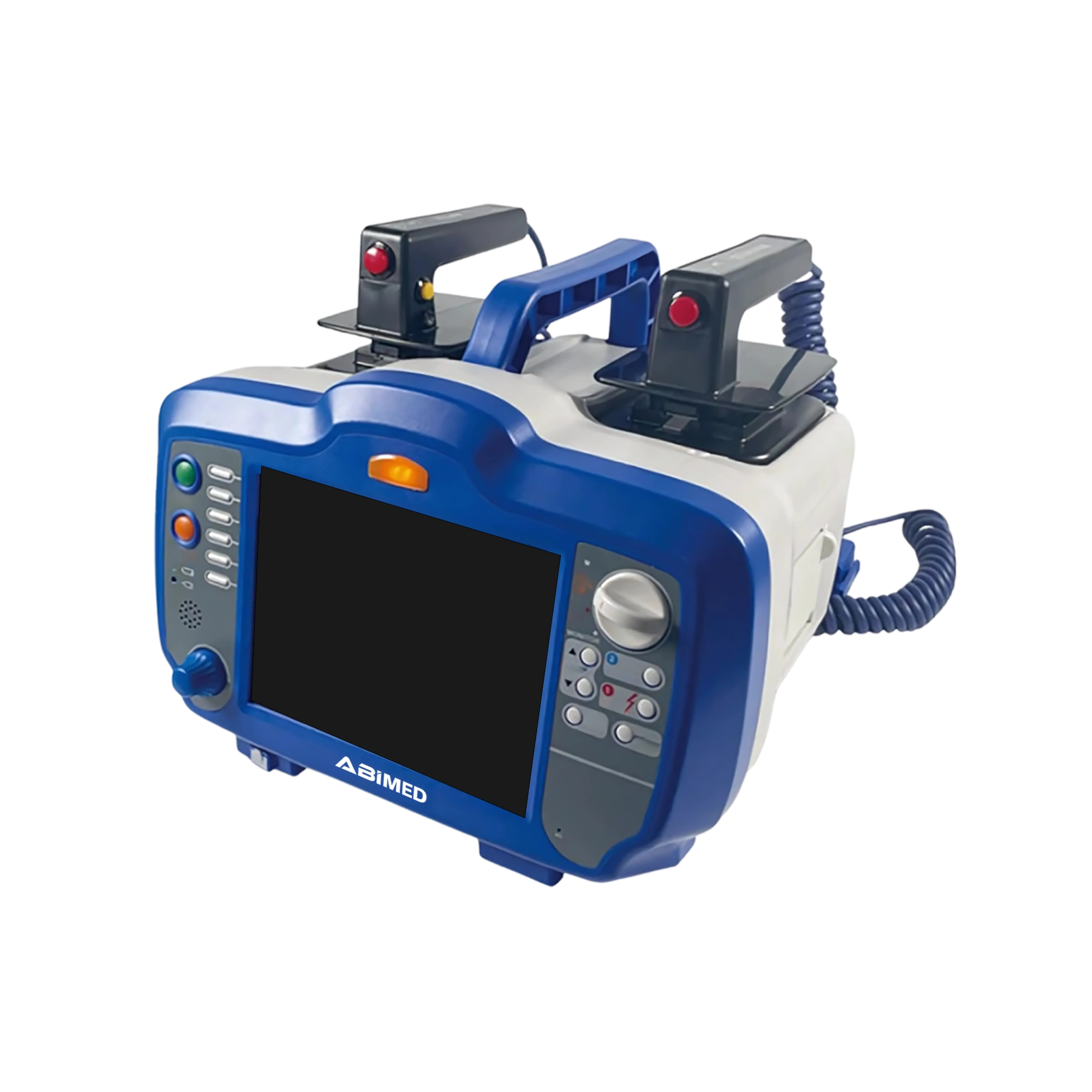

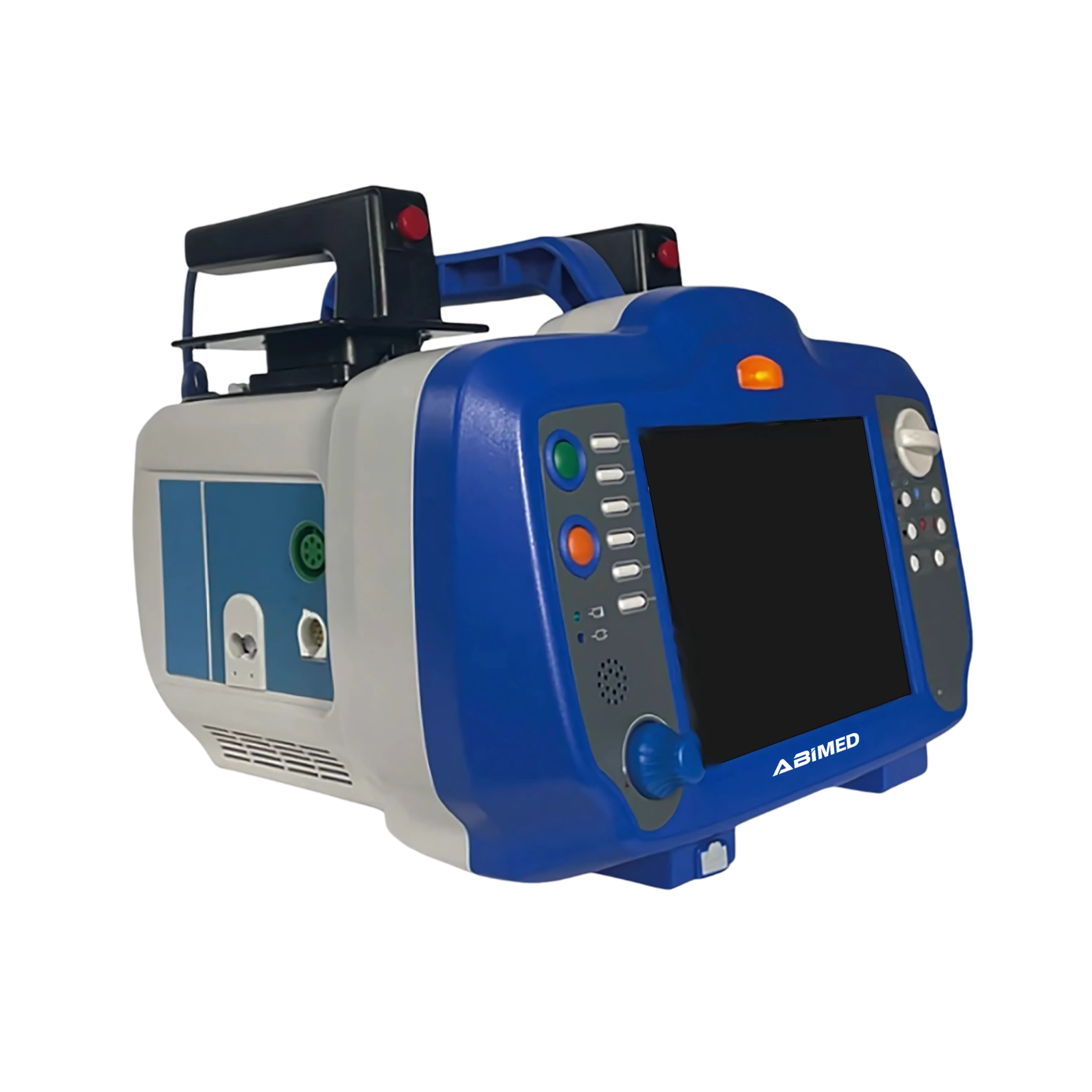

Automated Portable Biphasic Defibrillator AM-PD42 offers a 360-joule energy range for quick defibrillation in sudden cardiac arrest. It provides a 7 to 8 color display for clear ECG waveform monitoring and guided defibrillation. Integrated with voice and visual prompts for faster automated or manual defibrillation. Built with a rechargeable battery for reliable emergency and transport use. Our Automated Portable Biphasic Defibrillator supports resuscitation in hospitals, ambulances, and clinics.
| Energy Range | 2 to 360 J, Selectable Steps |
| Waveform | Biphasic Truncated Exponential |
| Display | 7 to 8 TFT color LCD, 800 × 600 Pixels, Shows ECG & Monitoring Parameters |
| ECG Monitoring | 3 / 5 - Lead or Paddles; Leads I, II, III, aVR, aVL, aVF, V; Heart rate 20 to 300 BPM |
| Modes | Manual, AED, Monitoring, Optional Pacing (VVI) |
| AED Mode | Auto Rhythm Analysis, Voice and Visual Prompts, Shock Via Panel or Paddles |
| Manual Mode | Energy Selection up to 360 J, Synchronized Cardioversion, Front Panel and Paddle Controls |
| Pacing (Optional) | VVI Mode; Pulse Amplitude 0 to 180 mA; Pulse Width 20 ms; rate 30 to 180 ppm |
| SpO₂ Monitoring (Optional) | 30 to 100 % range, user-set alarms, < 12 s response |
| EtCO₂ Monitoring (Optional) | 0 to 13% CO₂, Respiration 3 to 60 BPM, Accuracy ± 5 to 10 % |
| Recorder / Printer | Thermal 50 mm, Manual / Auto Modes, 12.5/25/50 mm / s Speeds, Auto Print on Alarm / Charge / Discharge |
| Operating Temp | +5 to 50 °C |
| Storage Temp | –20 to 70 °C |
| Humidity | 0 to 85 % non-condensing |
| Altitude | Up to 4572 m |
| Protection | IP2X Solid, IPX4 Splash |
| Shock / Vibration | MIL-STD-810E |
| Battery | Rechargeable Ni-MH, Reliable Operation During Emergencies and Patient Transport |
| Power Supply | AC 220 to 240 V, 50 / 60 Hz |
| Dimensions | 330 × 320 × 135 mm |
| Net Weight | 5 kg |
| Gross Weight | 6 kg |
Connect with Our Specialists
The Portable Biphasic Defibrillators are a powerful and compact device designed to deliver life-saving shock therapy during sudden cardiac arrest. Featuring biphasic waveform technology, these defibrillators provide efficient energy delivery for faster and more effective resuscitation. Perfect for emergency medical teams, hospitals, and public facilities, this device offers the reliability and portability needed for critical situations.
