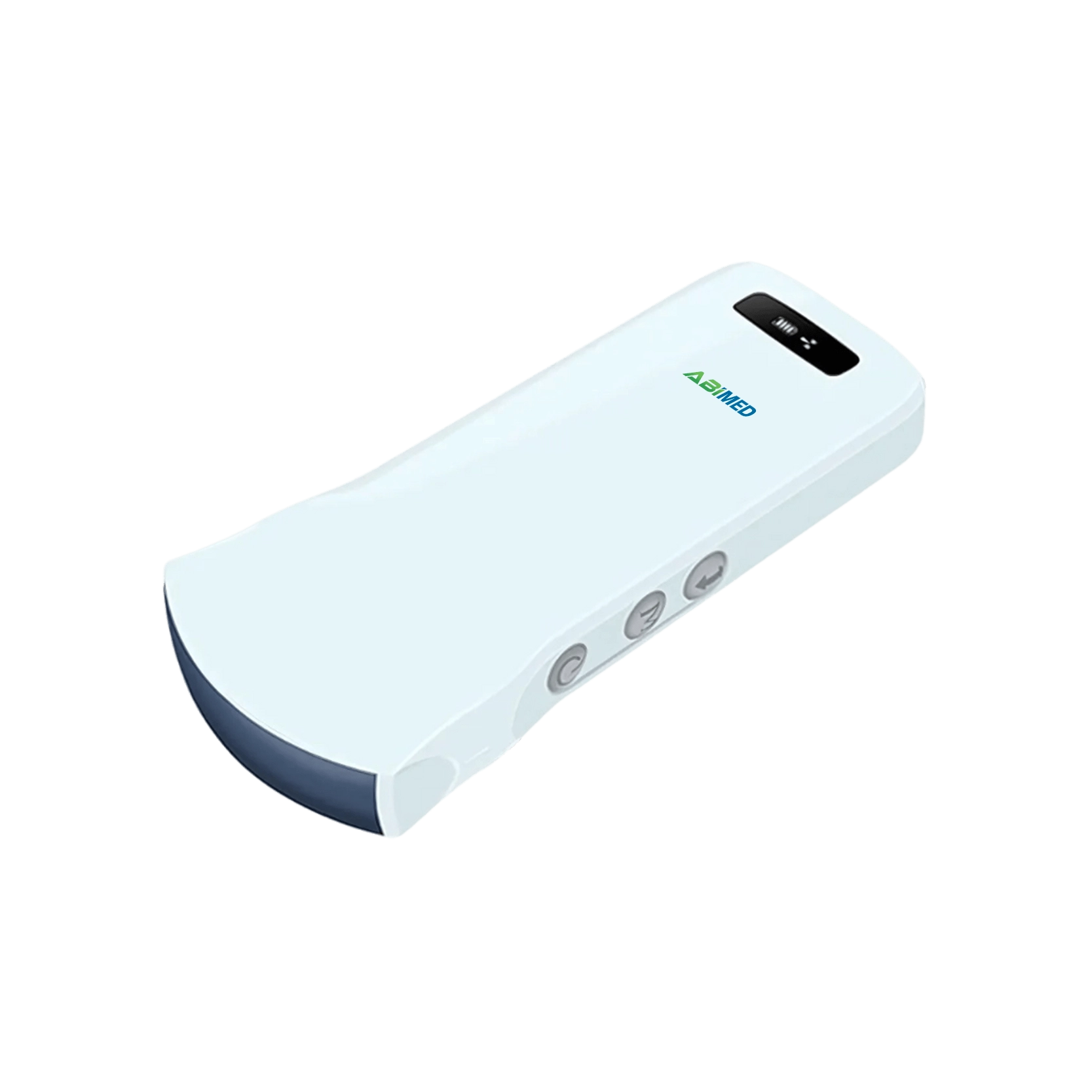

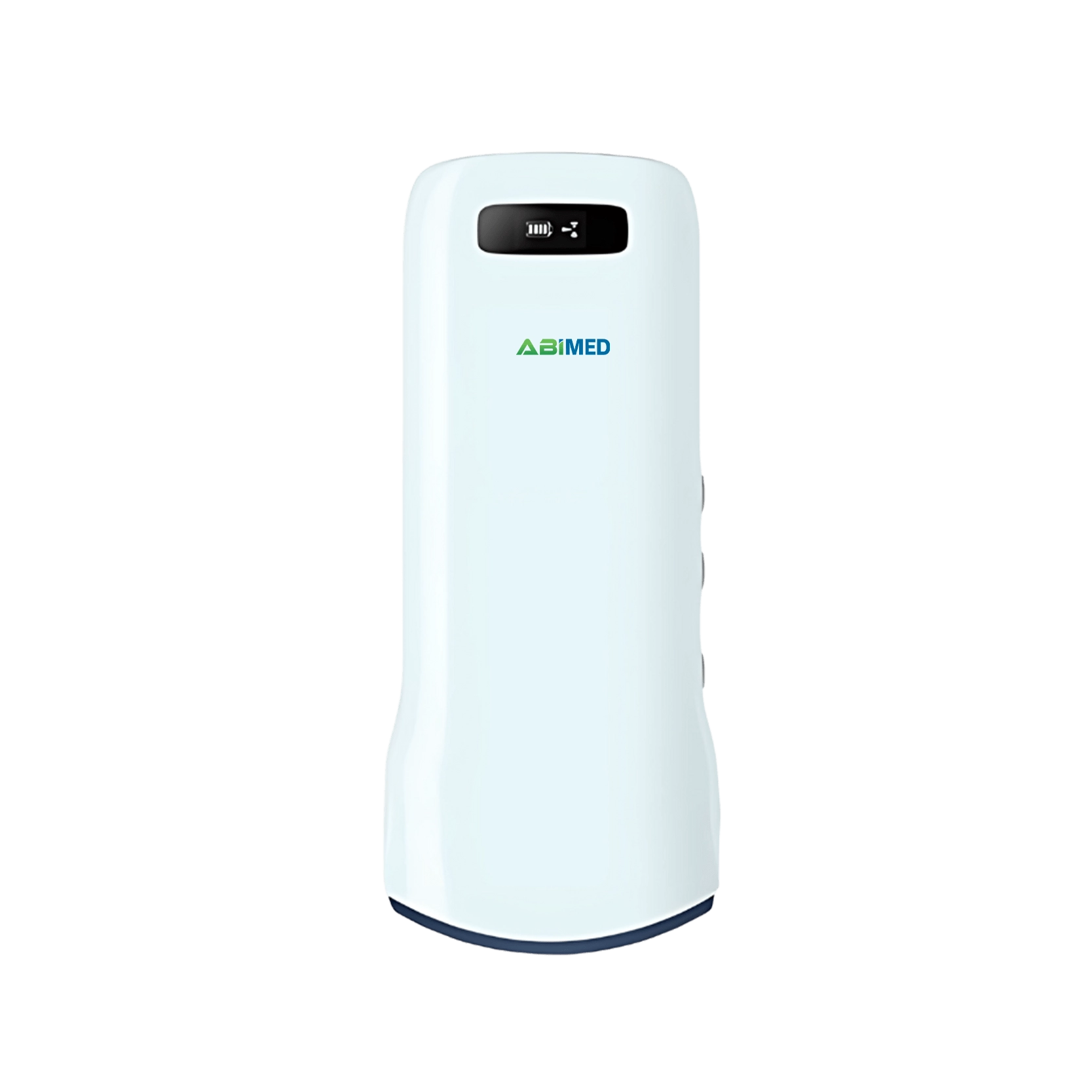

Ultrasound Scanner AM-USB23 features 128 elements and a 3.2 to 5 MHz frequency range, providing exceptional imaging clarity. It operates efficiently with a built-in 4200mAh battery, offering continuous use and standby time. Its low power consumption while running enhances efficiency. This device is compatible with tablets, smartphones, and PCs, making it an ideal solution for point-of-care imaging in various medical environments.
| Probe Type | Wireless Probe |
| Elements | 128 Elements |
| Frequency | 3.2 to 5Mhz |
| Depth | 90 to 305mm |
| Radius | R60 |
| Frame Rate | 24 Frames Per Second |
| Gain | 40 to 110Db |
| Channel | 64 |
| Battery | By Built-In 4200mAh Battery |
| Battery Life |
3hours (Working time) 12hours (Stand by time) |
| Power Consumption | 4W (Probe Run) /1.5W (Probe Stop) |
| Connections | 802.11.n Wi-Fi (AP) |
| Wi-Fi Type | Built-in Wi-Fi, 802.11g/20MHz/5G/450Mbps |

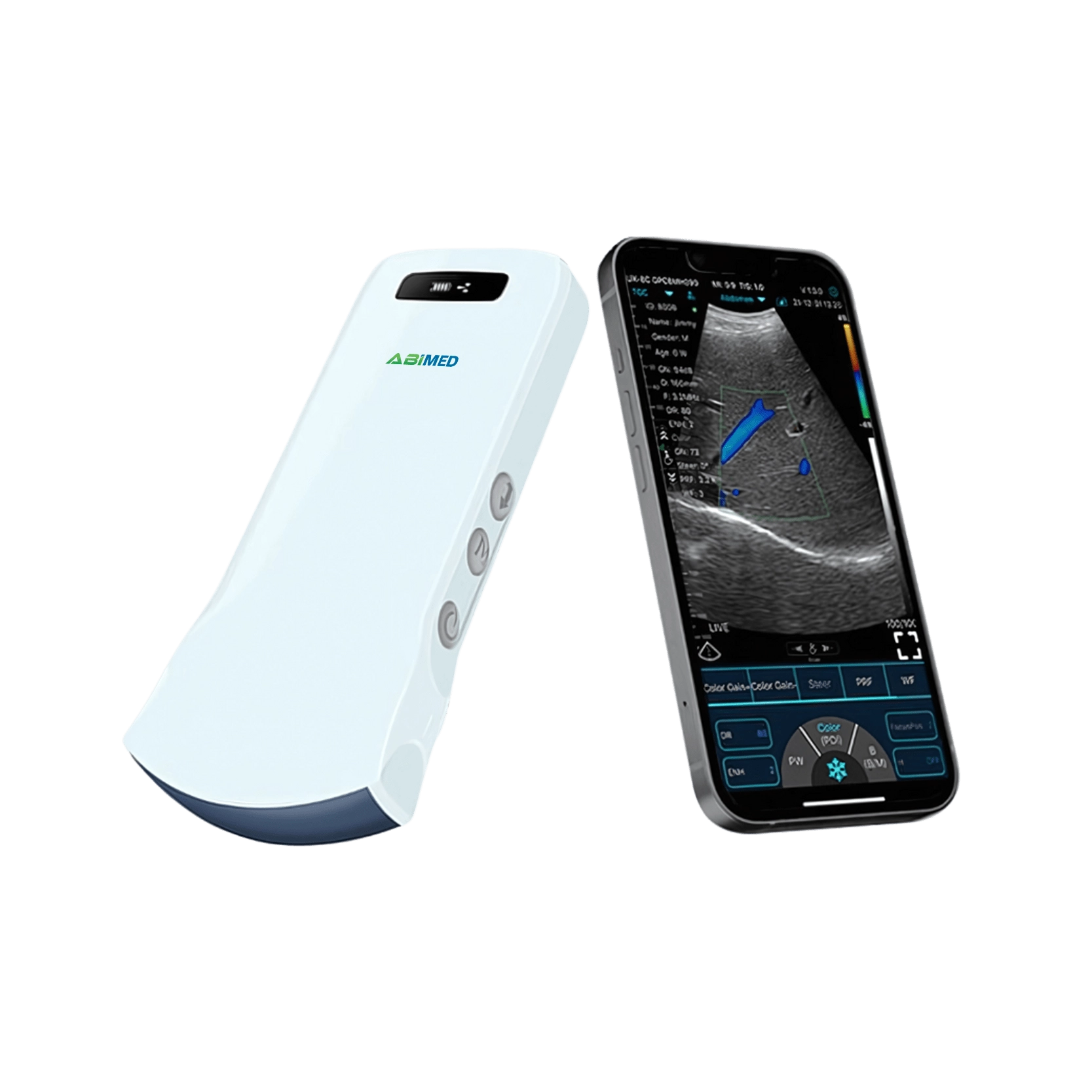

| Software Compatibility | Tablet, Smart phone, PC |
| Dimensions | 158 × 70 × 30mm |
| Weight | 239g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
