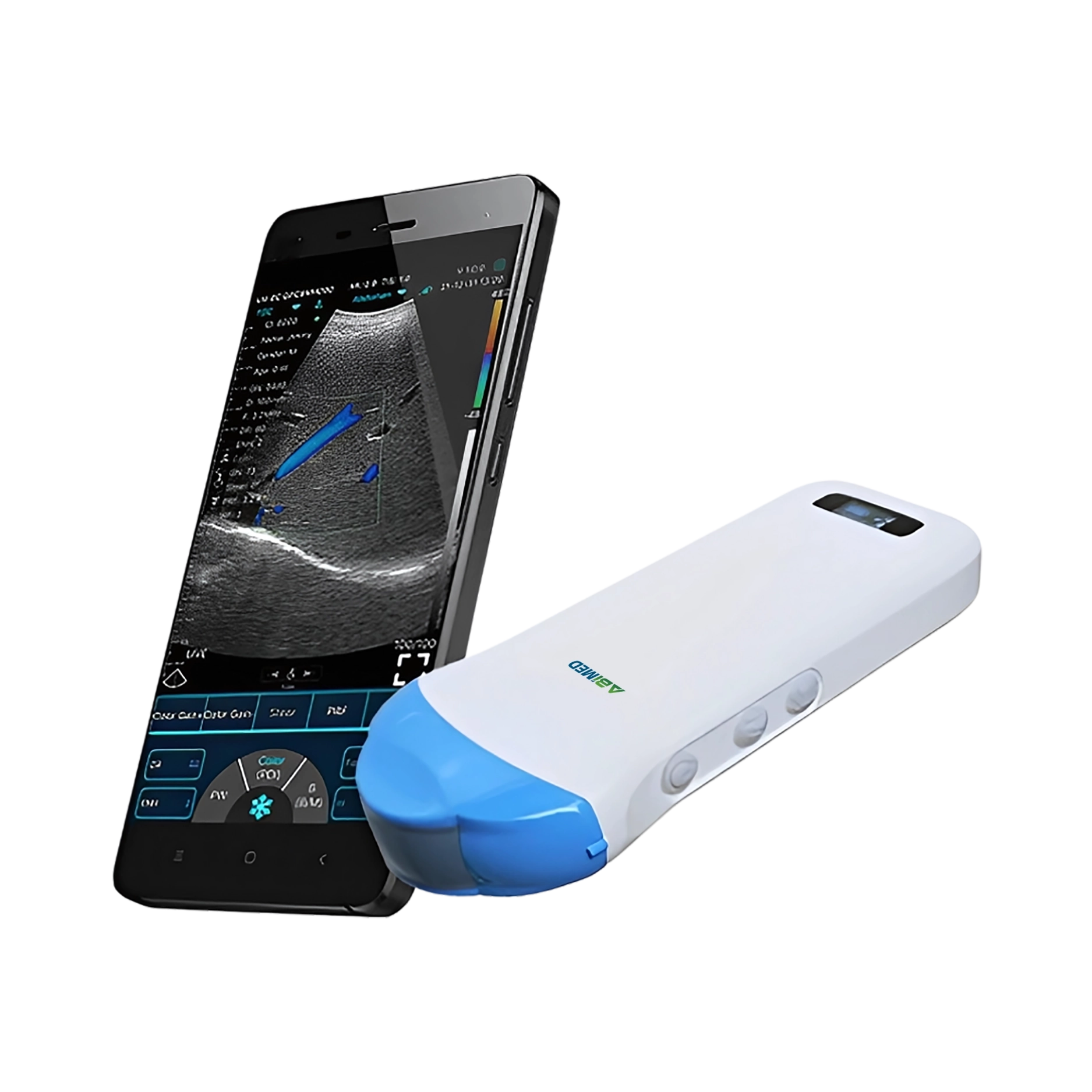

Ultrasound Scanner AM-USB24 features a 64-channel system with a gain range of 40 to 110dB, ensuring high-quality diagnostics. With a frame rate of 24 frames per second, it delivers smooth real-time imaging. It is a compact and high-performance imaging device designed for portability and ease of use. This device connects via built-in Wi-Fi and is compatible with tablets, smartphones, and PCs, ensuring seamless data transfer and accessibility. In addition, it is ideal for point-of-care applications, telemedicine, and mobile healthcare environments.
| Probe Type | Wireless Probe |
| Elements | 192 Elements |
| Frequency | 5/7Mhz |
| Depth | 60 to 160mm |
| Footprint | L25 |
| Frame Rate | 24 Frames Per Second |
| Gain | 40 to 110Db |
| Channel | 64 |
| Battery | By Built-In 4200mAh Battery |
| Battery Life |
3hours (Working time) 12hours (Stand by time) |
| Power Consumption | 4W (Probe Run) /1.5W (Probe Stop) |
| Connections | 802.11.n Wi-Fi (AP) |
| Wi-Fi Type | Built-in Wi-Fi, 802.11g/20MHz/5G/450Mbps |
| Software Compatibility | Tablet, Smart Phone, PC |
| Dimensions | 158 × 70 × 30mm |
| Weight | 212g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
