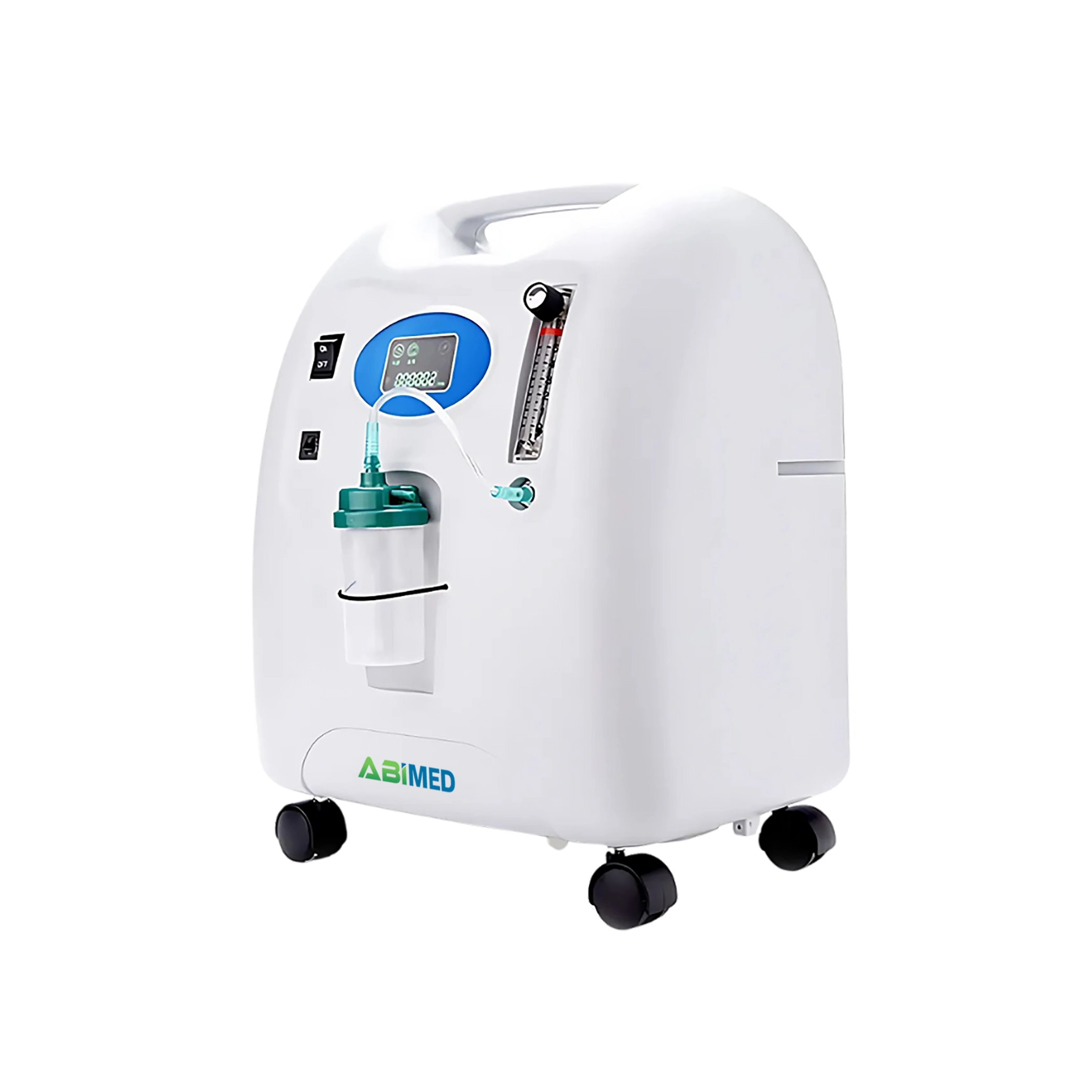

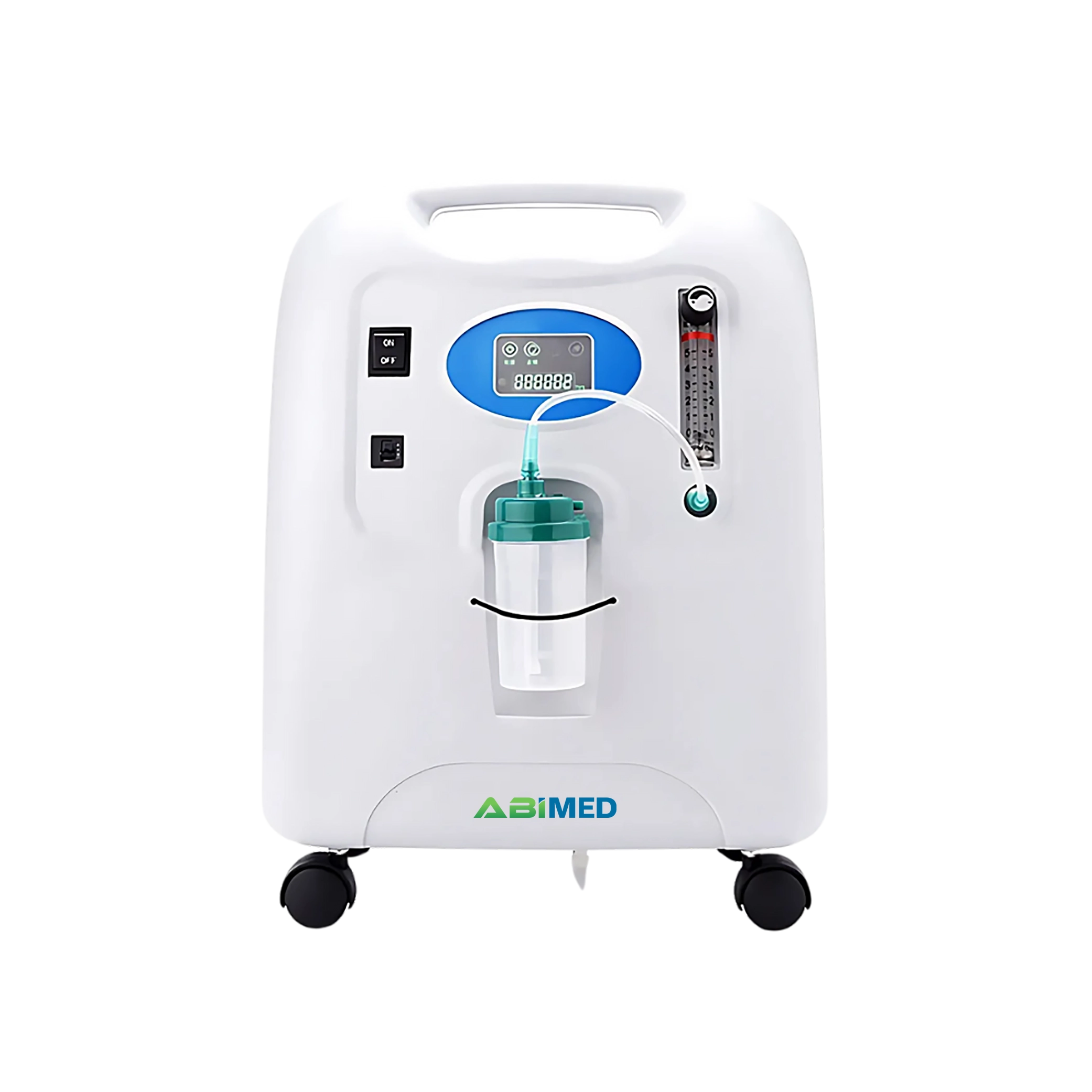

Medical Oxygen Concentrator AM-OC13 is a highly efficient low power consumption equipment in which oxygen is produced within 3 minutes when the power is on and its purity is high up to 93%±3%. It is designed with internal modules and an integrated system of oxygen modules for an easy and fast installation of the equipment. Likewise, it is connected by an alarm system, a photosensitive LED display, a monitor to check the oxygen purity, etc., are required to operate the equipment easily.
CatalogFlow Rate | 0.5 to 5 L/min adjustable |
---|---|
The Maximum Amount of Oxygen | 5 L/min≥90% |
Power | 300 W |
Power Supply | 220 V±22 V |
Frequency | 50 Hz±1 Hz |
Input Power | ≤300 VA |
Noise | ≤60 dB(A) |
Transport & Storage Conditions | Temperature: 20 to 55˚C Humidity: ≤93% Atmospheric Pressure: 50 kPa to 106 kPa |
Life Time | 8000 hours or 5 years |
Oxygen Flow Rate & Concentration | Flow rate: 0.5 to 5 L/minute Oxygen concentration: ≥90% (V/V) |
Maximum Flow | 5 L/minute |
Electrical Classification | Type 2 equipment Type B application part |
Internal Dimension (L×W×H) | 373×322×605 mm |
External Dimension (L×W×H) | 410×360×605 mm |
Net Weight | 14 Kg |
Gross Weight | 15.3 Kg |
Use air as raw material, use molecular sieve to transform pressure attach process to produce oxygen with a concentration range of 90% to 96%
Abimed offers a range of high-quality medical oxygen concentrators designed to meet diverse patient needs. These concentrators provide adjustable flow rates, starting from 0.5 L/min up to 10 L/min, with oxygen purity consistently maintained at 90% or above. The units are energy-efficient, with power consumption ranging from 195 W to 300 W. They ensure minimal noise levels, creating a comfortable environment for patients. Our concentrators deliver reliable and consistent oxygen therapy, supporting patient health and wellness.
Abimed portable oxygen concentrators are designed to provide supplemental oxygen for patients with breathing difficulties. These concentrators maintain an oxygen purity of 90% to 96% for effective treatment. They are smaller and lighter in weight which makes them easy to carry. These devices draw in oxygen using a battery, electricity, or DC power sources. Their portable design and compatibility with standard power supplies make them ideal for both home use and travel.
Oxygen Flow | 5L/min |
Oxygen Concentration | ≥93%±3 |
Power Supply | 220V±22V 50Hz |
Continuous Flow Settings | 0.5 to 2.0L |
Pulse Flow Settings | 1 to 12 pulse settings equal to 0.5L to 8L |
Oxygen Concentrator | 90% to 96% at any settings |
Abimed Stationary Oxygen Concentrators are designed for patients who need constant oxygen while they are at home or asleep. These concentrators maintain an oxygen purity between 90% and 96%. They are fully powered from a wall outlet, eliminating the need for batteries. The concentrators are equipped with wheels so they can be moved from one room to another with ease. Our stationary oxygen concentrators are ideal for long-term oxygen therapy.
Flow Range | 2 to 10 Lpm |
Maximum Flow | 10Lpm |
Oxygen Purity | 93%±3% (2 to 9LPM), 90%±3% (10LPM) |
