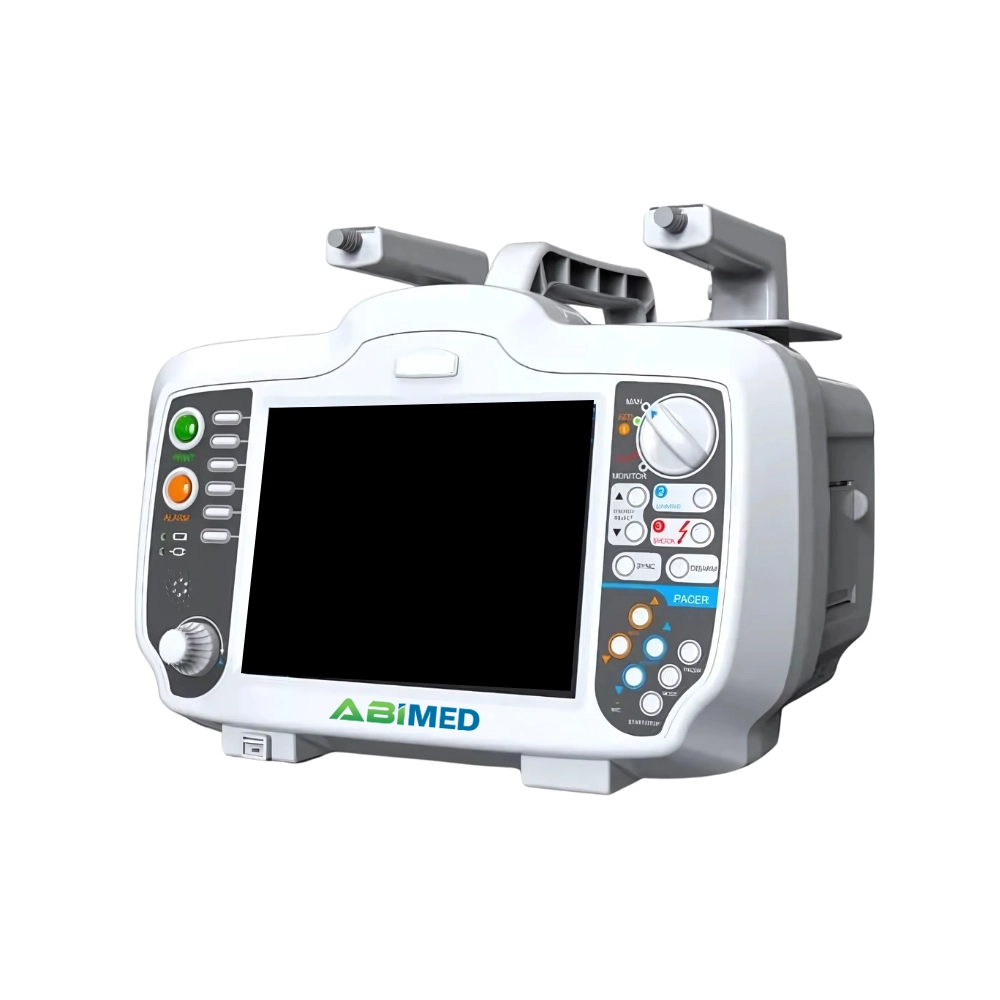

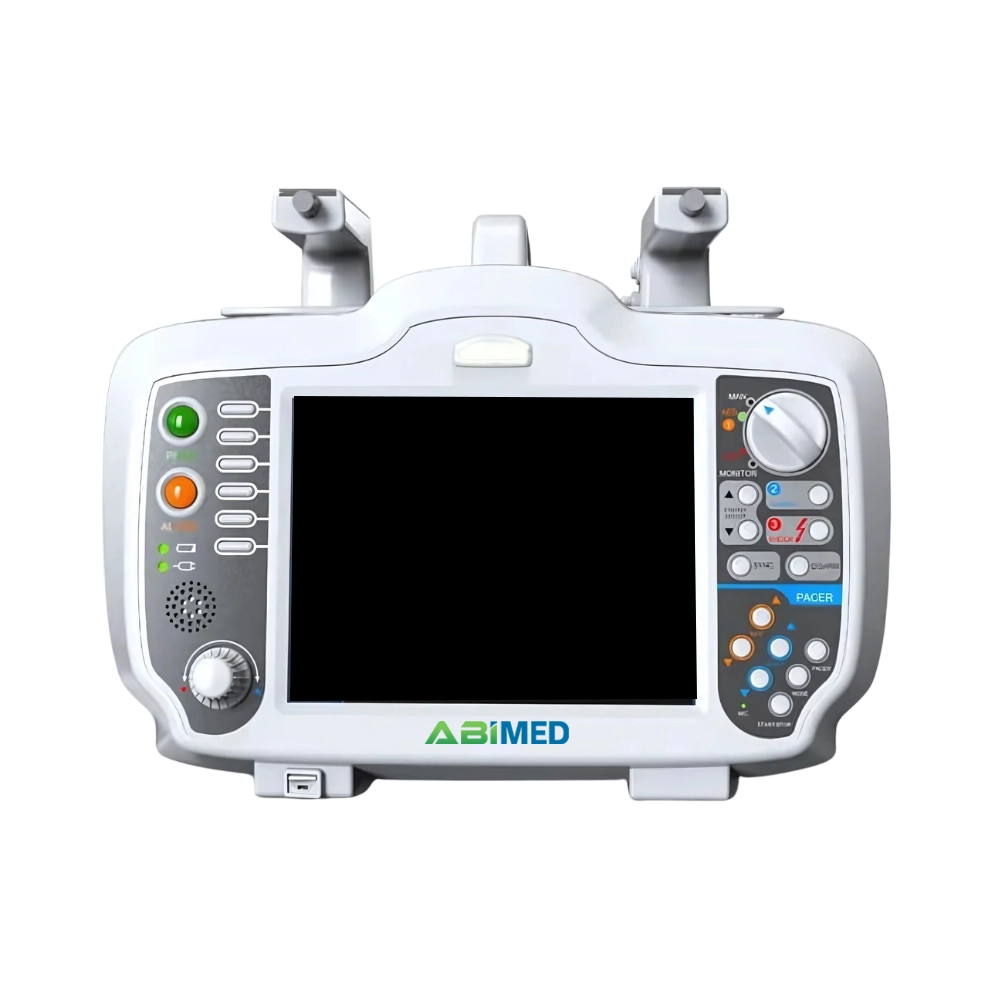

Automated Portable Biphasic Defibrillator AM-PD41 comes with a biphasic waveform ensuring efficient energy delivery. Its enhanced auto-analysis function evaluates cardiac rhythms and automatically selects the appropriate energy level. Our defibrillator is equipped with an 8-inch high-resolution LCD display for clear and detailed visualization of vital parameters. It includes voice and visual prompts to guide users through the defibrillation process.
| Waveform | Biphasic |
| Charge Time | Less than 7 seconds |
| Impedance Range | 0 to 250 ohms |
| AED Function | Auto analyses and charge X3 with programmable auto energy level selection |
| Shockable Rhythms |
Ventricular fibrillation (≥200UV) Ventricular tachycardia (≥140bpm) QRS complex wave duration (≥140ms) |
| Prompts | Voice and visual prompts |
| Display Type | 8-inch high-resolution LCD |
| Sweep Speed | 25mm/sec |
| Display Information |
HR (Heart Rate) Lead/Pads On/Off Alarm SpO2 (Oxygen Saturation) AED (Automated External Defibrillator) Functions and Prompts Alarm Selection and Limits |
| Patient Connection |
5-lead ECG cable 3-lead ECG cable Paddles |
| Lead Selection | Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V |
| ECG Size | 0.25, 0.5, 1, 1.5, 2, 4 cm/mV |
| Heart Rate | 20 to 300BPM |
| Heart Rate Alarm | On and Off user selectable |
| Smart Alarms | Beeper/voice prompts indicate a shockable rhythm |
| Synchronized Mode | Coordinates with R-wave of patient |
| Energy Selection | 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules |
| Printing Method | High-resolution thermal print head |
| Printer Paper | 50mm thermal |
| Recorder Speed | 2.5mm/sec, 25mm/sec, 50mm/sec. User-selectable 6-second delay |
| Automatic Function | 9-second recording initiated by alarm activation or defibrillator charge/discharge |
| Print-Out Modes | Manual or Automatic |
| Battery Type |
60 defibrillator discharges at maximum energy 3 hours minimum of continuous ECG monitoring |
| Batter Operation | 12V |
| Dimensions | 330×240×180 mm |
| Net Weight | 6 kg |
| Gross Weight | 10 kg |
Manual defibrillation AED 3/5-lead ECG RESP Thermal Recorder One Battery
Connect with Our Specialists
The Portable Biphasic Defibrillators are a powerful and compact device designed to deliver life-saving shock therapy during sudden cardiac arrest. Featuring biphasic waveform technology, these defibrillators provide efficient energy delivery for faster and more effective resuscitation. Perfect for emergency medical teams, hospitals, and public facilities, this device offers the reliability and portability needed for critical situations.
