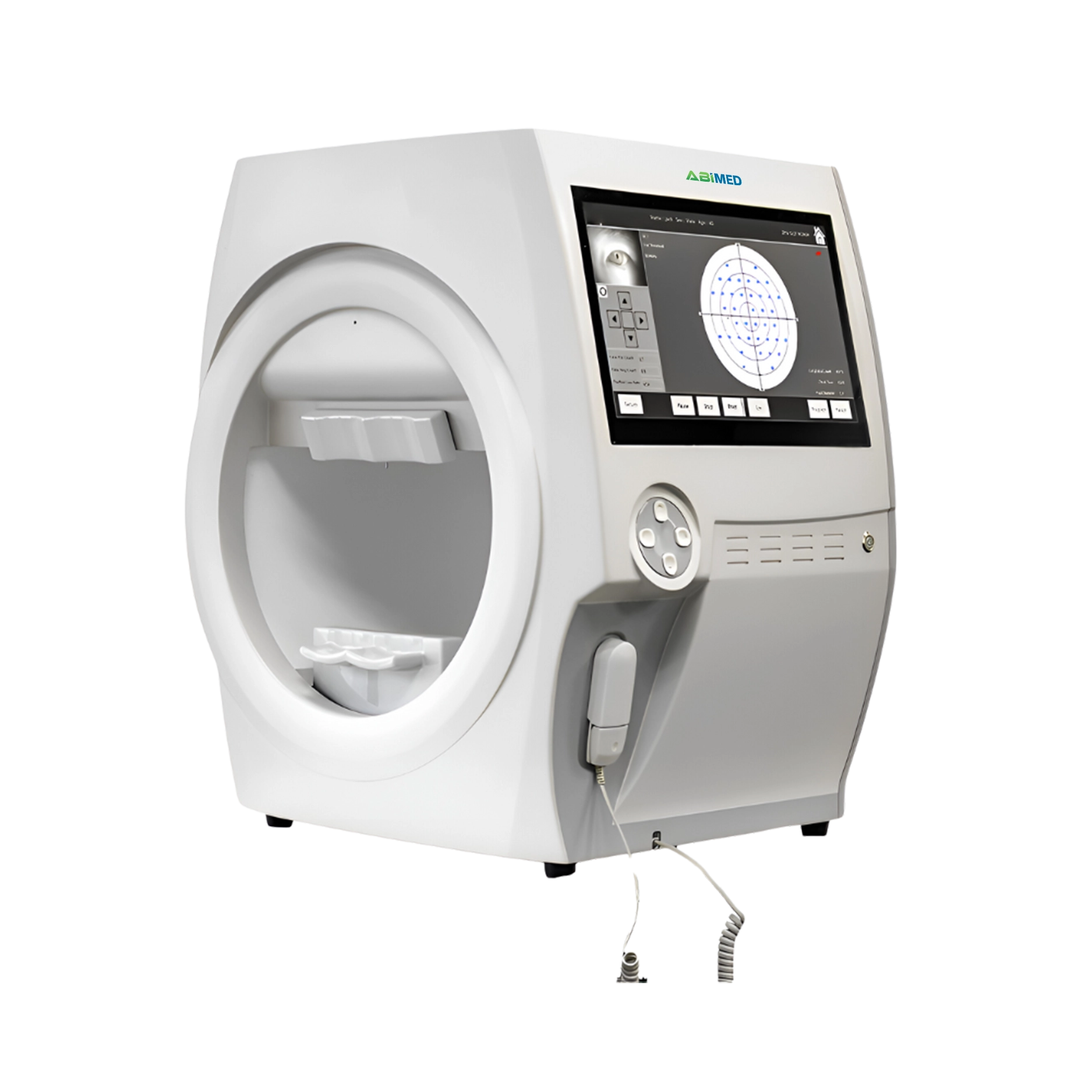

Ocular Field Analyzer AM-OAA11 is an advanced visual field-testing system with a 90° testing scope, and a variety of threshold policies. It features a compact dimension of 412 × 497 × 513 mm and weight of 17kg. This device includes GHT glaucoma semi-vision analysis, GPA progression analysis, and SWAP blue-yellow testing to identify early visual field defects. Additionally, this analyzer supports dynamic testing, auto pupil size measurement, and fixation monitoring, ensuring reliability in its results. It is compatible with Windows 7 and above, and its software includes analysis tools for glaucoma diagnosis and progression monitoring.
| Inspection Range | 90° |
| Inspection Distance | 30 cm |
| Background Light Brightness | 31.5 asb |
| Power |
100 to 240V 50 to 60Hz |
| Visual Target Brightness | 0.08 asb to 10,000 asb |
| Visual Target Size | Goldmann I, Ⅱ, Ⅲ, Ⅳ, Ⅴ |
| Visual Target Interval Time | 200 ms |
| Threshold Test Models |
Macula 10 to 2 24 to 2 30 to 2 60 to 4 Nasal Side |
| Upper Threshold Test Models |
C to 40 C to 64 C to 76 FF to 81 FF to 120 FF to 135 |
| Pupil Size Test | Automatic |
| Operating System | Windows 7 or Higher |
| Dimensions (L × W × H) | 412 × 497 × 513 mm |
| Weight | 17 kg |
Connect with Our Specialists
Abimed Ocular Field Analyzer are diagnostic devices with an inspection range of 90°, testing distance of 30 cm, and background light brightness of 31.5 asb. With visual target brightness from 1 to 10,000 asb, and automatic pupil size measurement, they ensure rapid clinical analysis. Their features include GHT glaucoma semi-vision analysis, GPA progression analysis, and blue-yellow visual field testing. These analyzers operate on Windows 7 or above, offering a 30° visual field inspection in just few minutes for efficient, reliable diagnosis.
