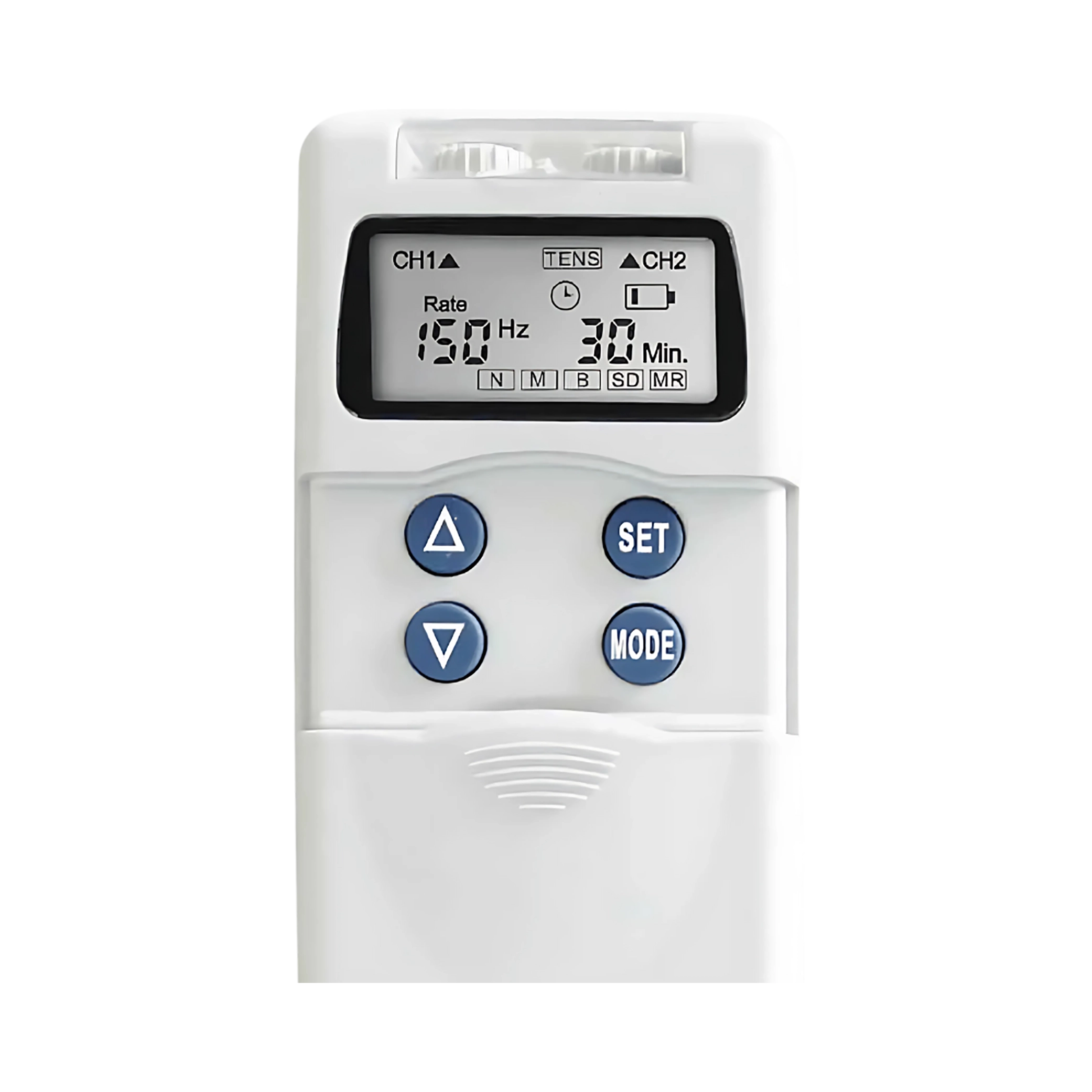

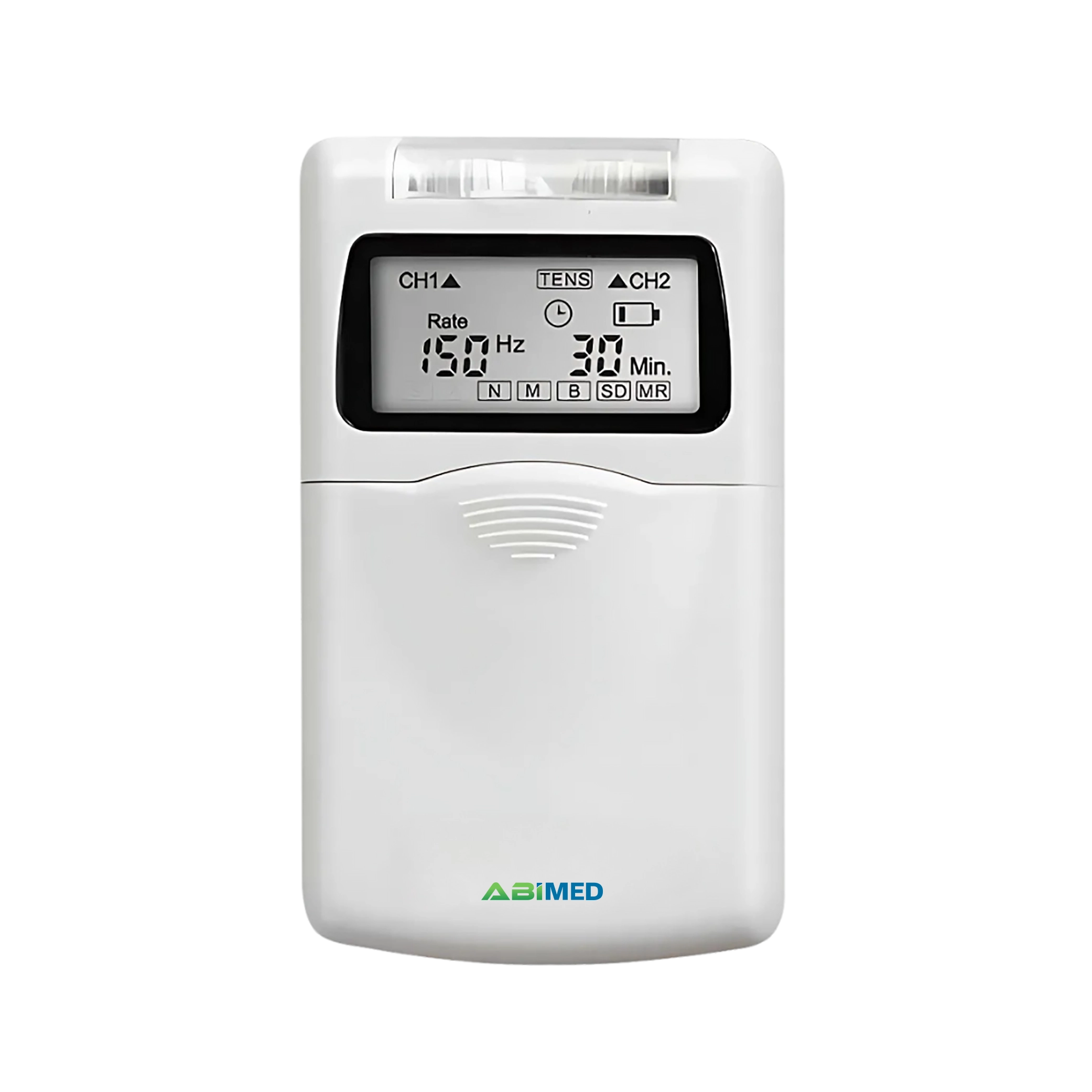

Nerve Stimulator AM-NSA16 delivers an adjustable output amplitude ranging from 0 to 80mA peak-to-peak per channel. This stimulator is powered by a 9V DC source and includes a timer that can be set between 5 to 90 minutes or run continuously.It generates an asymmetrical rectangular biphasic pulse waveform and offers a wide range of pulse rate settings. Users can choose from various output modes including N, M, B, SD, and MR, providing flexibility to suit different therapeutic needs. Its compact and lightweight design ensures portability without compromising performance.
| Channel | Dual |
| Amplitude |
Adjustable 0 to 80mA Max output 80mA peak to peak (16.97mA rms) into 500 ohm load each channel |
| Wave Form | Asymmetrical Rectangular Biphasic Pulse |
| Pulse Rate |
2Hz to 20 Hz in 1 Hz/step 20 to 150 Hz in 5 Hz/step |
| Pulse Width | 50uS to 300uS, 10uS/step |
| Output Mode | N, M, B, SD, MR |
| Timer | 5 to 90 Minutes or continue |
| Power Source | DC 9V |
| Packing Dimensions | 50cm × 30cm × 30cm |
| Dimensions | 10.9cm × 6.3cm × 2.4cm |
| Net Weight | 133g |
| Gross Weight | 200g |
| Accessories Name | Quantity |
| DC9V Battery | 1pc |
| Electro Pad | 1pc |
| Connection Wire | 1pc |
| Self-Adhesive Electrodes | 4pcs |
| DC9V Battery | 1pc |
Connect with Our Specialists
Nerve Stimulators are designed to target muscle tension, relieve pain, and improve circulation. This device uses electrical impulses to stimulate nerves and promote natural healing. Whether an athlete looking to enhance recovery with chronic pain or someone just in need of stress relief, our Nerve Stimulator offers a non-invasive solution to restore balance and vitality. Compact, easy to use, and customizable for every need, they are the perfect companion for pain management and muscle recovery. Feel better, move better, live better.
