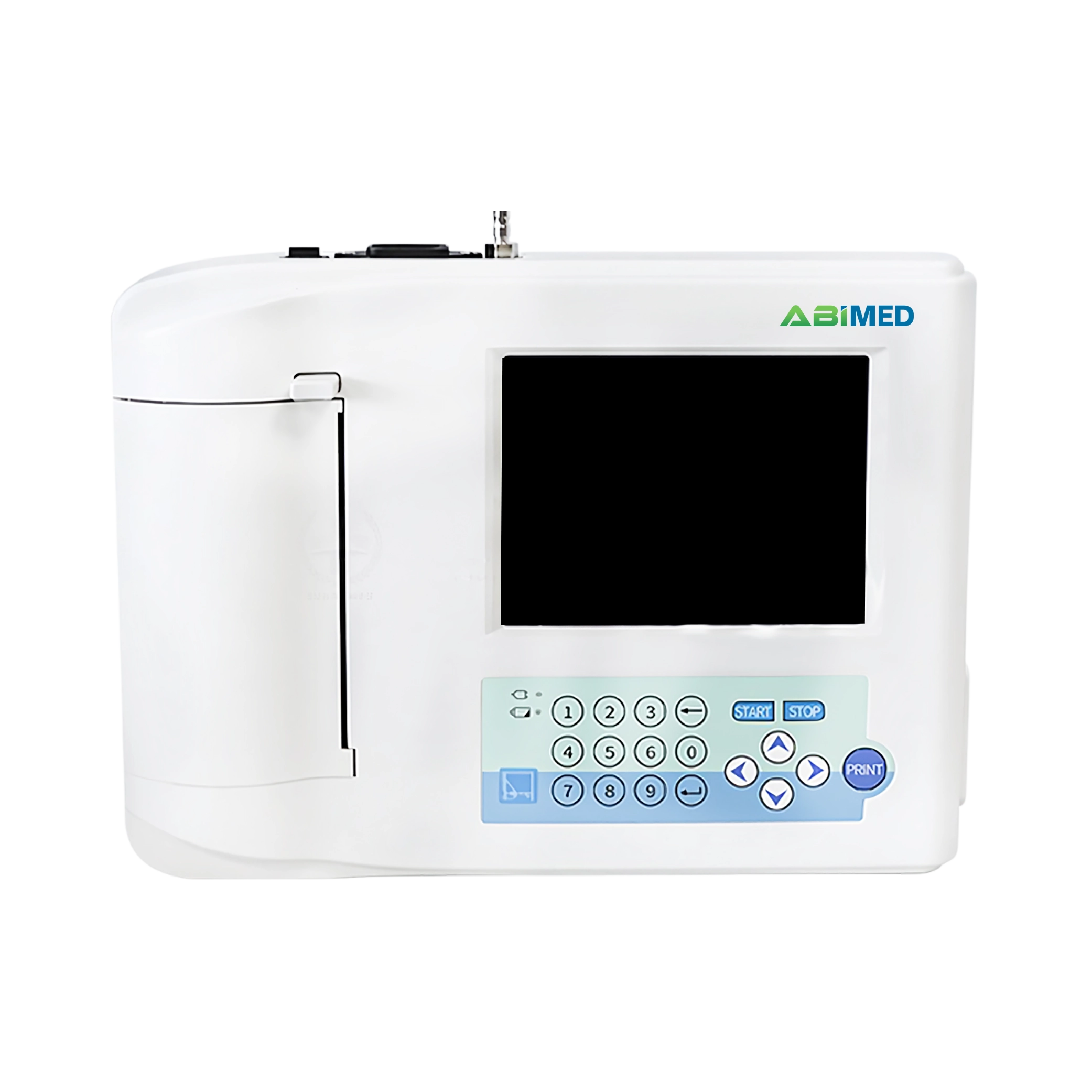

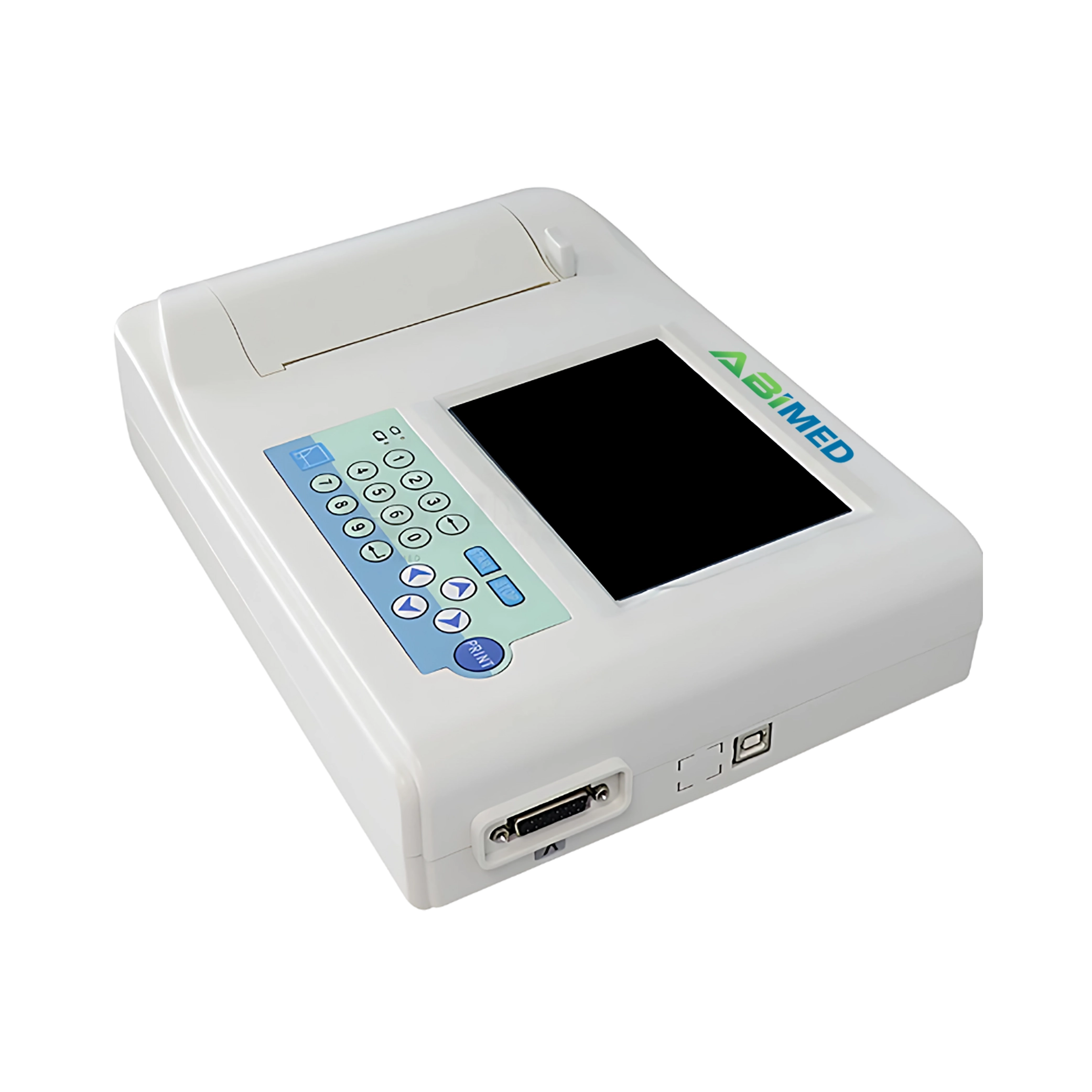

Electronic Spirometer AM-ES51

Electronic Spirometer AM-ES51 used to measure vital capacity, forced vital capacity and maximum ventilator volume. All parameters can be displayed on the oversized screen and can store maximum 300 cases of patient measurement results. It can be connected to PC through USB socket and also thousands of measurement records can be stored. Equipped with 5.7 inches monochrome LCD display with 320×240 resolution. Provided with 110 mm built in thermal printer and can print out a clear clinical report with predicted and measured value.

Catalog

Specifications

Display Screen

Diagonal line 5.7 inches, Monochrome LCD, Resolution 320×240

Control

Standard: UTILITY KEY,SVC KEY,FVC KEY,MVV KEY,PRINT KEY,10WORDS KEY, START KEY,STOP KEY

Measurement means

Flow velocity detection	Pressure gradient pneumatic flow sensor
Capacity detection	Flow velocity integral

Measuring Range

Capacity range	0L to 9L
Flow velocity range	0 to 14L /s

Measurement Accuracy

Capacity	0L to 1.6L (± 50ml), 6L to 9L (± 3%)
Flow Rate	5% or 0.2L /s
Respiratory rate	4 / 20 to / min (± 1 / min), 20 / 60 / min (error: ± 5%)

Measuring time limit and degree

Vital capacity	every 50s, measuring 3
FVC	per second, 25s, measuring 3
The maximum ventilation volume	every 12 seconds, measuring 3

Paper Recorder

Method	dot matrix
Level Resolution Ration	8 d/mm speed 25mm/s
Uprightness Resolution Ration	8 d/mm
Wave Channels	1
Paper Width	110 mm 1.97inches
Paper Length	15m 100 inches
Form feed Speed	12.5,25 and 50 mm/s±2

Power Supply

AC	100V to 240V
DC	rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour
Fuse	100V to 240V ACF2A250V,5×20mm
Safety Classification	IEC60601-1 class I, type CF

Features

It can calibrate automatically all English operation with more convenient
Compact and Flexible
Soft touch keys and easy to maintain
High precision differential pressure flow sensor
PC work station supports multi language display and report printing
Built in precise 110 nm thermal printer
Multi language display and measurement report

Applications

These are mainly used in hospitals to measure the volume of air inspired and expired by the lungs. It measures the movement of air into and out of the lungs
