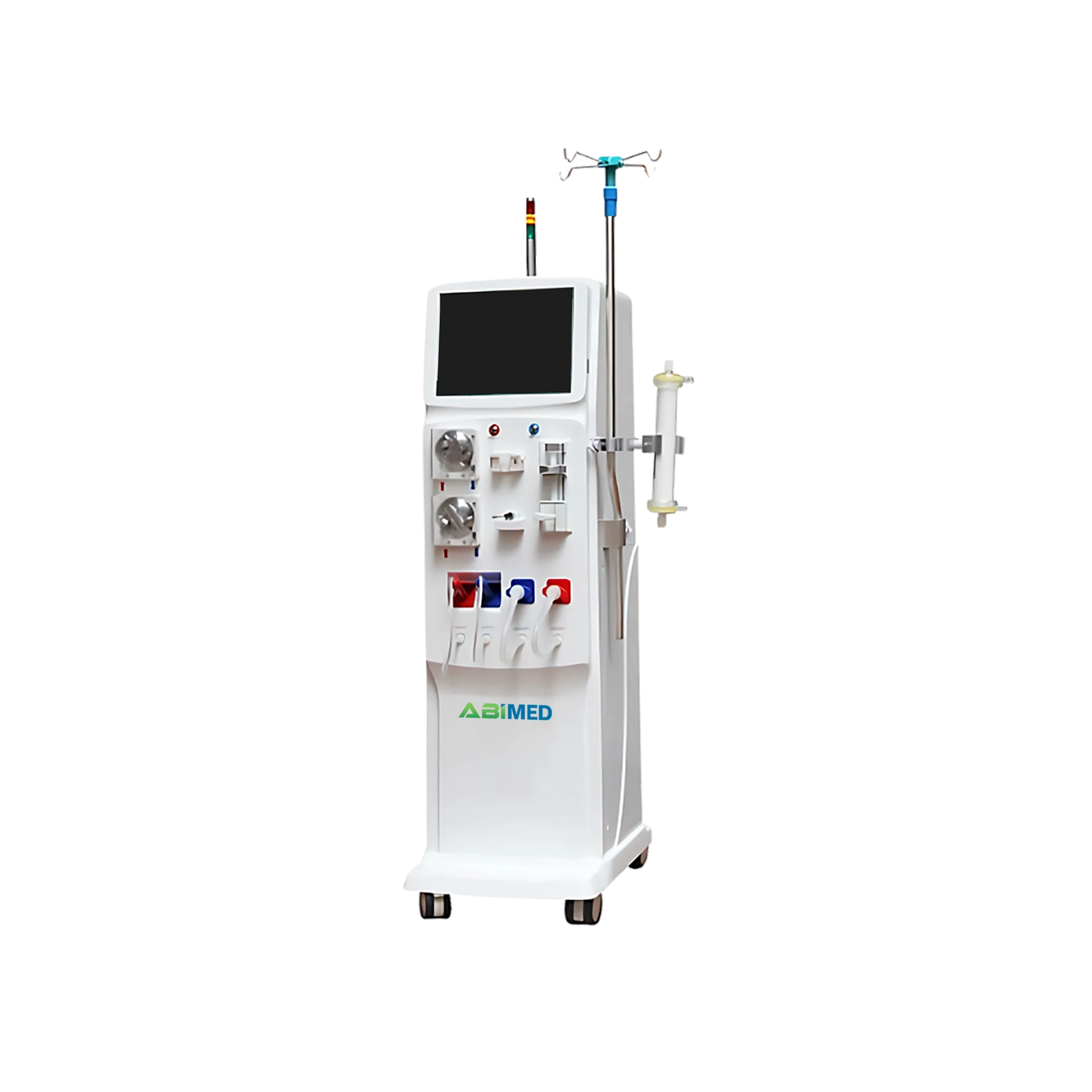

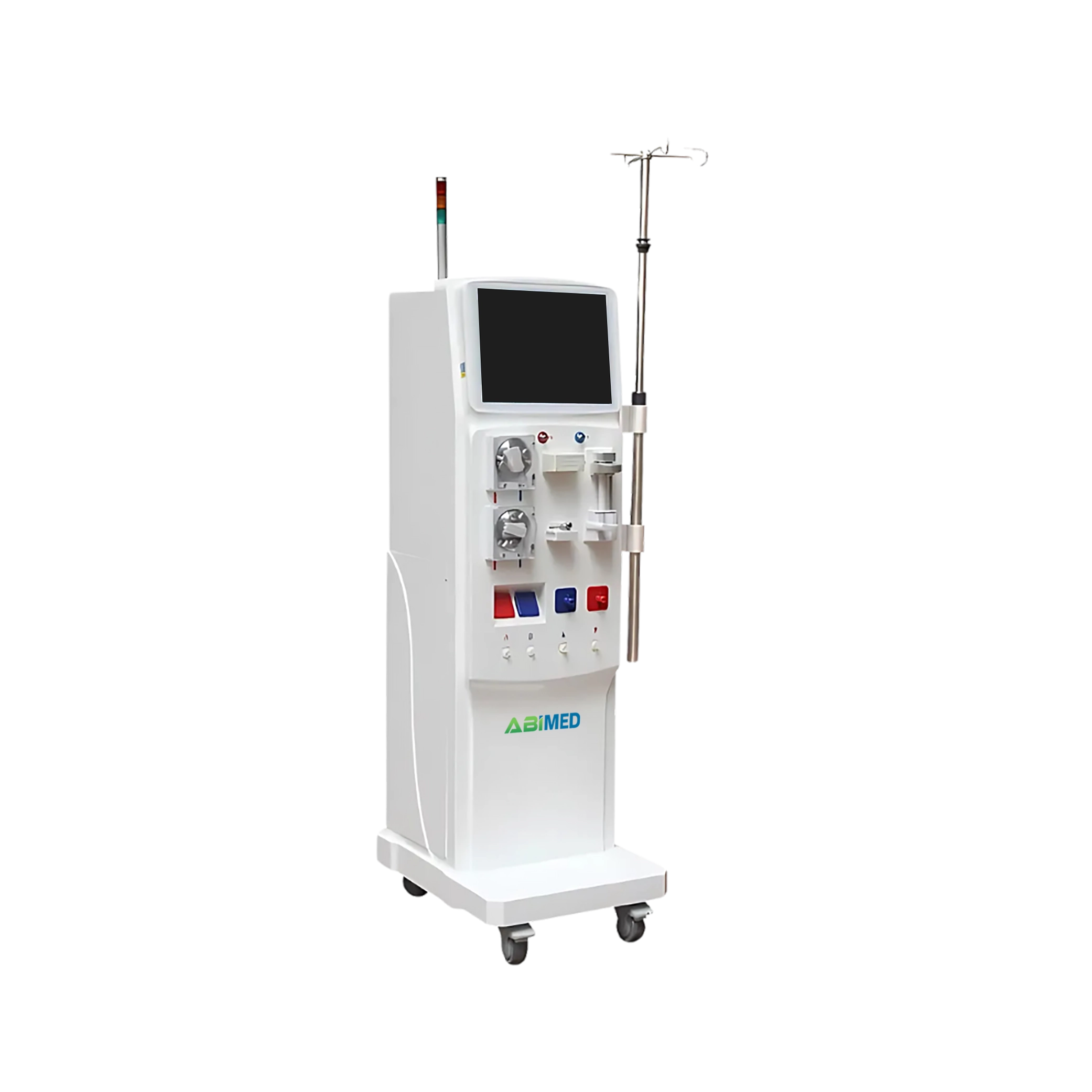

Dialysis Machine AM-DM41

Name: Dialysis Machine AM-DM41
Brand: abimed.com
SKU: AM-DM41
Rating: 4.8 (914 reviews)

Dialysis Machine AM-DM41 is indicated for acute and chronic hemodialysis therapy. Consists of an access device, blood tubing, blood pump and dialyzer. To prevent the chemical deposits machines are rinsed with acetic acid or citric acid. Reliability and safety provided through dual control system along with multiple pressure, air conductivity and blood leakage detectors. It is a premium quality dialysis machine. Our machines are compact sized and extensively acclaimed for durability and uninterrupted performance.

Power Supply

AC220V±10%, 47 to 63HZ

Water Supply

Water inlet pressure	1.5 to 6.0 bar
Water Inlet Temperature	5℃ to 32℃

Maximum Drain Height

Supply Pressure

0 to 2 m suction height

Current Consumption Maximum

0.41666666666667

Extracorporeal Circuit

Arterial Pressure Monitoring	{"Display Range":"\"-380 mm Hg to+400 mm Hg","Accuracy":"\u00b110 mm Hg","Resolution":"1 mm Hg"}
Venous Pressure Monitoring	{"Display range":"-180 mmHg to+600 mmHg","Accuracy":"\u00b110 mmHg","Resolution":"1 mmHg"}
Trans-Membrane Pressure Monitoring	{"Display Range":"-180 mmHg to+600 mmHg","Accuracy":"\u00b120 mm Hg","Resolution":"1 mm Hg"}
Arterial Blood Pump	{"Blood Flow Range":"30 to 600ml\/min in 8 mm bloodline systems","Accuracy":"\u00b110%"}
Air Bubble Pump	By ultrasound transmission, additional optical monitoring in venous clamp
Heparin Pump	{"Delivery Range":"0ml\/h to 10ml\/h"}
Bolus Function Maximum	20 mL per bolus
Syringe Size	10, 20, 30, 50 ml
Dialysis Fluid Circuit	{"Dialysis Fluid Flow Range":"100 to 800 mL\/min"}
Dialysis Fluid Temperature	34.0℃ to 40.0℃
Dialysis Fluid Conductivity	{"Range":"12 to 16 mS\/cm (25\u2103)","Accuracy":"\u00b10.1 mS\/cm"}
Acid concentration dialysis fluid	{"Default mixing ratio":"1+34 (others possible)","Range":"125 to 150 mmol\/L"}
Bicarbonate concentration dialysis fluid	{"Default mixing ratio":"1+27.6 (others possible)","Range":"-8 to +8 mmol\/L bicarbonate"}
Ultrafiltration	{"UF rate":"0ml\/h to 4000ml\/h","Accuracy":"\u00b11%"}
Parameter Displayed	UF goal, UF time, UF rate, UF volume
Blood Leak Detector Sensitivity	≤0.35 mL blood/min (HCT=32)
Temperature/flow	30 to 60℃ / 300 to 800ml/min Hot Rinse (recirculation) 30 to 85℃ / 300 to 800ml/min Hot disinfection with chemical 30 to 85℃/ 300 to 800ml/min Various program combination selectable
Dimensions	1380×380×400 mm
Weight	88 Kg

Self-checking function
Temperature and electric conductivity monitoring
Automatic disinfection cleaning program
Arterial pressure, trans membrane pressure and venous pressure monitoring
Blood leakage detector
Double system of conductivity to provide safety of patients
8 kinds of UF profiling to meet different clinical applications requirement
Easy manintainence due to separate electric an hydraulic part

These are widely used in hospitals, clinics and nursing homes
