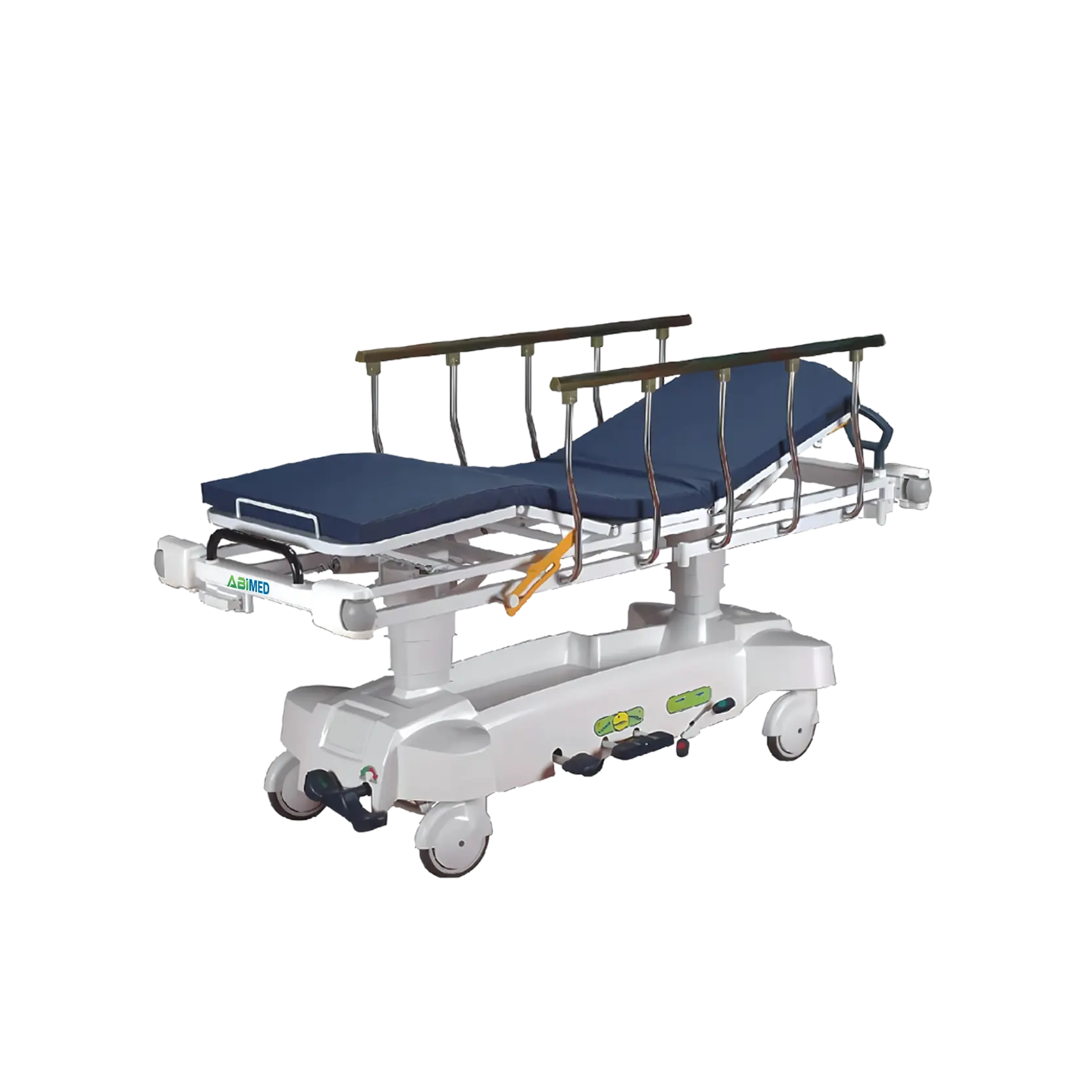

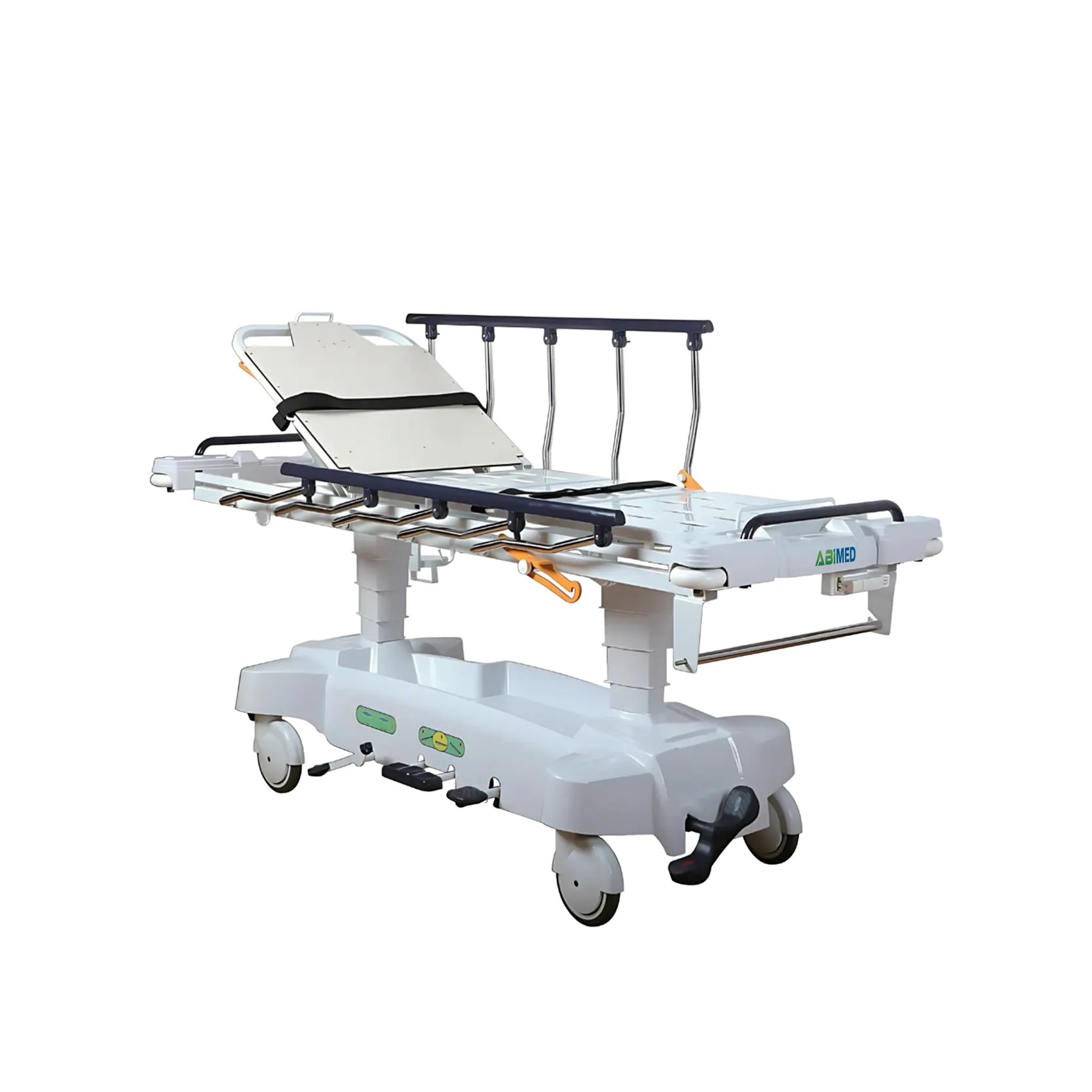

Hydraulic Stretcher AM-HSA10 features bed board measuring 1940 × 620 mm and 5 cm thick mattress for enhanced patient comfort. It also features a backrest adjustable up to 70° via a gas spring and a leg section adjustable with a manual handle, supporting flexible patient positioning. It is designed for smooth and silent mobility, equipped with centrally controlled castors, a fifth guide wheel for improved steering, and central control locking for safety. Built to support a maximum load, this stretcher is both reliable and user-friendly, making it ideal for emergency and routine patient transport.
| Maximum Load Capacity | 250 kg |
| Mattress Thickness | 5 cm |
| Height Adjustment Range | 590 to 910 mm (Hydraulic) |
| Backrest Angle Adjustment | 0° to 70° ±5° (Gas Spring Control) |
| Leg Section Adjustment | 0° to 30° ±5° (Manual Handle) |
| Trendelenburg / Anti-Trendelenburg | 0° to 15° |
| Castor Diameter | Ø 200 mm (Centrally Controlled Silent Castors) |
| Hydraulic System | Two Separate Hydraulic Pumps |
| X-ray Compatibility | Back Board with X-ray Translucent Panel |
| Side Rails | Foldable Up/Down Side Rails |
| Oxygen Bottle Holder | Included |
| I.V. Pole | 4 Holes |
| Steering Support | Fifth Guide Wheel |
| Locking Mechanism | Central Control Locking System |
| Corner Protection | Rubber Bumpers on All 4 Corners |
| Bed Board Dimensions (L × W) | 1940 × 620 mm |
| Dimensions (L × W × H) | 2150 × 810 × 590 to 910 mm |
| Packaging Dimensions (L × W × H) | 223 × 83 × 75 cm |
| Net weight | About 125 kg |
| Gross weight | About 160 kg |
| Accessories Name | Quantity |
| Trolley Frame | 1 pc |
| IV Pole | 1 pc |
| Side Rail | 1 pair |
| Gas Spring | 2 pcs |
| Bed Board | 1 pc |
| 8" Castors | 4 pcs |
| Steering Wheel | 1 pc |
| Pedal Rise | 2 pcs |
| Pedal Low | 2 pcs |
| Brake Pedal | 2 pcs |
| Hydraulic Pump | 2 pcs |
| Handle Crank | 1 pc |
| Rubber Bumper | 4 pcs |
| Base Cover | 1 pc |
| Bedfoot Handle | 1 pc |
| Bedhead Handle | 1/2 pc |
| Oxygen Bottle Holder | 1 pc |
| Mattress | 1 pc |
