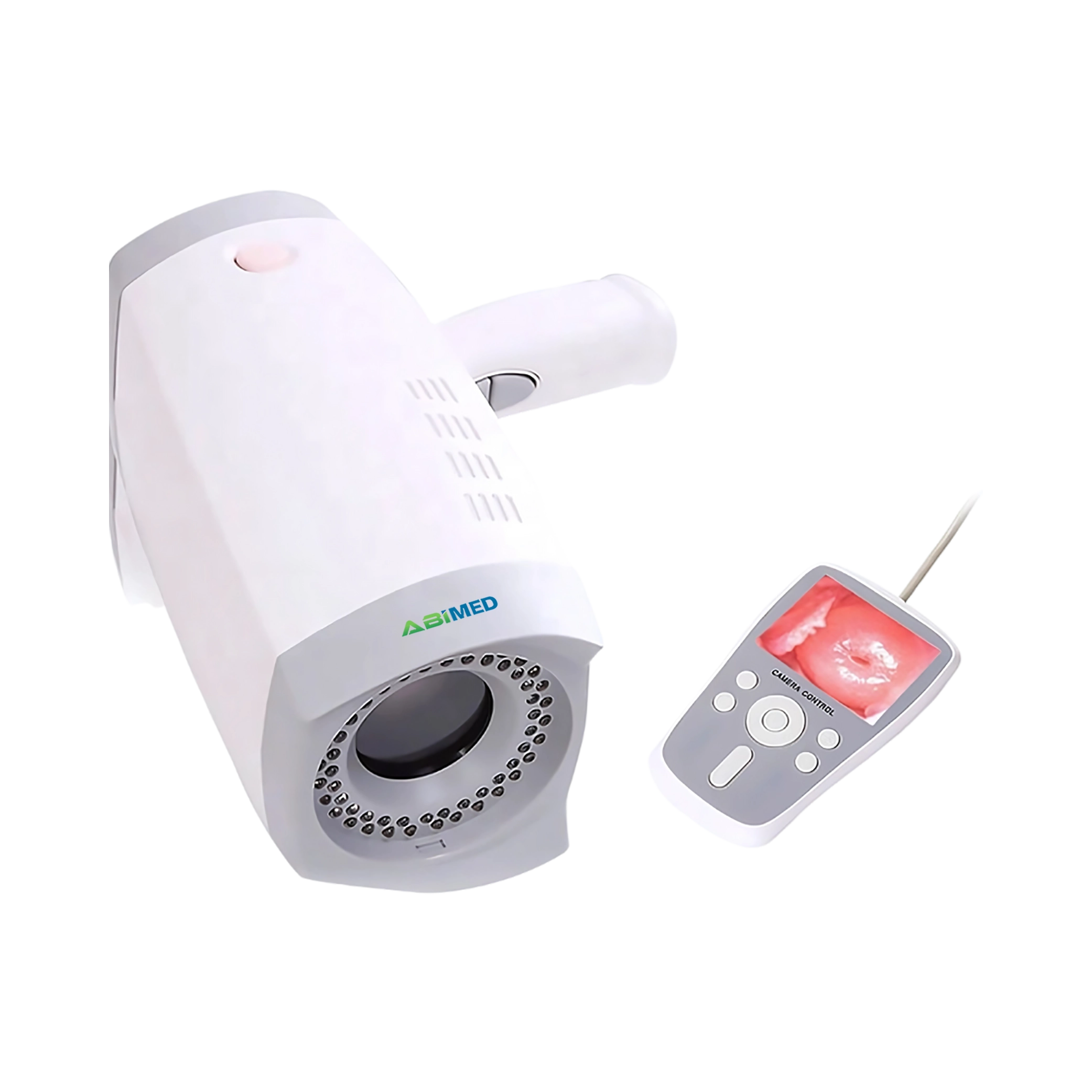

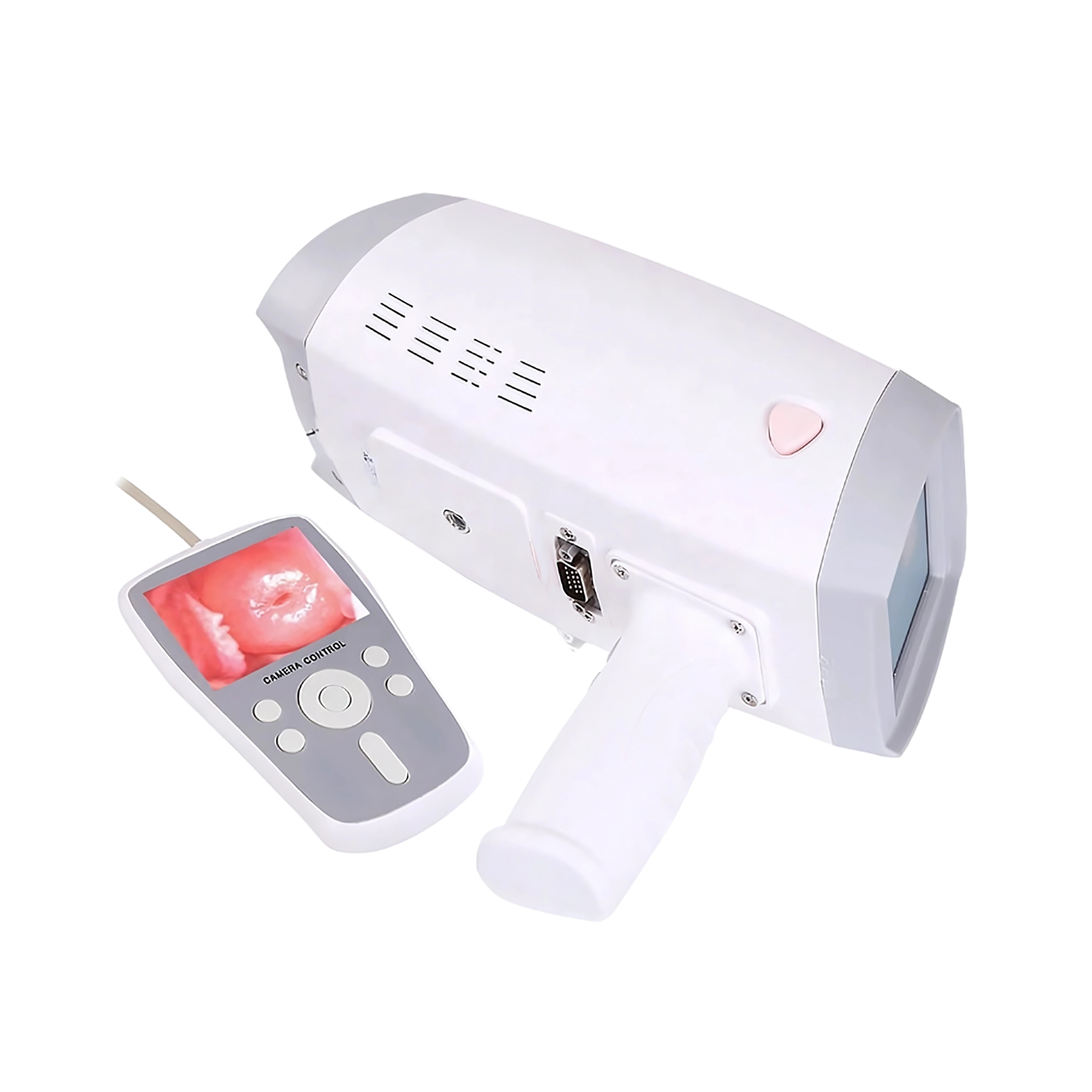

Colposcope AM-CLA14 is a digital video system with a high-resolution camera to display clear and better images for diagnostics. The built-in green filter provides images with good contrast. The automated white balance and also the magnification function enhances the diagnosis procedure. The compatibility with any software makes it convenient for health professionals.
Catalog
| Lens Resolution | 1\4” Super HD Color CCD |
|---|---|
| Pixels | 800000 |
| Focal Distance | Standard: 100 mm ~ 400 mm Support: 10 mm ~ 1000 mm |
| Horizontal Resolution | 470 Lines |
| Scan Range | 2.5 mm ~ 20 mm ~ 320 mm |
| Depth of field | 15 mm ~ 40 mm 15 mm ~ 480 mm |
| SNR | 50 dB |
| Video Output | PAL, VBS-standard 1.0 Vp-p |
| Lens Magnification | 1x ~ 128x |
| White Balance | Automatic Adjustment |
| Unit Dimension | 370 x 330 x 180 mm |
| Unit Weight | 5 kg |
| Standard Configuration | 1 pc Sony Camera 1 pc Camera Control Screen |
It is mainly used to look at the cervix or lower part of the womb to determine any abnormalities in the growth of cells or to diagnose any other problems by the health professionals.
Abimed colposcopes are designed to provide a magnified view of the cervical tissues, allowing for detailed examination and assessment of any irregularities. We offer a range of models and sizes to meet diverse clinical needs. These are featured with multifunctional buttons, a high-quality CCD camera, and advanced video filtering for clear, accurate images. Our most of the models are mounted on wheeled bases, enabling flexible positioning. They are ideal for use in hospitals, gynaecology centres, and other healthcare facilities.
| Lens Resolution | 1/3" SONY CCD |
| Pixels | 1200000 |
| Focal Distance | 10 mm ~ 400 mm |
| Lens Resolution | 1/3" color CCD |
| Pixels | 1200000 |
| Horizontal Resolution | ≥500 lines |
| Lens Resolution | 1/2.86” Sony HD Camera |
| Pixels | 2000000 |
| Horizontal Resolution | 950 Lines |
| Magnification of Eyepiece | 16x |
| View Angle | 0° ~ 45° |
| IPD Range | 50mm ~ 80mm |
