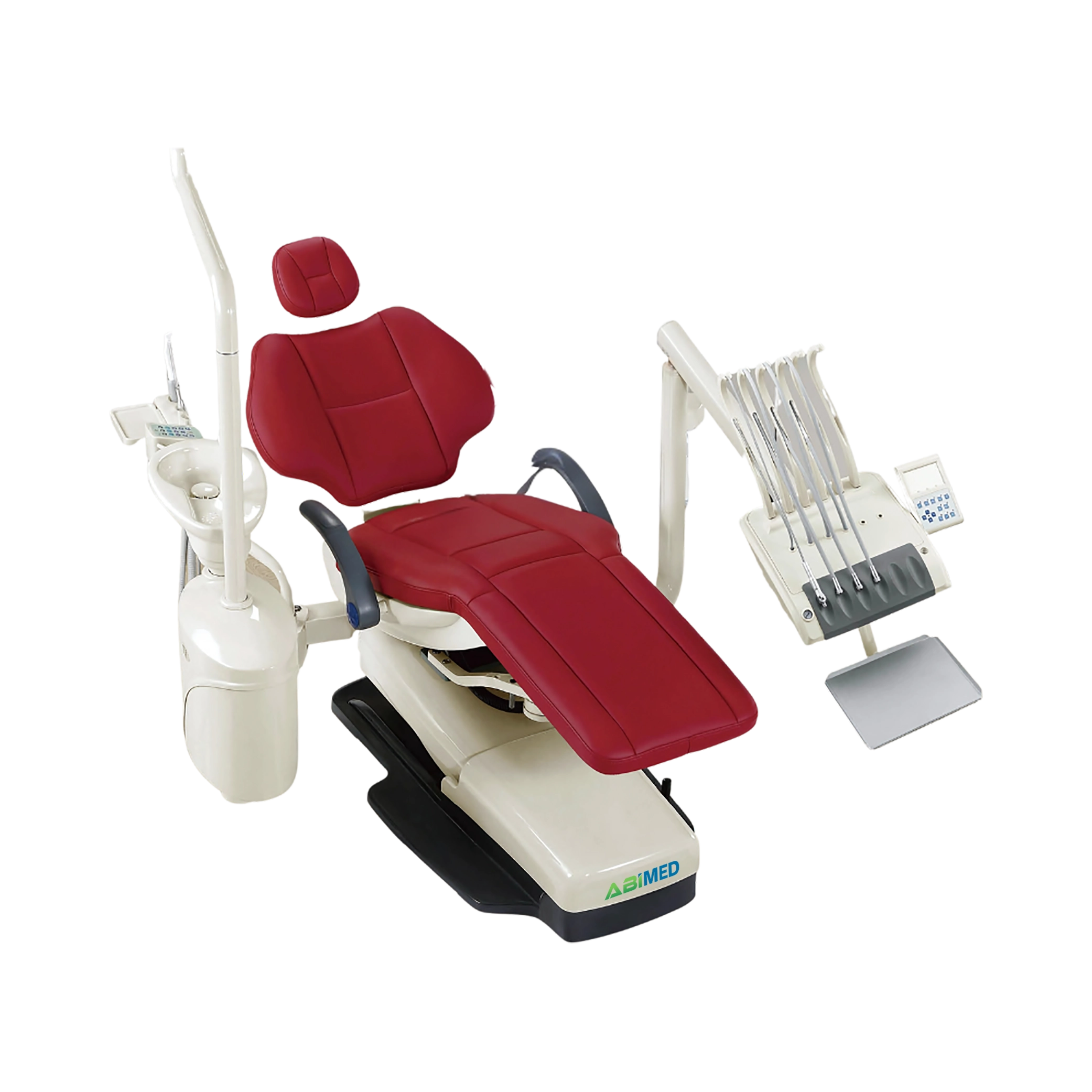

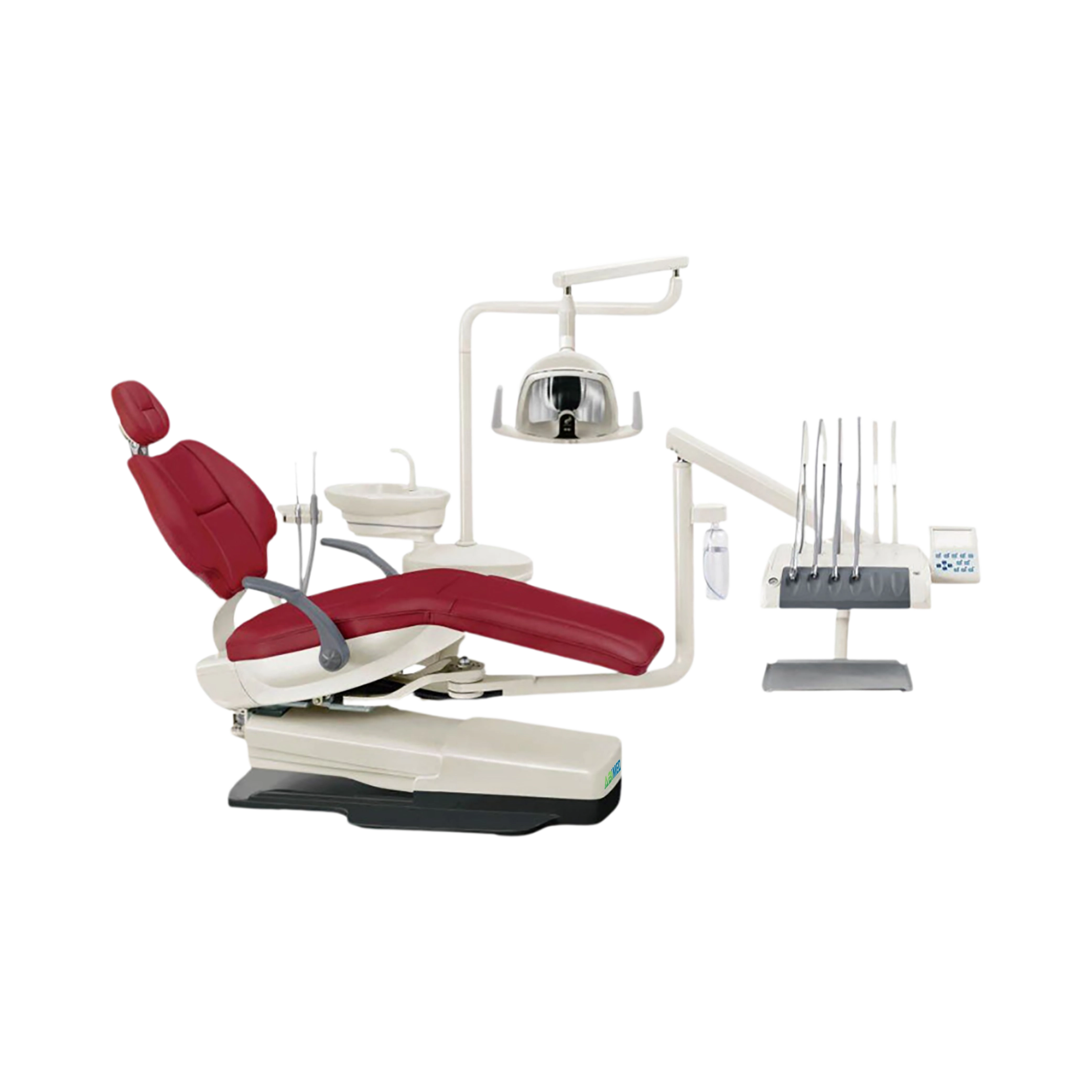

Dental Chair AM-DCA10 offers power supply of 220V to 50Hz ensuring smooth and efficient operation. It features an adjustable design with three different positions, ensuring ease of use and patient relaxation. This chair is equipped with a high-resolution LCD screen, enabling detailed examinations, while the LED light ensures precise illumination for accurate procedures. Additionally, it features two types of saliva suction systems and a negative angle design with a backrest, contributing to a seamless and comfortable dental experience.
| Water Pressure | 0.2 to 0.4 MPa |
| Air Pressure | ≥50 L/MPa |
| Gas Flow Rate | ≥50 L/min |
| Power Supply |
AC 220V, 50Hz Input power: 1000W |
| Height from Seat to Ground | 430mm to 720mm |
| Headrest Range |
Extension length <120mm Forward tilt 20° Backward tilt angle 40° |
| Backrest Tilt Range | 110° to 170° |
| Dental Chair Length | 1900mm |
| Chair Position Lifting Speed | ≥15mm/min |
| Chair Weight Capacity | ≥135KG |
| Oral Light |
8,000 to 15,000 Lux Color Temp: 3,000 to 5,000K |
| Rinse Water Temperature | 35°C to 45°C |
| Saliva Ejector Suction Rate | ≥400 ml/min |
| Sputum Basin Drainage Rate | ≥1,000 ml/min |
| Instrument Tray Load Capacity | Max at inclination angle ≤3° |
| Ambient Temperature | 5°C to 40°C |
| Relative Humidity | ≤80% |
| Weight | ≥135kg |
1 set Detachable and cuspidor
1 set Pipelines disinfecting device
1 set Hand piece water purifying device
1 set multifunctional pedal
1 set round pedal
1 set Water main switch
1 set Power main switch
1 set Luxurious doctor stool
1 set Water tube
1 set air tube
4-hole high speed hand piece
4-hole low speed hand piece
Top –mounted instrument
LED/ scaler / Light cure
Connect with Our Specialists
Dental Chairs are designed to provide an exceptional experience for both patients and dental professionals. Crafted with precision and care, this chair combines modern aesthetics with state-of-the-art functionality. Their Convenient design supports optimal posture for patients during extended procedures, reducing discomfort. They are equipped with adjustable positioning and Integrated Technology to adapt seamlessly into any modern dental clinic, this chair prioritizes comfort, durability, and ease of use.
