Clinical Chemistry Analyzer AM-CA32

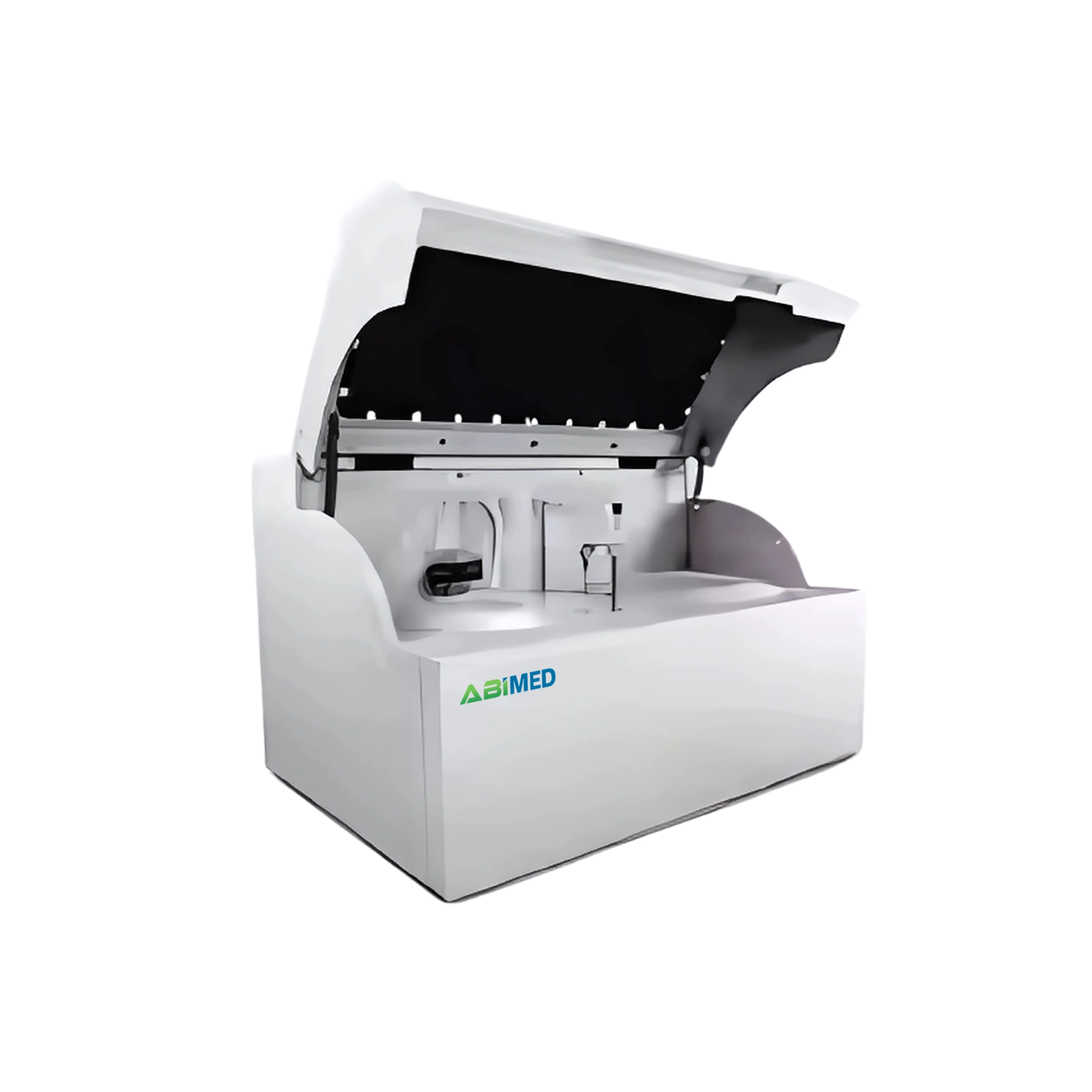

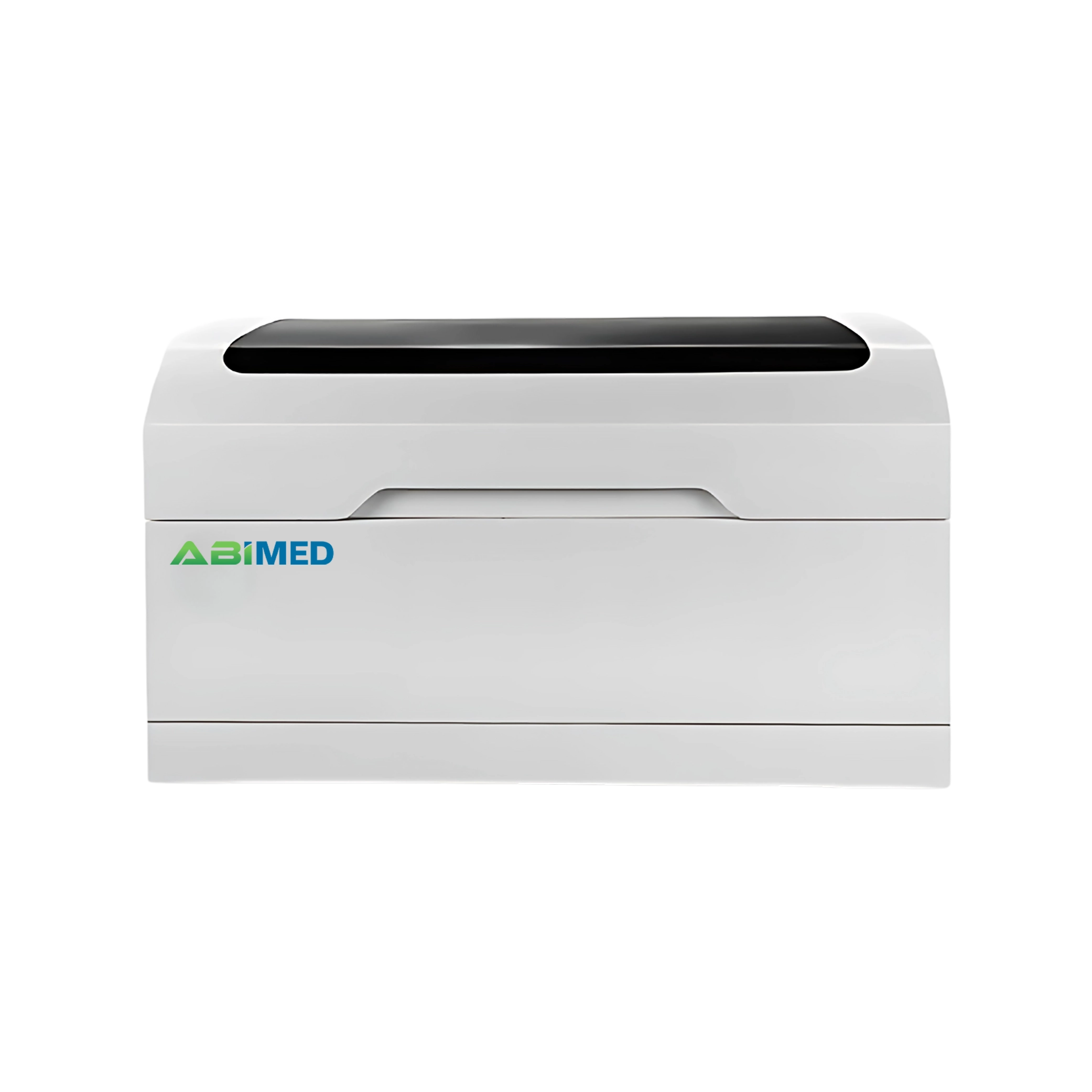

Clinical Chemistry Analyzer AM-CA32 is a fully automated, large capacity, bench-top analyzer that is flexible for low to mid volume laboratories. It makes the best use of available space by delivering full functionality in a small footprint. With a throughput of 240 to 300 tests per hour, 81 reusable cuvettes of 150-500µL reaction volume each, and an easy-to-use interface, the system provides a long-term platform for clinical excellence. The system incorporates a reagent inventory monitoring with real-time water blank test.

Throughput 240 – 300 Tests/Hr
Reagent Volume 20-450 µL
Sample Volume 2-60 µL
Reagent/Sample Tray 60 reagent positions
Wavelength 8 wavelengths : 340 – 670nm
Absorbance 0 – 4.5 Abs
Relative Bias ≤ ±2%
Reaction Volume 150 – 500µL
Reaction Temperature 37 ±0.1°C
Cuvettes 81 reusable cuvettes
Automatic Dilution 1:200
Temperature 10 – 30°C
Humidity 30 – 85%
Water Consumption ≤ 8.4 L/H
Printer Built-in and external
Mixer Independent mixing bar
Cuvette Washing Auto washing station
Light Source Halogen tungsten lamp >2000H
Interface Ethernet, USB, RS232, HDMI, VGA etc.
Power Supply AC 100 – 240V, 50/60Hz, ≤450VA
Dimension (W×D×H) 880×650×570 mm
Weight 90 Kg
  • Reagent inventory monitoring
  • 24-hr auto reagent refrigeration
  • Constant solid heating
  • Real time water blanket test
  • Auto depth adjustment
  • Collision protection
  • Full sealed spectrophotometer by filter
  • Auto gain adjustment to assure stable optical system
  • Sample bar code scanner
  • Simultaneous dual-wavelength measuring
  • Up to 300 tests per hour
  • Quick start-up and shut-down process
  • User-friendly interface
  • Removable reagent disk
  • Auto cuvette washing station
  • Low water consumption
  • Halogen lamp with long life span
  • Optional reagent closing system
  • Large reagent and sample compartment
  • Built-in thermal printer
  • \ Robust design prolongs uptime and increases productivity
  • This device is used in many Research institutes, Hospitals, Diagnostic Centers, Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluids etc.
