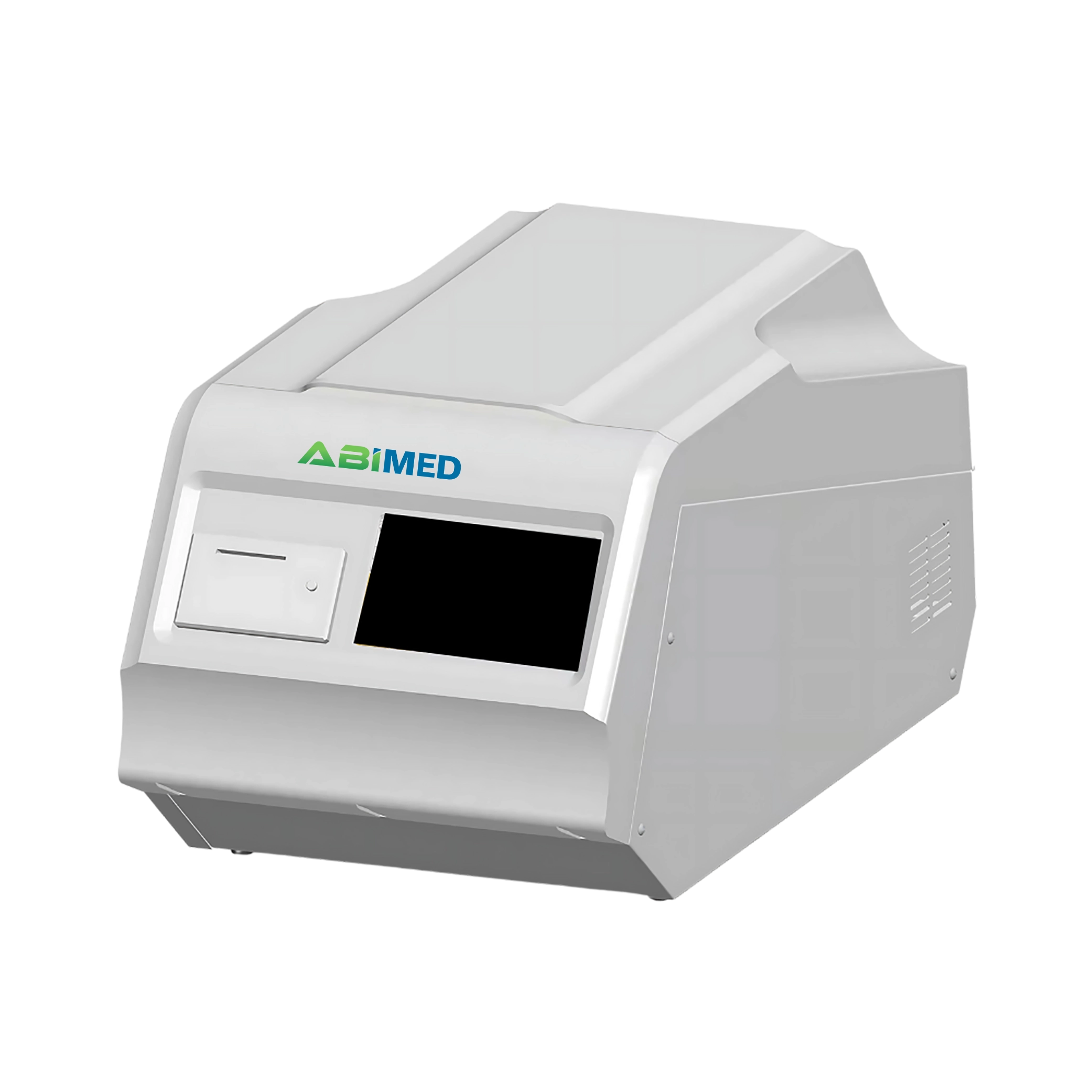

Clinical Chemistry Analyzer AM-CA31 can maintain a constant throughput of 120 tests per hour by using mono or double reagents. Offers precise adjustment of sample volumes ranging from 2 to 30µl with an increment of 0.1µl. Features random access operation, supporting both open and optional locked reagent systems. Our analyzer is equipped with a TCP/IP interface for efficient connectivity with the lab information system.
Catalog
| Throughput | Constant 120 tests/hour (Mono reagent or double reagent) |
|---|---|
| Sample Volume | 2 to 30µl step by 0.1µl |
| Wavelength | 8 wavelengths 340 to 670nm (4 more options) |
| Absorbance Range | 0 to 3.8 Abs |
| Resolution | 0.0001 Abs |
| Sample Tray | 24+5 (Tube 12×100) sample positions |
| Reaction Tray | 81 reaction cuvettes New amorphous optical plastic reaction cups |
| Test Principle | Colorimetric, turbidimetry |
| Reaction Volume | 150 µl to 330 µl |
| Reaction Time | 10 minutes |
| Reaction Temperature | 37°C ± 0.1 °C |
| Water Consumption | < 5L |
| Test Method | 1-point end 2-point end Fixed-Time Kinetics |
| Sample Probe | Liquid surface detection |
| Sample Barcode | Carry-over < 0.05% |
| Calibration Type | Linear & nonlinear |
| Cuvette Washing | 5-stage, 2 times automatic washing system |
| Mixer | Paddle-type mixing |
| Light Source | Halogen lamp |
| Operation System | Windows XP Windows 7 Windows 8 Windows 10 |
| Report Printing | 6 formats optional Supports the custom pattern |
| Interface | TCP/IP network interface |
| Power Supply | AC 110/220V ± 10%, 50/60 Hz |
| Dimension (L×W×H) | 305×605×330 mm |
| Weight | 22 kg |
Clinical Chemistry Analyzer is used in clinical labs for a variety of tests including routine chemistry, emergency testing, disease monitoring, therapeutic drug monitoring, toxicology analysis, and research.
Abimed Clinical Chemistry Analyzer are the perfect blend of cutting-edge technology and user-friendly design. Built to handle high-throughput demands with unmatched accuracy, these analyzers are your ultimate partner for reliable and fast diagnostic results. They offer Pinpoint Accuracy with their detection technology ensuring every result is precise, enhancing patient care and diagnosis. They are perfect for labs aiming to stay ahead in diagnostic excellence.
| Throughput | 240 – 300 Tests/Hr |
| Reagent Volume | 20-450 µL |
| Sample Volume | 2-60 µL |
