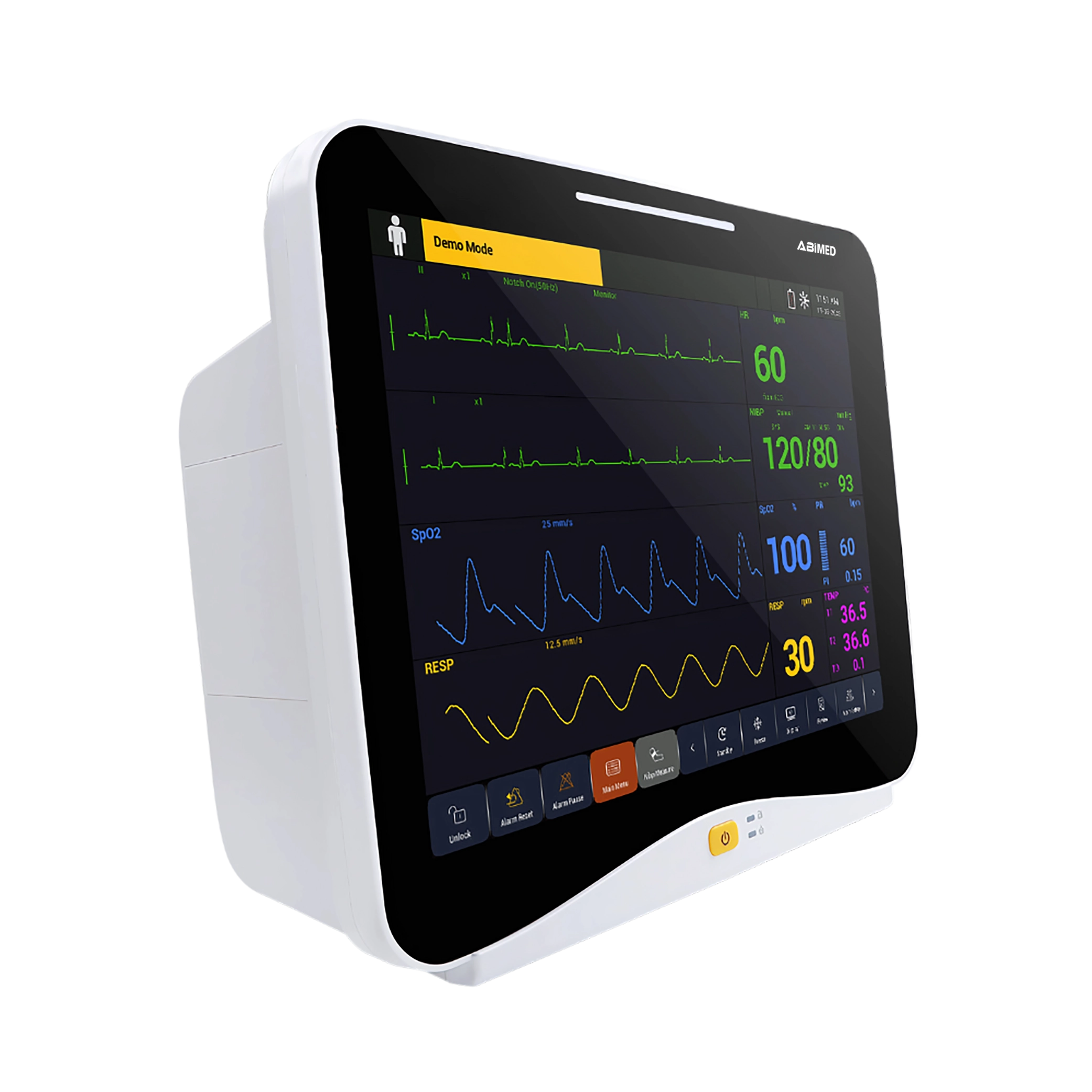

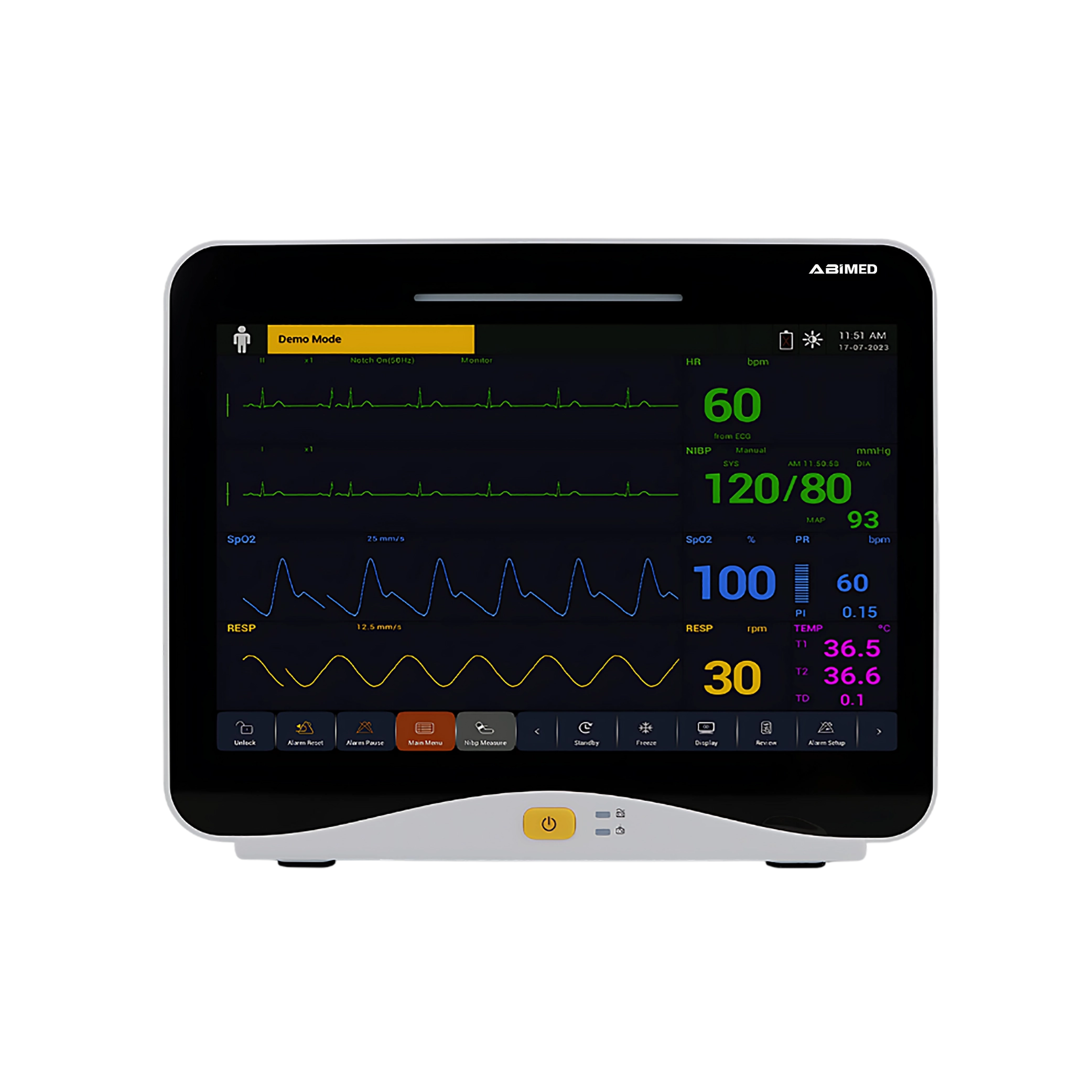

Veterinary Monitor AM-VM-A11 is designed for diverse applications, catering to both small and large animals. It features a vibrant 12-inch TFT LCD with a high-resolution display capable of showing up to 12-channel waveforms simultaneously. With compact and lightweight at 2.8 kg, it also offers IP22 dust and water resistance. It offers advanced functionalities including network upgrade support, remote monitoring, a nurse call system (optional) and high-definition video playback. It is equipped with standard parameters like NIBP, SpO₂ and temperature with optional ETCO₂ for enhanced diagnostics.
| SpO₂ Measurement Range | 0 to 100% |
| SpO₂ Measurement Accuracy | ±3% (70% to 100%) |
| Pulse Rate Measurement Range (Large animal) | 15 bpm to 300 bpm |
| Pulse Rate Measurement Range (Small/Medium Animal) | 15 bpm to 350 bpm |
| Pulse Rate Accuracy | ±1 bpm or ±1% |
| Pulse Rate Resolution | 1bpm |
| Respiratory Rate Measurement Range (Large Animal) | 0 to 120 BrPM |
| Respiratory Rate Measurement Range (Small/Medium Animal) | 0 to 150 BrPM |
| Respiratory Rate Accuracy | 7 to 150 rpm ±2 rpm |
| Respiratory Rate Resolution | 1 rpm |
| ETCO₂ Measurement Range | 0 to 114 mmHg |
| ETCO₂ Accuracy | 0 to 40mmHg:±2mmHg, 41 to 76mmHg:±5%, 77 to 114 mmHg: ±8% |
| ETCO₂ Respiratory rate | ＞ 80 BPM ±12% |
| Temperature Measurement Range | 0°C to 50°C |
| Temperature Accuracy | 0.1°C/°F |
| Temperature Resolution | ±0.2° C/0.4°F |
| NIBP measurement Range (Large Animal) | 10 to 280mmHg |
| NIBP measurement Range (Medium Animal) | 10 to 220mmHg |
| NIBP measurement Range (Small Animal) | 10 to 135mmHg |
| NIBP Accuracy | ±10 mmHg |
| Display Type | 12” TFT |
| Screen Resolution | 1280 × 720 |
| Power Supply | 4 hours continuous working |
| Operating Environment Temperature | 0°C to 40°C |
| Operating Environment Humidity | 15% to 90% (no condensation) |
| Storage Environment Temperature | 20°C to 50°C |
| Storage Environment Humidity | 10% to 90% (no condensation) |
| Dimensions | 305 × 290 × 145mm |
| Weight | 2.8kg |
Connect with Our Specialists
Abimed Veterinary Monitor are vital devices used to track and analyse physiological parameters in animals during treatments. They feature 7 to 12 inches high-resolution TFT LCD screens for clear waveform and numerical data visualization. These monitors offer multi-parameter tracking, including ECG, heart rate, respiratory rate, SpO2, body temperature, NIBP and ETCO2. Their configurable auditory and visual alarms ensure immediate alerts for any abnormalities. They are lightweight and equipped with anti-shock enclosures, making them ideal for both clinic and mobile use.
