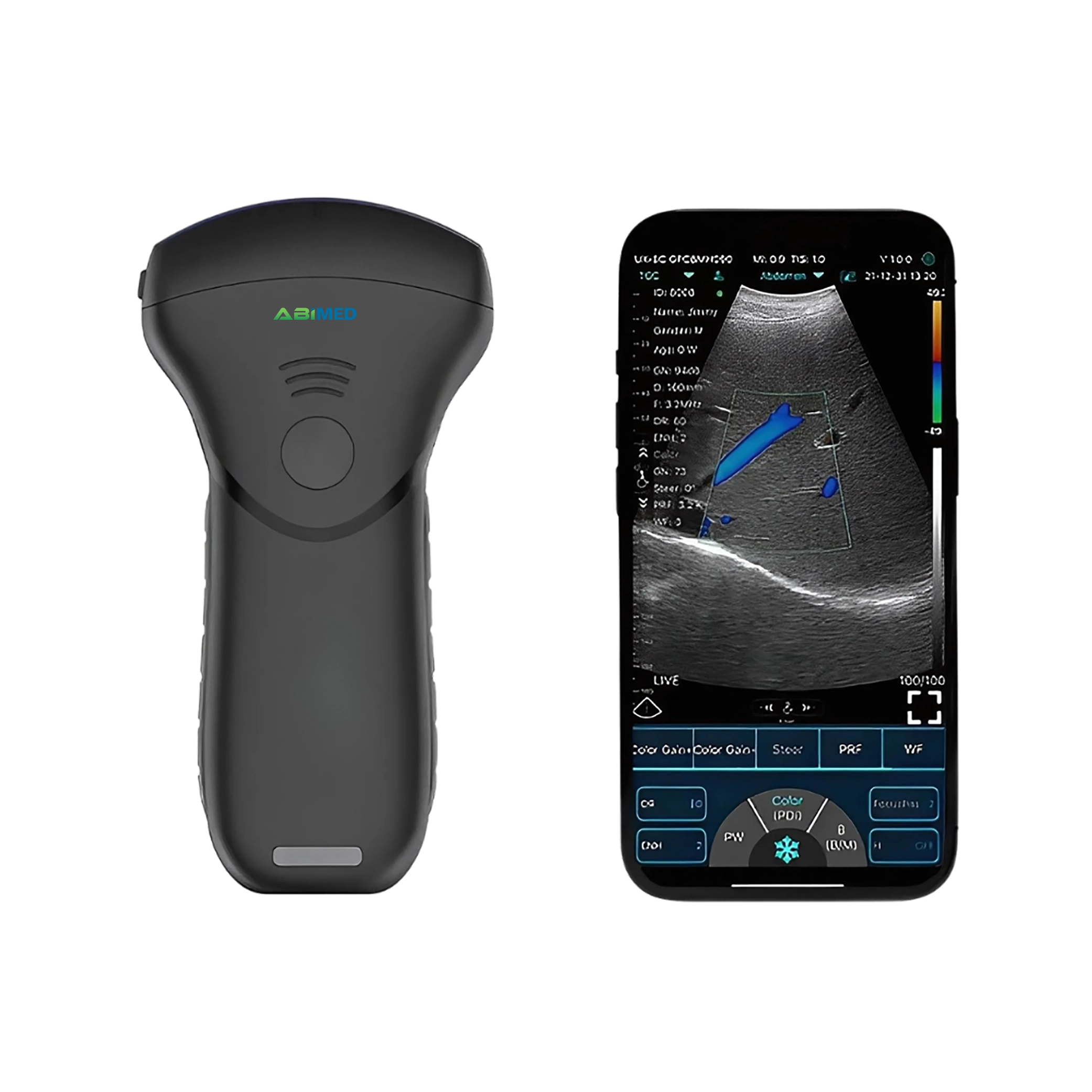

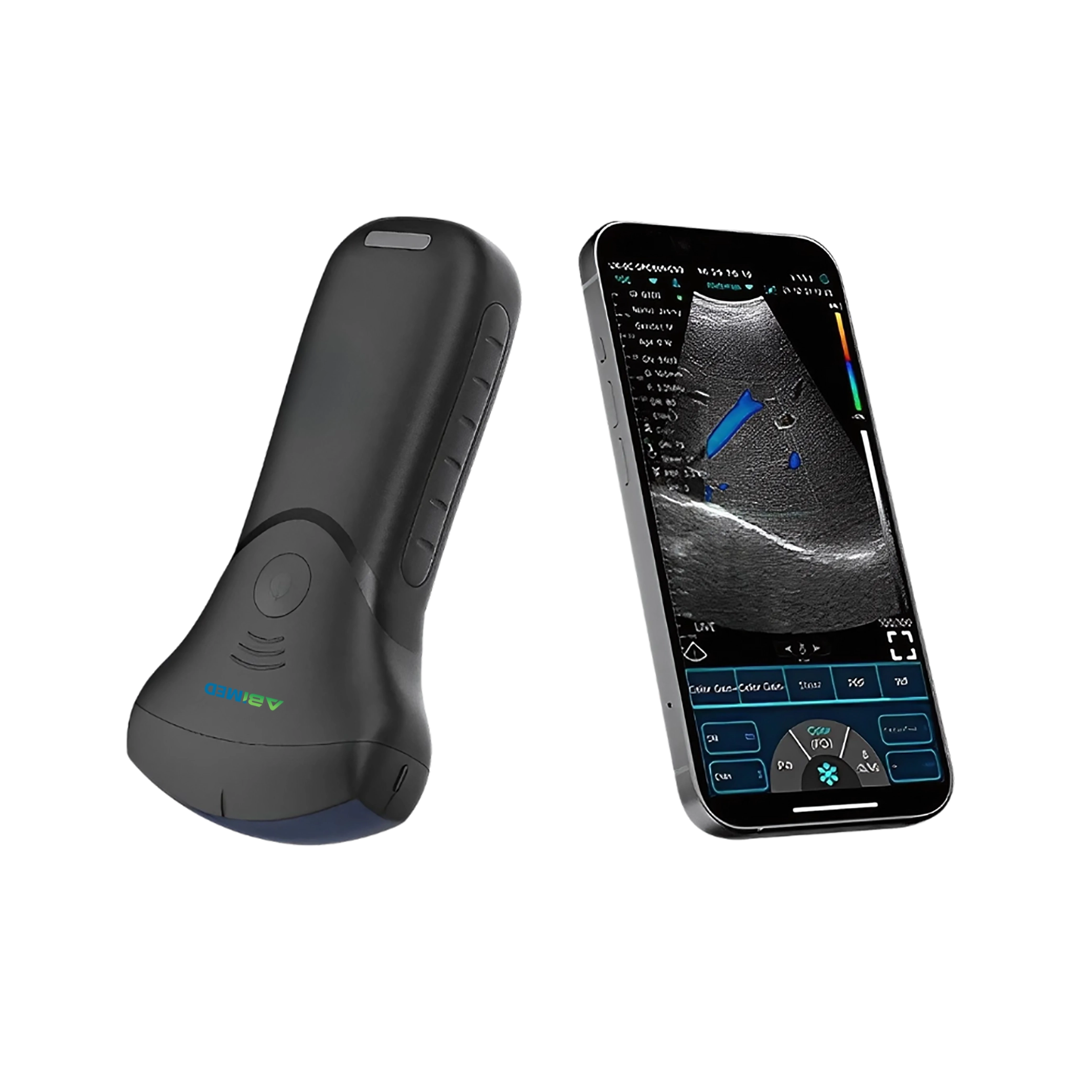

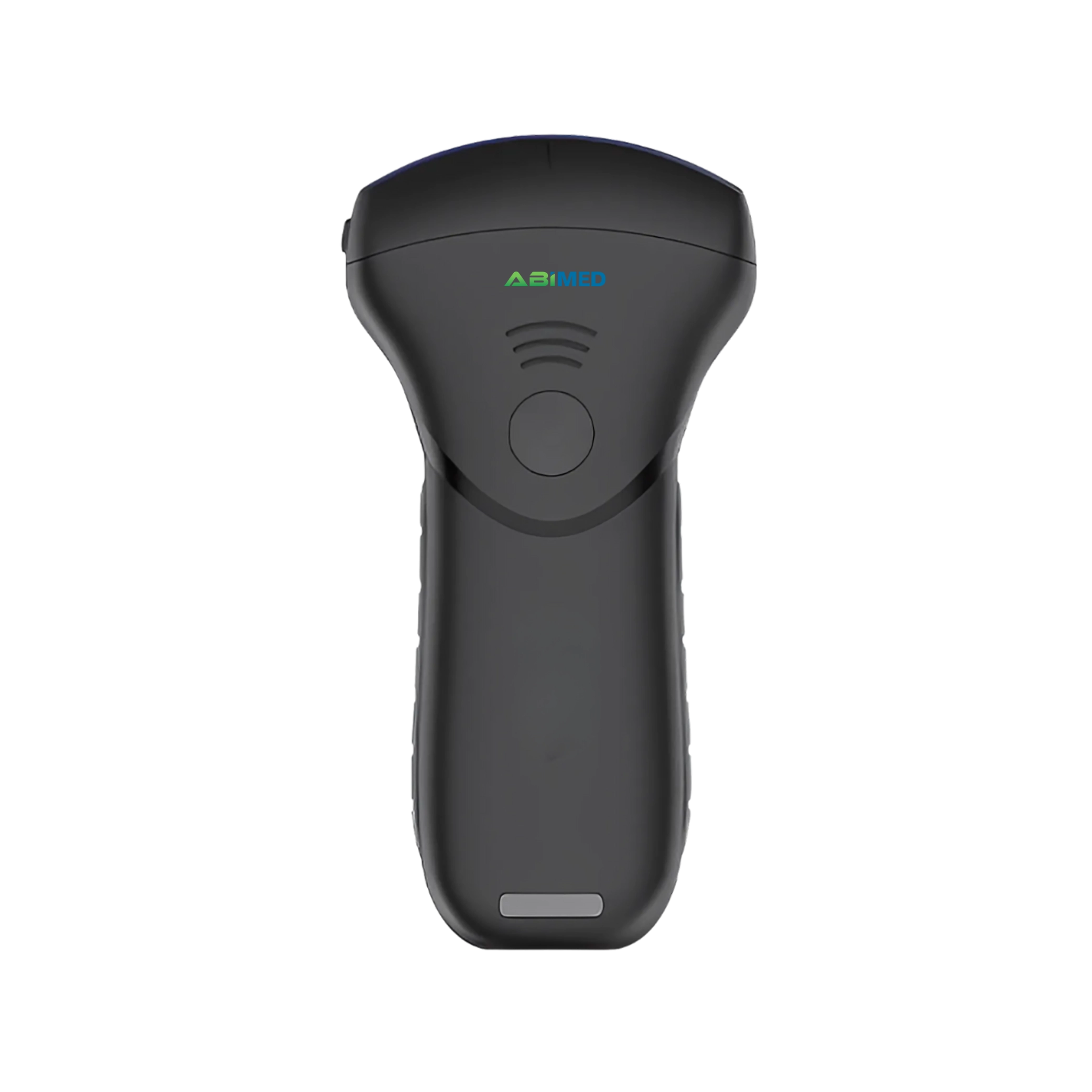

Ultrasound Scanner AM-USB21

Ultrasound Scanner AM-USB21 featuring 192 elements and a frequency range of 3.2 to 5 MHz, delivering clear and detailed imaging. With an R60 radius and a frame rate of 24 FPS, it ensures smooth and precise scanning. This device offers an adjustable gain and operates on a multiple channel system, enhancing image quality and accuracy. Its compact and lightweight design, make it ideal for point-of-care diagnostics, emergency medicine, and mobile healthcare applications.

Probe Type Wireless Convex Probe
Elements 192 Elements
Frequency 3.2 to 5Mhz
Depth 90 to 300mm
Radius R60
Frame Rate 24 Frames Per Second
Gain 40 to 110Db
Channel 64
Battery Built-In 4400mAh Lithium Battery
Battery Life 4 Hours (Working)
72 Hours (Standby)
Connections Wi-Fi
Wi-Fi Type Built-in Wi-Fi, 802.11g/20MHz/5G/450Mbps
Software Compatibility IOS/Android/Windows, Tablet, Smart phone, PC
Waterproof IP68
Anti-Skid Design 4 Sides
Dimensions 140 × 60 × 30mm
Weight 230g
  • Built-in Wi-Fi
  • Multi-Platform Compatibility
  • Portable and Lightweight
  • Built-in Lithium Battery
  • Fast Frame Rate
  • Adjustable Frequency
  • Our Ultrasound Scanner AM-USB21 is a portable diagnostic tool designed for a wide range of medical applications. Its wireless connectivity, and high-quality imaging, make it ideal for point-of-care ultrasound in emergency medicine, critical care, and remote healthcare settings.
