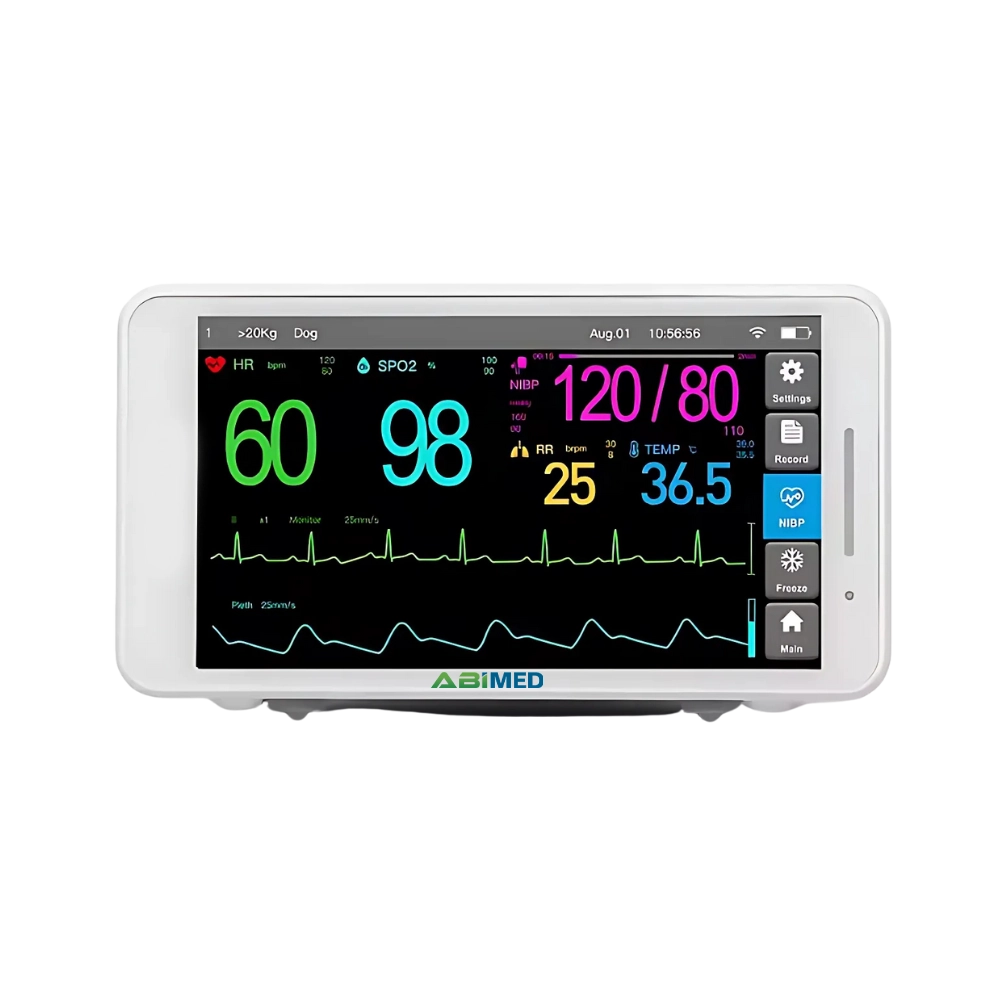

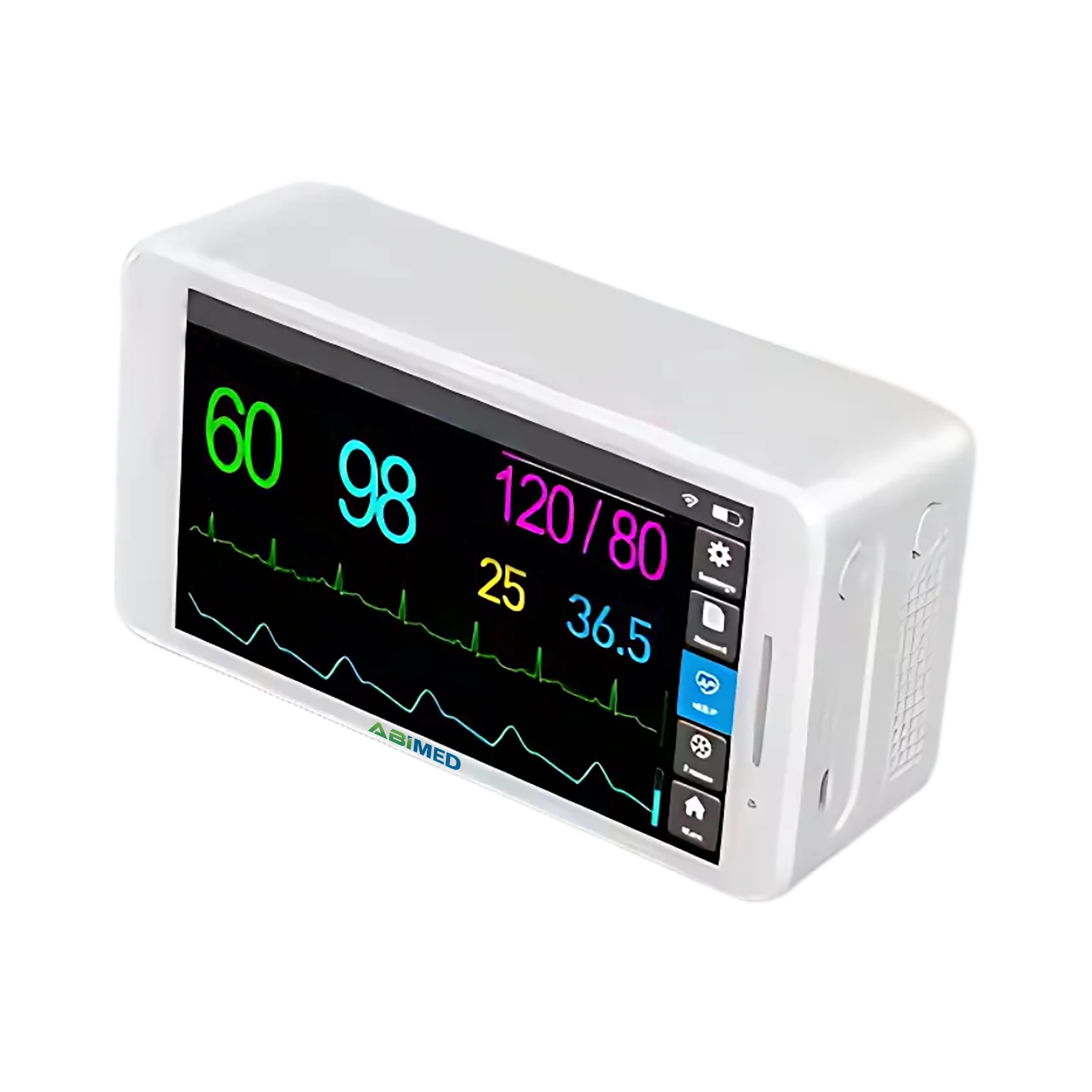

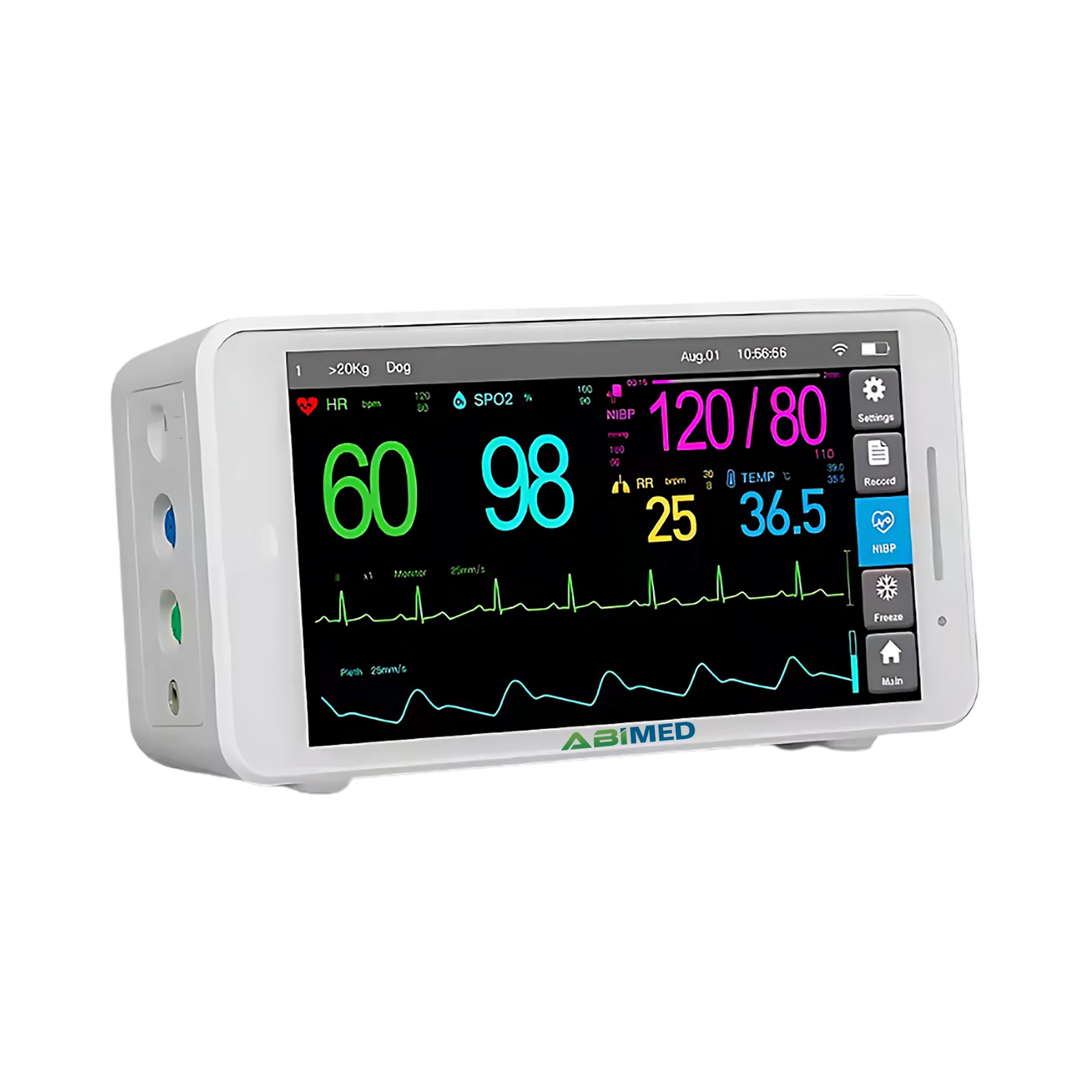

Veterinary Monitor AM-VM-A10 is a user-friendly and portable device designed for a wide range of animals. It features a 5.5-inch high-definition LCD screen with three display modes as Standard, Large Font and a specialized SpO₂ & NIBP interface. The key parameters ensure accurate monitoring with high resolution and precision. With a lightweight and compact size, it is easy to carry and use in different settings. It is ideal for diverse veterinary scenarios with a rechargeable battery with 4-hour runtime.
| SpO₂ Measurement Range | 0 to 100% |
| SpO₂ Measurement Accuracy | ±3% (70% to 100%) |
| Pulse Rate Measurement Range (Large animal) | 15 bpm to 300 bpm |
| Pulse Rate Measurement Range (Small/Medium Animal) | 15 bpm to 350 bpm |
| Pulse Rate Accuracy | ±1 bpm or ±1% |
| Pulse Rate Resolution | 1bpm |
| Respiratory Rate Measurement Range (Large Animal) | 0 to 120 BrPM |
| Respiratory Rate Measurement Range (Small/Medium Animal) | 0 to 150 BrPM |
| Respiratory Rate Accuracy | 7 to 150 rpm ±2 rpm |
| Respiratory Rate Resolution | 1 rpm |
| ETCO₂ Measurement Range | 0 to 114 mmHg |
| ETCO₂ Accuracy | 0 to 40mmHg:±2mmHg |
| ETCO₂ Respiratory rate | ＞ 80 BPM ±12% |
| Temperature Measurement Range | 0°C to 50°C |
| Temperature Accuracy | 0.1°C/°F |
| Temperature Resolution | ±0.2° C/0.4°F |
| NIBP measurement Range (Large Animal) | 10 to 280mmHg |
| NIBP measurement Range (Medium Animal) | 10 to 220mmHg |
| NIBP measurement Range (Small Animal) | 10 to 135mmHg |
| NIBP Accuracy | ±10 mmHg |
| Display Type | 5.5” TFT |
| Screen Resolution | 1280 × 720 |
| Power Supply | 4 hours continuous working |
| Operating Environment Temperature | 0°C to 40°C |
| Operating Environment Humidity | 15% to 90% |
| Storage Environment Temperature | 20°C to 50°C |
| Storage Environment Humidity | 10% to 90% |
| Dimensions | 153mm×83mm×59mm |
| Weight | 0.25 kg |
Connect with Our Specialists
Abimed Veterinary Monitor are vital devices used to track and analyse physiological parameters in animals during treatments. They feature 7 to 12 inches high-resolution TFT LCD screens for clear waveform and numerical data visualization. These monitors offer multi-parameter tracking, including ECG, heart rate, respiratory rate, SpO2, body temperature, NIBP and ETCO2. Their configurable auditory and visual alarms ensure immediate alerts for any abnormalities. They are lightweight and equipped with anti-shock enclosures, making them ideal for both clinic and mobile use.
