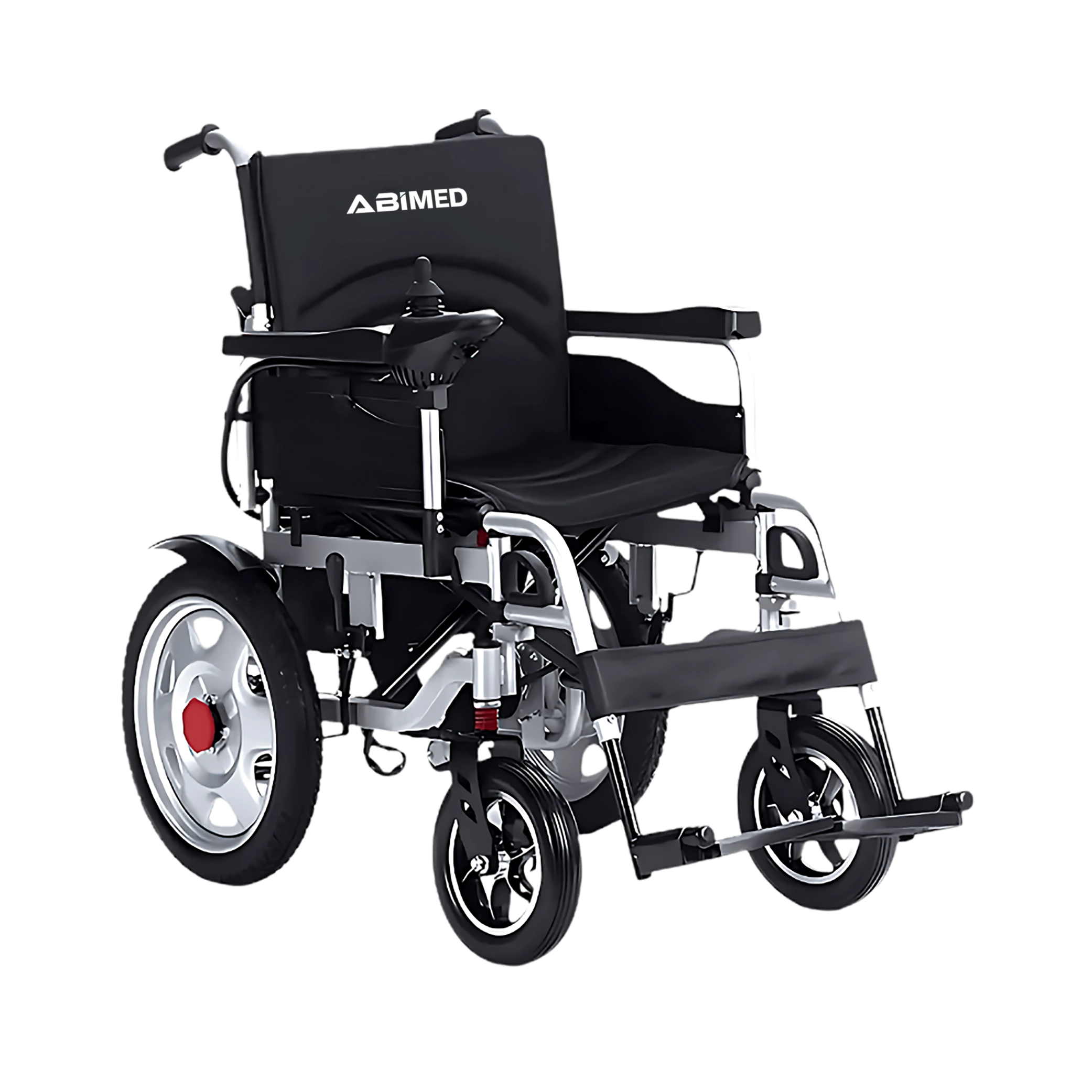

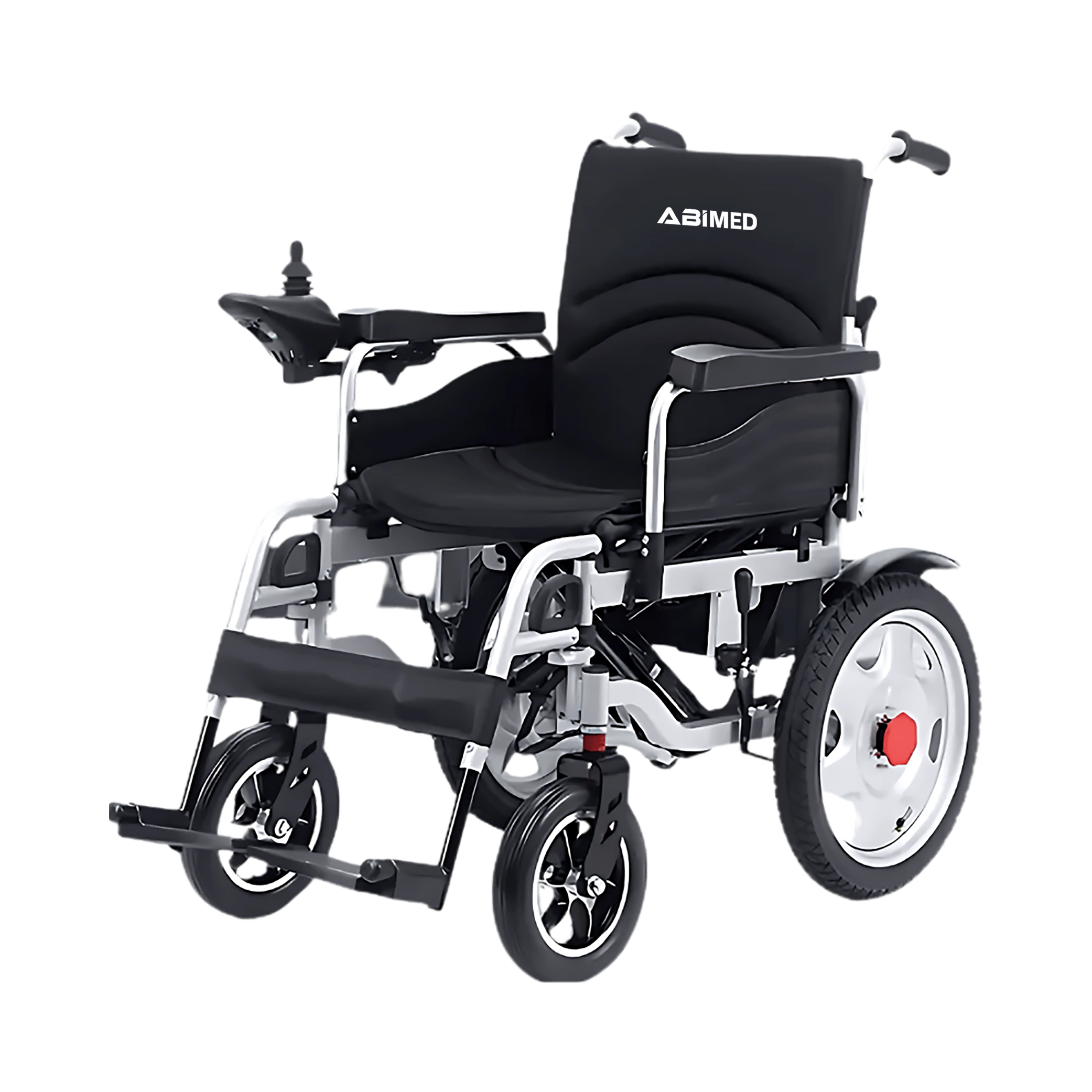

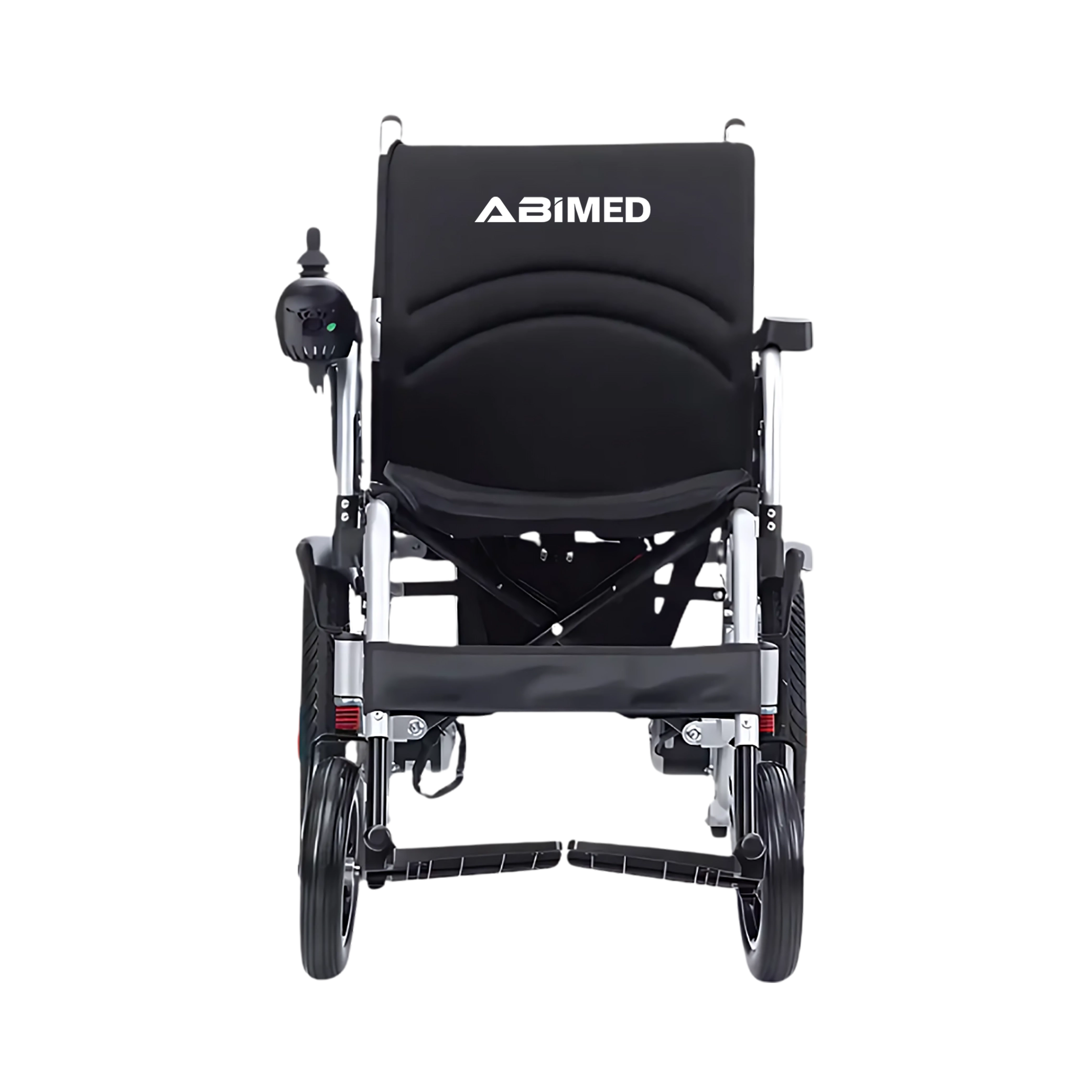

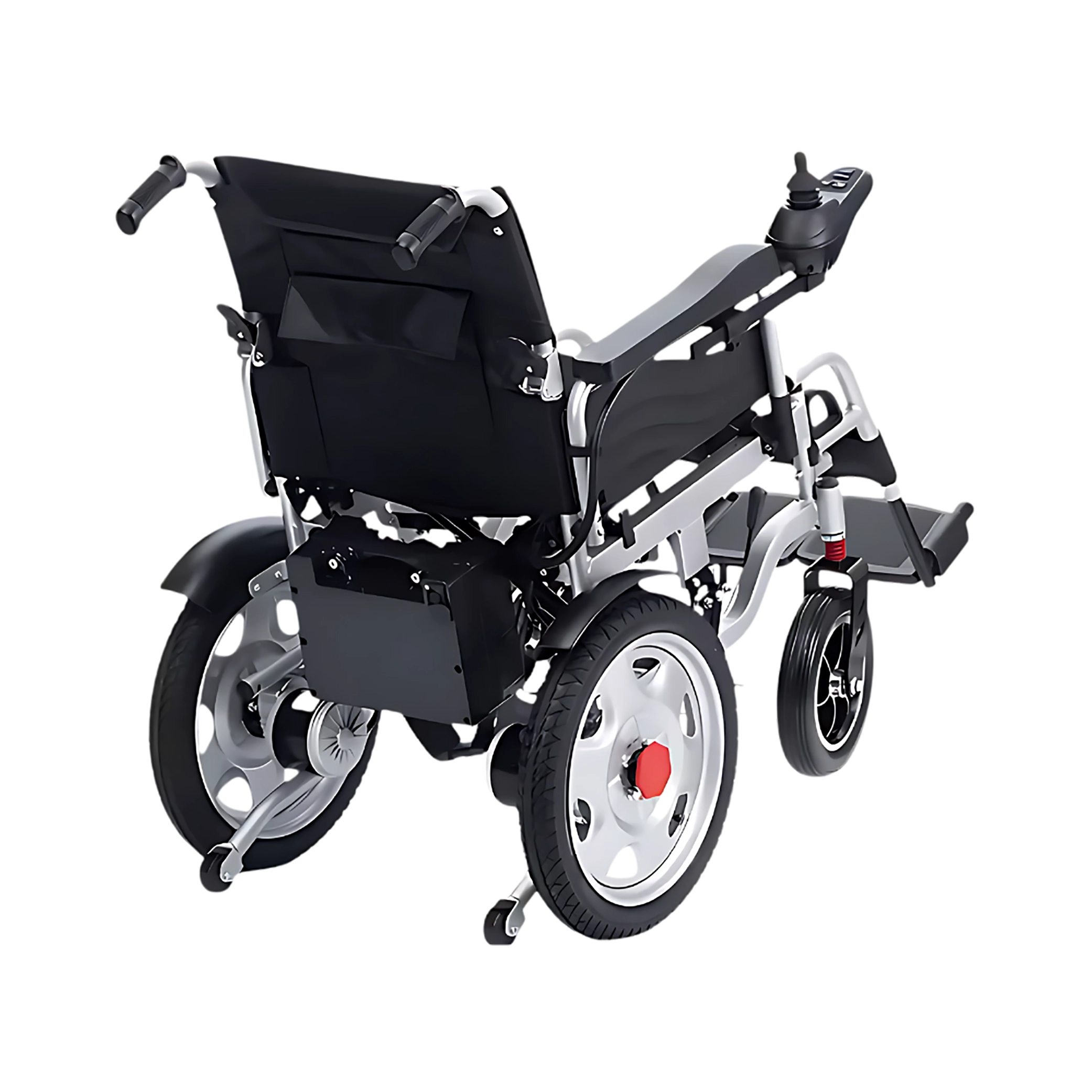

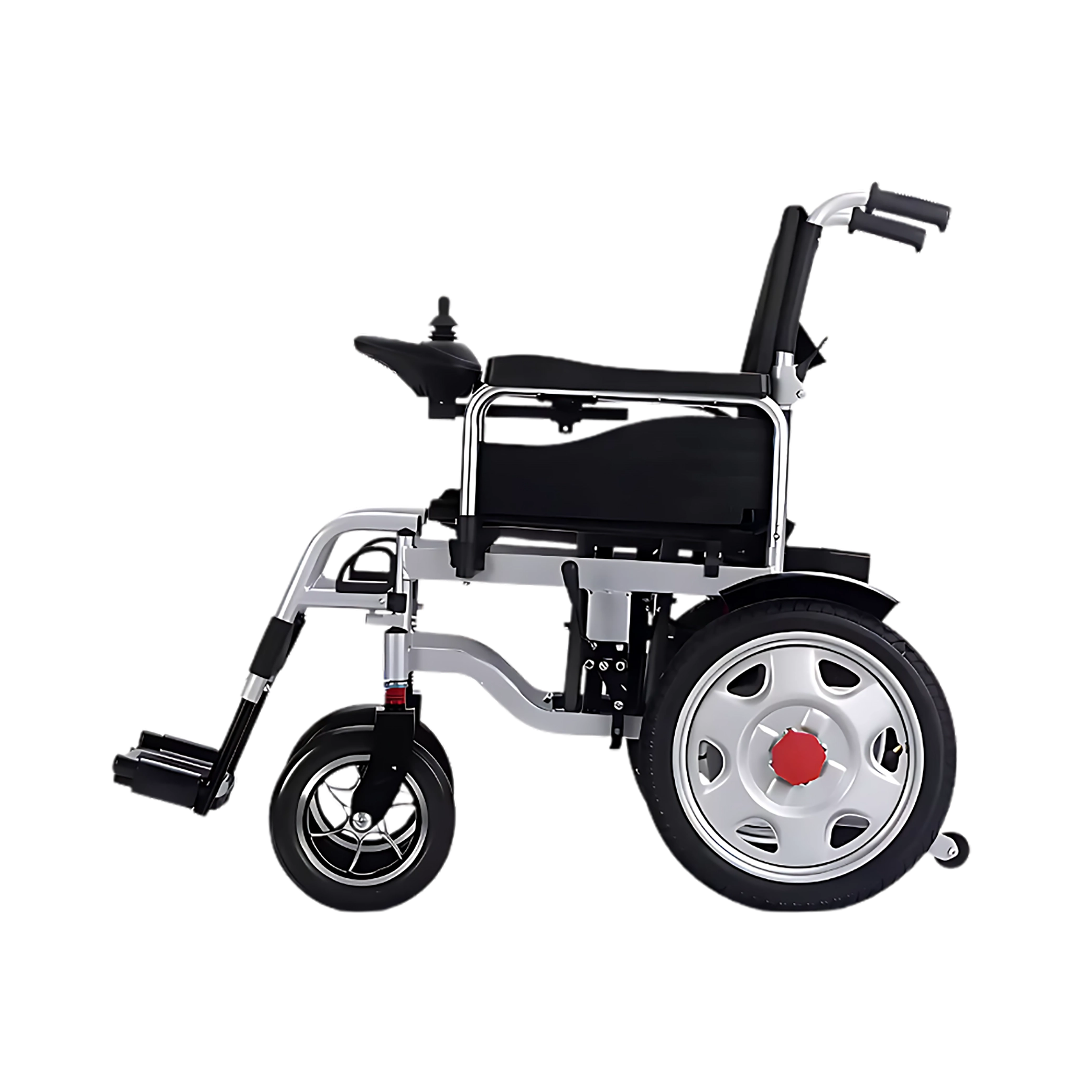

Electric wheelchair AM-EWA12 with joystick controller provides effortless independent movement and travelling to the end user. Upholstery seats provide comfort and easy maintenance. Light weight and folding nature makes it easy to carry.
Catalog
| Seat Length | 400 mm |
|---|---|
| Seat Width | 430 mm |
| Seat Thickness | 60 mm (foldable) |
| Back Rest | 400 × 400 × 15 mm |
| Front wheel | 8” PU solid |
| Rare wheel (wheelbase size 560mm) | 12” rubber pneumatic |
| Anti-tip wheel size | 2" × 1" PU mm |
| Motor | 24V / 250W × 2 brush |
| Battery | 24V 13Ah / 26Ah lithium |
| Charger | AC 100 - 240V 50/60Hz Output: 24V 3A |
| Charging Time | 4 - 6 hours |
| Forward Speed | 0 - 6 km/h |
| Reverse Speed | 0 - 6 km/h |
| Turning Radius | 600 mm |
| Climbing Ability | ≤ 12 ° |
| Controllers Current | ≤ 40A |
| Over all size | 1100 × 630 × 960 mm |

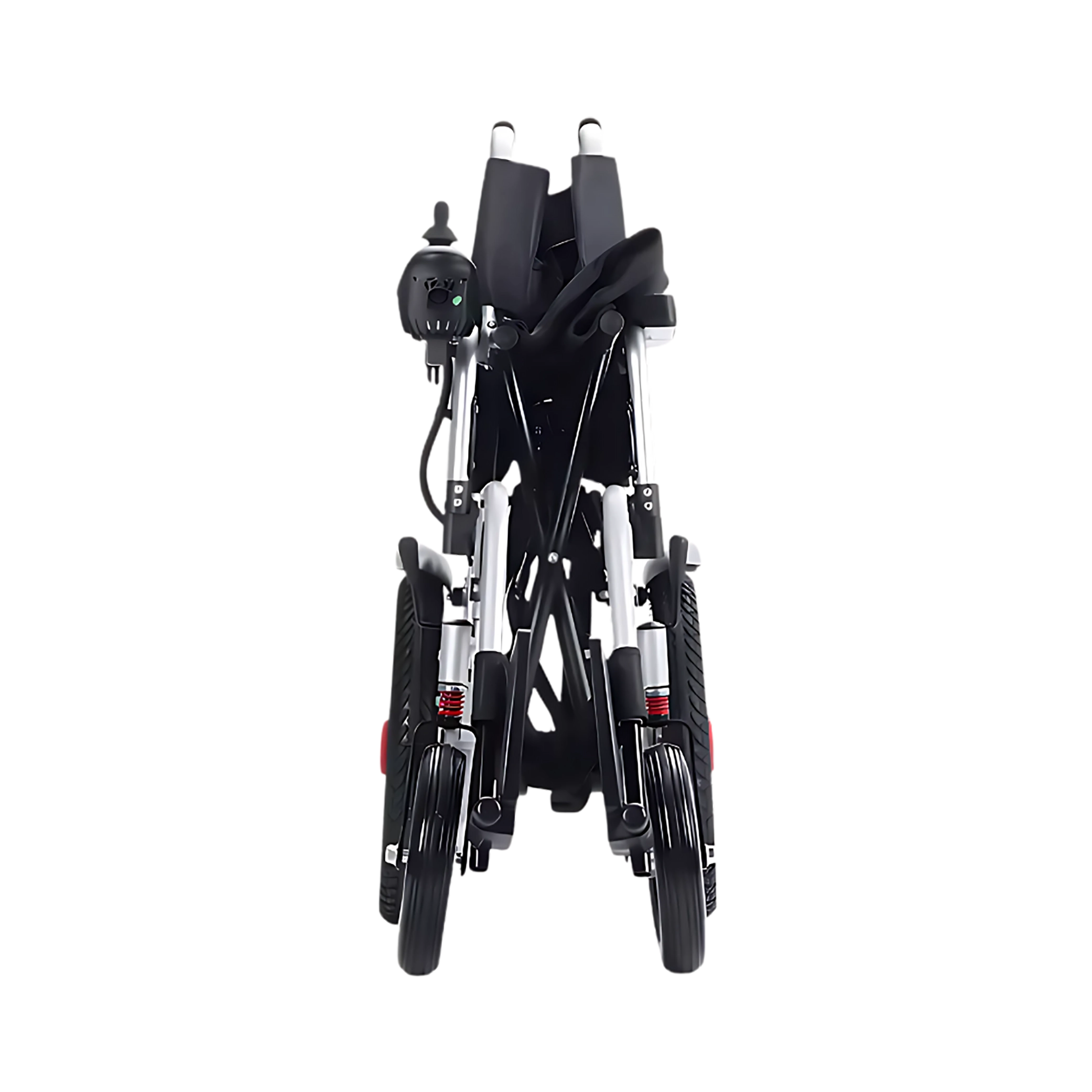

| Folded size | 620 × 320 × 780 mm |
| Loading Capacity | 120 kg |
| Net Weight (with battery) | 31 kg |
| Packing Size | 650 x 380 x 790 mm |
It is widely used in hospitals, and home care by physically disabled patients and elderly people for easy long distance travelling.
Abimed electric wheelchairs are designed for both indoor and outdoor use. They are equipped with robust motors that provide smooth and efficient movement. Their high-capacity batteries allow users to travel longer distances without frequent recharging. These wheelchairs feature anti-tip wheels, reliable braking systems, and secure seat belts, ensuring user safety at all times. Our electric wheelchairs are ideal for individuals seeking a comfortable and user- friendly mobility solution.
| Seat Length | 400 mm |
| Seat Width | 430 mm |
| Seat Thickness | 60 mm (foldable) |
| Seat Length | 410 mm |
| Seat Width | 460 mm |
| Seat Thickness | 15 mm (foldable) |
Abimed pediatric wheelchairs are designed to meet the unique needs of children, offering both comfort and functionality. Their adjustable backrest and seat height ensure a proper fit as your child grows. They have durable, non-skid wheels to provide a stable and smooth ride on different surfaces. These chairs are compact and foldable, making them easy to store and transport. Abimed pediatric wheelchairs are ideal for helping children stay mobile and independent.
| Seat Tilt in space | 0 - 40 ° |
| Buggy folded ( L × W × H ) | 771 × 571 × 573 mm |
| Wheelbase size (L × W × H ) | 944 × 571 × 992 mm |
Abimed manual wheelchairs are designed to provide reliable mobility and comfort for users. They feature a lightweight frame, ensuring easy movement and transport. Their adjustable footrests and armrests offer personalized support and comfort. These wheelchairs are compact and foldable, making them convenient for storage and travel. Our manual wheelchairs are perfect for both temporary and everyday use.
| Seat Dimension | 440 × 450 × 780 mm |
| Front wheel | 8 inches |
| Rare wheel | 24 inches |
Abimed bariatric wheelchairs are designed to support heavy body weights without compromising stability or safety. Their flip-back armrests make it easier to transfer in and out of the chairs. These wheelchairs are equipped with reliable polyurethane caster wheels, ensuring smooth movement. They feature solid spoke rear wheels, adjustable seat heights and backrest angles to meet individual needs. Our bariatric wheelchairs are ideal for both daily use and long-term care.
