Vein Detector AM-VDA10

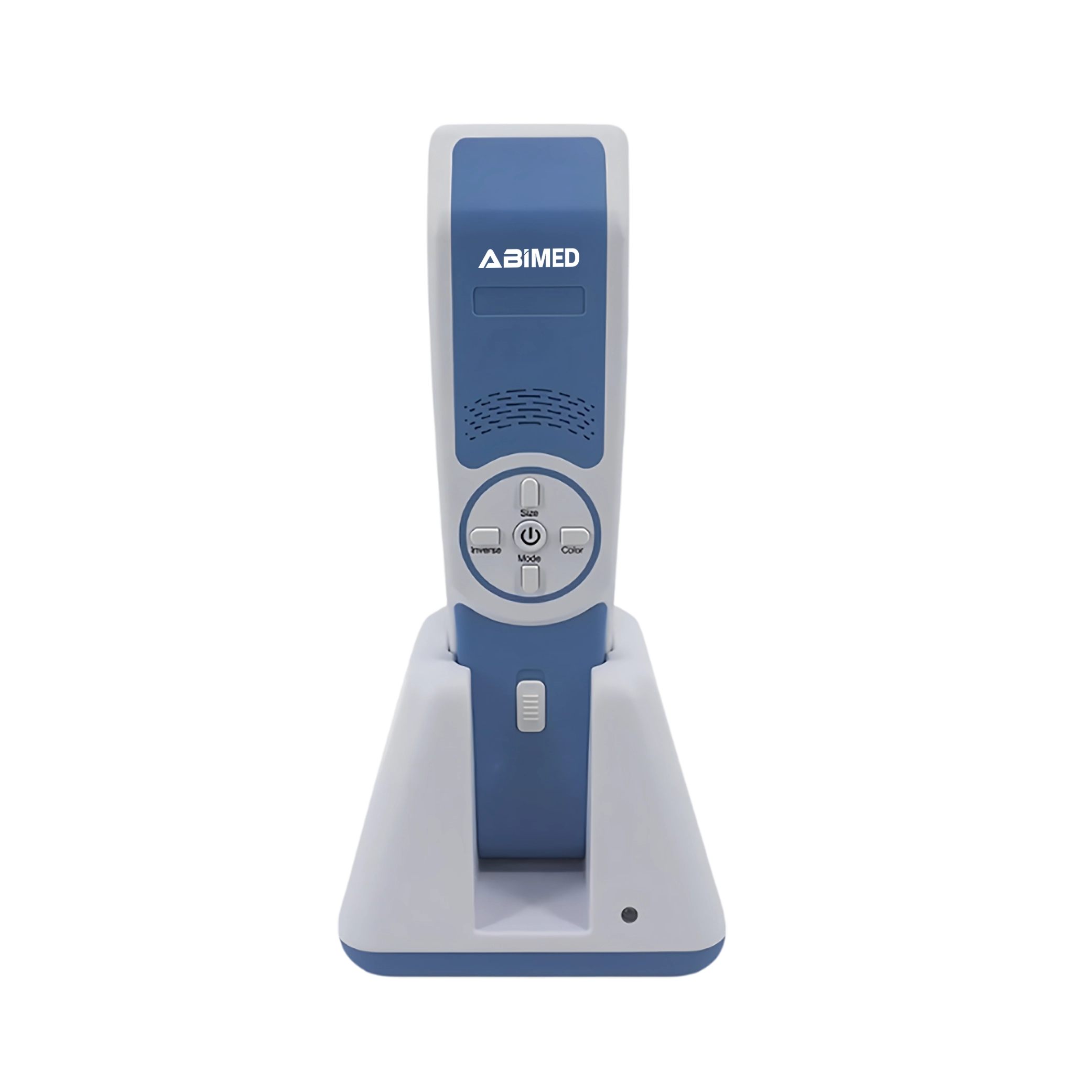

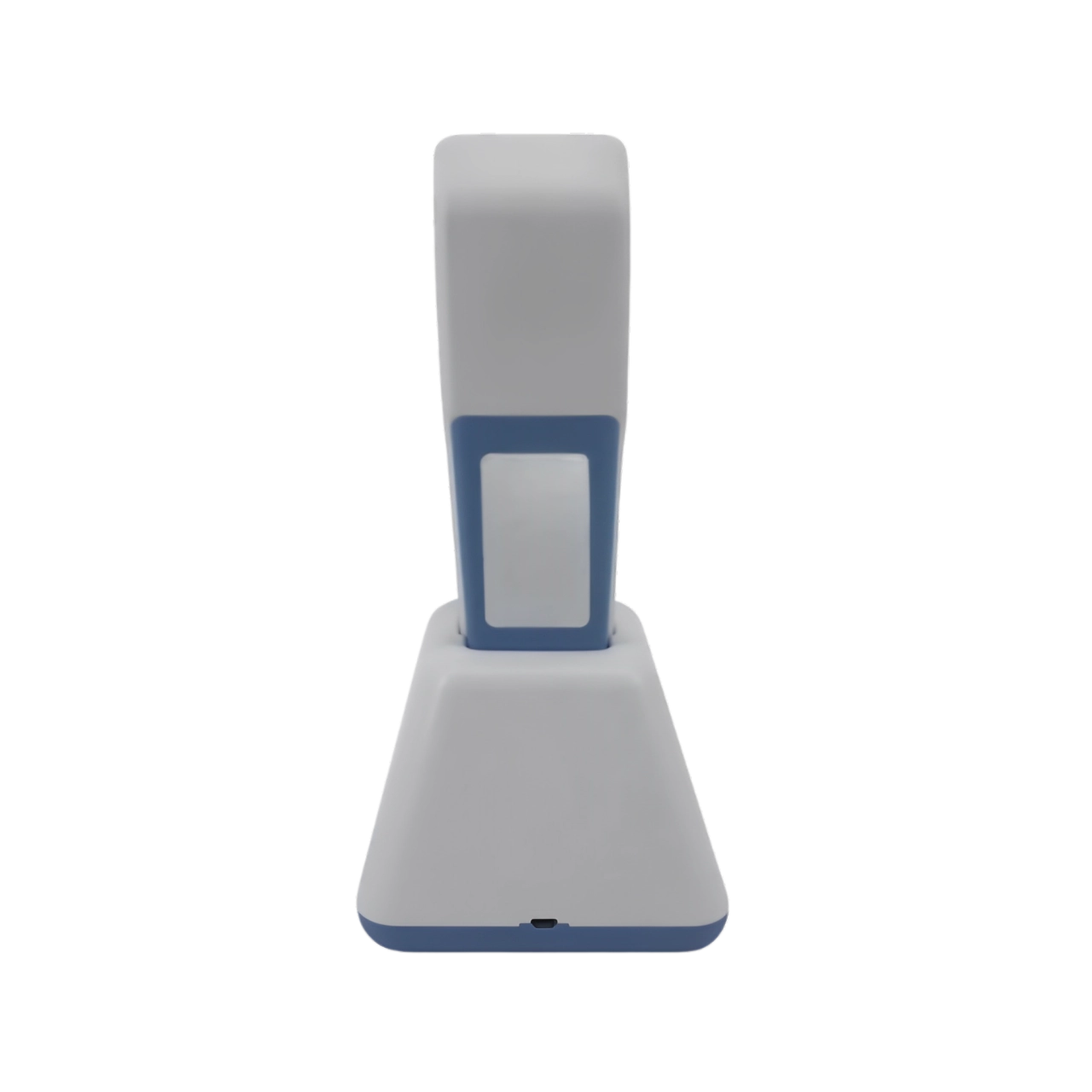

Vein Detector AM-VDA10 features near-infrared light of 850 nm to provide clear vein imaging for infants and adults of all skin tones. With high accuracy and 720 × 480 resolution, it detects veins of very small size, reducing venipuncture risks. It features adjustable colors, brightness levels, inverse mode, and image resizing for better visibility. This device comes with a main unit, battery, and charging base, with optional portable and fixed stands for enhanced usability.

Light Type Near-infrared light
Infrared Wavelength 850 nm
Image Resolution 720 × 480
Visible Vein Size ≥ 1 mm
Accuracy 0.25 mm
Depth of Visible Vein ≤ 12 mm
Projection Distance 200 mm ; ± 20mm
Image Frame Rate 20 FPS
Power Supply DC 5V
Weight 450 g
Dimension 240 × 60 × 60 mm
Battery Capacity 4400 mAh
Battery Working Time 5 hours
Charging Time 3 hours
Operating Mode Handheld and Suspension
Accessories Main Unit
Battery x 1
Charging Base
Optional Accessories Portable Stand
Fixed Stand
  • High Accuracy and Clarity
  • Infrared Technology
  • Adjustable Display
  • Flexible Imaging
  • Portable and Lightweight
  • Long Battery Life
  • Smooth Real-Time Projection
  • Optional Stands
  • Our Vein Detector AM-VDA10 is widely used in hospitals, clinics, blood donation centers, and emergency care units to locate veins in patients with difficult venous access, including infants, elderly individuals, and those with dark skin tones or obesity.
