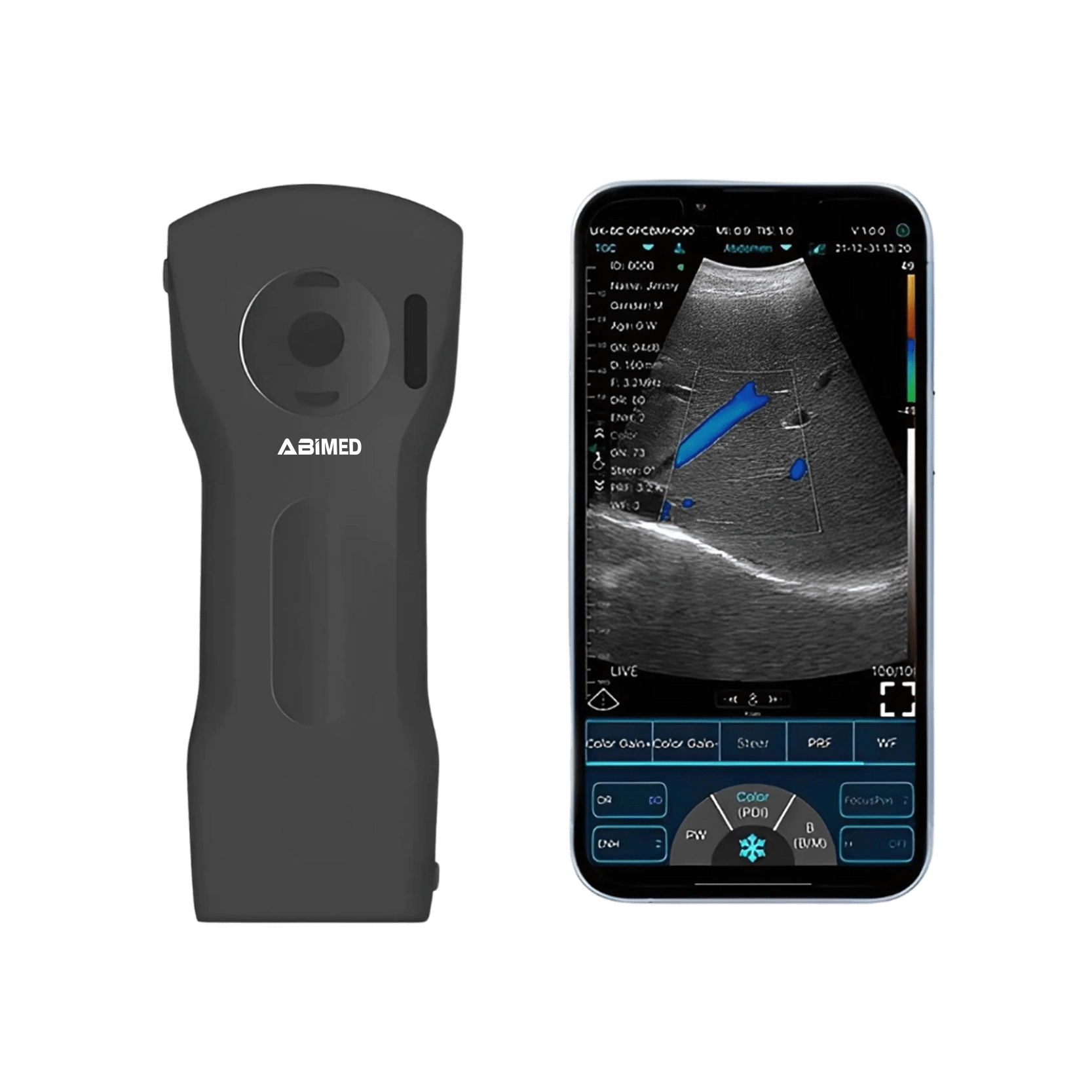

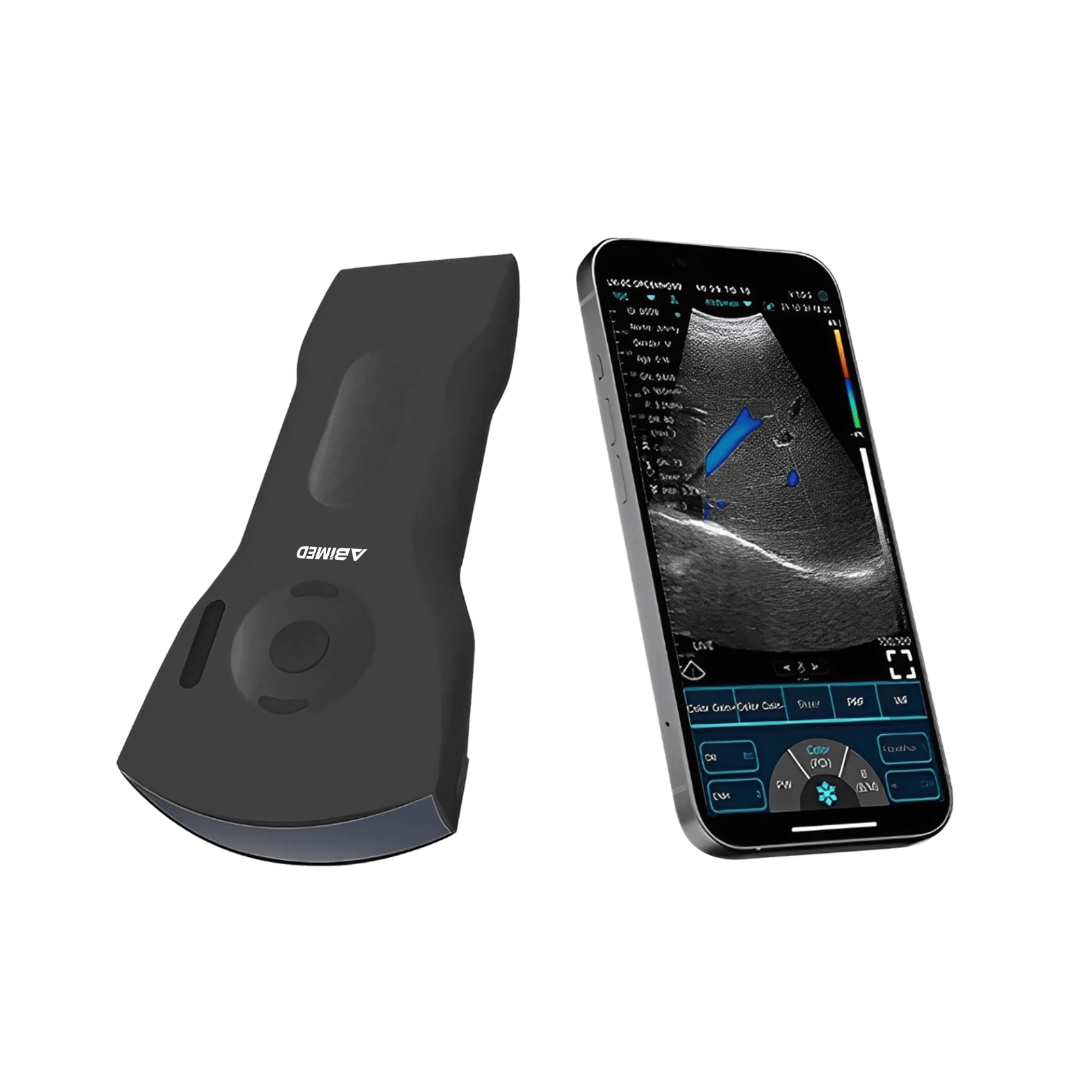

Ultrasound Scanner AM-USA14 offers 160 × 65 × 18 mm dimensions and weighs 262g, making it highly portable and easy to handle. With 128 dual elements, and a 24-fps frame rate, it delivers clear, high-resolution imaging. It features WiFi connectivity, supporting Android, iOS, and Windows devices. Powered by a built-in lithium battery, it is compact and portable, making it ideal for hospitals, clinics, and point-of-care use.
| Probe Type | Wireless Dual-Head Convex + Linear + Cardiac Probe |
| Elements | 128 Dual Elements |
| Frequency (Convex) | 3.2/5 MHz |
| Frequency (Linear) | 7.5/10 MHz |
| Frequency (Cardiac) | 3.2/4 MHz |
| Depth (Convex) | 90 to 305 mm |
| Depth (Linear) | 20 to 100mm |
| Depth (Cardiac) | 90 to 200 mm |
| Radius (Convex) | R60 |
| Footprint (Linear) | L45 |
| Frame Rate | 24 Frames Per Second |
| Gray Scale | 256 Levels |
| Channel | 64 |
| Gain | 40 to 110 dB |
| Battery | Built-in 1 Lithium Battery |
| Battery Life | 3 to 4 Hours (Working), 48 to 72 Hours (Standby) |
| Compatible Devices | Android, iOS, Windows (Tablet, Smartphone, PC) |
| Connection | WiFi |
| WiFi Specifications | Built-in WiFi, 802.11g (20MHz, 5G, 450Mbps) |
| Dimensions | 160 × 65 × 18 mm |
| Weight | 262g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
