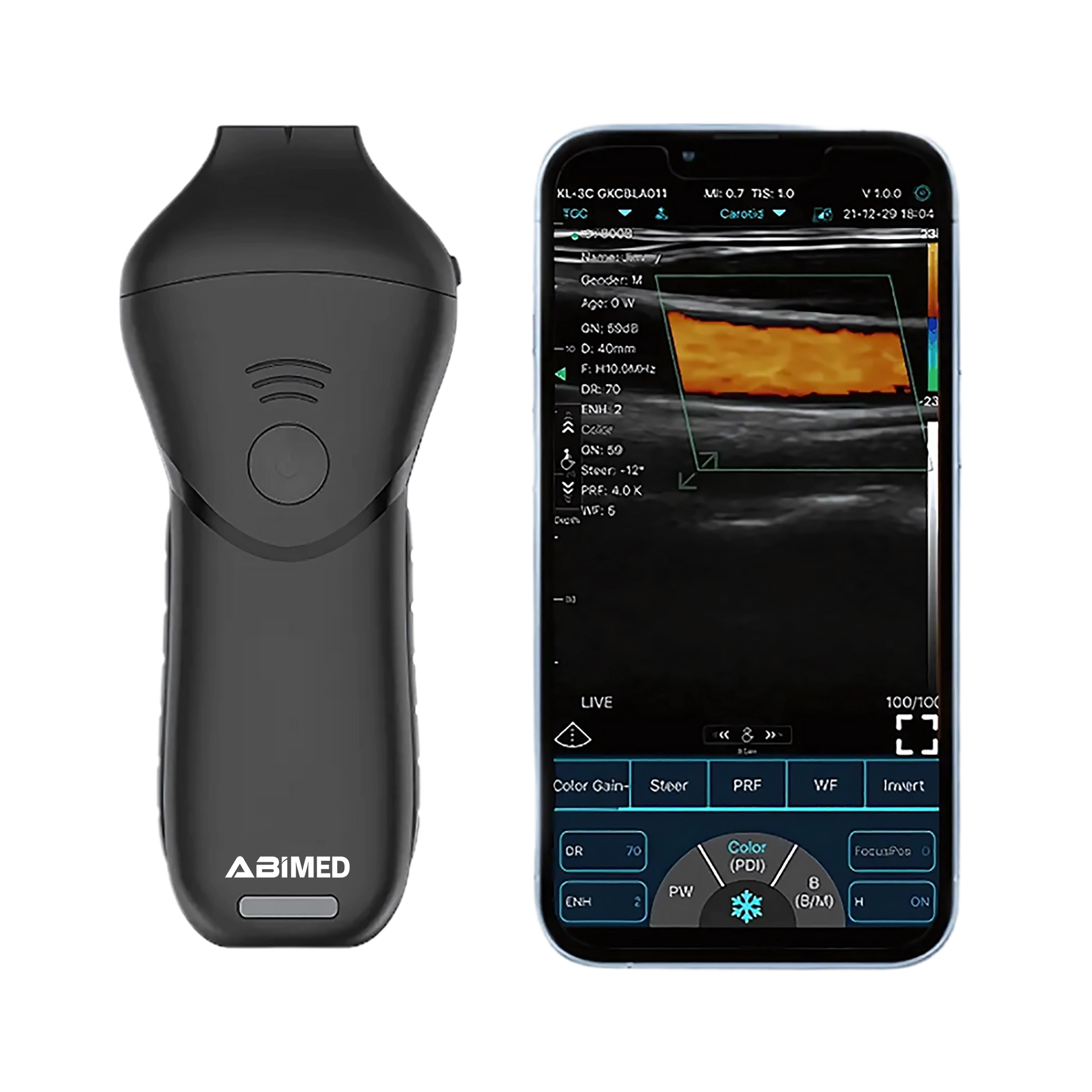

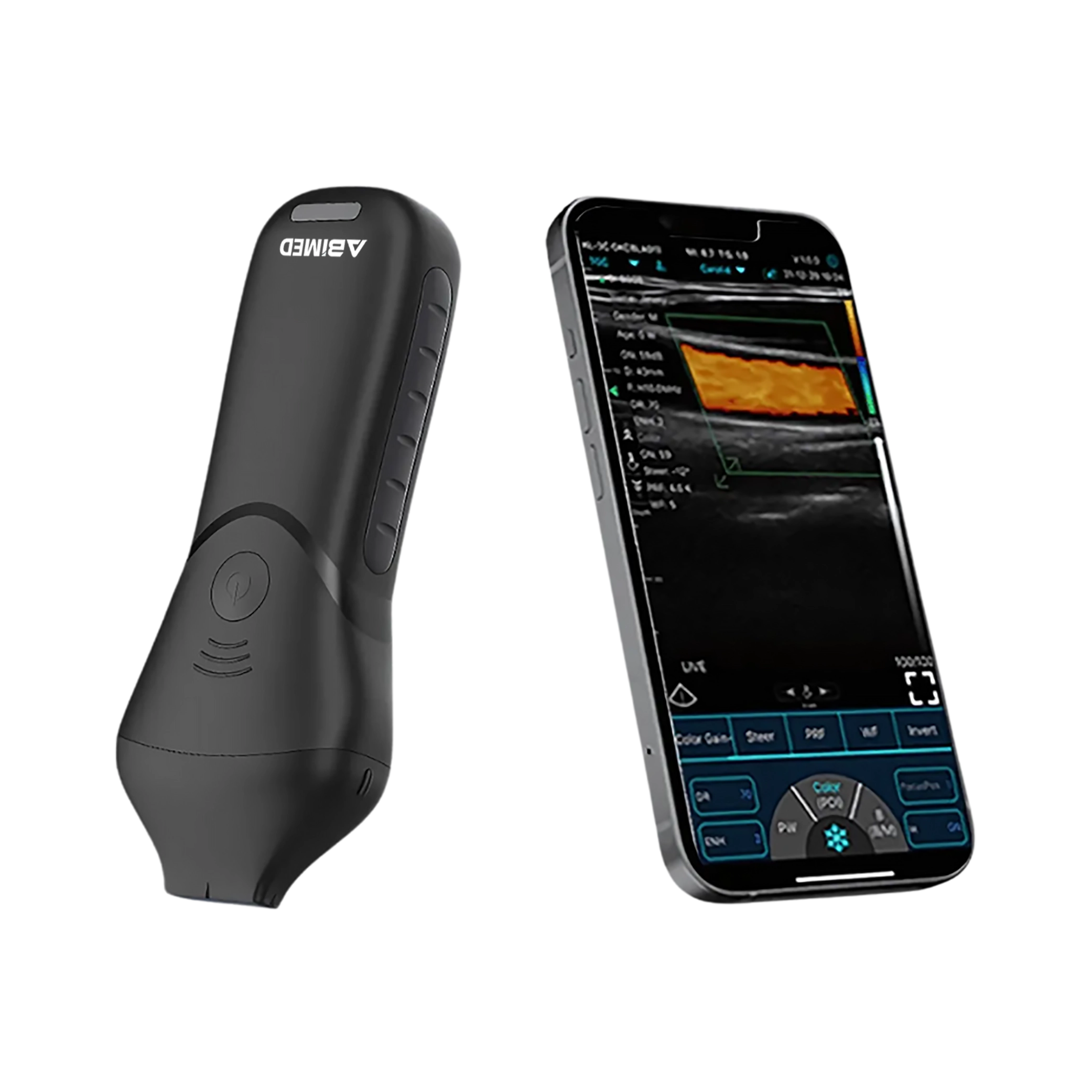

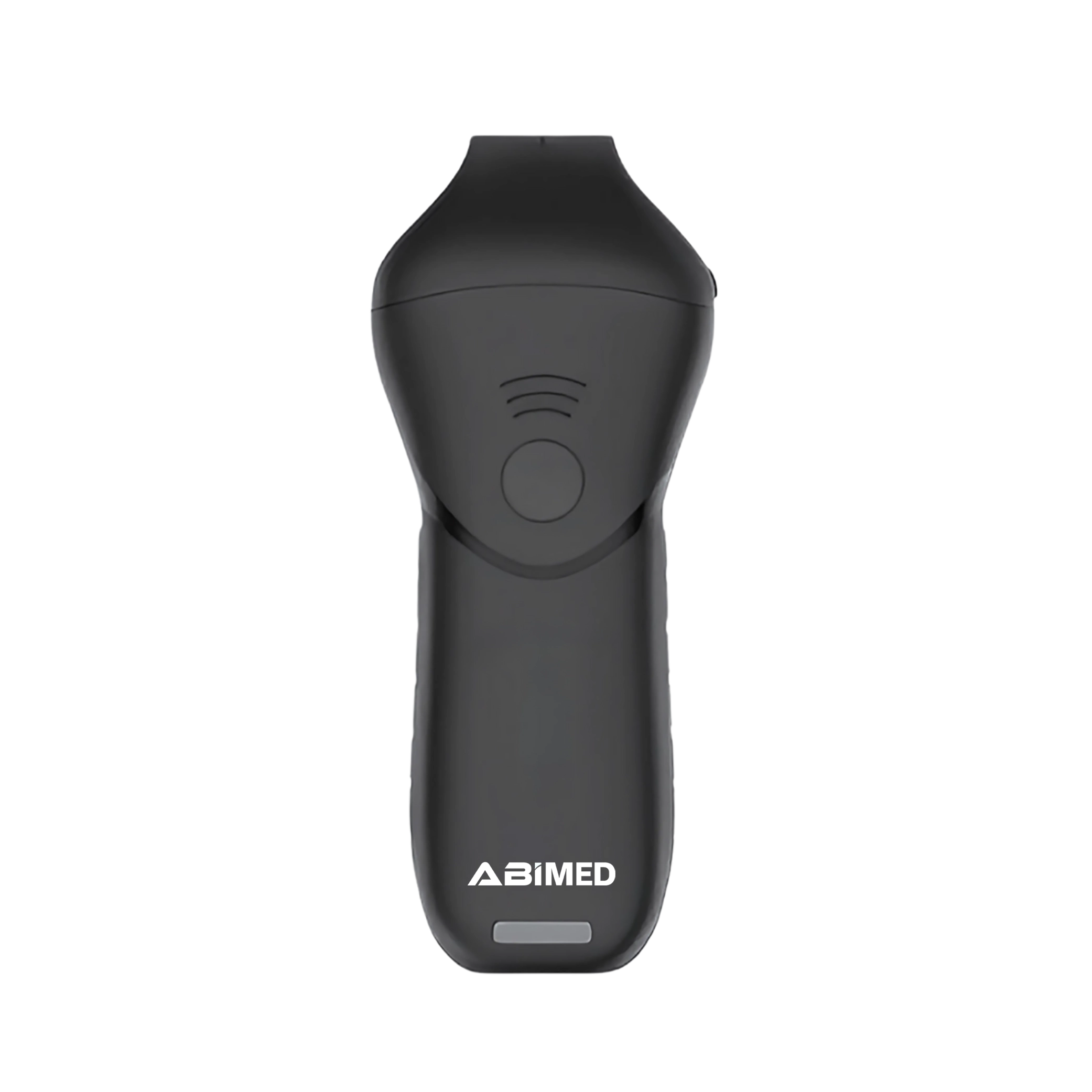

Ultrasound Scanner AM-USB13 offers 192 dual elements, and operates at 16/20 MHz with a 10 to 40 mm depth range. It delivers smooth imaging at 18 to 24 FPS and features an anti-skid design for a secure grip. This scanner is designed for efficiency, featuring a built-in high-capacity lithium battery. Its low power consumption enhances energy efficiency. Seamlessly integrating with Android, iOS, and Windows devices, it connects via WiFi or USB, offering flexible connectivity options. Additionally, it is a perfect choice for medical professionals seeking precision, convenience, and durability.
| Probe Type | High-Frequency Linear Probe |
| Elements | 192 Dual Elements |
| Frequency | 16/20 MHz |
| Depth | 10 to 40 mm |
| Length | 25 × 6 mm |
| Frame Rate | 18 to 24 Frames Per Second |
| Power Consumption |
3W (Live) 1W (Freeze) |
| Battery | Built-in Lithium Battery (4400 mAh) |
| Battery Life |
4 Hours (Working) 72 Hours (Standby) |
| Anti-Skid Design | 4 Sides of Probe |
| Connections | WiFi, USB |
| WiFi Type | 802.11n / 20MHz / 2.4G / 5G |
| Software Compatibility | Android, iOS, Windows |
| Waterproof Grade | IP68 |
| Dimensions | 151 × 62 × 30 mm |
| Weight | 223g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
