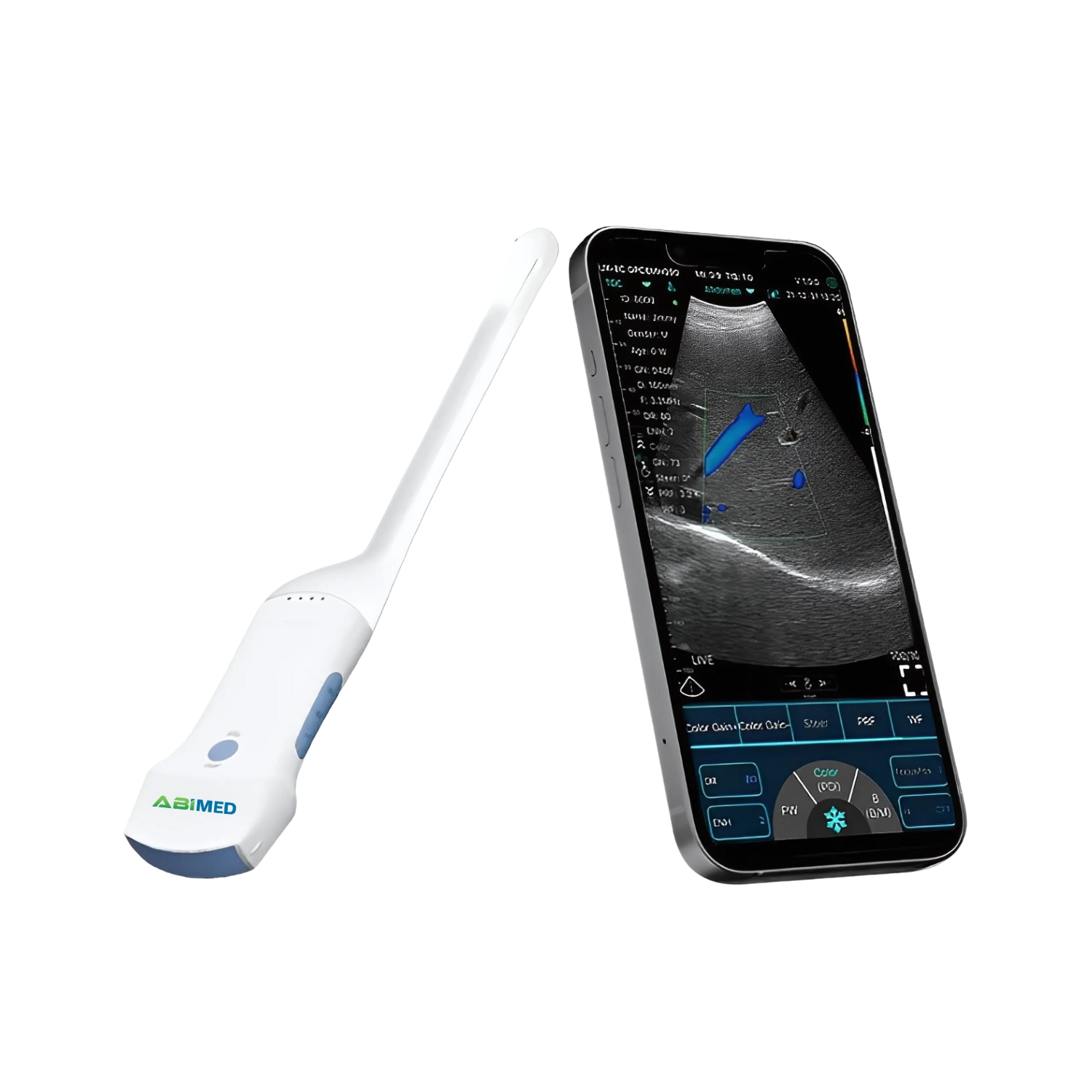

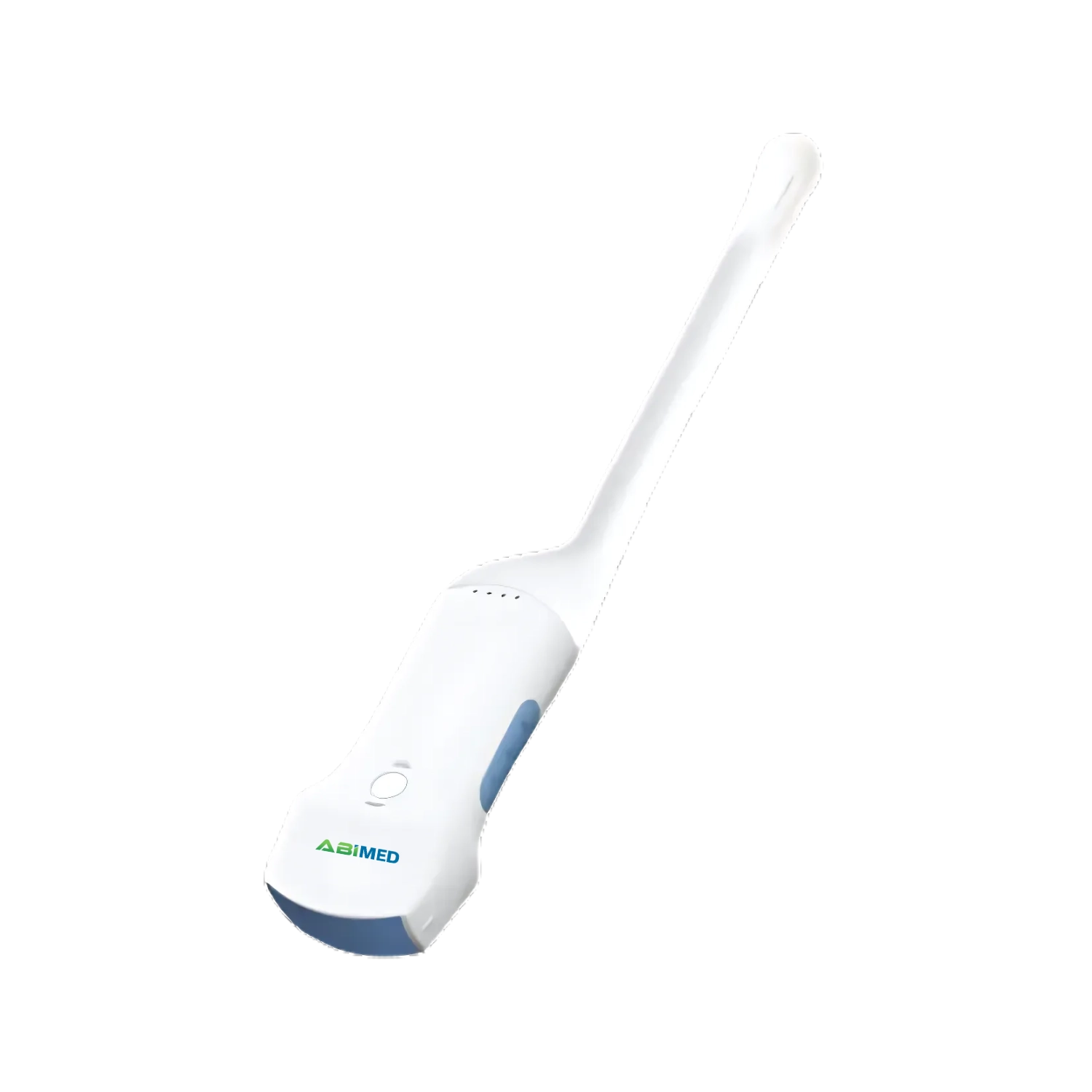

Ultrasound Scanner AM-USA21 features 128 dual elements, offering three frequency modes for convex, cardiac and endocavity, providing exceptional imaging. It supports a scan angle of 80°/149° and delivers a smooth frame rate per second. Its built-in rechargeable lithium batteries offer a working time and a standby time. This scanner also features an anti-skid grip on all four sides and boasts an IP68 waterproof rating. Compact and lightweight, this scanner is an ideal solution for point-of-care diagnostics and mobile ultrasound applications.
| Probe Type | Wireless Dual Head Convex + TV Probe |
| Elements | 128 Dual Elements |
| Frequency (Convex) | 3.2/5Mhz |
| Frequency (Cardiac) | 2.5/5Mhz |
| Frequency (Endocavity) | 6.5/8Mhz |
| Scan Depth (Convex) | 90 to 305mm |
| Scan Depth (Cardiac) | 90 to 160mm |
| Scan Depth (Endocavity) | 20 to 100mm |
| Scan Angle | 80°/149° |
| Frame Rate | 18 to 24 Frames Per Second |
| Battery | Built-in 2 rechargeable Lition batteries 3.8 V, 2600 mAh, 9.88 Wh |
| Battery Life |
4 Hours (Working) 72 Hours (Standby) |
| Recharge Time | 3 to 4h |
| Connections | Wi-Fi, USB |
| Wi-Fi Type | 802.11n/20MHz/2.4G/5G |
| Software Compatibility | Android, IOS, Windows |
| Anti-Skid Design | 4 Sides of Probe |
| Waterproof Grade | IP68 |
| Dimensions | 310 × 54 × 30mm |
| Weight | 251g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
