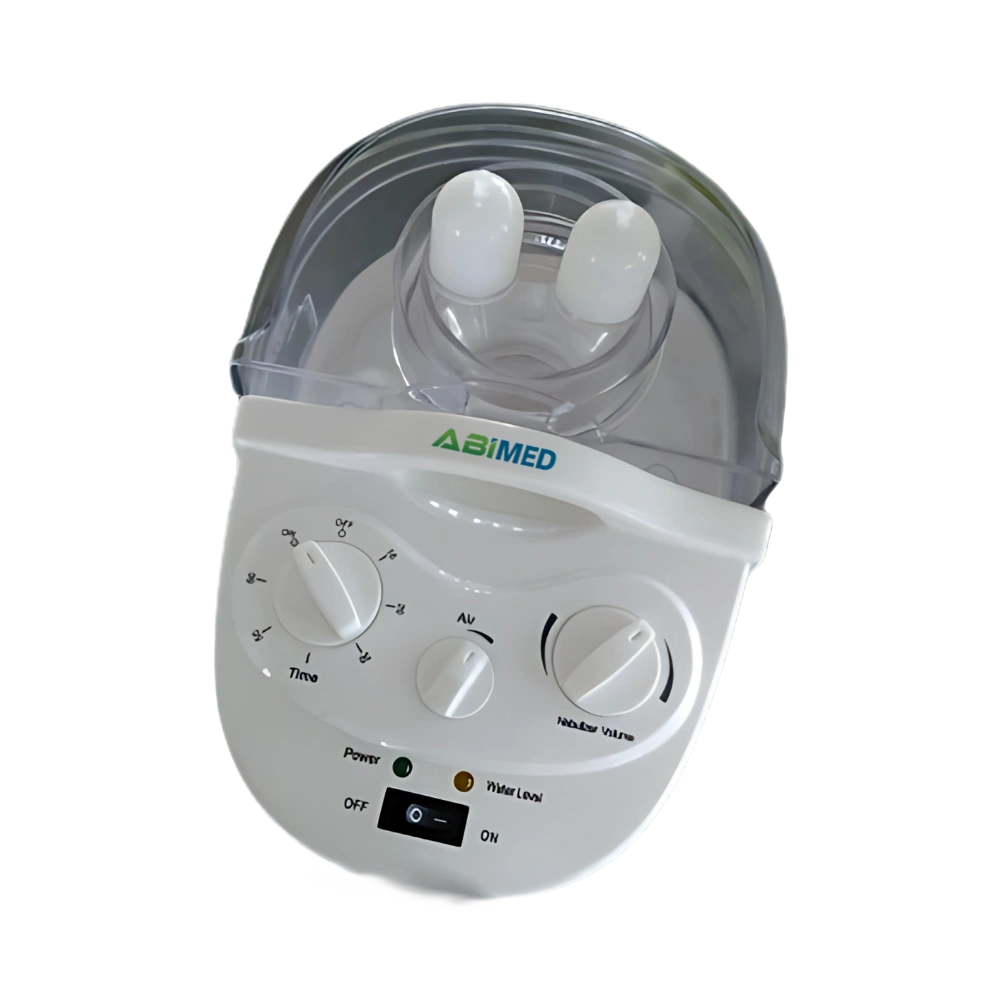

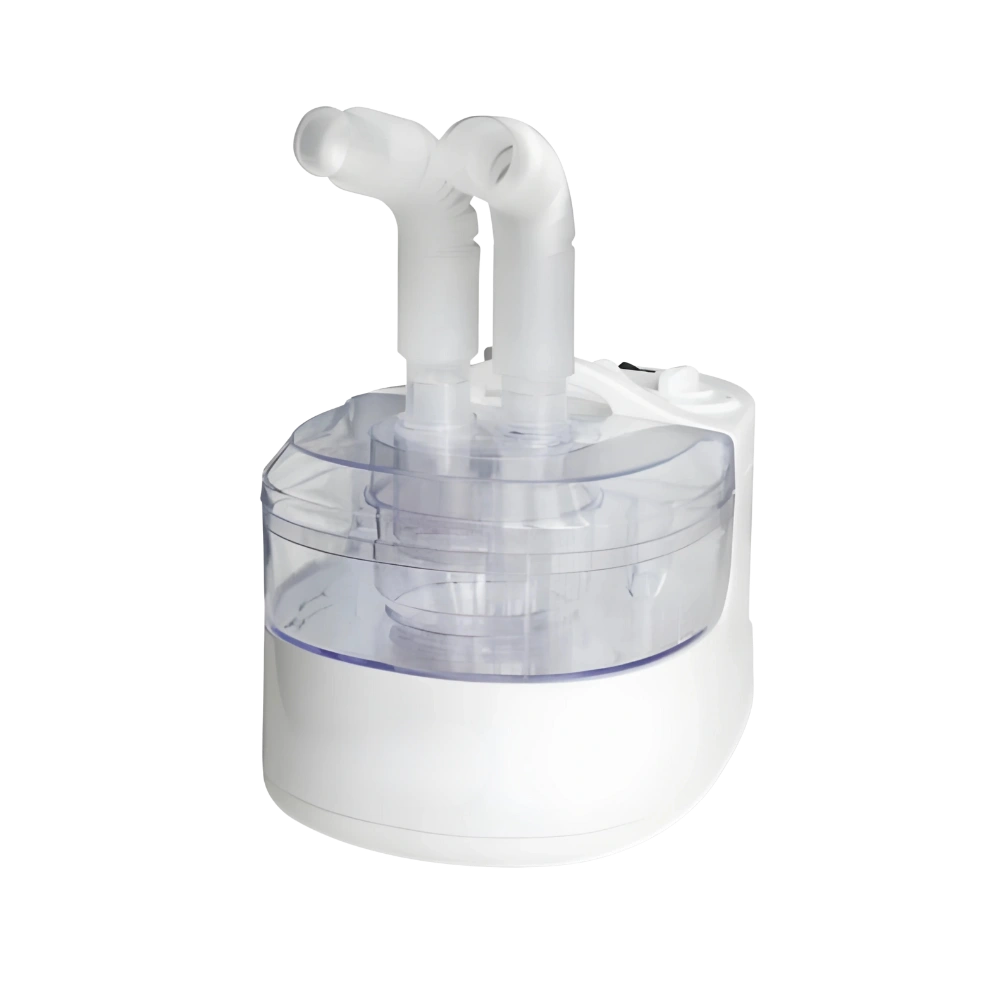

Ultrasonic Nebulizer AM-UNA20 operates at 1.7 MHz frequency to generate fine mist for effective respiratory therapy. It delivers a nebulization rate of over 3 ml / min for fast and reliable medication delivery. Built with a large-capacity chamber for extended continuous operation without interruption. Equipped with stepless adjustable timing, it offers flexibility for different treatment needs. Our Ultrasonic Nebulizer is applied in hospitals, clinics, nursing homes, and home care for asthma, COPD, and other respiratory conditions.
Operating Frequency | 1.70 MHz ± 10% |
Maximum Nebulization Rate | ≥ 3 ml/min |
Timing Range | 0 to 60 min Stepless Adjustable |
Continuous Working Hours | ≥ 4 H |
Water Capacity of Sink | ≥ 300 ml (Visual Inspection) |
Max Loading (Small Cup) | 150 ml |
Max Loading (Big Cup) | 350 ml |
Normal Working Condition | Temp 5 to 40 °C; RH ≤ 80 %; Pressure 86 to 106 kPa |
Supply Voltage | AC220V ± 22V / 110V ± 11V, 50/60Hz ± 1Hz |
Input Power | 45 VA |
Dimensions | 247 × 140 × 201 mm |
Packing Dimensions | 460× 330 × 460 mm |
Net Weight | 3 kg |
Gross Weight | 3.5 kg |
