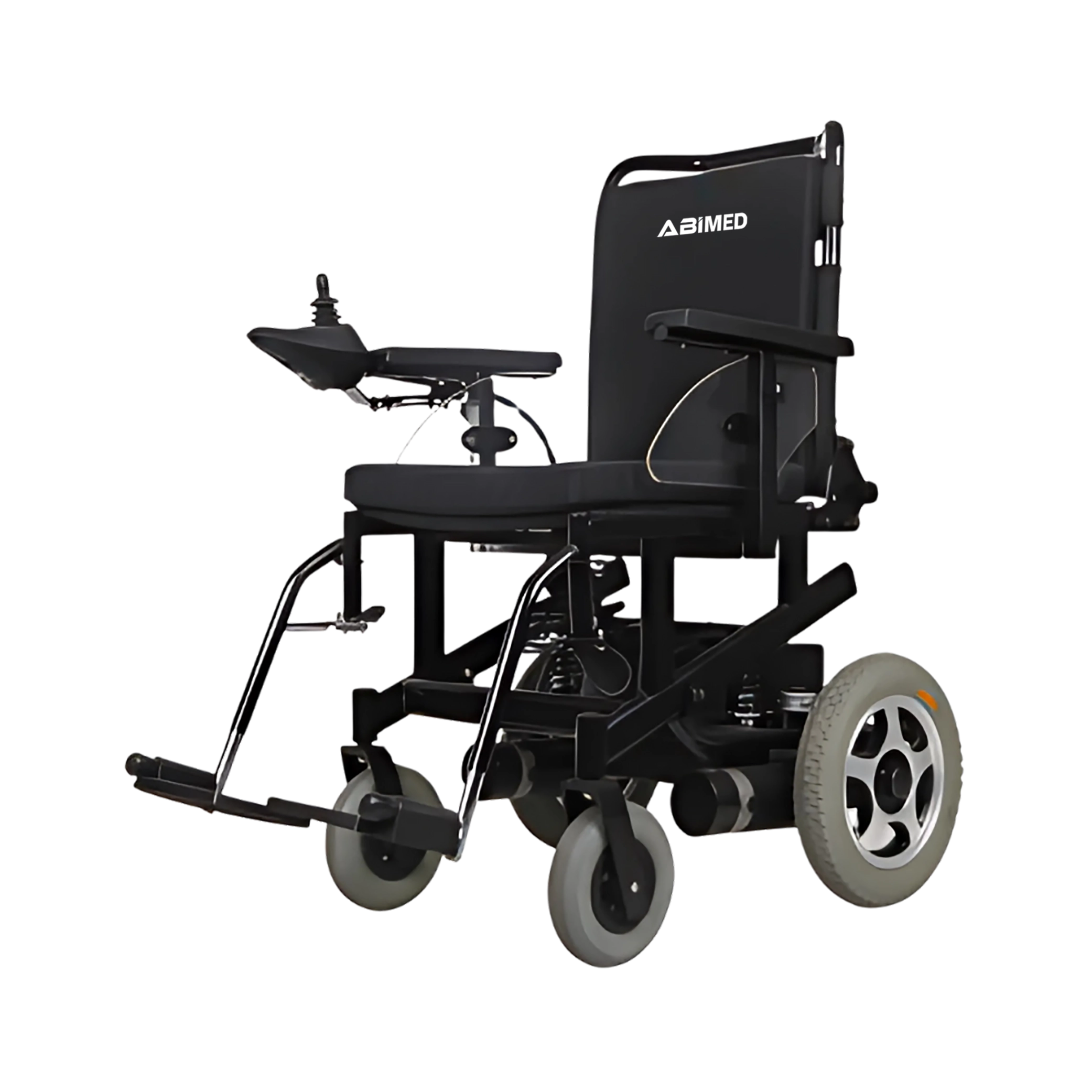

Electric Wheelchair AM-EWA11

Electric Wheelchair AM-EWA11

Electric wheelchair AM-EWA11 with joystick controller provides effortless independent movement and travelling to the end user. Upholstery seats provide comfort and easy maintenance. Light weight and folding nature makes it easy to carry.

Seat Length 410 mm
Seat Width 460 mm
Seat Thickness 15 mm (foldable)
Back Rest 470 × 420 × 15 mm
Front wheel 10” PU solid
Rare wheel (wheelbase size 560mm) 16” rubber pneumatic
Anti-tip wheel size 2" × 1" PU mm
Motor 24V / 250W × 2 brush
Battery 24V 12Ah / 20Ah lead-acid
Charger AC 100 - 240V 50/60Hz
Output: 24V 2A
Charging Time 6 - 8 hours
Forward Speed 0 - 6 km/h
Reverse Speed 0 - 6 km/h
Turning Radius 600 mm
Climbing Ability ≤ 12 °
Controllers Current ≤ 40A
Over all size 1150 × 650 × 960 mm
Folded size 780 × 370 × 750 mm
Loading Capacity 120 kg
Net Weight (with battery) 50 kg
Packing Size 860 x 430 x 770 mm
  • Lightweight Aluminum alloy frame
    Adjustable headrest and armrest
    Lithium battery
    Joystick controller
    Soft back cushion
    Rear wheel lock
    Seat belt for safety
  • It is widely used in hospitals, and home care by physically disabled patients and elderly people for easy long distance travelling.
