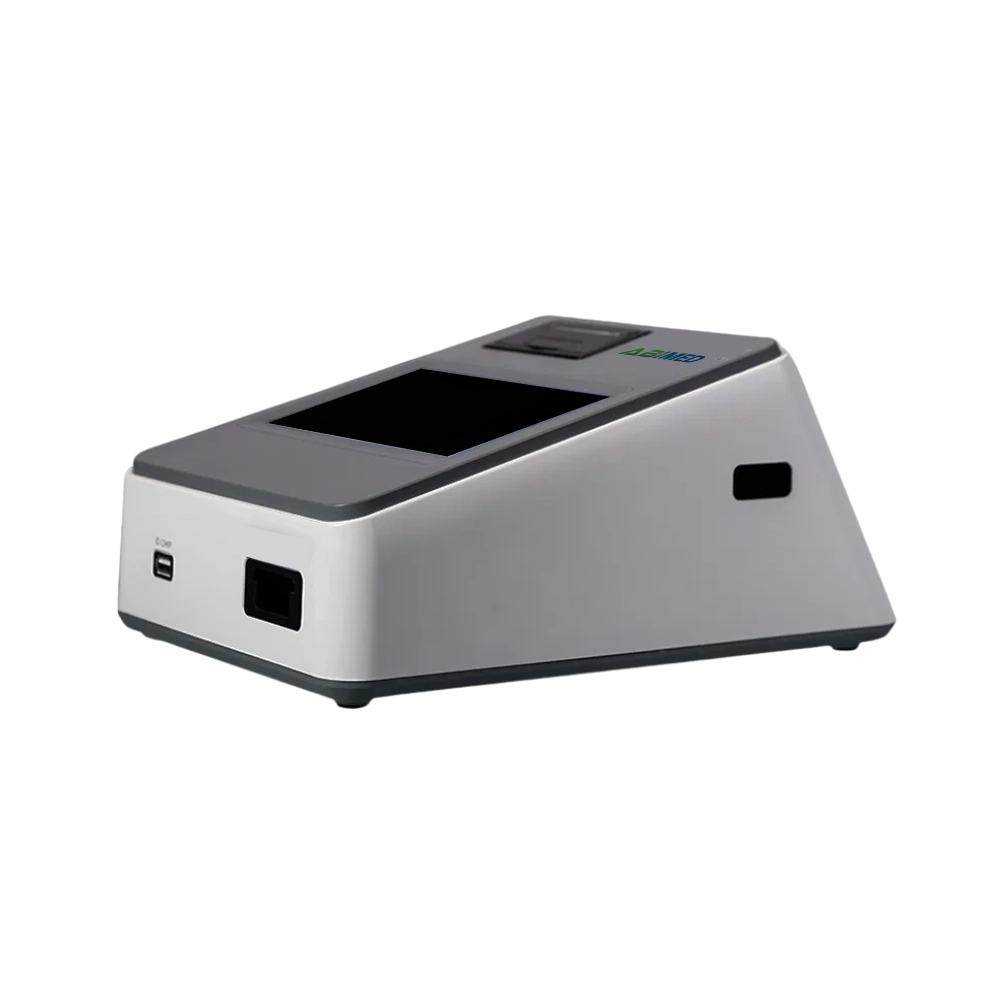

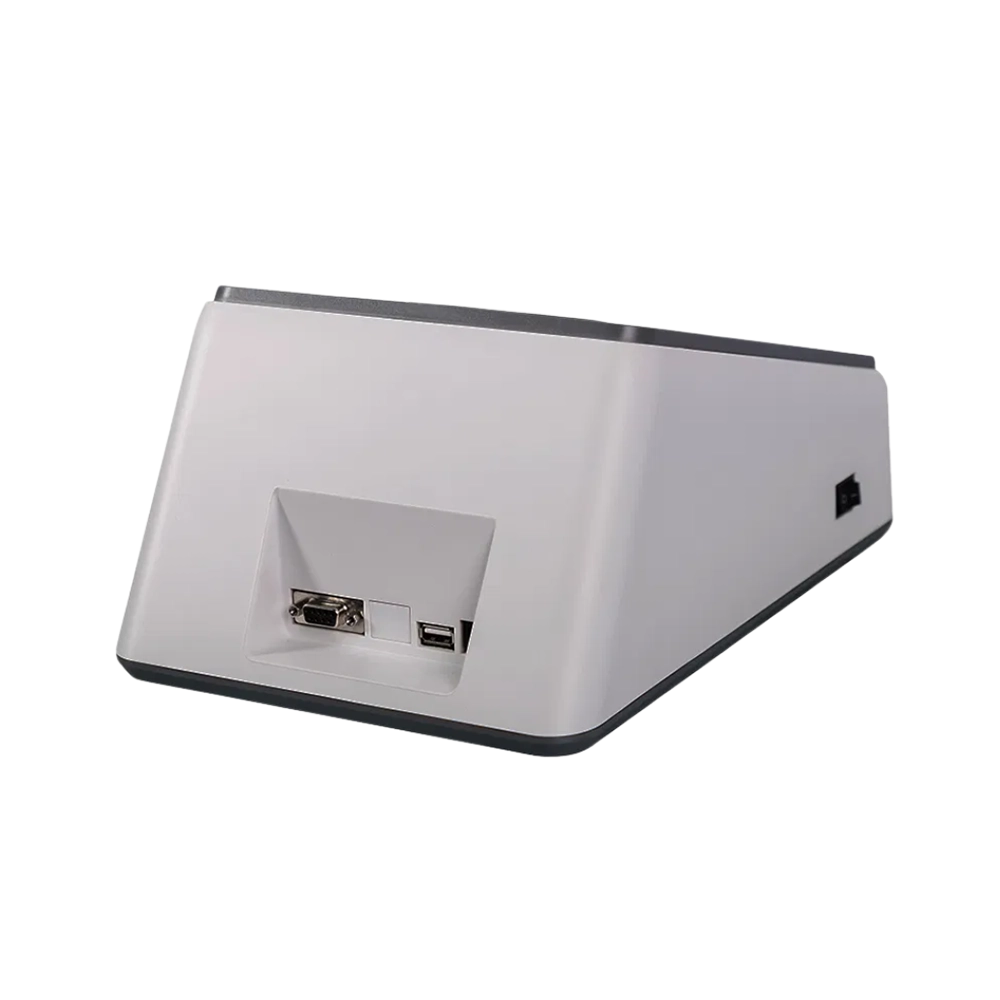

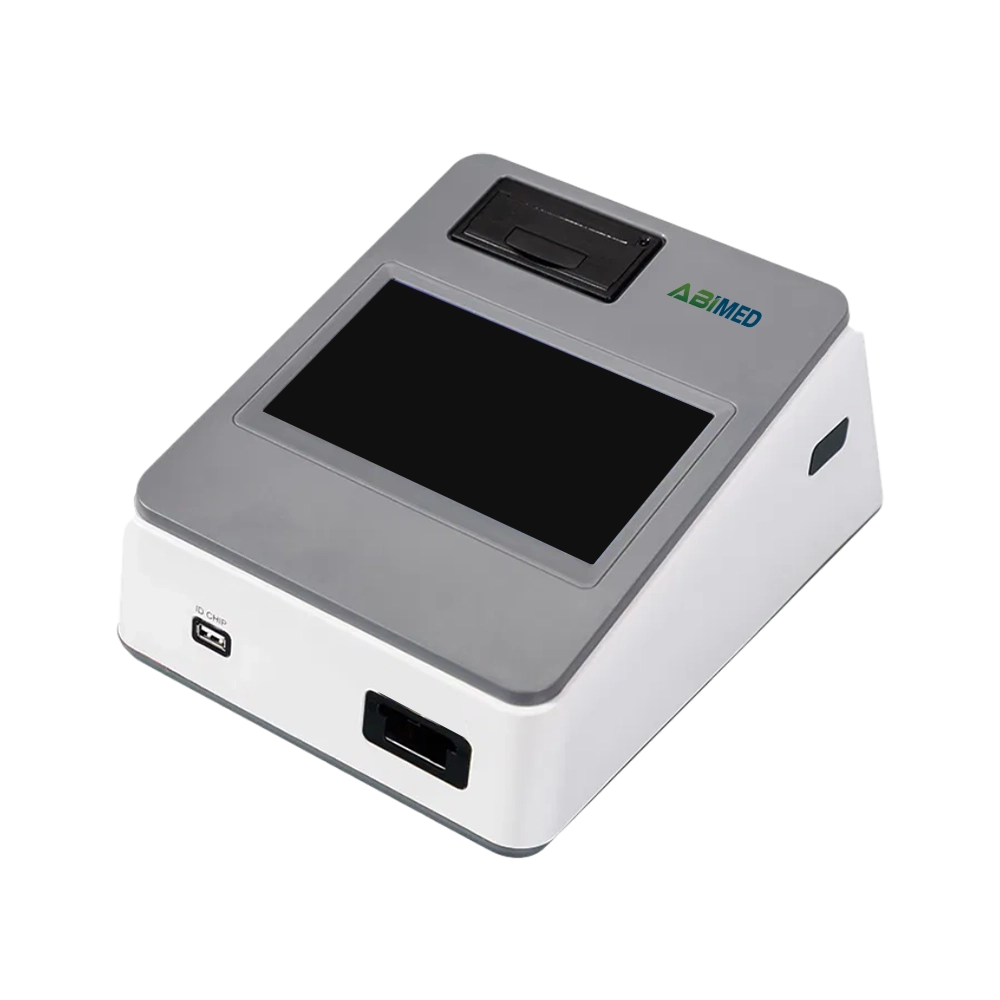

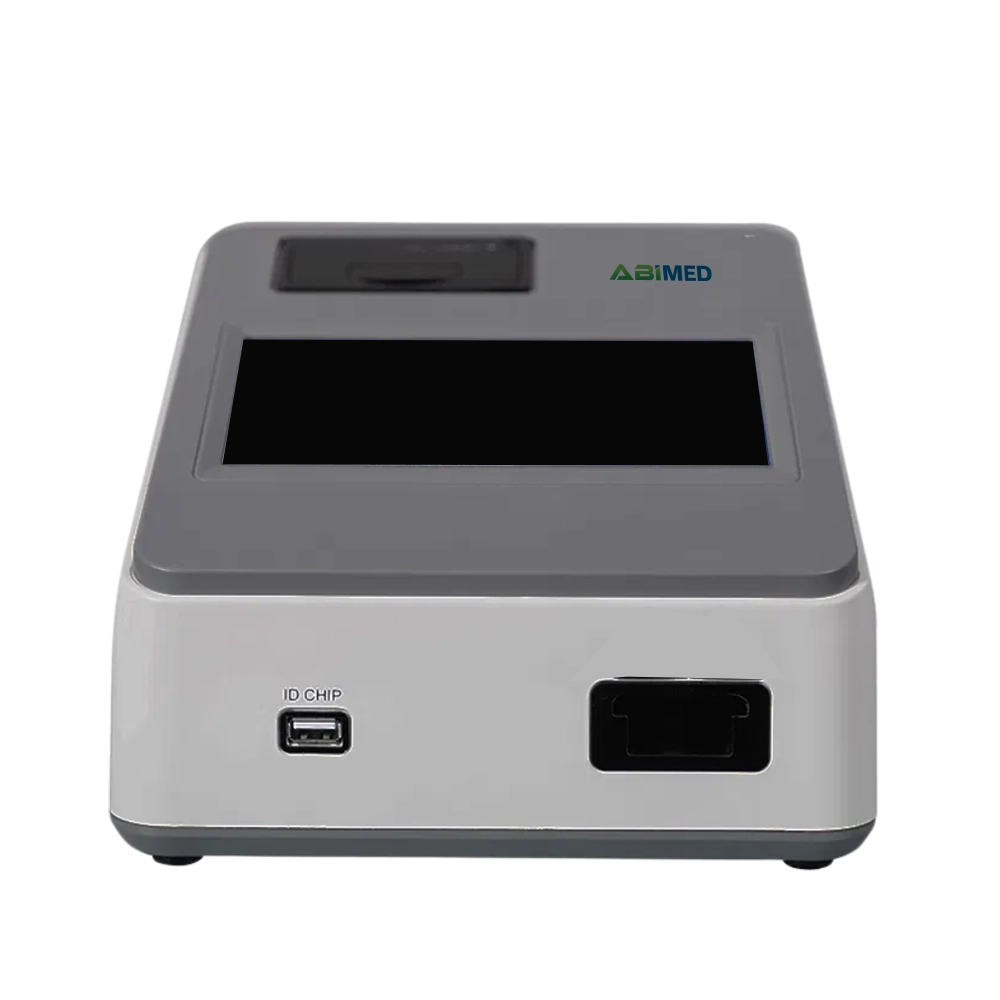

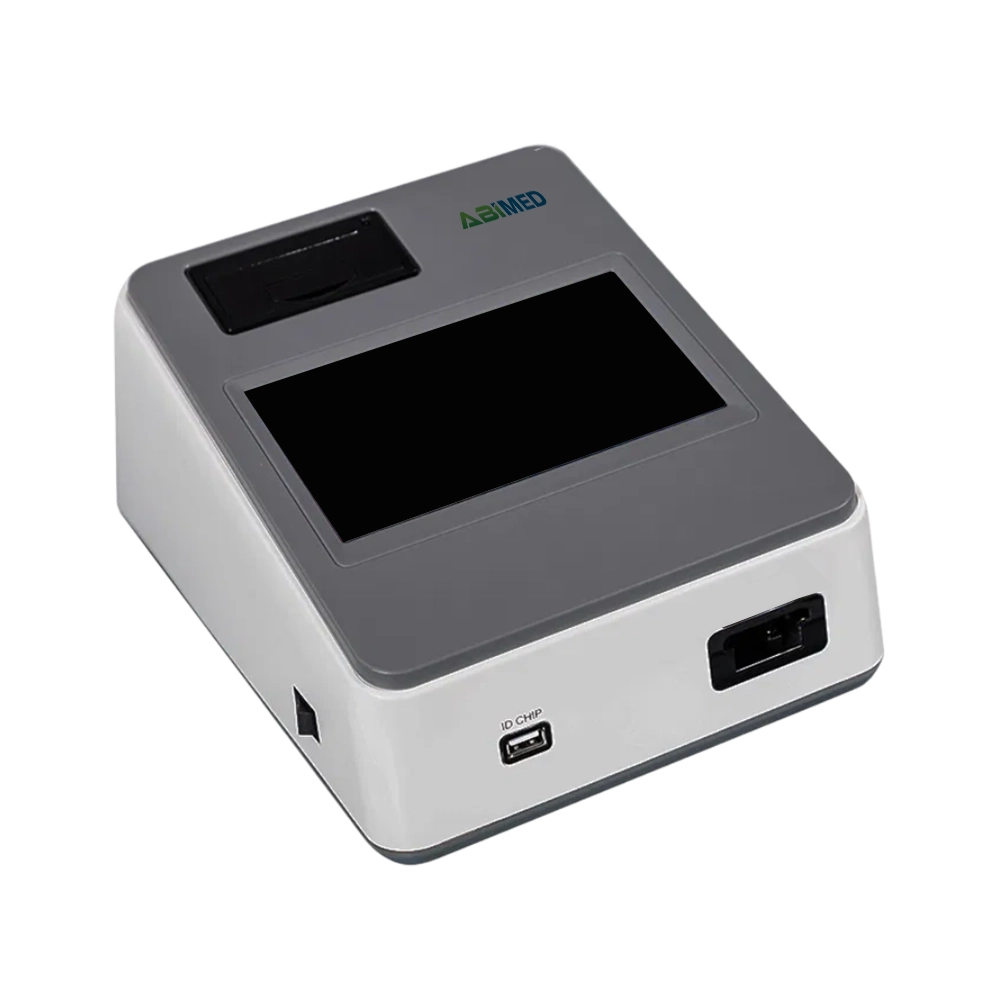

Fluorescence Immunoassay Analyzer AM-FIA10 is a compact diagnostic device with a 7-inch to 10-inch touchscreen display. It processes whole blood, serum, plasma, and urine samples of 10 to 100 µL, depending on the test. It is equipped with multiple connectivity options, including USB, Bluetooth, Wi-Fi, and LIS/HIS. With an adaptable power supply, this advanced analyzer is an essential tool for laboratories and healthcare facilities requiring accurate diagnostic testing.
| Storage Capacity | 10,000 Test Results |
| User Interface | Large 7-inch to 10-inch Touchscreen LCD Display |
| Sample Volume | 10 to 100 µL (depends on test) |
| Sample Type | Whole Blood, Serum, Plasma, Urine |
| Testing Time | 3 to 15 minutes (depends on test) |
| Test Items |
Cardiac Markers Tumor Markers Thyroid Hormones Inflammatory Markers Diabetes Renal Function Infectious Diseases Fertility Hormones Gastrointestinal Diseases Autoimmune Conditions |
| Measuring Mode | Single Test and Batch Mode |
| Measuring Unit | ng/mL, pg/mL, IU/mL, % (HbA1c), nmol/L |
| Connectivity | USB, Bluetooth, Wi-Fi, LIS/HIS |
| Operation Mode | Standalone or Connected to External Systems |
| Operating Temperature | 10°C to 40°C |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Power Supply | AC 100 to 240V, 50/60Hz or DC |
| Dimensions (L × W × H) | 300 × 250 × 200 mm |
| Weight | 2 to 5 kg |
| Accessories Name | Quantity |
| Wire assembly | 1pc |
| The power adapter | 1pc |
| Printing paper | 1pc |
