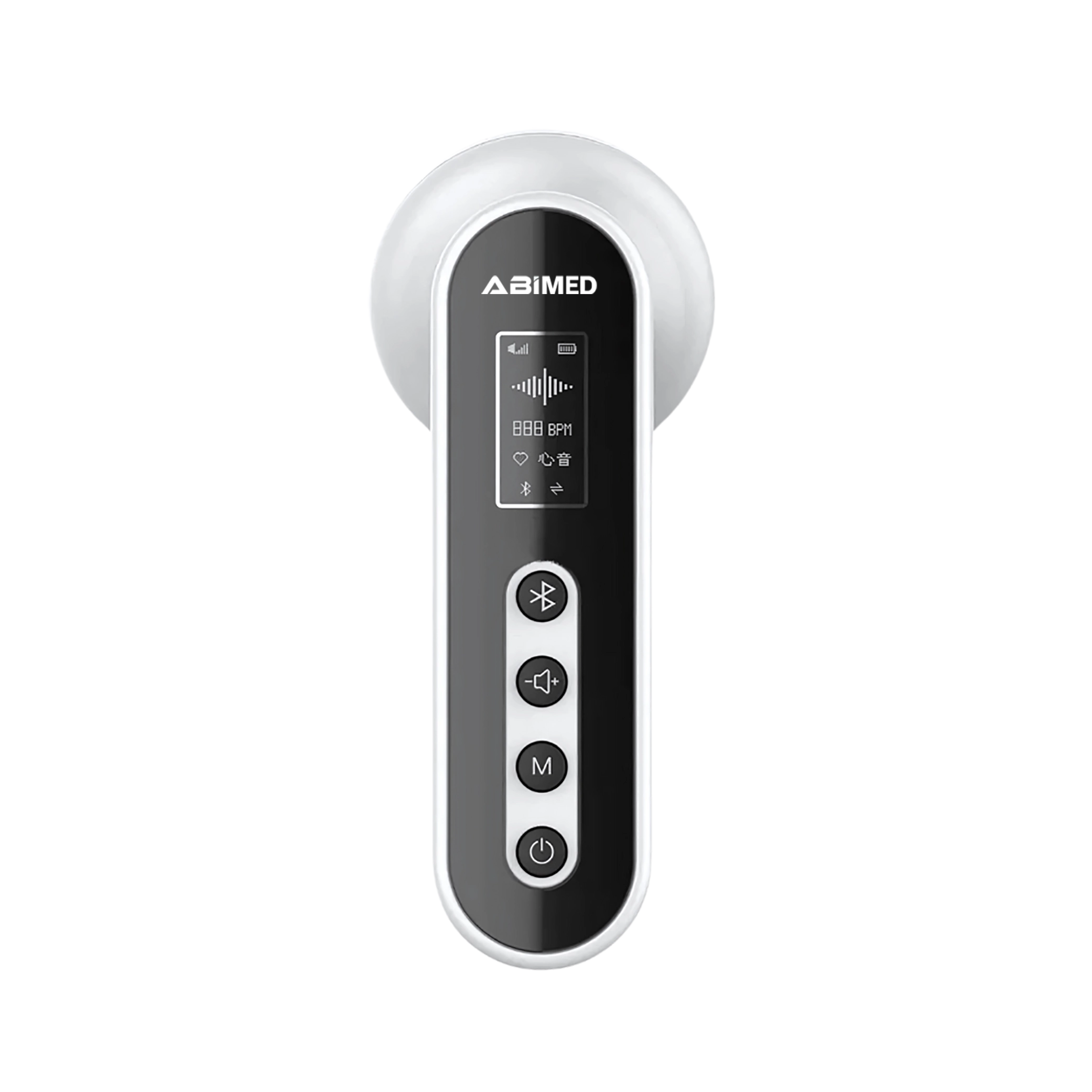

Electronic Stethoscope AM-ETA10

Electronic Stethoscope AM-ETA10 is a multi-functional visual stethoscope with a colour LCD. The latest piezoelectric sensor technology helps to monitor internal sounds detects real-time ECG waveform with accuracy. It enables the measurement of pulse rate and oxygen saturation level by integrating the SpO2 probe.

Catalog
Electronic Stethoscope AM-ETA10

Specifications

Display 2.4” colour LCD
Measuring range Heart rate: 30 bpm ~ 300 bpm
SpO2: 0 ~ 100 %, (resolution is 1%)
Pulse rate: 30 bpm ~ 250 bpm
Accuracy Heart rate: ± 2 bpm or ± 2 %
SP02: 70 % ~ 100 %; ± 2 %, below 70 % unspecified
Pulse rate: ± 2 bpm or ± 2 % (select larger value)
Electronic Sensor Modes Heart (20 Hz ~ 230 Hz)
Lung (100 Hz ~ 800 Hz)
Both (20 Hz ~ 800 Hz)
Power consumption ≤ 120 mA
Voltage DC 3.6 ~ 4.2 V
Power Supply 3.7 V Lithium Battery
Dimension 110 x 60 x 14 mm
Net weight 100 g
Standard Accessories Earphones
Power adapter
Data lines
Oximeter probe (optional, BF applied part)
CD (PC software)

Features

Applications

Such stethoscopes are used in hospitals and clinical setups to acquire accuracy in the sounds of the heart beat before or after a surgery.
