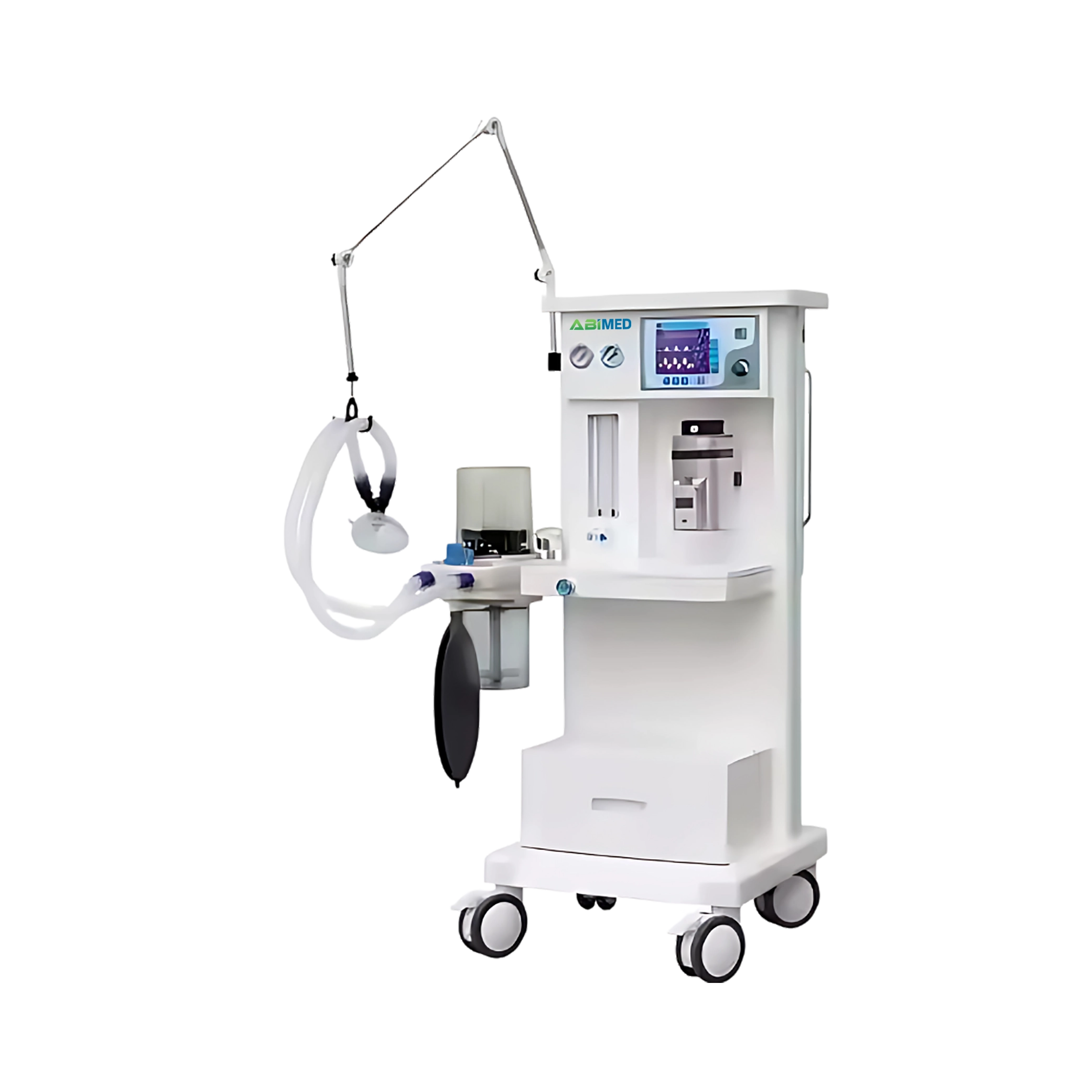

Anesthesia Machine with Ventilator AM-AM35 featuring a touch screen ventilator with advanced ventilation parameters. High definition four tube flow-meter designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration. Main body is made up of high strength plastic and resistance towards chemical adhesives. Provided with latest refinements in ergonomics and systems integration with an advanced and easy to use anesthesia platform. Vaporizer is designed with a stable concentration output. Indication of Alarm sound when the oxygen pressure is <0.2MPa.
Catalog
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
|---|---|
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
| Flow rate of rapid oxygen supply | 25 to 75L/min |
| Low oxygen pressure alarm | There will be sound alarm when the oxygen pressure < 0.2MPa |
| Vaporizer | It has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0 to 5 vol%. Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available |
| Respiratory circuit | working mode: all-close, semi-close, semi-open releasing pressure: 0.5 to 7 Kpa |
| Respiratory bellows | bellows for adults, bellows for children tidal volume range:0 to 1,500 ml |
It is widely used in intensive care units, operation room, anesthesiology department and other departments
Anesthesia Machines are designed to ensure patient safety, efficiency, and reliability in every procedure. Engineered with precision, this cutting-edge device seamlessly integrates advanced technology for optimal anesthetic delivery. They offer Real-time analytics and alarms, minimizing risks and enhancing patient outcomes. Our compact device offers patient care and operational excellence with its smart performance, intuitive interface, comprehensive tracking, and durability.
| Gas source | O2: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min; 1.1 to 10L/min |
| Flow rate of rapid oxygen supply | 25 to 75L/min |
| Ventilation Modes | IPPV<br> V-A/C<br> P-A/C<br> V-SIMV<br> P-SIMV<br> PCV-PC<br> PCV-V<br> PSV<br> SIGH<br> MANUAL |
| Tidal Volume (Vt) | 0, 20 mL to 1500 mL |
| Flowmeter | O₂ (0.1 to 10 L/min)<br> N₂O (0.1 to 10 L/min)<br> AIR (0.1 to 10 L/min) |
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min N2O: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
| Gas source | O2: 0.27 to 0.55MPa; N2O: 0.27 to 0.55MPa |
| Flow meter | O2: 0.1 to 1.0L/min, 1.1 to 10L/min N2O: 0.1 to 1.0L/min, 1.1 to 10L/min |
| O2, N2O linkage and N2O Stopper | When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off |
