SpO₂ Measurement Range : 0 to 100%
SpO₂ Measurement Accuracy : ±3% (70% to 100%)

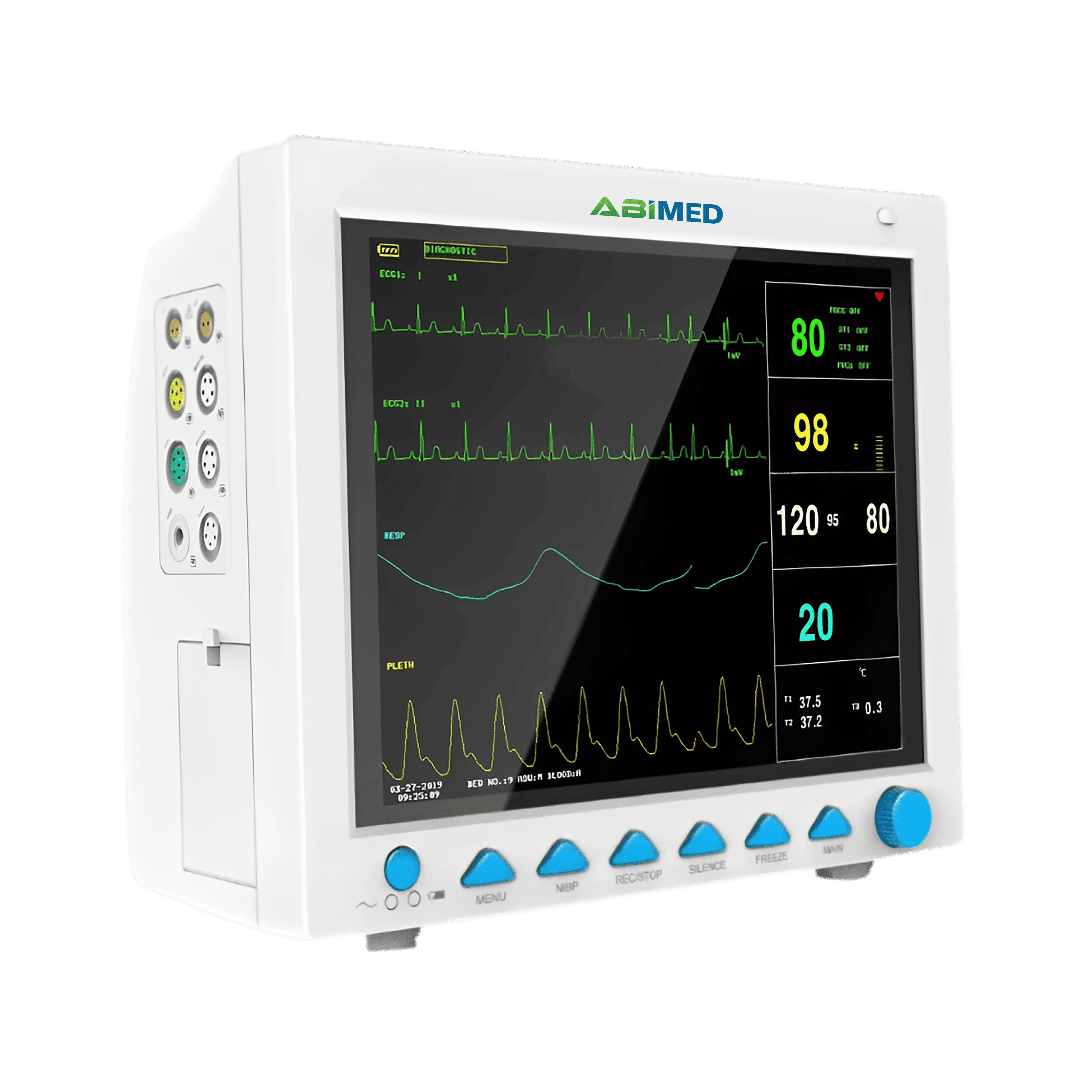

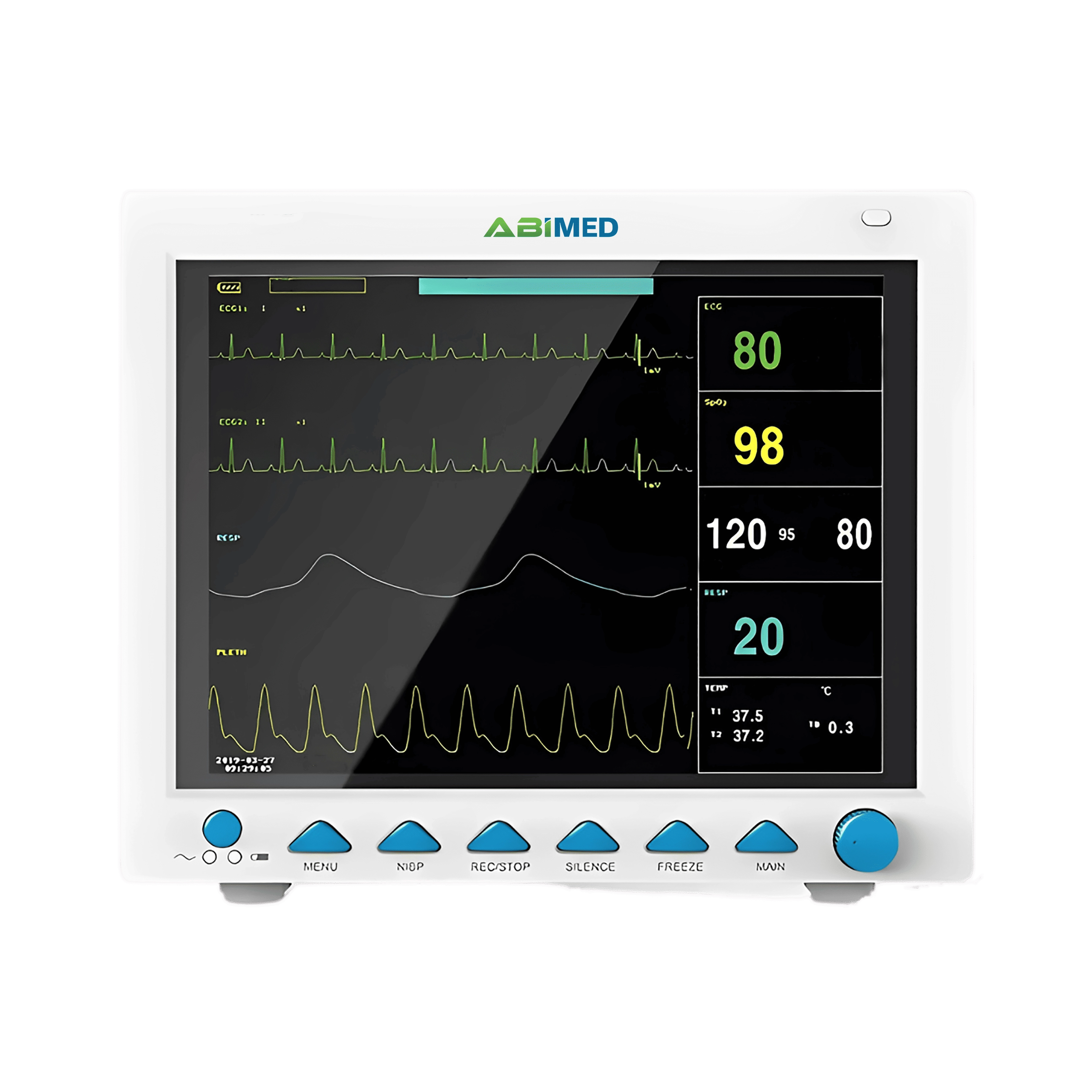

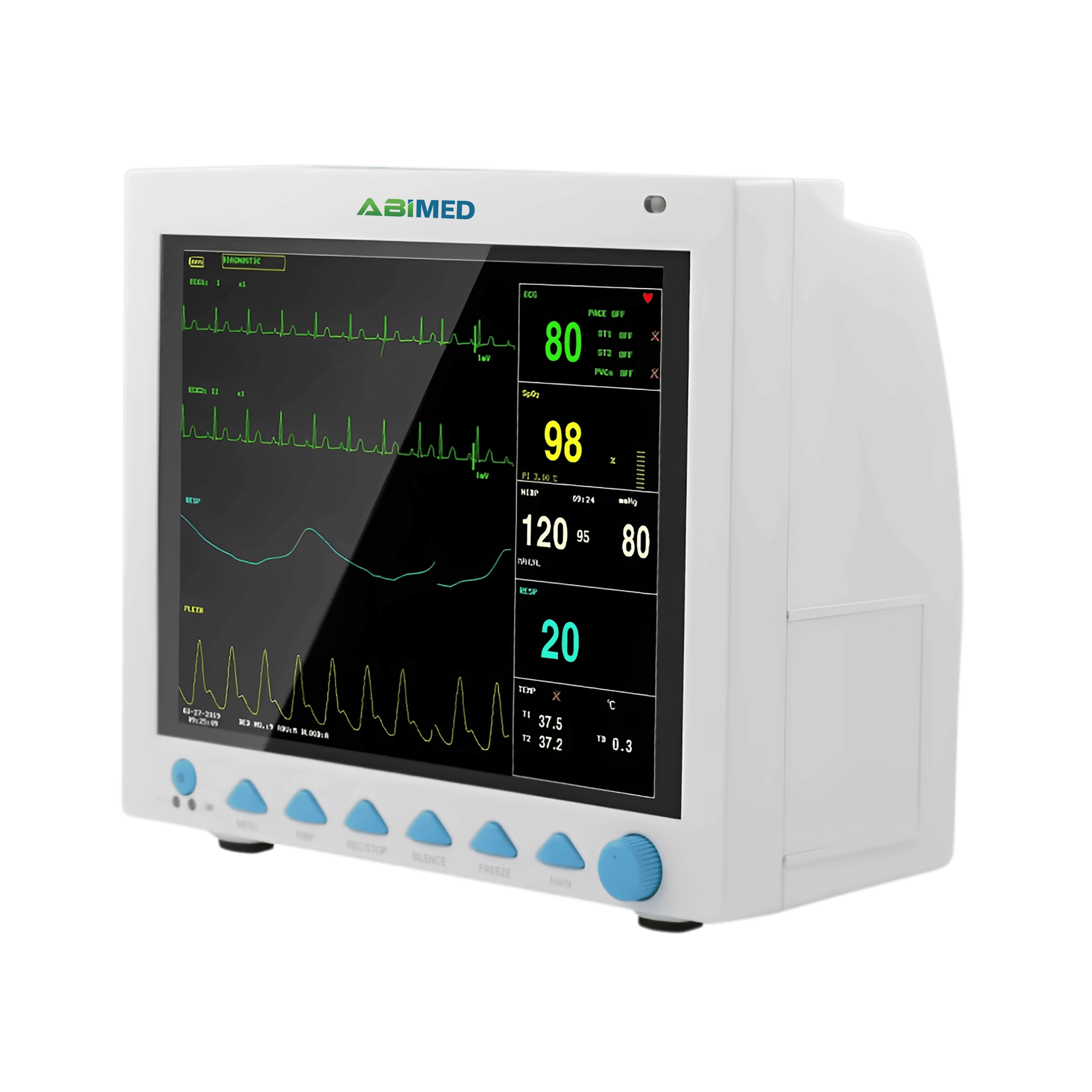

Veterinary Monitor AM-VM-A12 adapt seamlessly to various environments with durability and reliability for medical professionals. The TFT 10.1-inch IPS capacitive touchscreen with a resolution of 1280 x 800 ensures clear data visualization. Its Bluetooth 4.0/2.0, USB, HDMI and Wi-Fi facilitate versatile connectivity. It is equipped with advanced functionality that supports comprehensive health management. It is powered by an 8-core 2.0G CPU and offering 8GB of internal memory. A built-in rechargeable lithium battery provides up to 6 hours of continuous operation, ensuring low power consumption. It operates in a wide temperature range and supports comprehensive health monitoring.
| SpO₂ Measurement Range | 70% to 100% |
| SpO₂ Measurement Accuracy | 70% to 100% ±2%; 0% to 69% (no definition) |
| Pulse Rate Measurement Range | 30bpm to 250bpm |
| Pulse Rate Accuracy | ±2 bpm or ±2% (the larger one) |
| Pulse Rate Resolution: | 1bpm |
| ECG Standard lead | 12 lead ECG ：I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 |
| ECG Sampling rate | 5ooHz/s |
| ECG Amplitude quantization | 5μV/LSB |
| Heart Rate Range | 30bpm to 300bpm |
| Heart Rate Accuracy | 30bpm to100bpm, ≤±2bpm; 101bpm to 300bpm, ±4bpm or ±2% (the larger one) |
| Heart Rate Resolution | 1bpm |
| NIBP Measurement Range | 0mmHg to 280mmHg |
| NIBP Accuracy | ±3mmHg |
| NIBP Resolution | 1mmHg |
| Temperature Measurement Range | 25℃ to 45℃ |
| Temperature Accuracy | ≤ ± 0.1℃ |
| Temperature Resolution | 0.1℃ |
| Display Type | TFT10.1 inch |
| Screen Resolution | 1280 × 800 |
| Power Battery | DC 7.4V，one rechargeable lithium battery |
| Power Adapter | MENB1030A0900F02; Output: 9V DC, 3A |
| Operating Environment Temperature | 5℃ to 40℃ |
| Operating Environment Humidity | ≤95% (no condensation) |
| Storage Environment Temperature | -20℃ to +55℃ |
| Storage Environment Humidity | ≤93% (no condensation) |
Connect with Our Specialists
Abimed Veterinary Monitor are vital devices used to track and analyse physiological parameters in animals during treatments. They feature 7 to 12 inches high-resolution TFT LCD screens for clear waveform and numerical data visualization. These monitors offer multi-parameter tracking, including ECG, heart rate, respiratory rate, SpO2, body temperature, NIBP and ETCO2. Their configurable auditory and visual alarms ensure immediate alerts for any abnormalities. They are lightweight and equipped with anti-shock enclosures, making them ideal for both clinic and mobile use.
