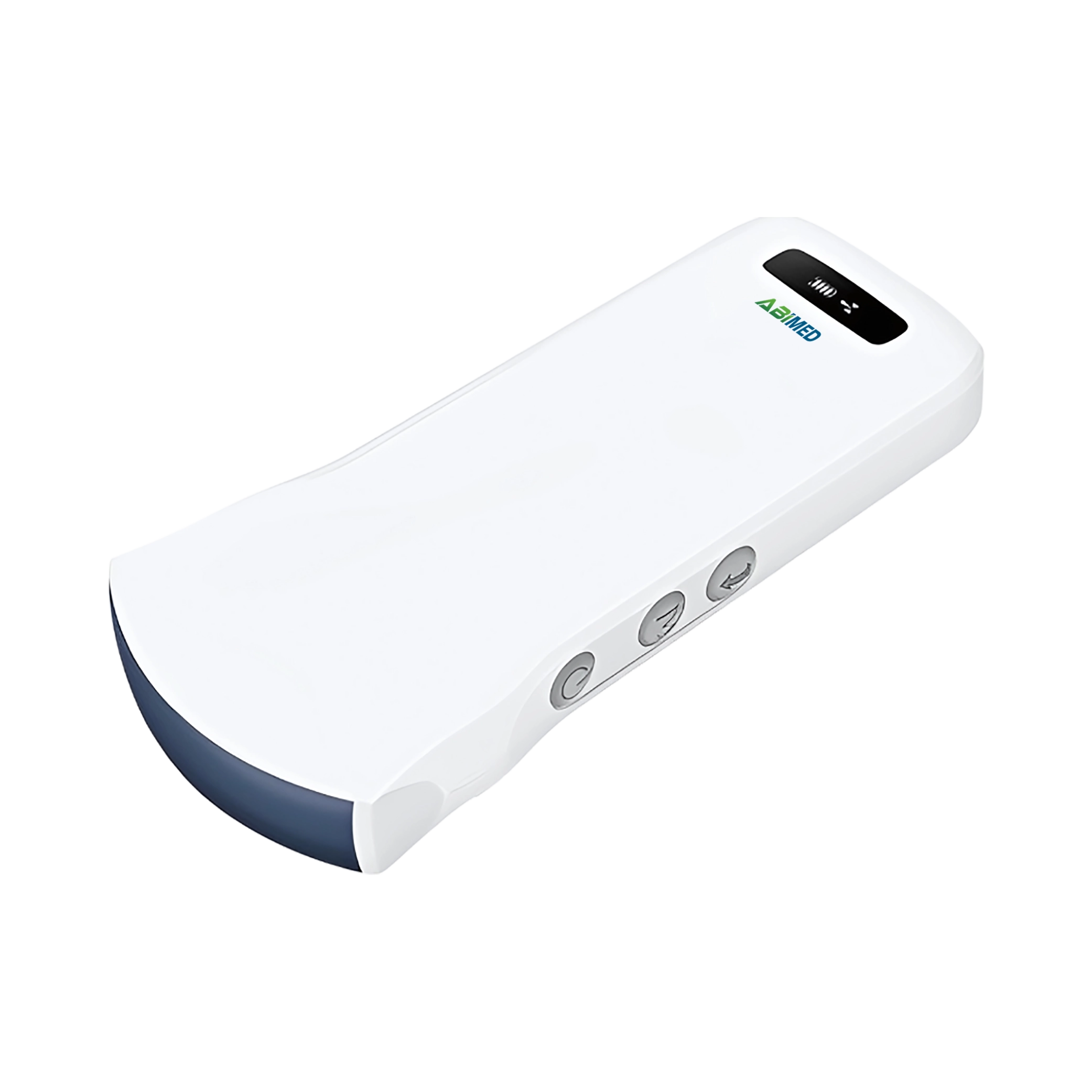

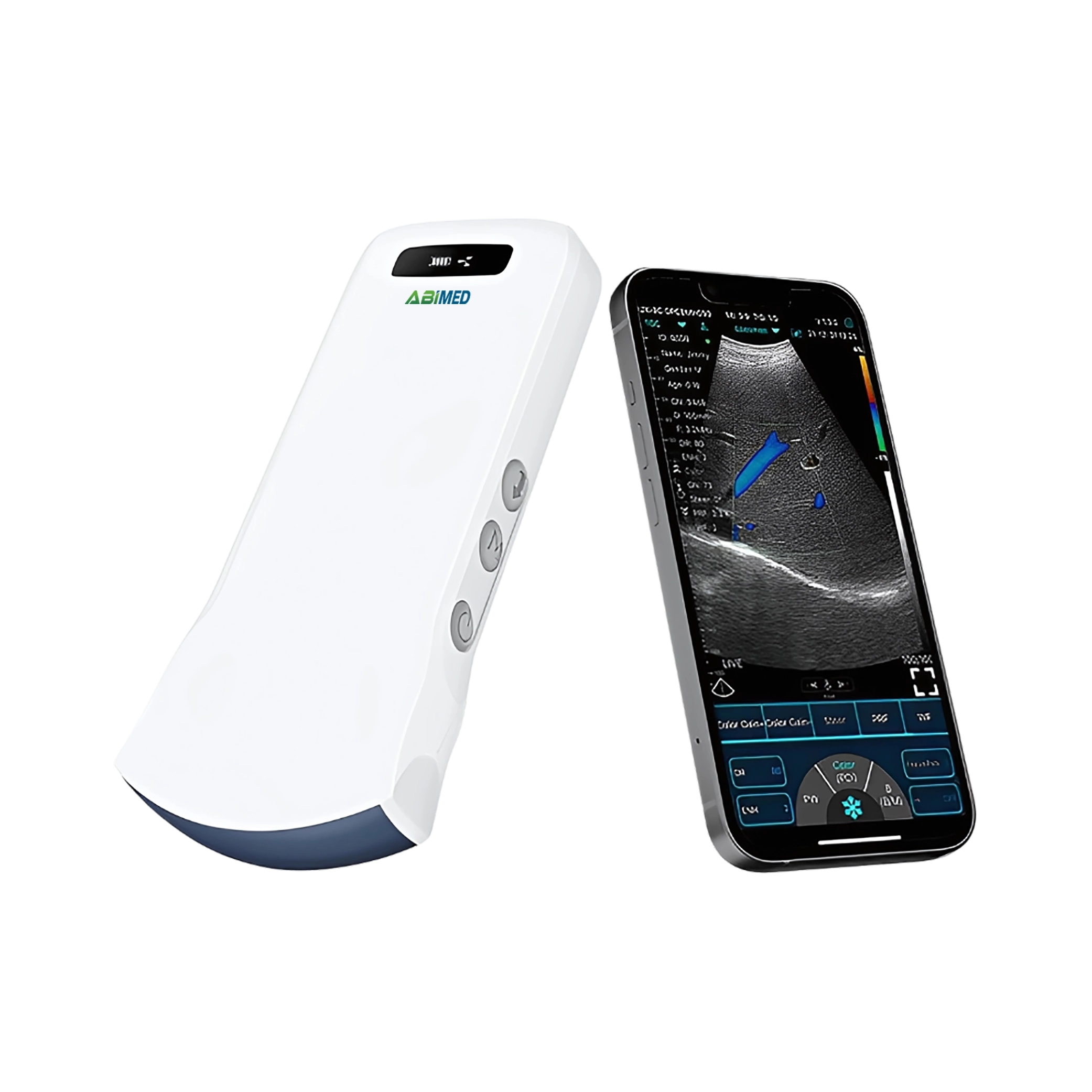

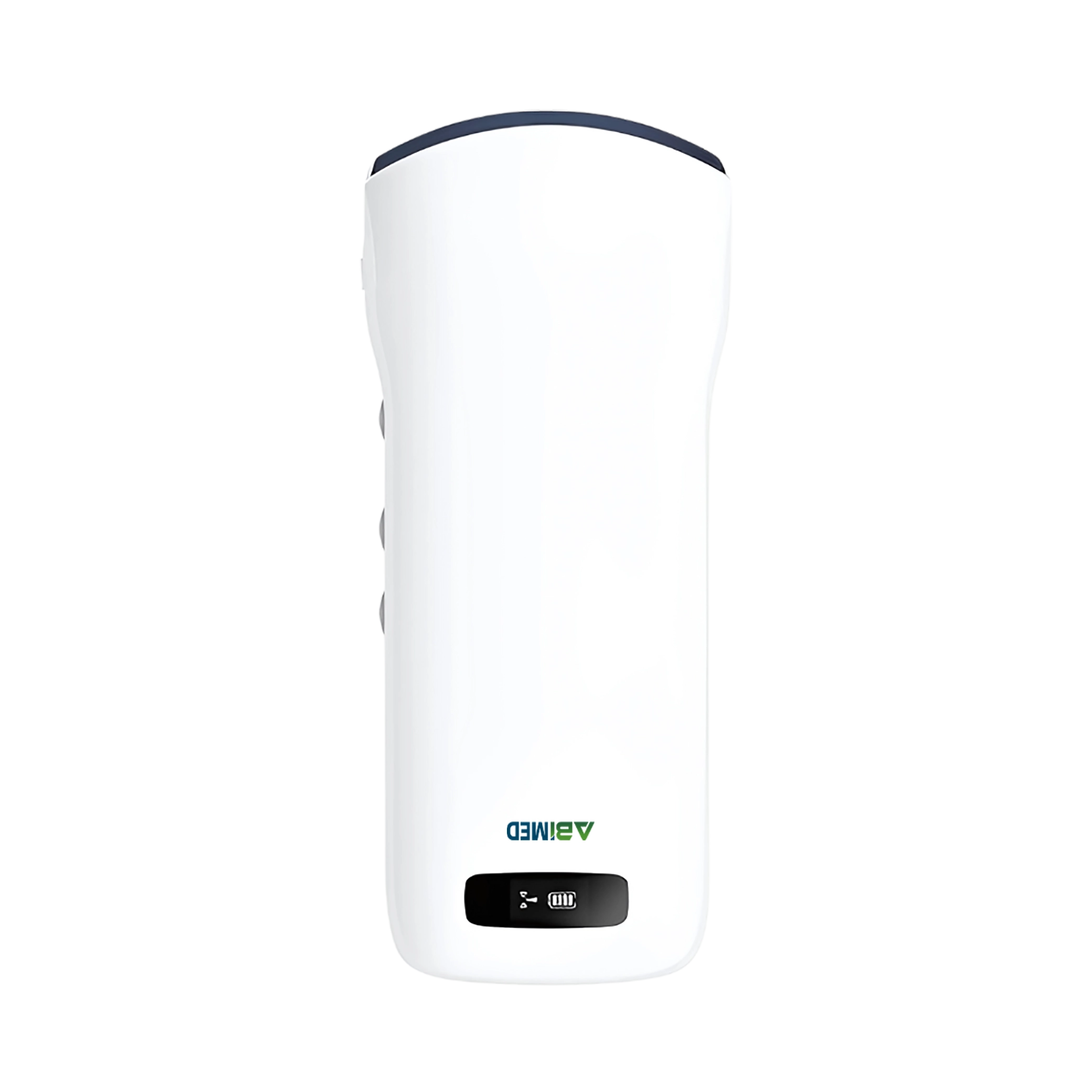

Ultrasound Scanner AM-USB26 features 128 elements and operating at dual frequencies, offering scanning depth with a curved footprint. With a frame rate of 24 frames per second and an adjustable gain range, it ensures clear and precise imaging. This scanner utilizes multiple channels for enhanced image resolution. In addition, it is an ideal choice for medical professionals seeking mobility, and high-quality imaging in clinical and point-of-care settings.
| Probe Type | Wireless Probe |
| Elements | 128 Elements |
| Frequency | 3.5/5.0Mhz |
| Depth | 90 to 200mm |
| Footprint | R60 |
| Frame Rate | 24 Frames Per Second |
| Gain | 40 to 110Db |
| Channel | 64 |
| Battery | By Built-In 4200mAh Battery |
| Battery Life |
3hours (Working time) 12hours (Stand by time) |
| Power Consumption | 4W (Probe Run) /1.5W (Probe Stop) |
| Connections | 802.11.n Wi-Fi (AP) |
| Wi-Fi Type | Built-in Wi-Fi, 802.11g/20MHz/5G/450Mbps/2.4G |
| Software Compatibility | Tablet, Smart phone, PC |
| Dimensions | 158 × 70 × 30mm |
| Weight | 235g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
