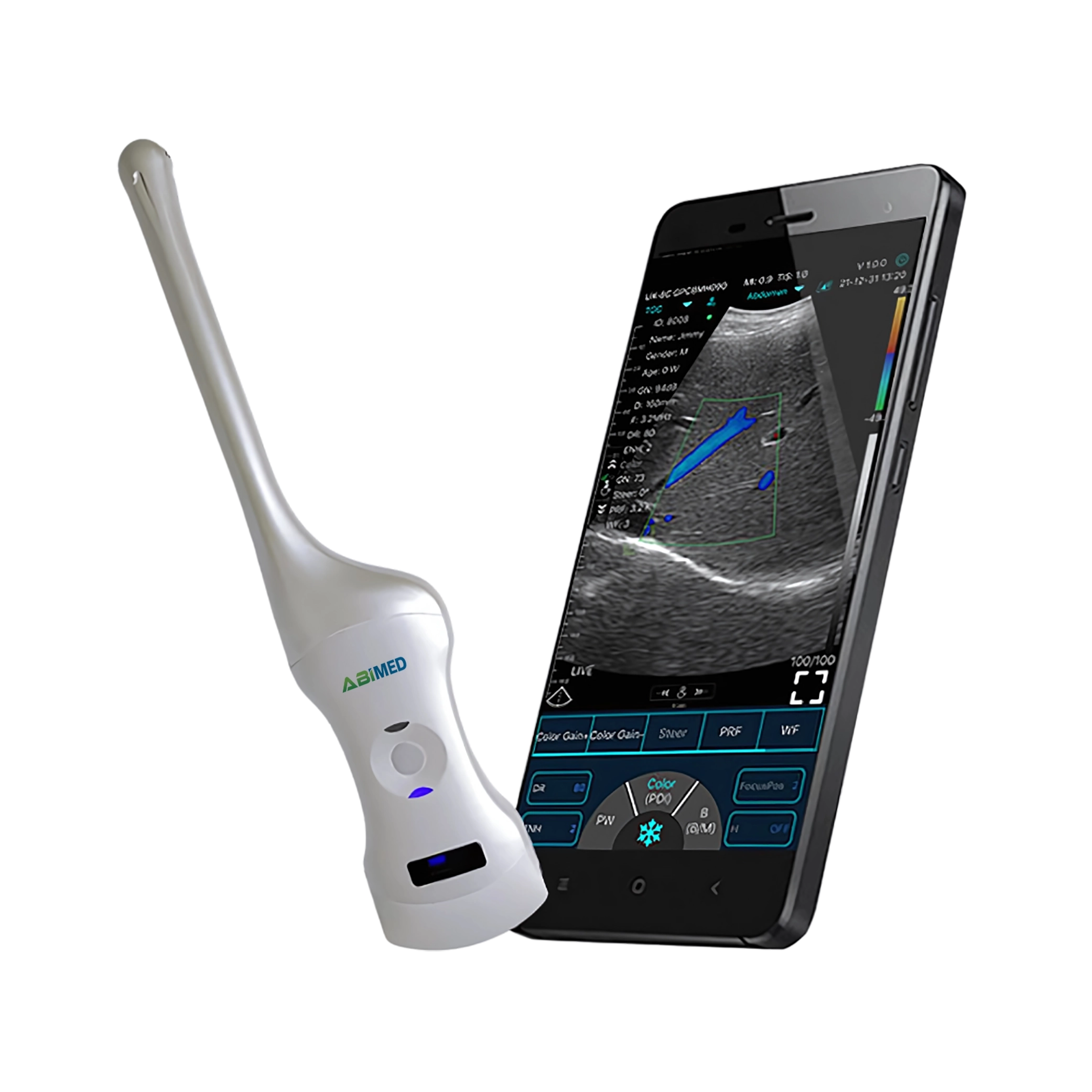

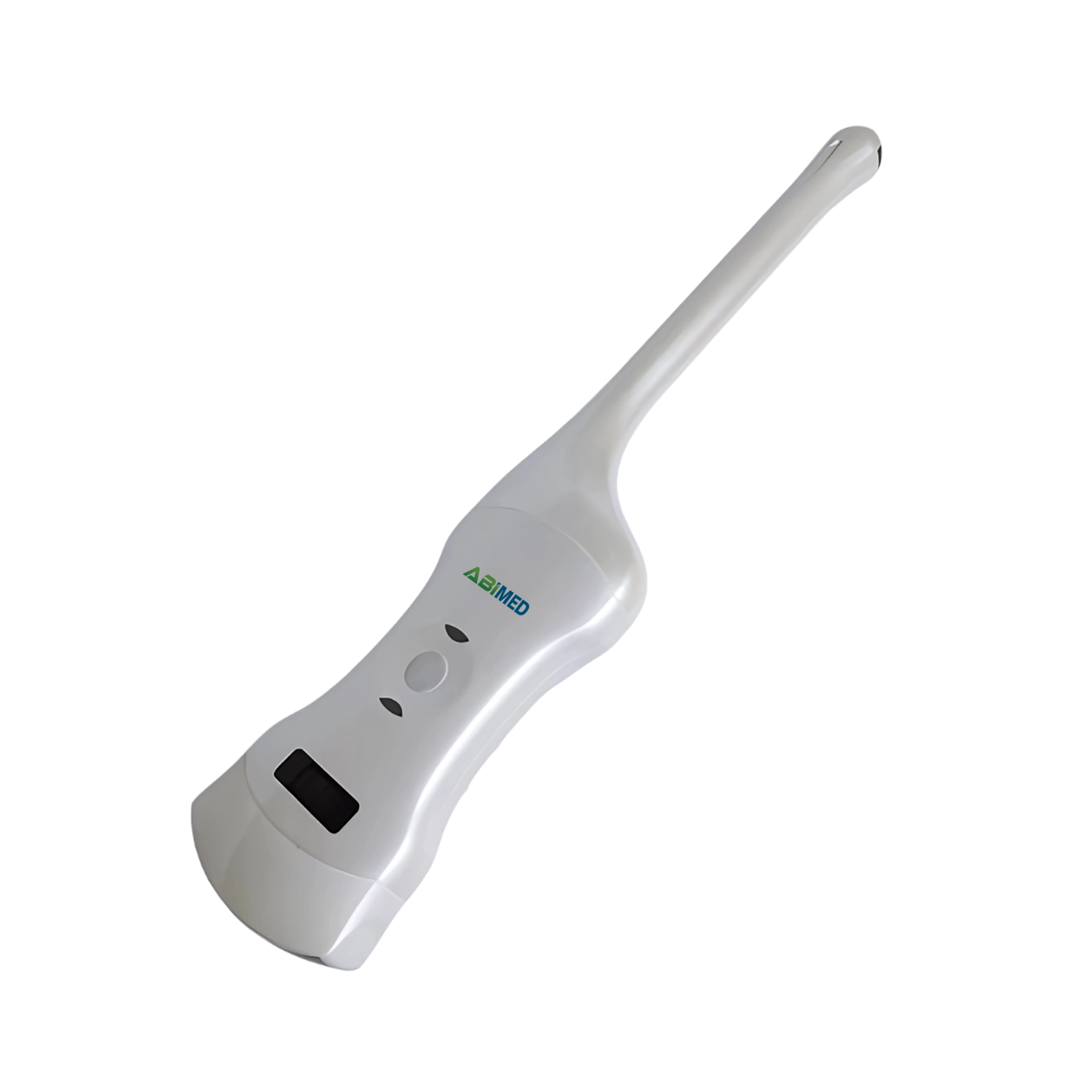

Ultrasound Scanner AM-USA20 features 192 dual elements, offering high-resolution imaging with frequencies of 3.5 to 5MHz and 6.5 to 8MHz for both convex and TV probe applications. With a frame rate of 24 FPS, this scanner ensures clear and detailed imaging. Its channel system enhances signal processing, while its adjustable gain allows for optimal image quality. Its low power consumption makes it an energy-efficient solution for modern medical practices, providing mobility and convenience without compromising performance.
| Probe Type | Wireless Dual-Head Convex + TV Probe |
| Elements | 192 Dual Elements |
| Frequency | 3.5 to 5MHz, 6.5 to 8MHz |
| Depth (Convex) | 90 to 305mm |
| Depth (TV probe) | 40 to 100mm |
| Frame Rate | 24 Frames Per Second |
| Gray Scale | 256 Levels |
| Channel | 64 |
| Gain | 40 to 110 dB |
| Throughput | 150Mbit/s |
| Field of View | 80 degrees |
| Power Consumption | 4W (Probe Run) /1.5W (Probe Idle) |
| Battery | Built-in 2800mAh Lithium Battery |
| Battery Life |
3 to 4 Hours (Working Time) 5+ Hours (Standby Time) |
| Compatible Devices | Tablet, Smartphone, PC |
| Connection | WiFi |
| WiFi Specifications | Built-in WiFi, 802.11g, 20MHz, 2.4G/5G, 450Mbps |
| Weight | 90g |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
