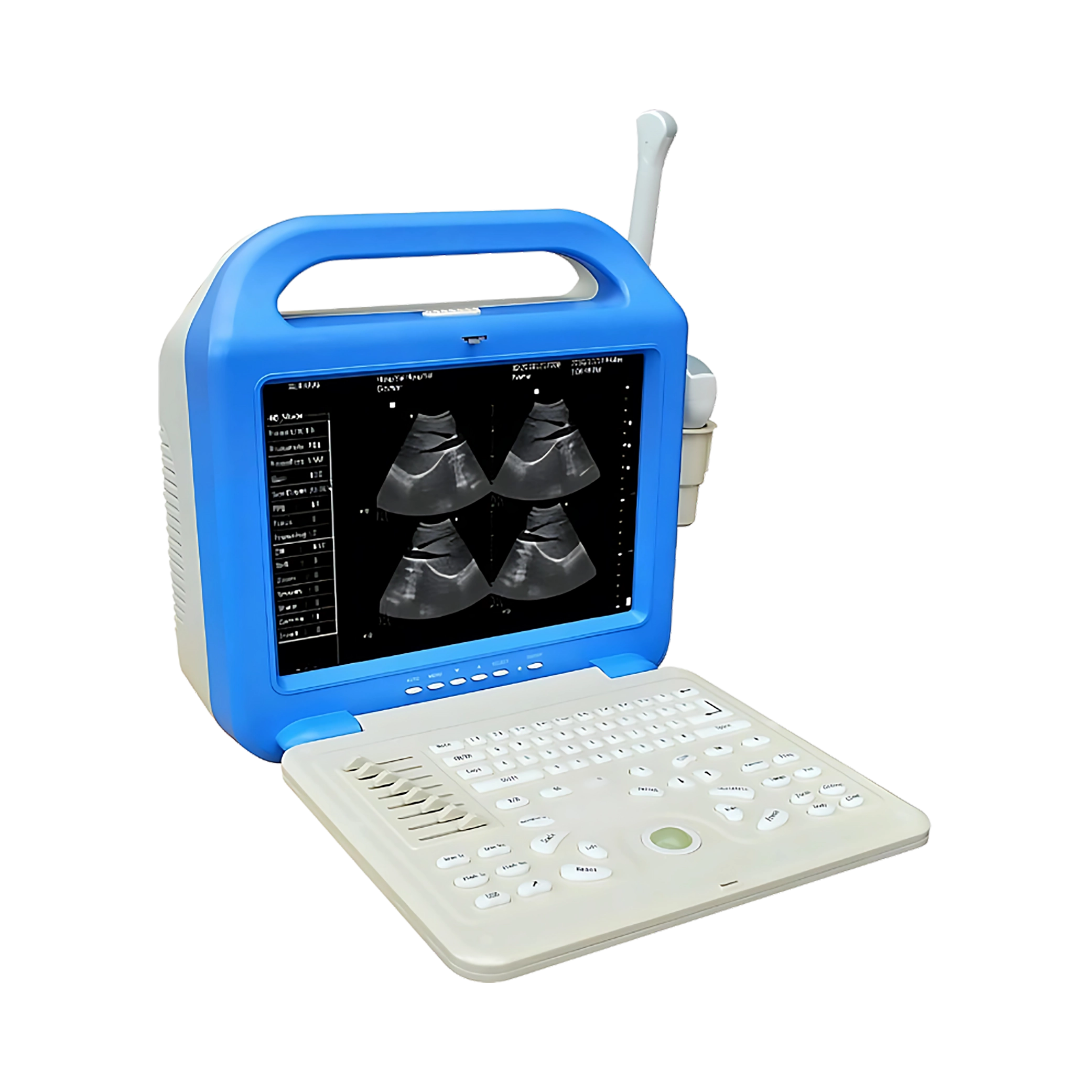

Ultrasound Scanner AM-US41 adopts digital beam forming technology with unique and perfect design. Provided with 7 kinds of pseudo colors. Equipped with large 12-inch LCD monitor. Display depth is about 240 mm and depth could be increased. Intelligentized 8 segment TGC adjustment. It is light weight of 6.5 Kgs and very convenient to carry out. Primarily it can connect to laser printer and video printer directly. Image can be transferred to PC through USB ports for remote diagnosis. Built in pseudo color processor and can connect external screen monitors, color monitors and video image printer.

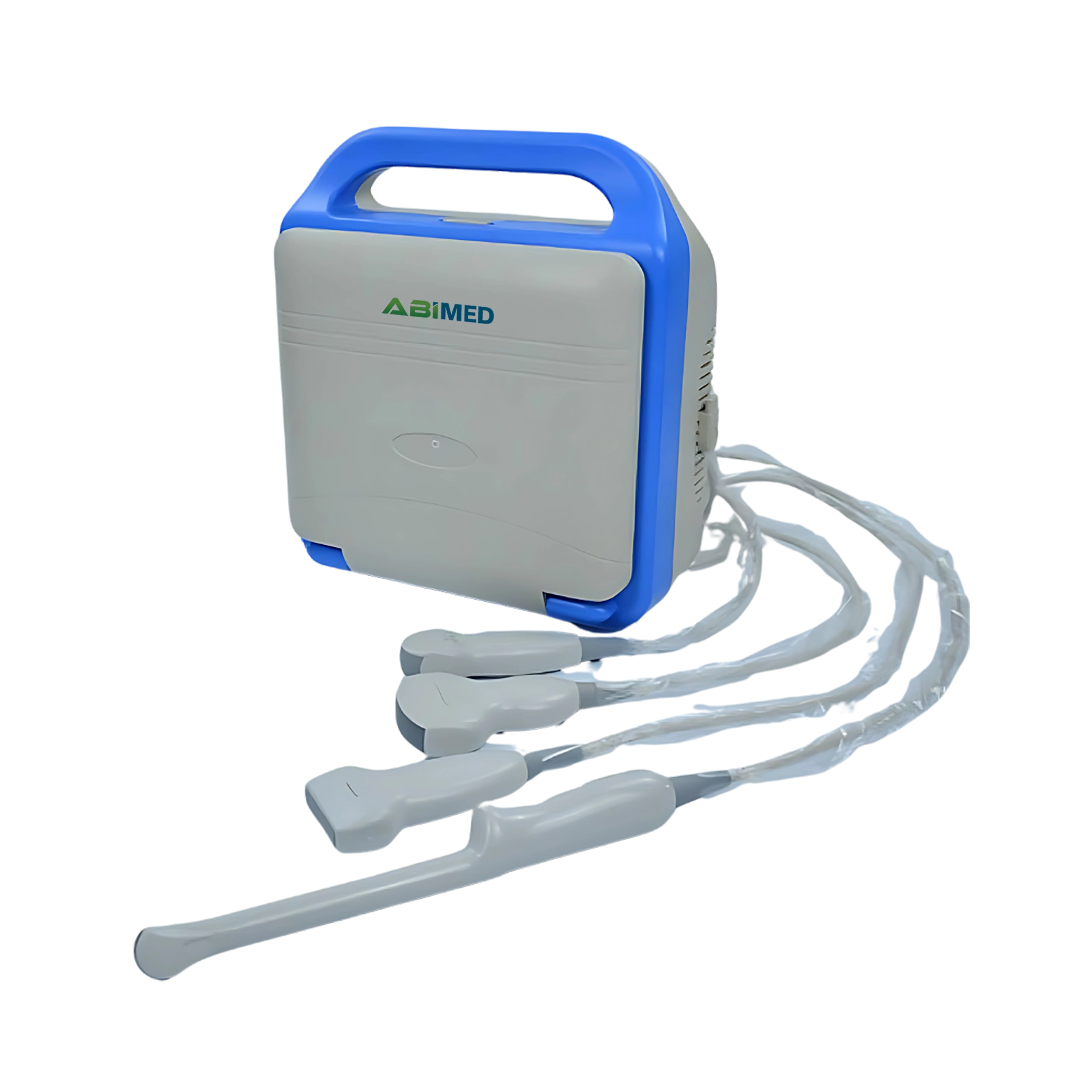

| Scanning Mode | Convex/Linear/Trans-vaginal |
| Display Modes | B, B+B, B+M, M, 4B |
| Scanning Depth | 240 mm |
| Gray Scales | 256 |
| Body Marks | 18 |
| Image Conversion | up/down, left/right, black/white |
| Zooming | *0.8, *1.0, *1.2, *1.5, *2.0 |
| Power Supply | AC 110V-240V, 50HZ/60HZ |
| Dimension | 56×42×26 cm |
| Gross Weight | 6.5 Kgs |
Connect with Our Specialists
Abimed Ultrasound Scanner are designed to deliver crystal-clear images and reliable results every time. These advanced devices ensure exceptional diagnostic accuracy with their high-resolution display and intuitive interface. Their compact, user-friendly design makes them easy to navigate and operate, while the portability offers flexibility for diverse medical settings. Our Ultrasound Scanner offers the clarity needed for confident decision-making, empowering healthcare professionals to enhance patient care quickly and efficiently.
