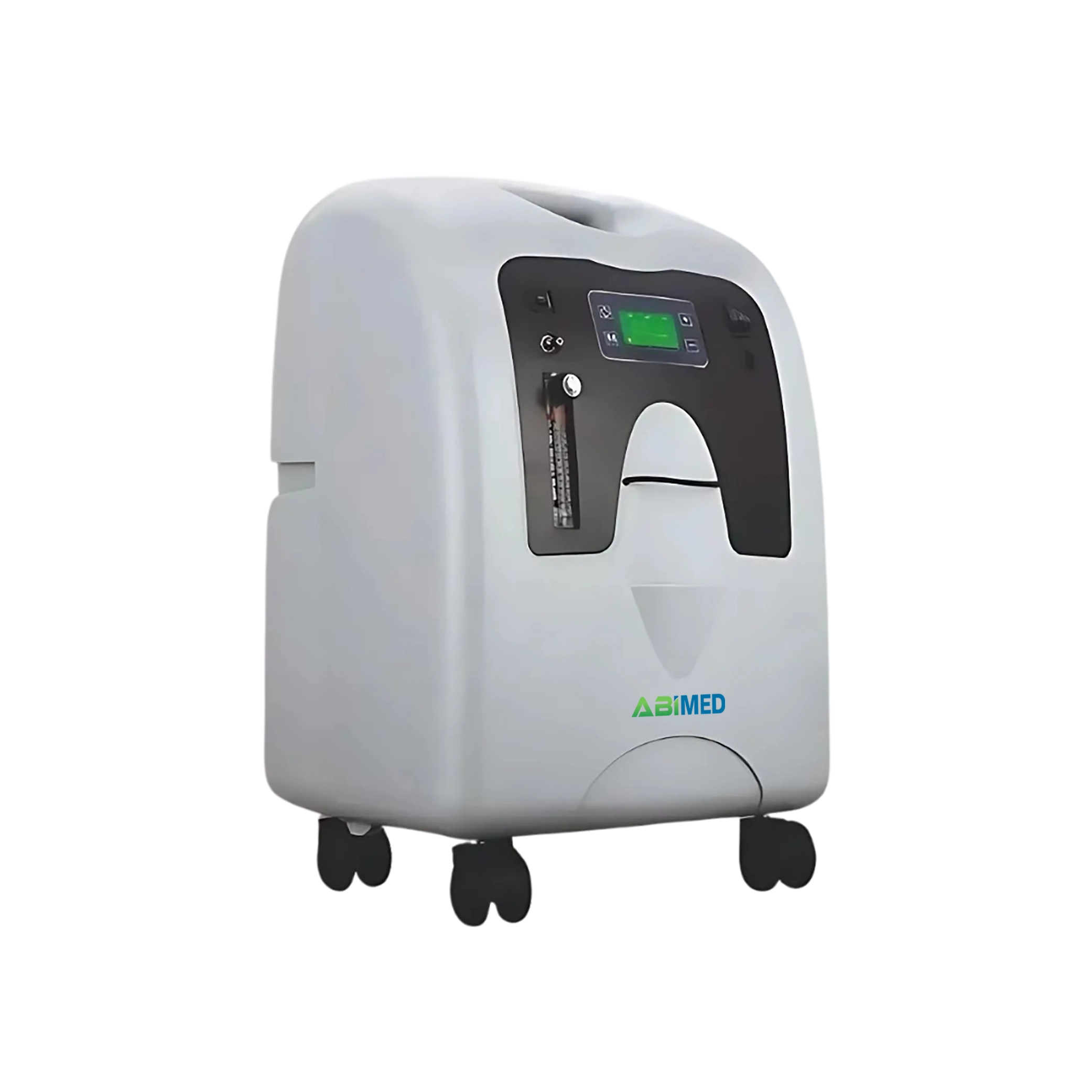

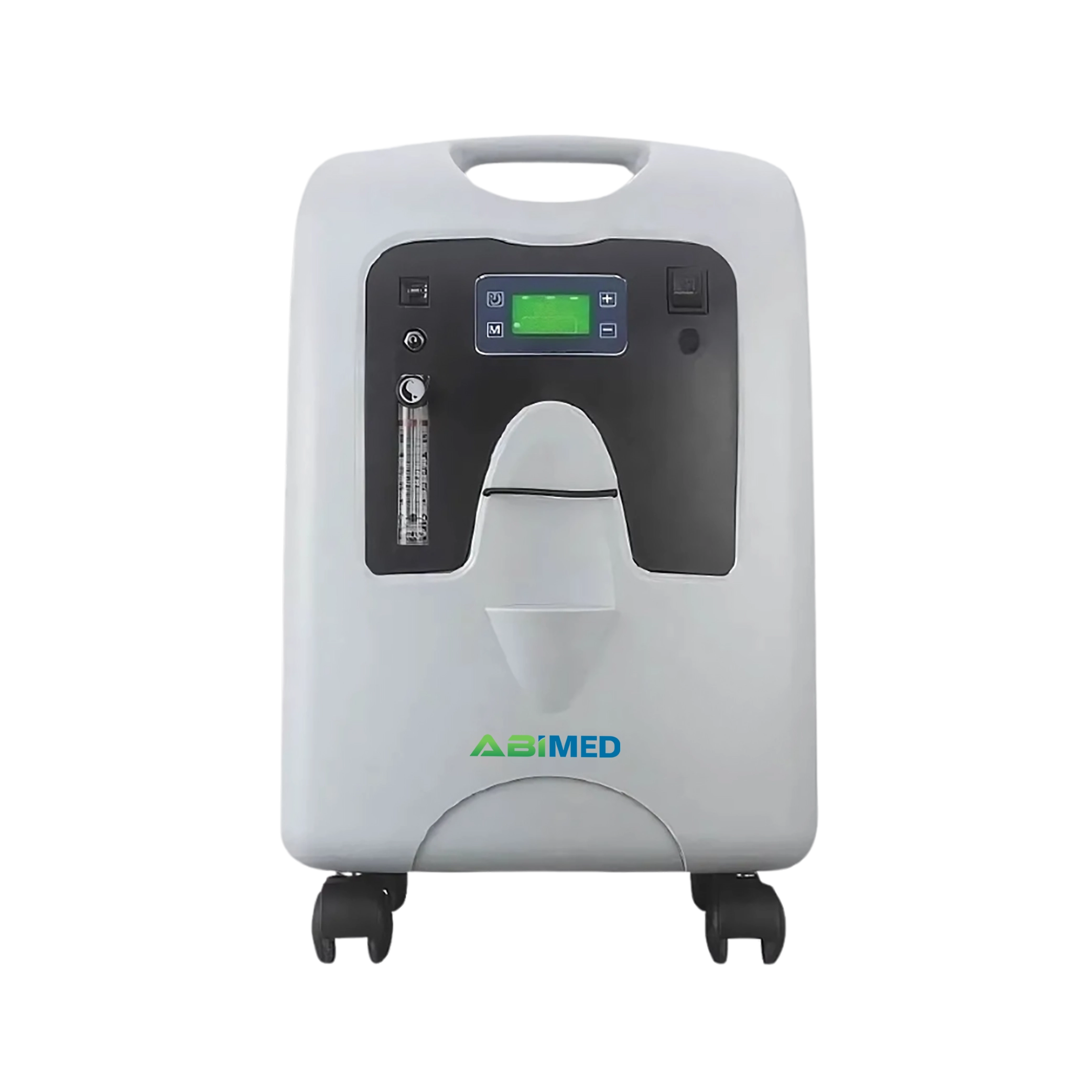

Stationary Oxygen Concentrator AM-SOC33 is a medical grade stationary oxygen concentrator with a flow range of 1 to 10 liters per minute at a continuous flow. It has a medical level oxygen purity of 90% to 96% at all flow levels. Purity alarm when the oxygen purity is below 82%. It produces oxygen continuously up to 10 lpm. This device is safe and effective medical grade oxygen machine which can be used at high attitudes and humid environments.
Catalog
| Flow Range | 2 to 10 Lpm |
|---|---|
| Maximum Flow | 10Lpm |
| Oxygen Purity | 93%±3% (2 to 9LPM), 90%±3% (10LPM) |
| Output Pressure | 80 ± 8 kPa (12 ± 1 Psi) |
| Weight | 19.1kg |
| Dimension (L×W×H) | 368×342×572 |
| Noise Level | <45db(A) |
| Electrical Requirement | 115V/60Hz, 220V/50Hz, 60Hz 230V/50Hz, 100V/50Hz,60Hz |
| Power Consumption | 580 (AVER) |
It is widely applied in the field of clinical, hospital use to meet a wide range of patient needs
Abimed offers a range of high-quality medical oxygen concentrators designed to meet diverse patient needs. These concentrators provide adjustable flow rates, starting from 0.5 L/min up to 10 L/min, with oxygen purity consistently maintained at 90% or above. The units are energy-efficient, with power consumption ranging from 195 W to 300 W. They ensure minimal noise levels, creating a comfortable environment for patients. Our concentrators deliver reliable and consistent oxygen therapy, supporting patient health and wellness.
| Flow Rate | 10 L/min adjustable |
| Purity | 93%±3% |
| Power Supply | 220 V/50 Hz or 110 V/60 Hz |
| Flow Rate | 3 L/min adjustable |
| Purity | 93%±3% |
| Power Supply | 220 V/50 Hz or 110 V/60 Hz |
| Flow Rate | 0.5 to 5 L/min adjustable |
| The Maximum Amount of Oxygen | 5 L/min≥90% |
| Power | 300 W |
| Flow Rate | 0.5 to 3 L/min adjustable |
| The Maximum Amount of Oxygen | 3 L/min≥90% |
| Power | 195 W |
Abimed portable oxygen concentrators are designed to provide supplemental oxygen for patients with breathing difficulties. These concentrators maintain an oxygen purity of 90% to 96% for effective treatment. They are smaller and lighter in weight which makes them easy to carry. These devices draw in oxygen using a battery, electricity, or DC power sources. Their portable design and compatibility with standard power supplies make them ideal for both home use and travel.
| Oxygen Flow | 5L/min |
| Oxygen Concentration | ≥93%±3 |
| Power Supply | 220V±22V 50Hz |
| Continuous Flow Settings | 0.5 to 2.0L |
| Pulse Flow Settings | 1 to 12 pulse settings equal to 0.5L to 8L |
| Oxygen Concentrator | 90% to 96% at any settings |
